Kurt MaxLock™ 5-Axis Vise – PF440

Part No. PF440

$1,303.00

Introducing the NEW automation ready Kurt  PF440 MaxLock™  5-Axis  vise featuring our patented AngLock® Design, quick lash adjustment, and  3 available jaw options.



Clear

Description

Description

Introducing the new Precision Force 5-Axis MaxLock™ vise lineup featuring 3 new models with 3 available jaw options. Robot-ready Kurt PF-series vises offer new user-friendly features including easy-to-adjust lash and 52mm spacing for automation-ready mounting systems to adapt to competitors’ zero-point systems.

The new Quick Lash Adjustment makes center-line movement fast and efficient and keeps parts perfectly positioned and vises in the field longer with less downtime through the usual wear and break in periods. New spring-loaded gibs keep parts square and are designed to maximize part-positioning repeatability through multiple cycles.

Kurt’s PF 420, PF 440 and PF 460 vises come with standard 4-inch jaw width and jaw openings ranging from 2.625” to 6.625” making them the perfect vise for any customer’s small-part workholding applications. PF-series vises replace the previous Kurt HP models and feature the patented AngLock® design to minimize jaw lift and deflection. The proven AngLock® design naturally pushes the vise jaws down and forward allowing much greater surface contact on parts—maximizing holding strength with less clamp force.

• High clamp Force
• Jaw design minimizes jaw lift
• Easy center-line adjustment
• Quick lash adjustment
• Hex on both ends of screw, can be adjusted from either side

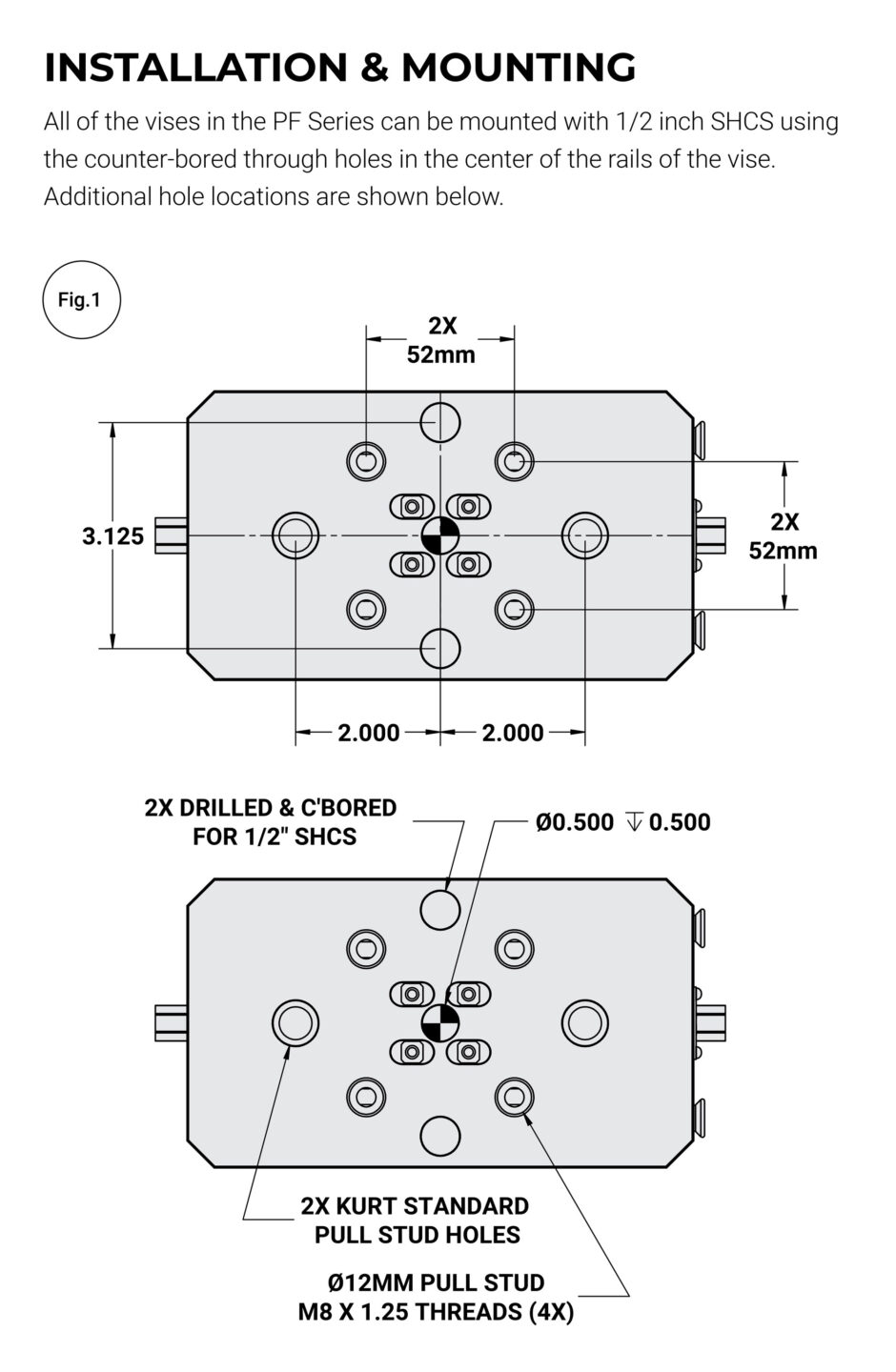

• 52mm pattern spacing for mounting to industry standard zero-point systems
• End effector ready for automation integration

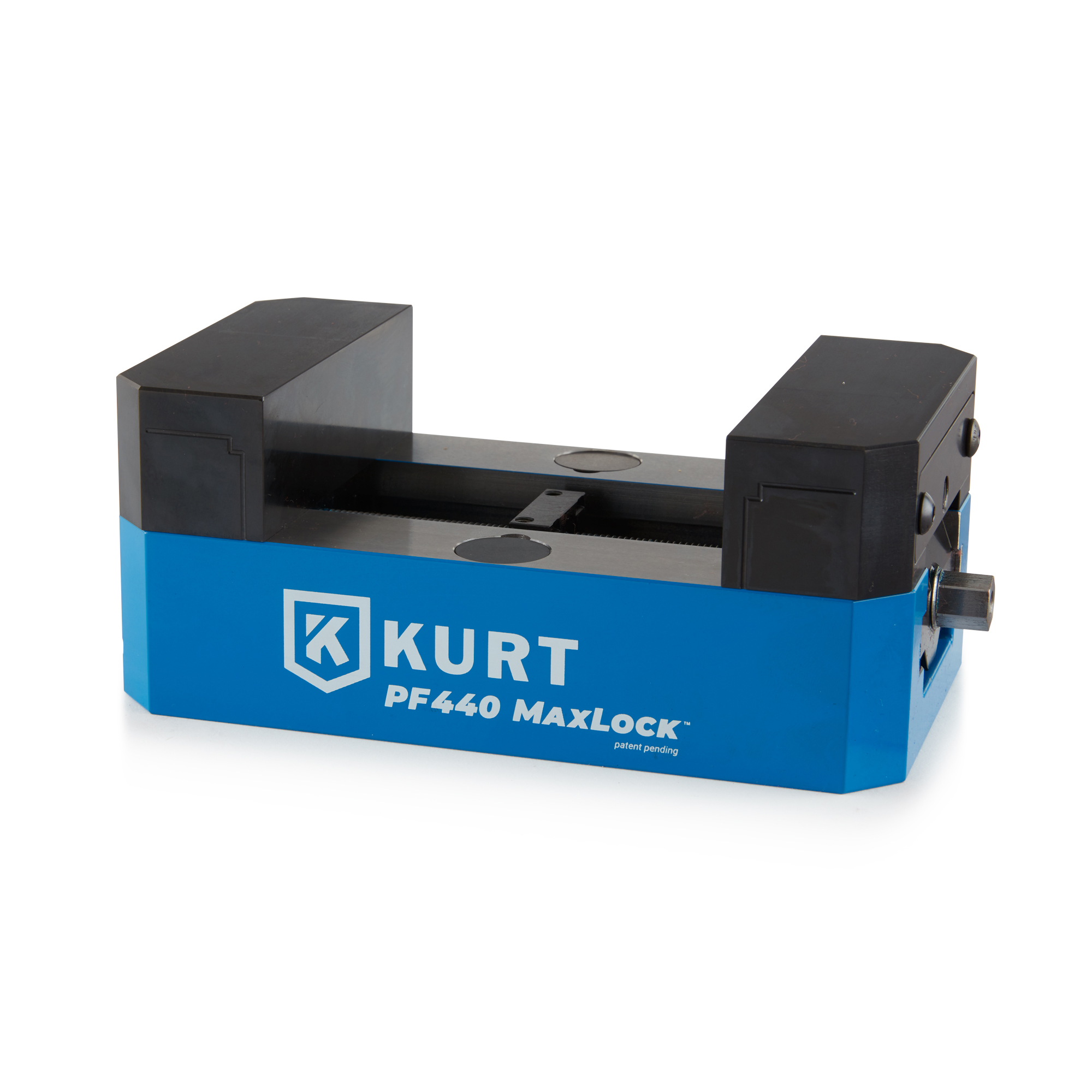

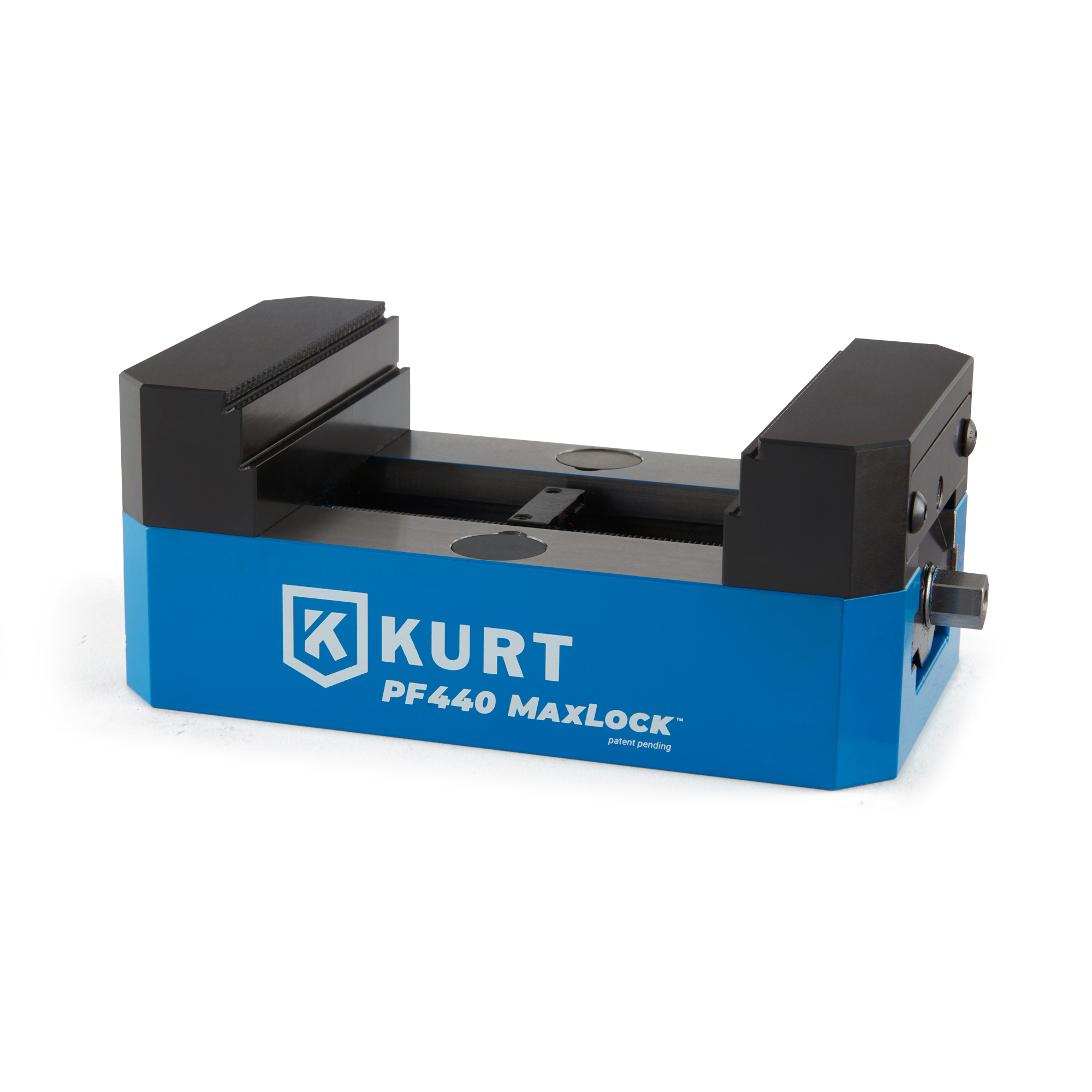

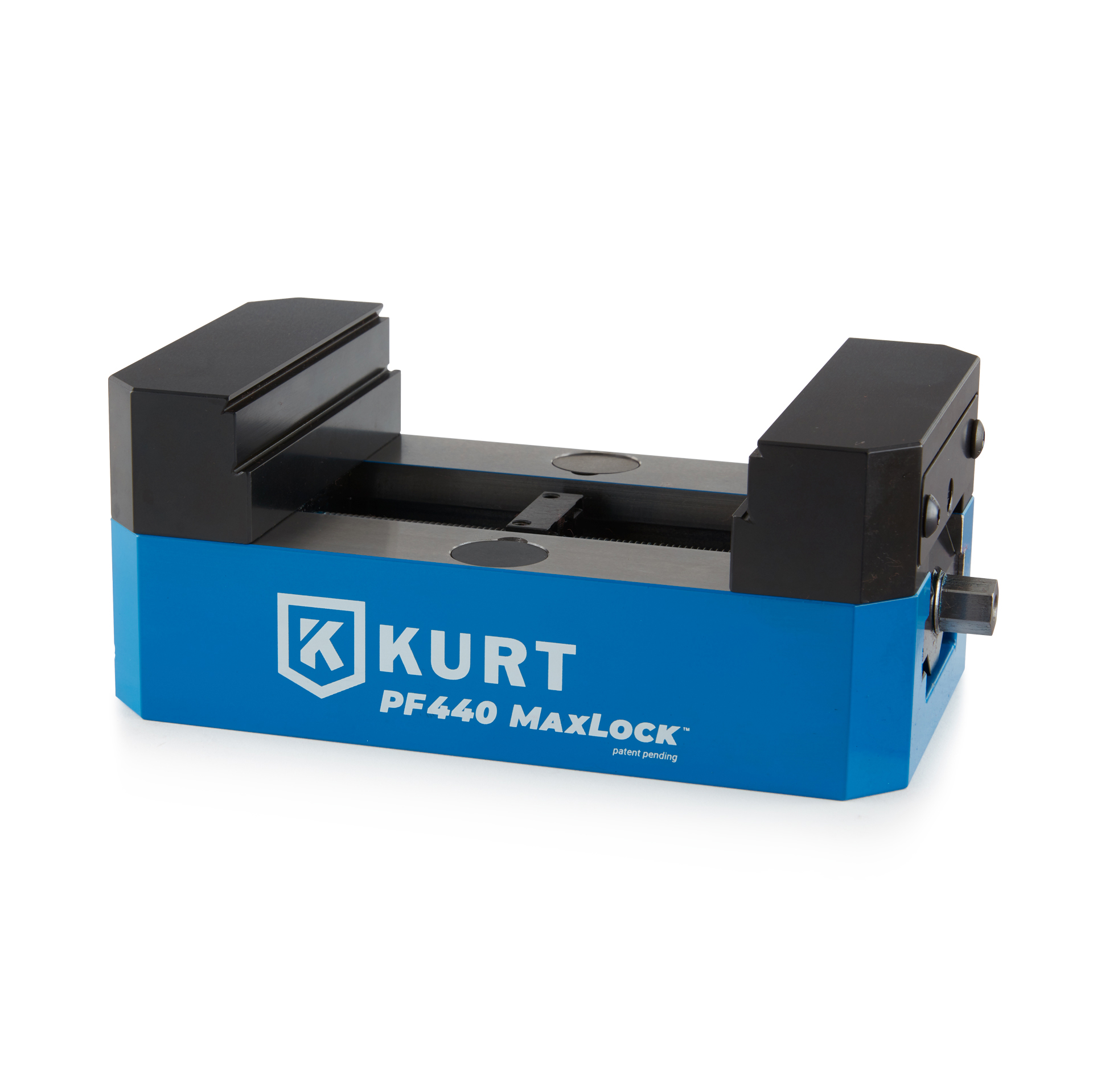

• Movable jaw options: Machinable, Dovetail and Serrated
• Jaws and nuts can be reversed for ID clamping
• Jaws are gibbed to help with squareness
• Max torque 45 foot pounds.

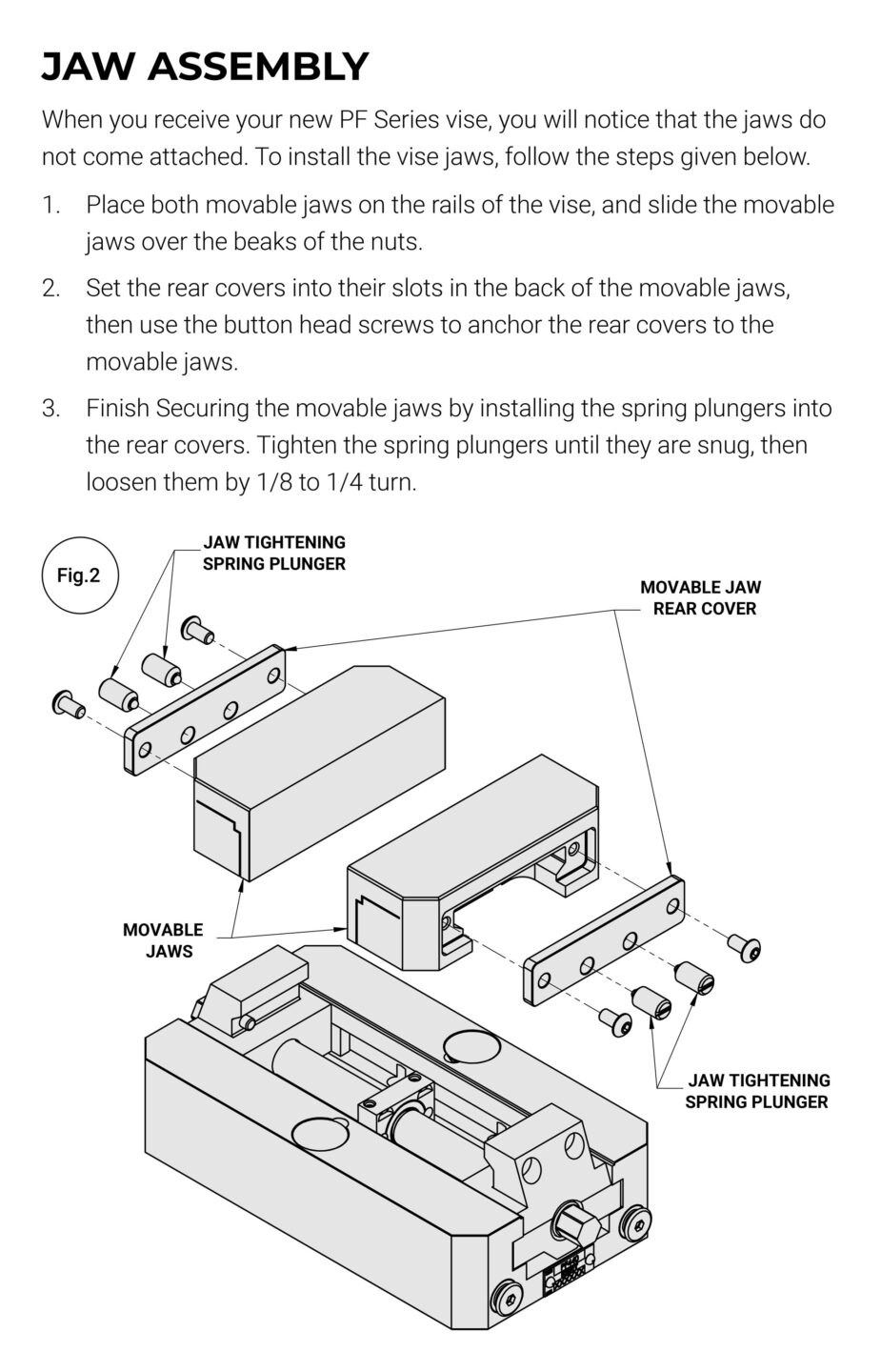

Manuals and Spec Sheet

PF440 Manual
PF Series Vise Spec Sheet

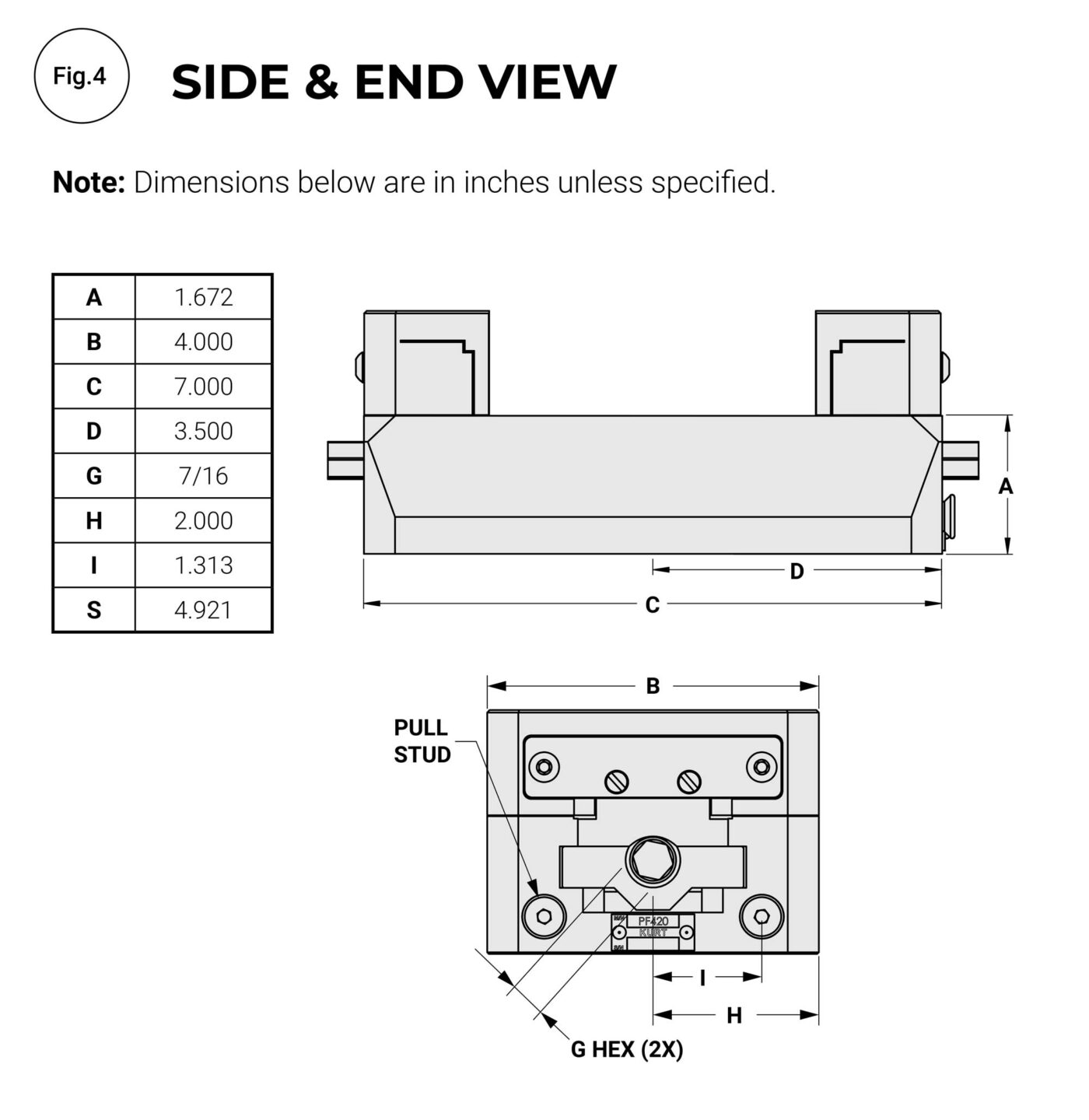

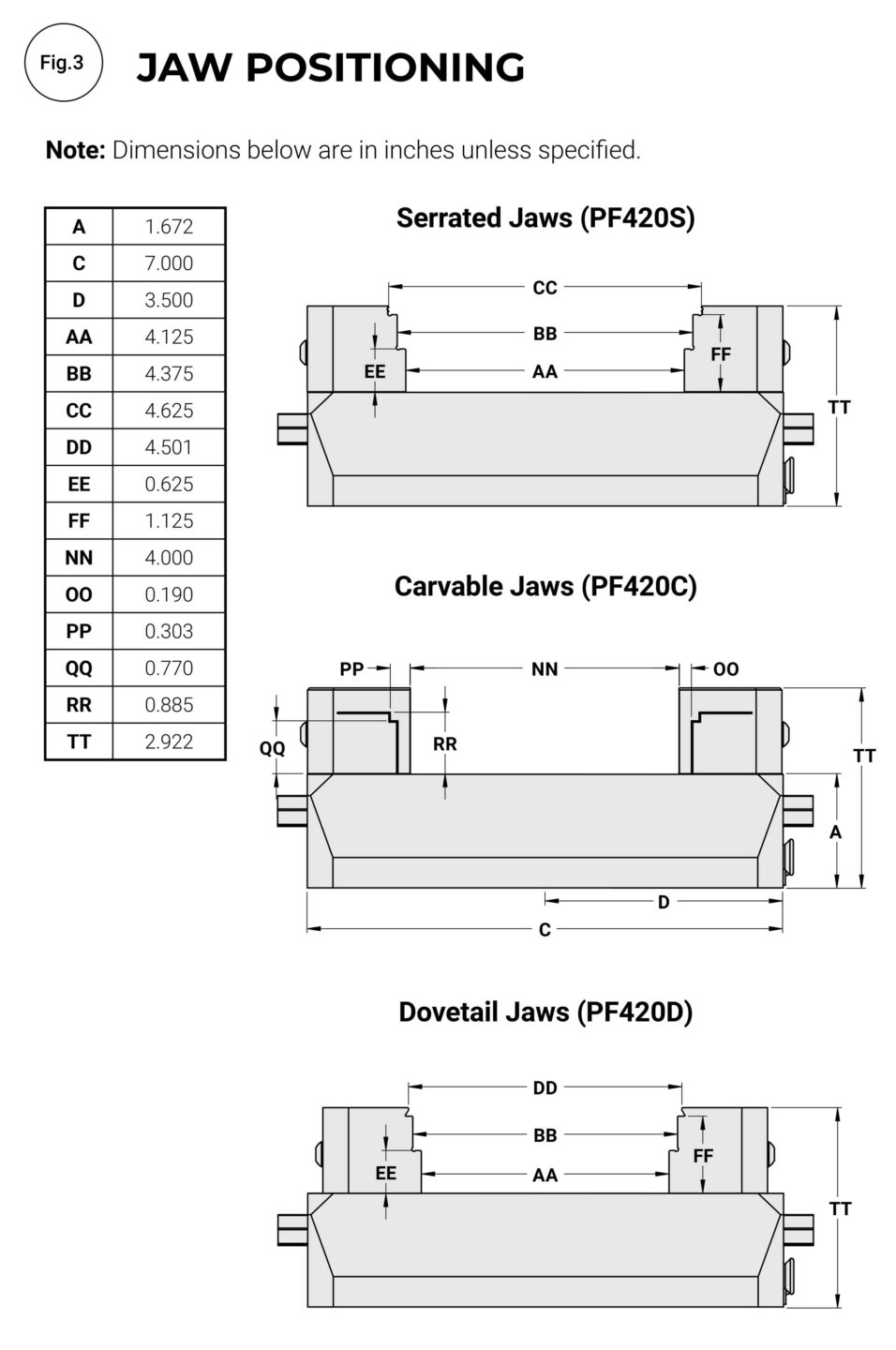

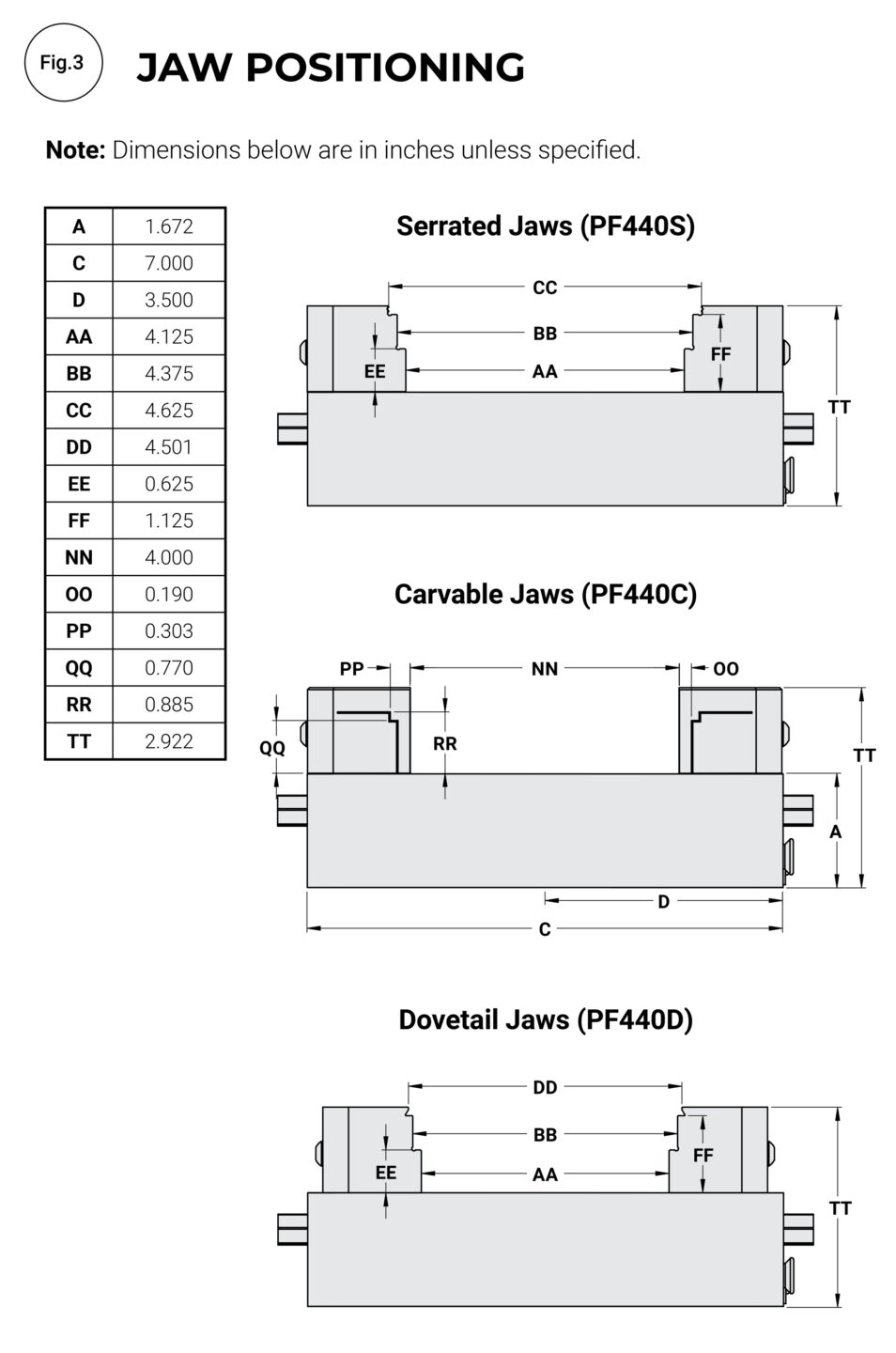

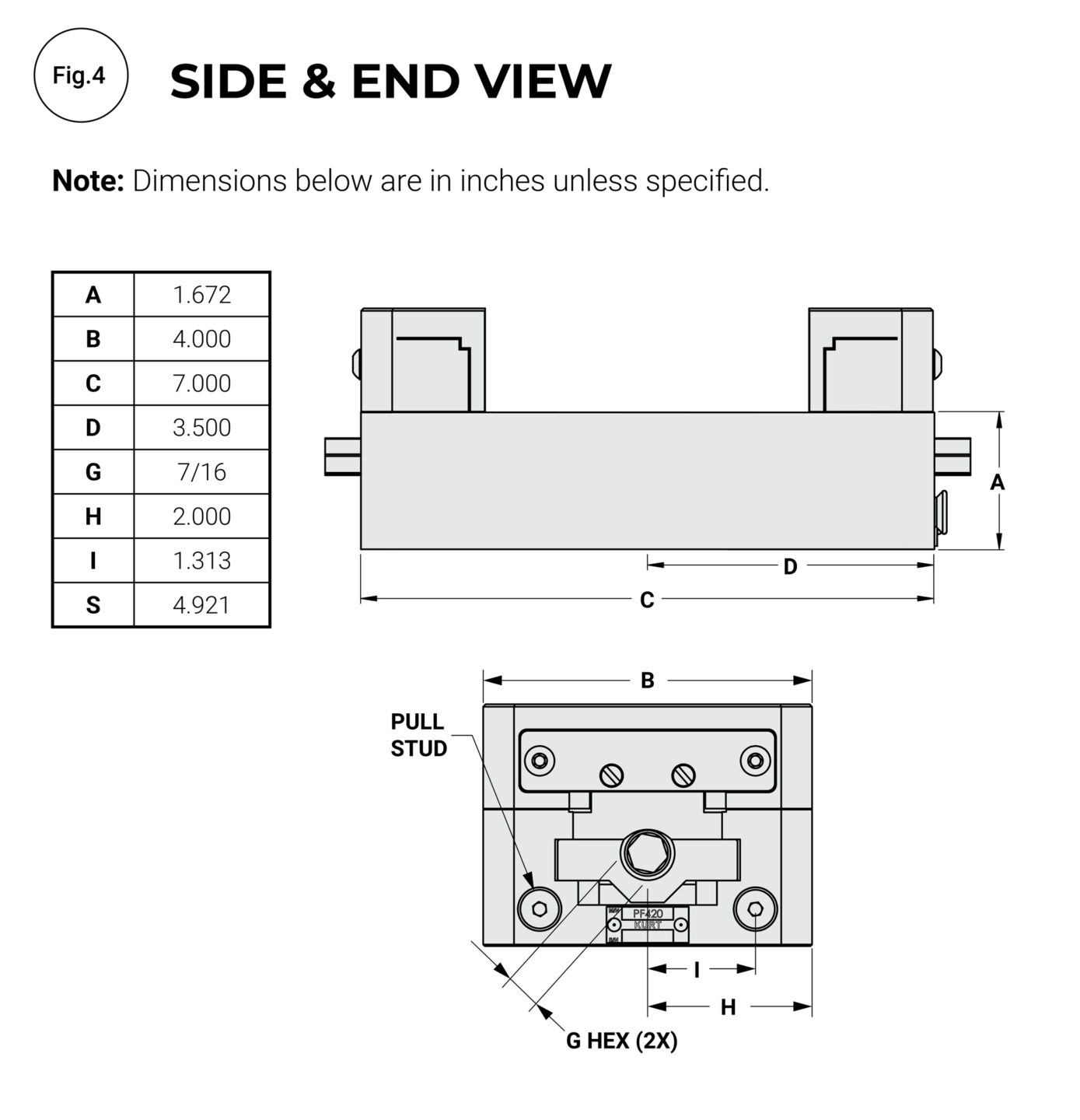

Dimensional Data

Dimensional Data

A 1.672
B 4.000
C 7.000
D 3.500
E .438
F 7.875
G 7/16
H 2.000
I 1.313
J 2.000
K 4.000
L 1.563
M 3.125
N 0.500
O 1.024
P 52MM
AA 4.125
BB 4.375
CC 4.625
DD 4.501
EE 0.625
FF 1.125
NN 4.000
OO 0.190
PP 0.303
QQ 0.770
RR 0.885
SS 2.942
TT 2.922

2D/3D CAD

2D/3D CAD
