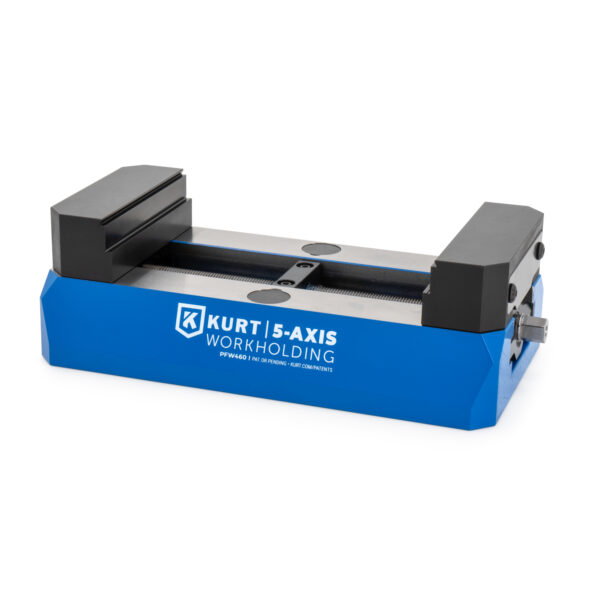

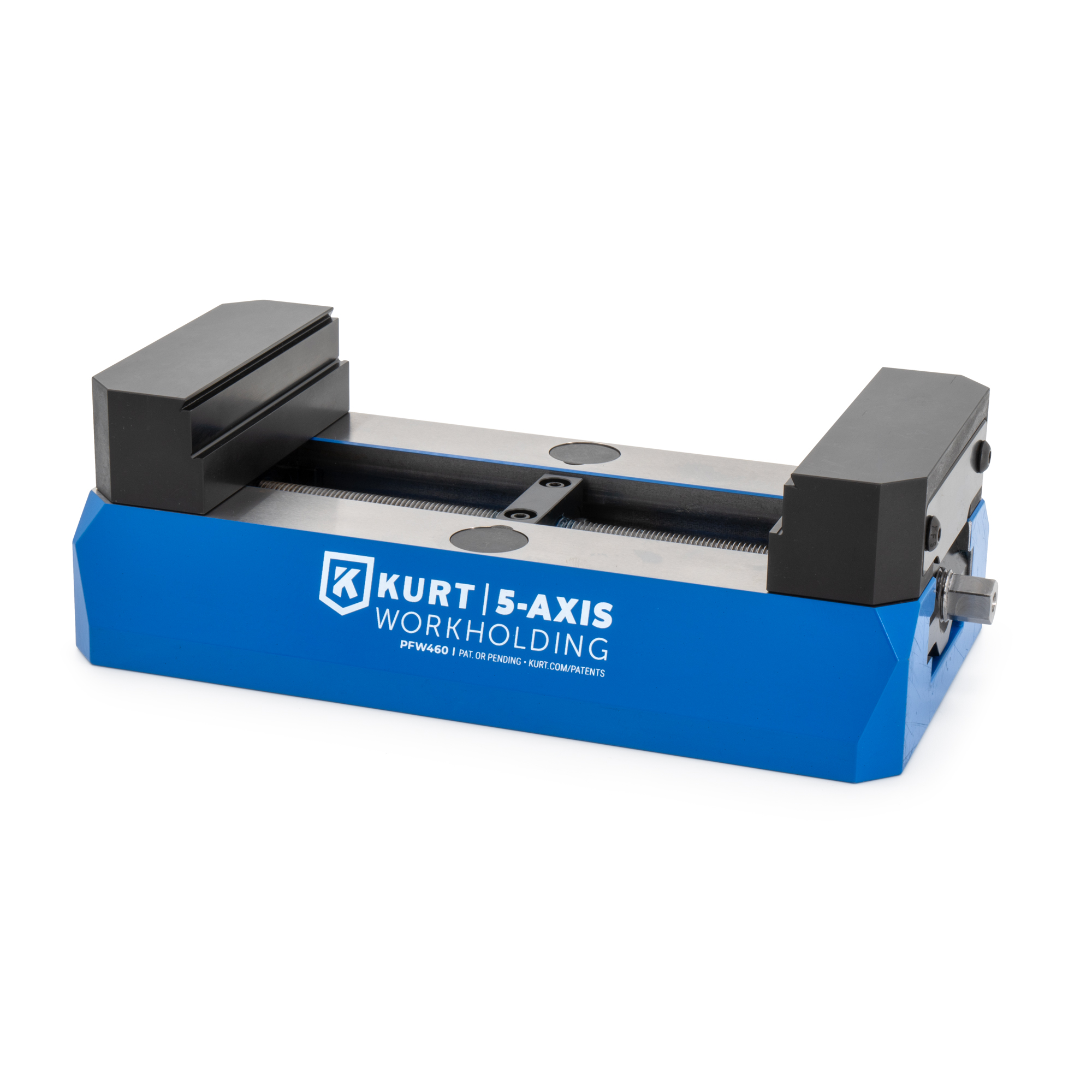

Kurt PFW460 5-Axis Vise with 96mm spacing

Part No. PFW460

$1,406.00$1,542.00

Introducing the NEW automation ready Kurt PFW460  5-Axis vise featuring 96mm pull-stud spacing, our patented AngLock® design, quick-change jaws, quick lash adjustment, and  3 available jaw options.



Description

Description

New Kurt 96mm 5-Axis Vises

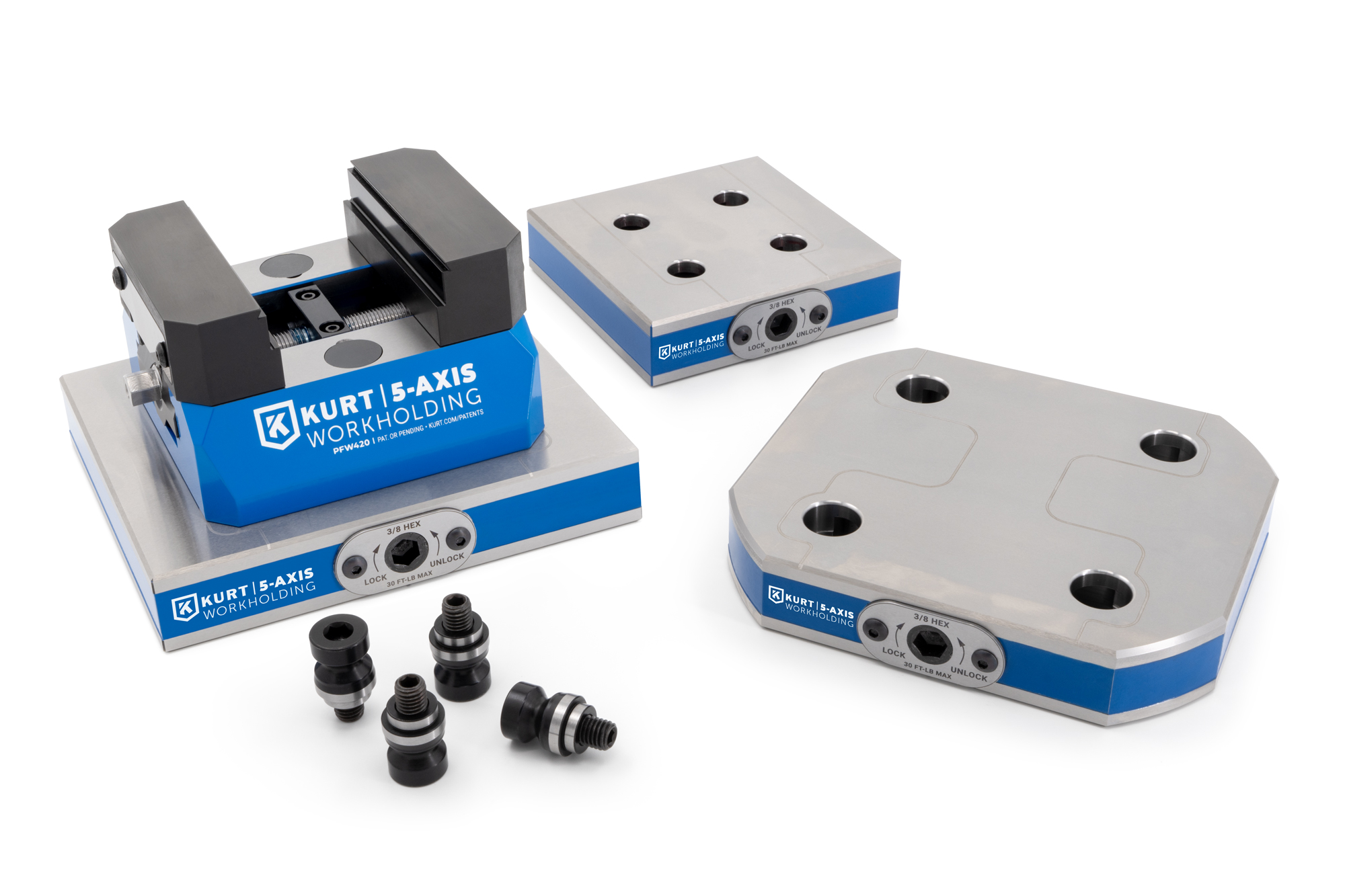

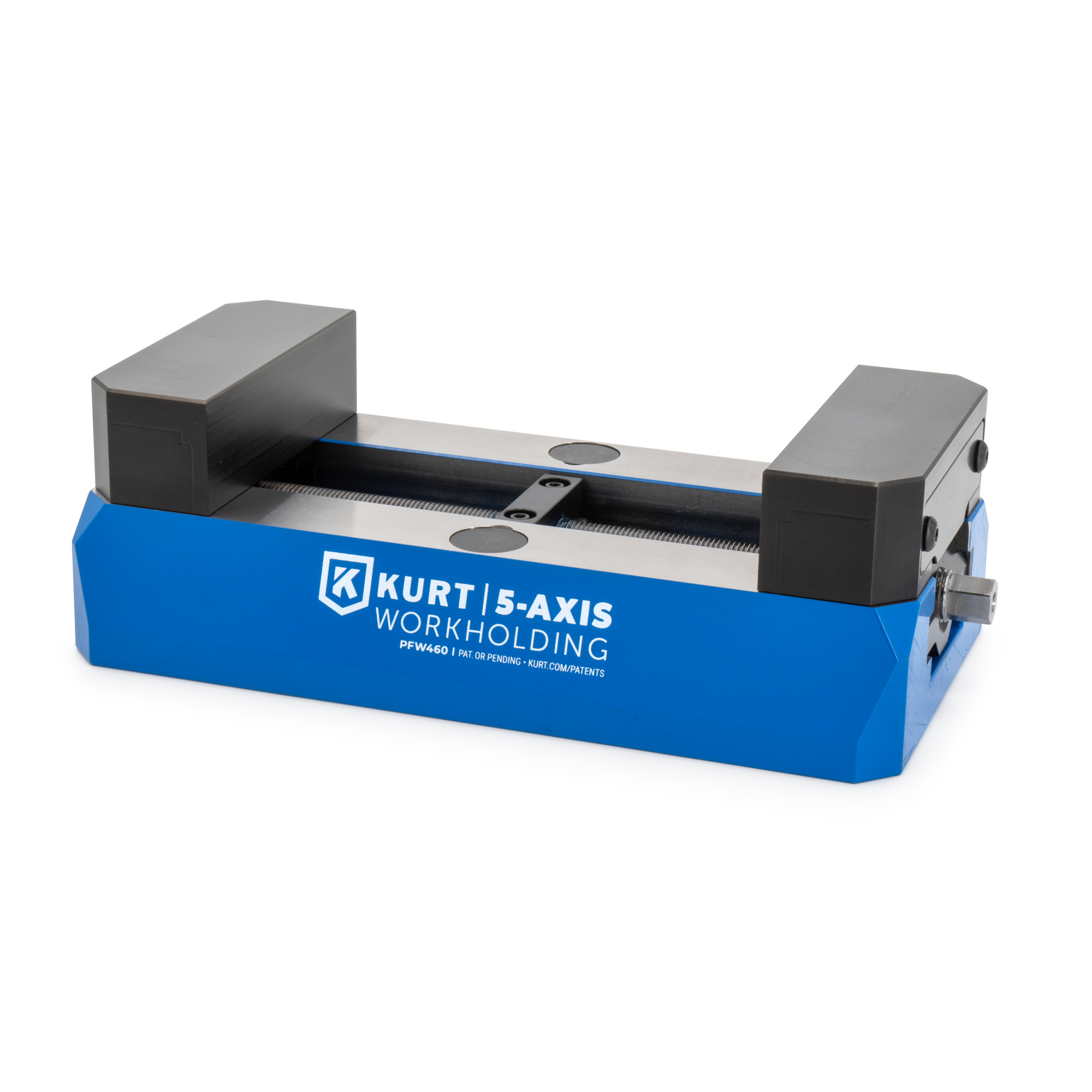

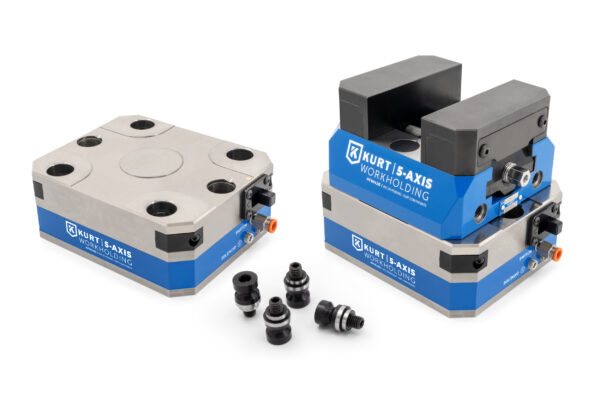

Introducing the New Kurt PFW460 5-Axis 96mm vise. Featuring three vise-body sizes and three jaw options, our new wide-body design allows mounting using a 96mm pull-stud pattern on Kurt zero-point quick-release pallets. Choose any of three jaw options including, serrated, machinable or dovetailed styles in 4-inch widths. Kurt 5-Axis vises allow maximum part accessibility for done-in-1 machining operations on 3-, 4- or 5-axis machines. User-friendly features include, quick-change jaws, spring-loaded gibs, quick-lash adjustment, hexes on both ends of the vise and side-body pull stud locations for robotic machine tending and pick and place.

PFW Vise Features

The new Quick Lash Adjustment makes center-line movement fast and efficient and keeps parts perfectly positioned and vises in the field longer with less downtime through the usual wear and break in periods. New spring-loaded gibs keep parts square and are designed to maximize part-positioning repeatability through multiple cycles.

Kurt’s PFW420, PFW440 and PFW460 vises come with 4-inch wide jaws and openings ranging from 2.625″ to 6.625″, making them the perfect vise for any 3, 4 or 5-axis machines milling small- to medium-sized parts. PFW-series 5-axis vises feature the patented Kurt AngLock® design to minimize jaw lift and deflection. The proven AngLock® design naturally pushes the vise jaws down and forward allowing much greater surface contact on parts—maximizing holding strength with less clamp force.

  • Quick-change, snap-on/off jaws
  • Anglock design minimizes jaw lift
  • High clamping force
  • Spring-loaded gibs for squareness
  • Easy center-line adjustment
  • Quick lash adjustment
  • Hex on both ends of screw, can be adjusted from either side

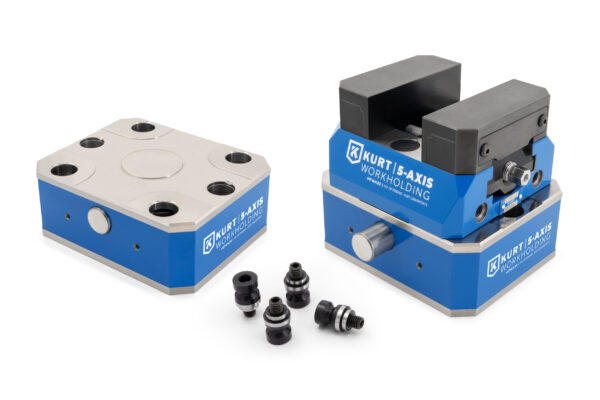

  • 96mm pull stud pattern spacing for zero-point pallet systems
  • End effector ready for automation integration
  • 3 jaw options: Machinable, Dovetail and Serrated
  • Jaws and nuts can be reversed for ID clamping
  • Max torque 45 foot pounds.

Resources

Dimensional Data

Dimensional Data

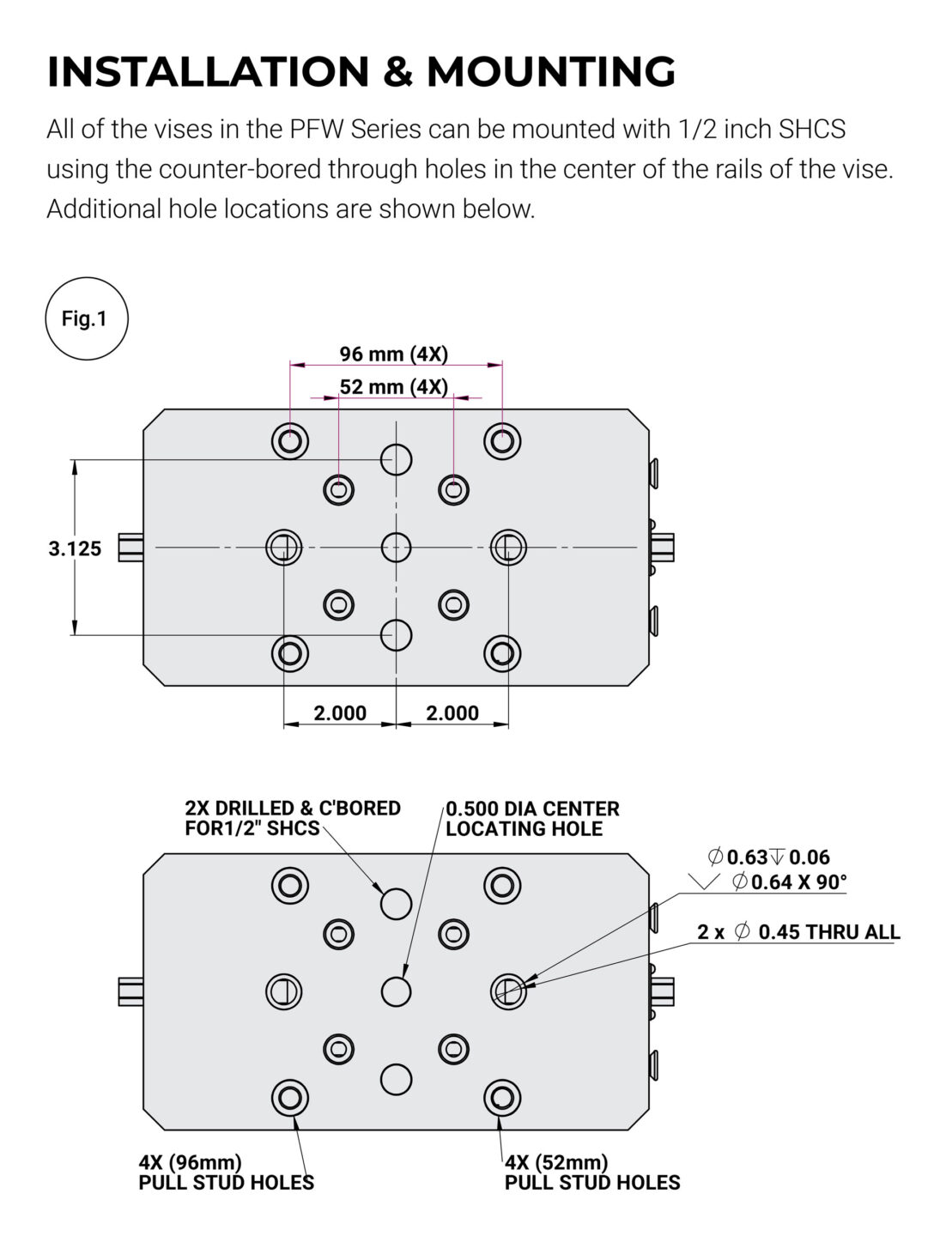

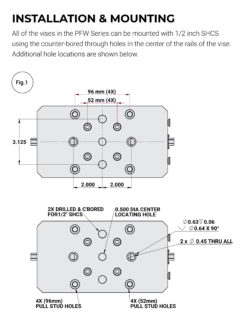

Kurt PFW460 Installation and Mounting

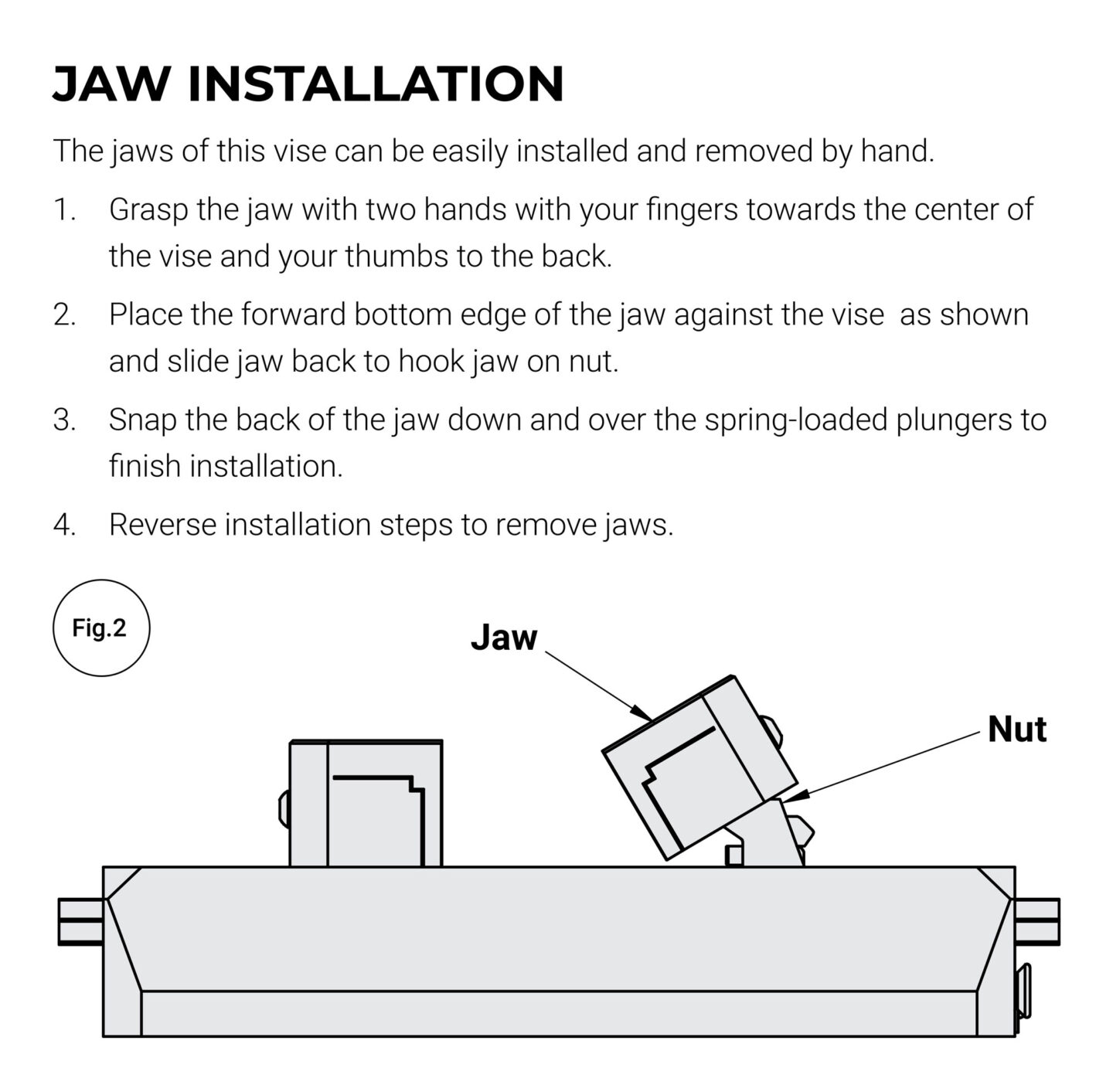

Kurt PFW460 Jaw Installation

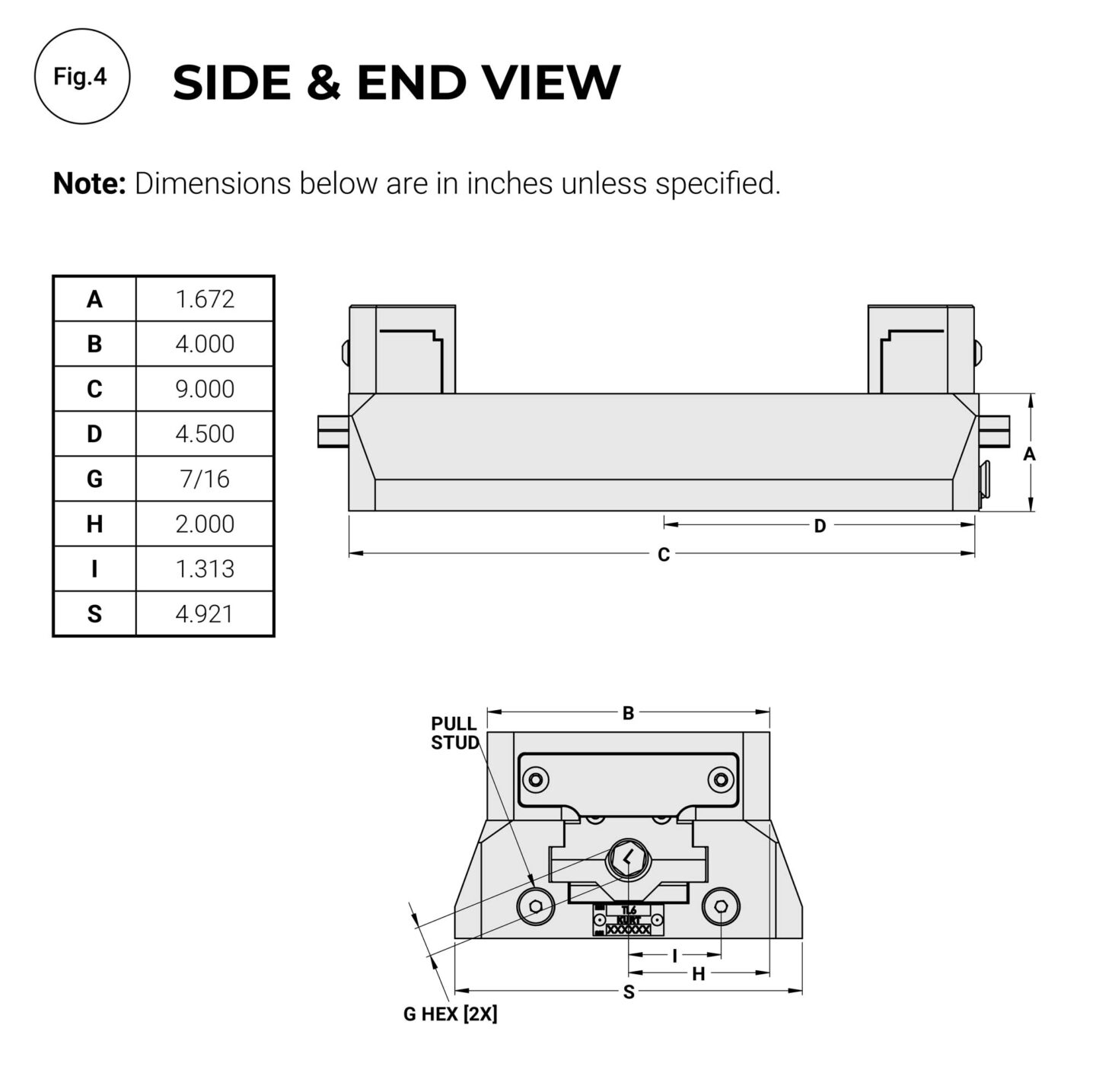

Kurt PFW460 Side and End View

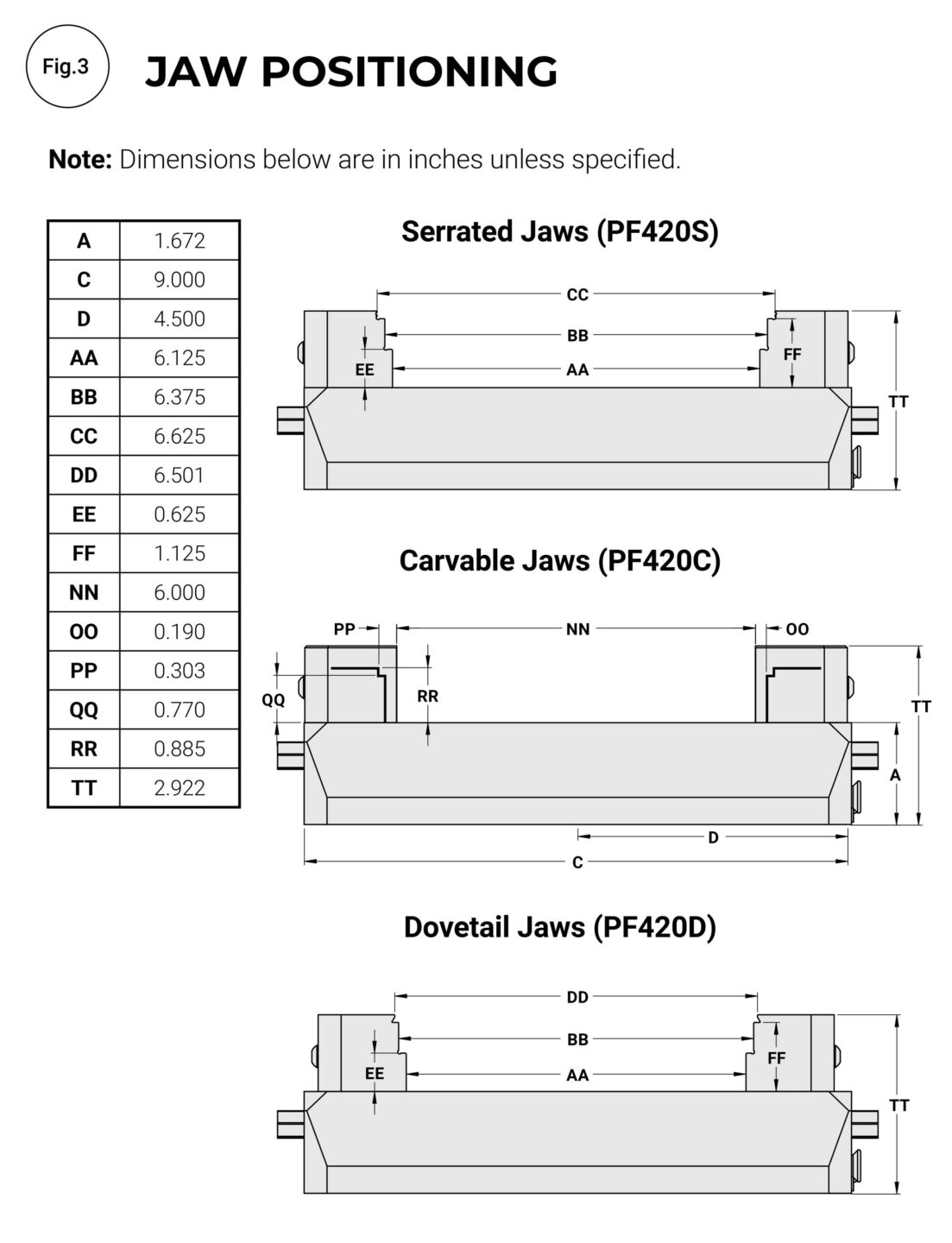

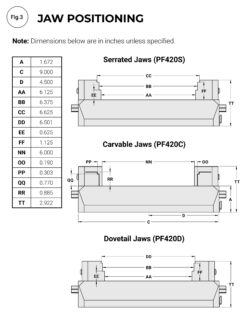

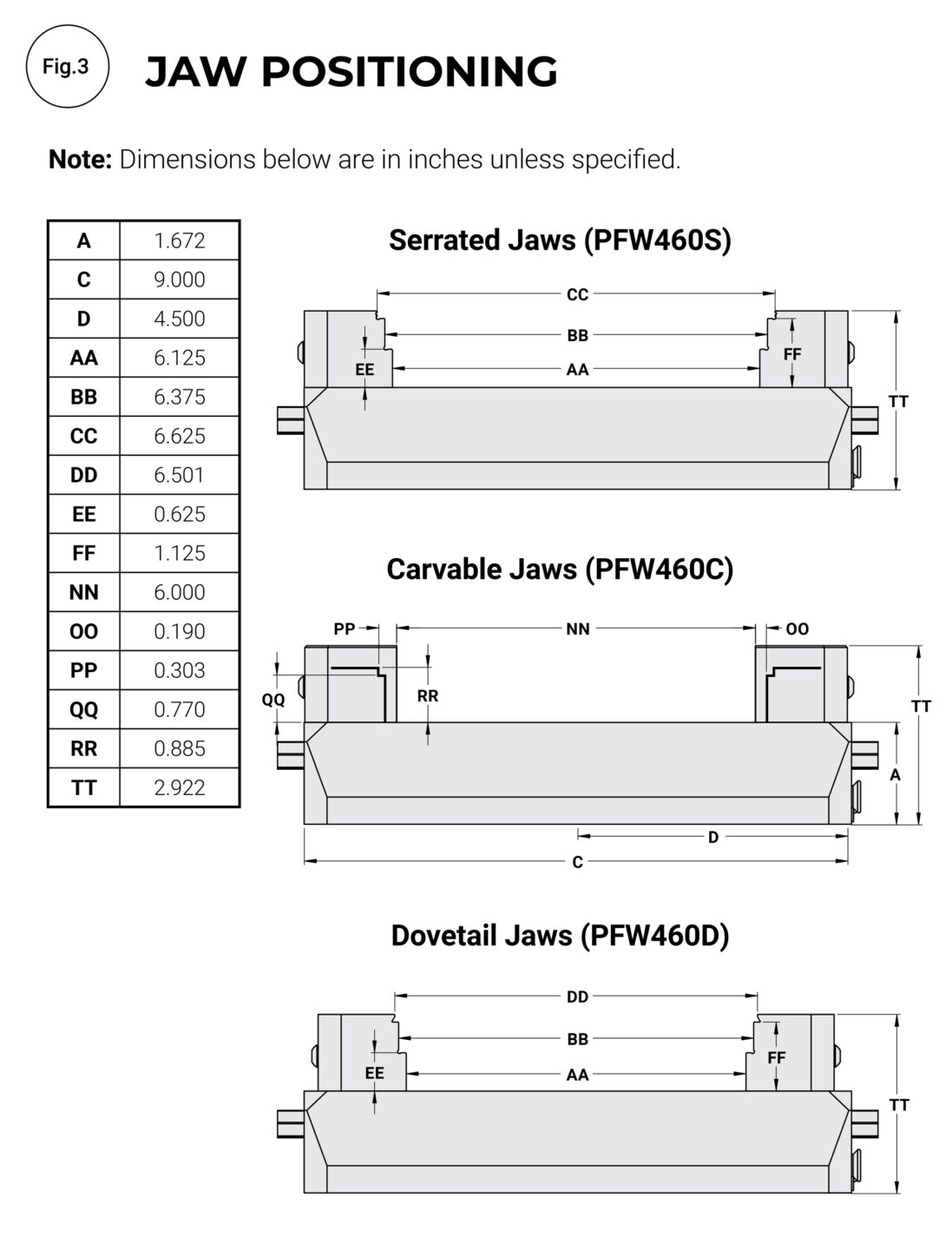

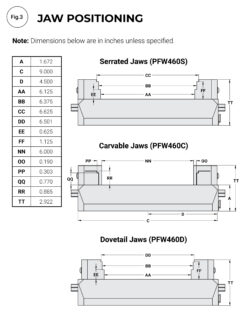

Kurt PFW460 Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Ft-Lbs Force in lbs.
10 720
20 1,520
30 2,250
40 3,050
45 3,375
