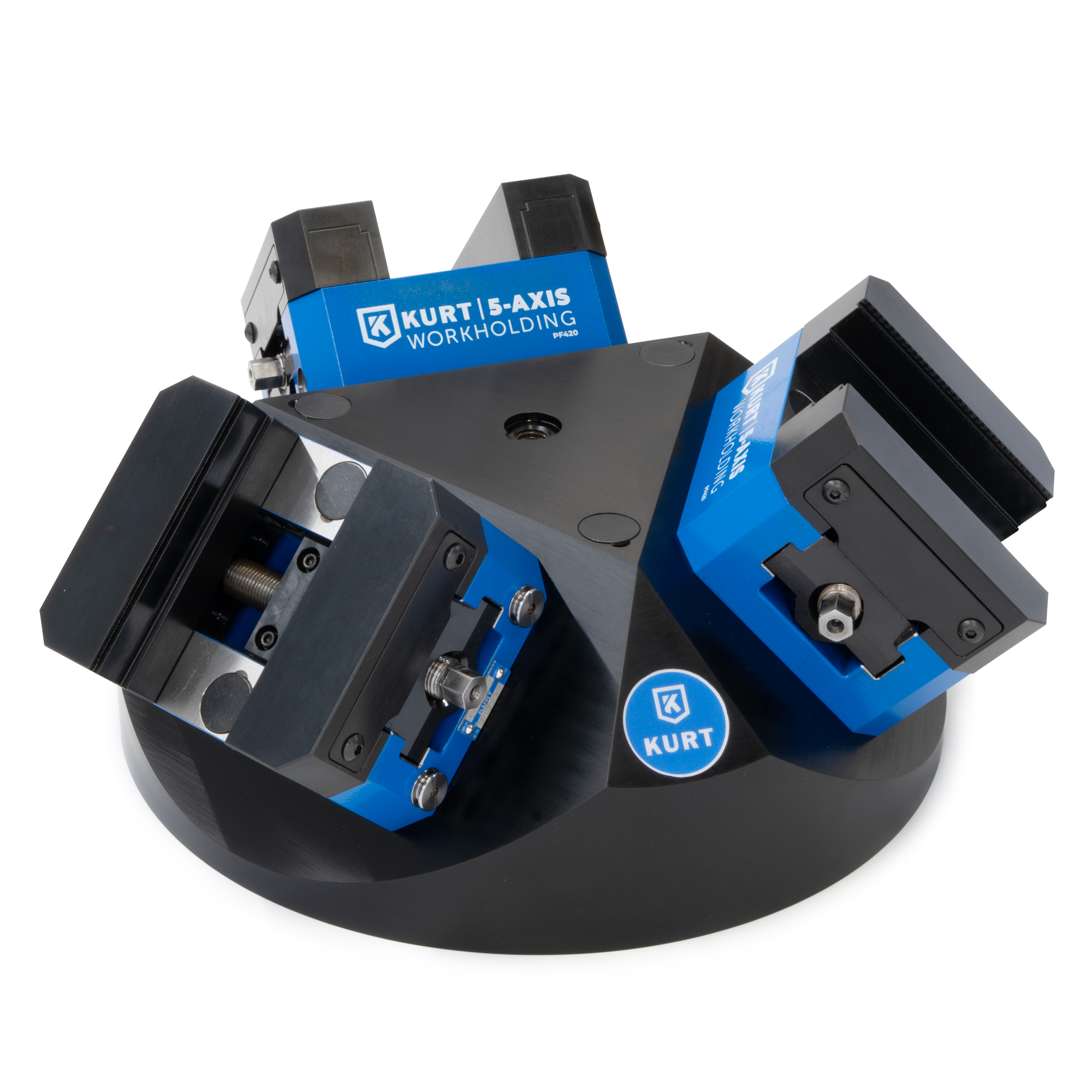

Kurt Pyramid 45-Degree Mounting Platform

Part No. PYR

$2,500.00

45-degree Pyramid design provides maximum access to all machined surfaces and allows or enhanced spindle and cutting tool clearance. Pyramid platform configuration accommodates 11 different Kurt vises including these models: HP series, PF series, SCMX series, and DT series vises. Carvable, dovetail and serrated jaw options are available.

Description

Description

45-degree Pyramid design provides maximum access to all machined surfaces and allows or enhanced spindle and cutting tool clearance. Pyramid platform configuration accommodates 11 different Kurt vises including these models: HP series, PF series, SCMX series, and DT series vises. Carvable, dovetail and serrated jaw options are available.

Pyramid platform is constructed of 7075 anodized aluminum and has a 12″ diameter base. Fits a wide variety of 5-axis CNC machines with predrilled holes or easy mounting to most machine tables, pallets or wide variety of sub plates.

Dimensional Data

Dimensional Data

Side View


Top View
