Kurt PF440 Vise Replacement Parts

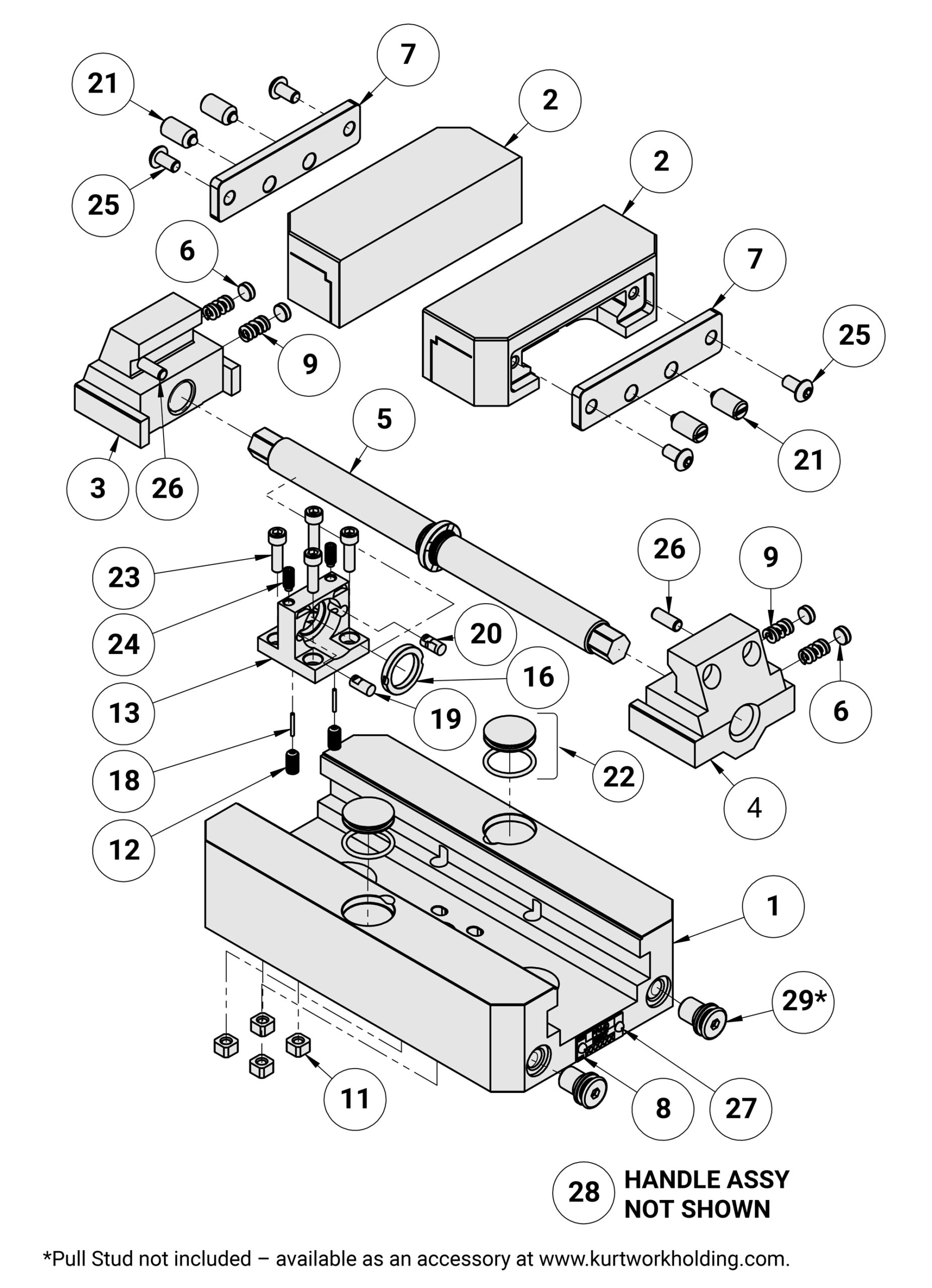

Kurt PF440 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
292Pull Stud for Lifting Vise - PF420-367-CPPF420-367-CP$36.00
242Half Dog Set Screw - 01-185301-1853$6.00
234SHCS 8-32 X 0.562 LG - 00-119400-1194$6.00
122Set Screw w/Nyloc Modified - PF250-196PF250-196$14.00
114Heavy Duty Square Nut - PF250-195PF250-195$20.00
182PF250-311 Straight Wire SpringPF250-311$6.00
94Kurt Compression Spring - PF420-169PF420-169$5.00
64Kurt Pad Guide - PF420-16PF420-16$11.00
51PF440 Replacement Screw - PF440-5-CPPF440-5-CP$112.00
131PF Vise Central Holding Block - PF420-212-CPPF420-212-CP$96.00
41PF Vise Left Threaded Machined Nut - PF420-3LPF420-3L$93.00
31PF Vise Right Threaded Machined Nut - PF420-3RPF420-3R$93.00
201PF250-364R RIGHT HAND LOCKING PINPF250-364R$58.00
191PF250-364L LEFT HAND LOCKING PINPF250-364L$58.00
161PF250-272 THRUST WASHER COLLARPF250-272$35.00
281PF420-10-SA-CP HANDLE ASSEMBLY, PF Series VisePF420-10-SA-CP$50.00
214PF420-366 SPRING, PLUNGER, SHORTPF420-366$10.00
72PF420-53 REAR COVERPF420-53$25.00
22Kurt Serrated Jaw - PF420-2SPF420-2S$352.00
22Kurt Dovetail Jaw - PF420-2DPF420-2D$352.00
22Kurt Machinable Jaw - PF420-2CPF420-2C$238.00
272Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
262Kurt Dowel Pin 0.1875 x 0.5LG - 04-002804-0028$6.00
254Kurt SBHCS 10-32 x 0.375 LG - 03-002103-0021$6.00
222Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
