Kurt HP420D MaxLock™ 5-Axis Vise – Dovetail Jaws

Part No. HP420D

$1,250.00

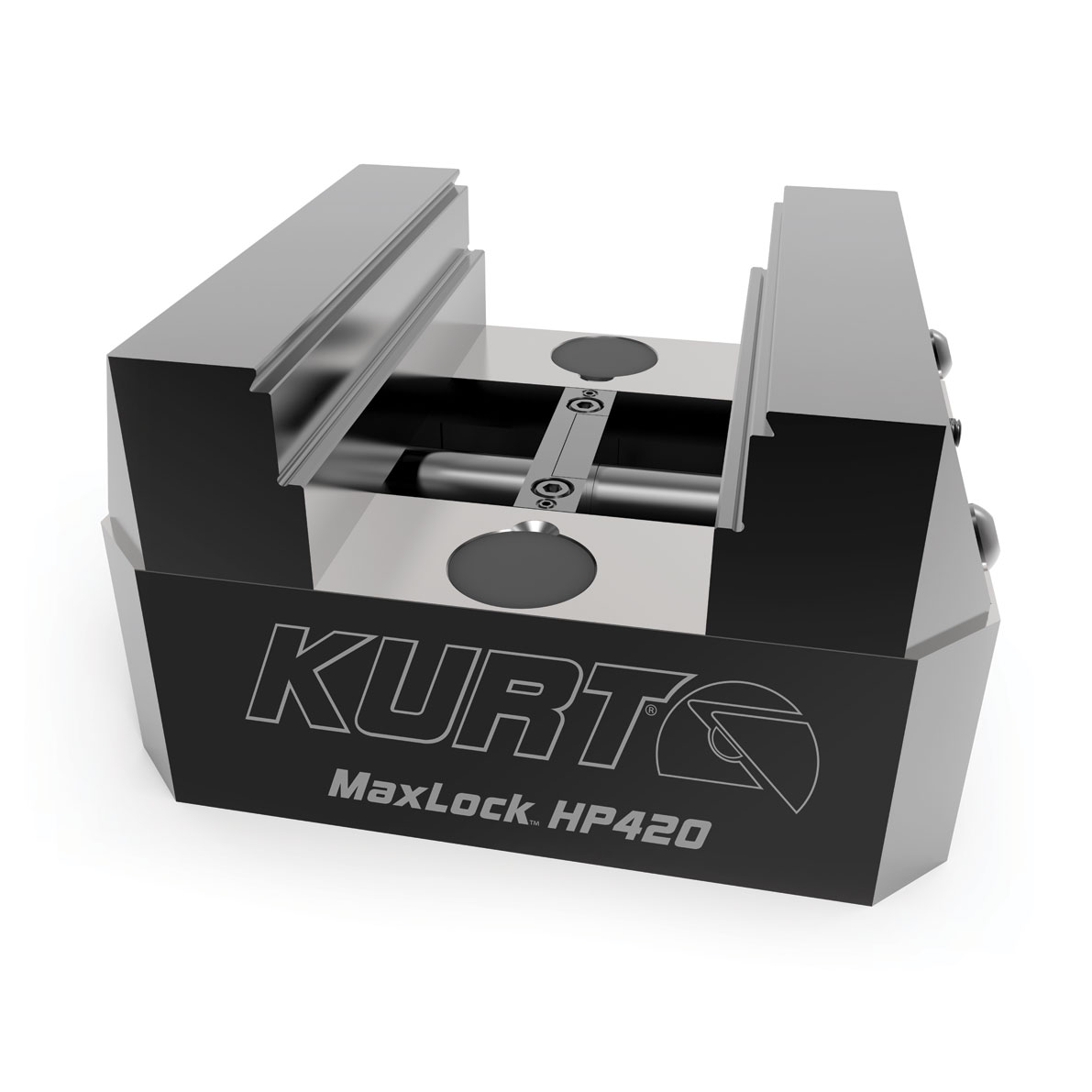

Kurt Workholding’s low-profile, self-centering HP420D MaxLock™ 5-Axis Vise features our lift-control system for less jaw deflection than comparable models and three-tier, 4140 pre-hardened steel dovetail jaws and AngLock® technology to ensure high clamping force.

Description

Description

Kurt HP440D MaxLock™ 5-Axis Vise with Dovetail Jaws

Kurt Workholding’s low-profile, self-centering MaxLock™ HP420D 5-axis vise is designed with less jaw deflection than most comparable models, thanks to our lift-control system. Three-tier, 4140 pre-hardened steel dovetail jaws and AngLock® technology ensure high clamping force..

The MaxLock HP Series self-centering vise is available in three lengths: 5”, 7”, and 9”. Centerline is easily adjustable to worktable rotation. The HP420D vise is easy to integrate into new or existing automation cells and machining centers.

Order a MaxLock HP420D self-centering 5-axis vise for your workholding application. Contact Kurt today to learn more.

Features & Benefits of Kurt’s HP440D MaxLock 5-Axis Vise

  • Dovetail jaws
  • Three clamping areas: at the bed, mid-jaw, and at the top of the jaw
  • Integrated lift-control system combats lift
  • ±0.0005” repeatability
  • Self-centering vise
  • Centerline is easily adjustable to the center of table rotation
  • Easily integrates into automation cells and gaging systems
  • Jaws machined from 4140 heat-treated steel
  • Ductile iron body improves rigidity and vibration dampening
  • 3/4” screw diameter for strength
  • Screw is internally hexed to minimize footprint
  • Available in three lengths: 5”, 7”, 9”
  • Clamp on I.D. or O.D.
  • Hardened ways
  • Dovetail jaws can be swapped out for serrated jaws (available separately)

Dimensional Data

Dimensional Data

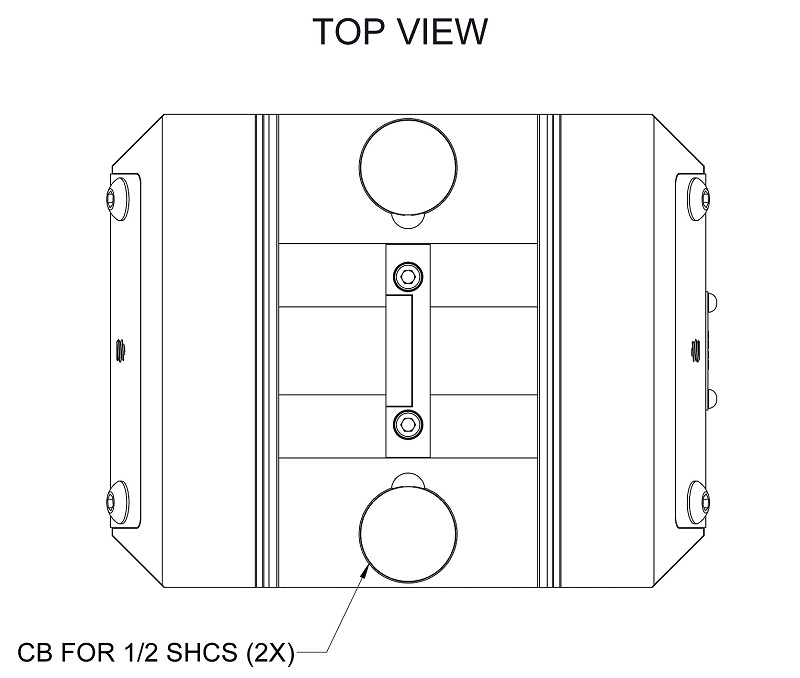

Top View

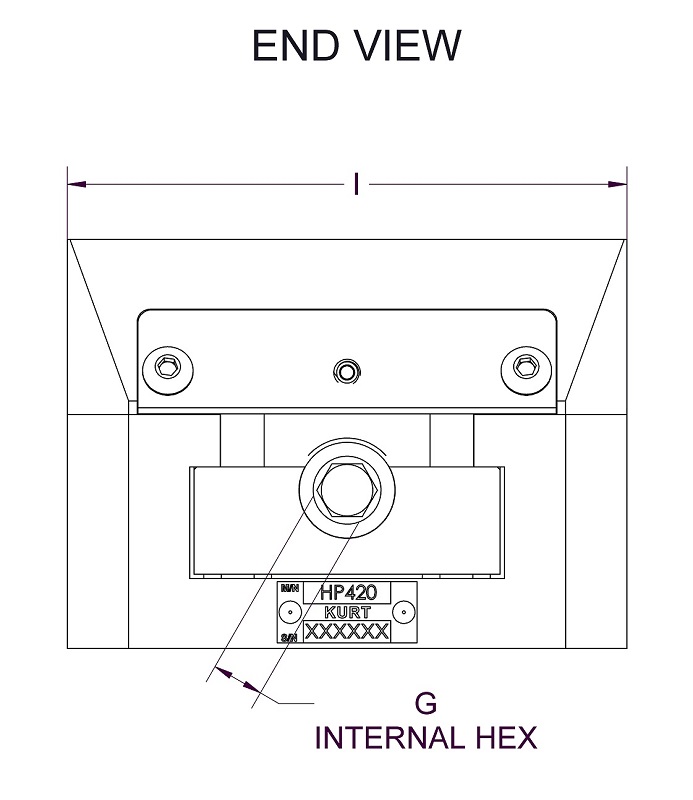

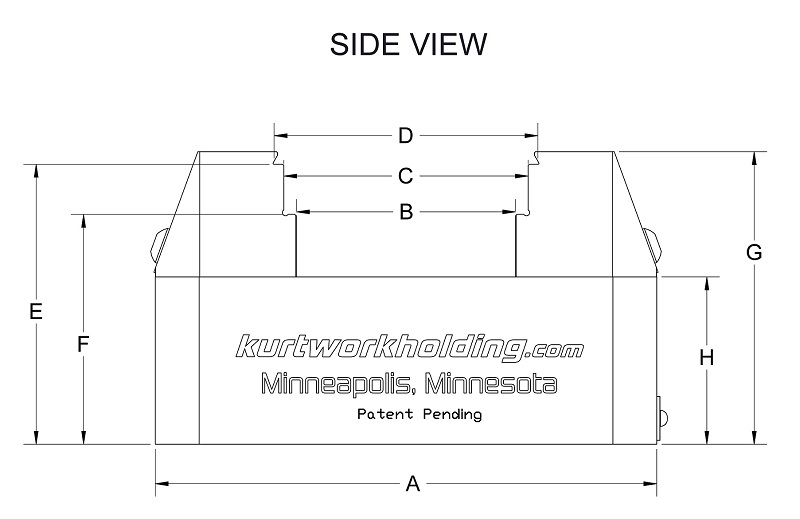

Side View

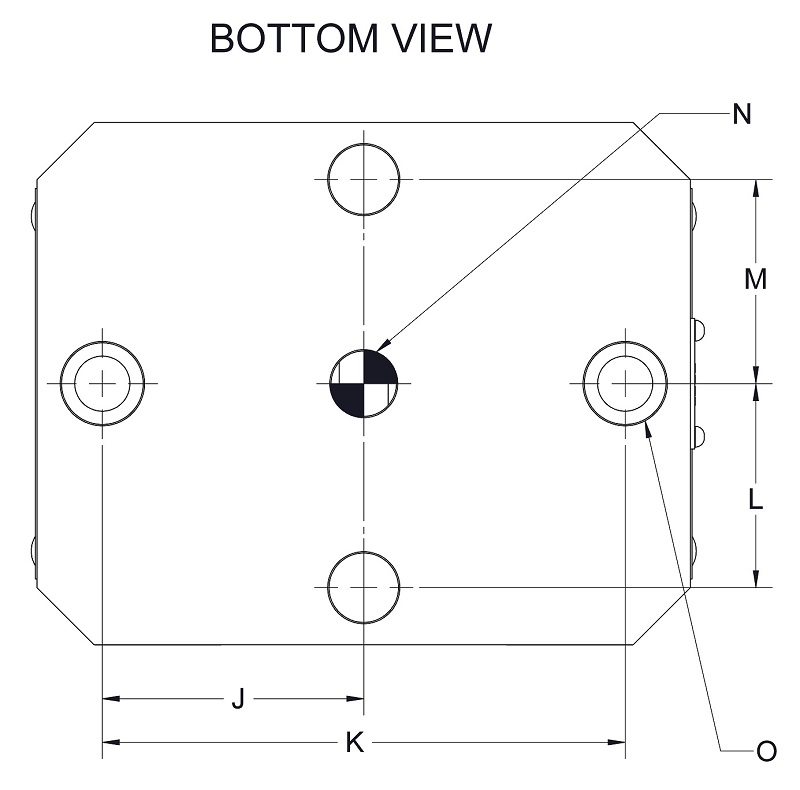

Bottom View
End View
A 5.00
B .06 / 2.19
C .31 / 2.44
D .50 / 2.63
E 2.797
F 2.297
G 2.922
H 1.672
I 4.000
J 2.000
K 4.000
L 1.563
M 1.563
N Ø.500
O Ø.625
