Kurt PF 5-Axis Vise with 52mm mounting – PF460
Part No. PF460
Price range: $1,279.00 through $1,403.00
Introducing the NEW automation ready Kurt PF460 MaxLock™ 5-Axis vise featuring our patented AngLock® Design, quick lash adjustment, and 3 available jaw options.
Description
Description

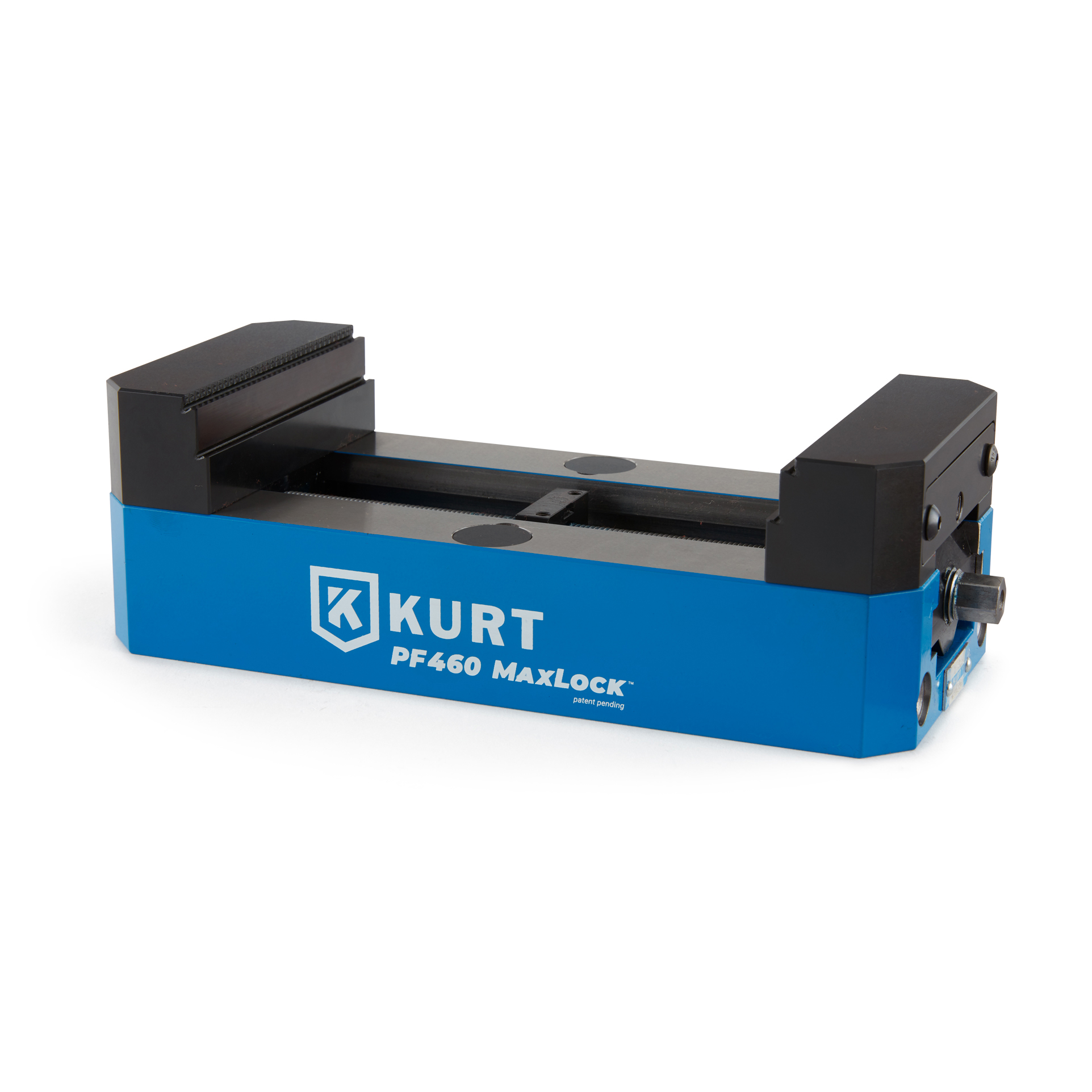

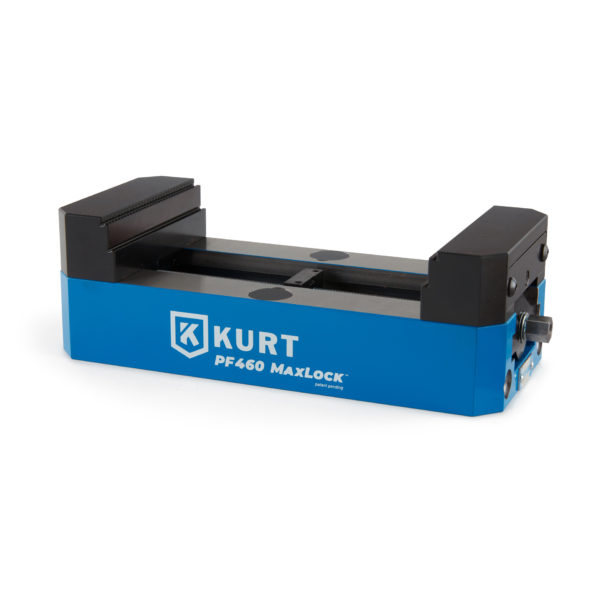

Kurt Workholding PF460 5-Axis Vise
The Kurt Precision Force MaxLock™ 5-Axis vise lineup includes three models: the PF420, PF440, and PF460. Each model offers three jaw options and features that support robot-ready workholding. In addition, the PF-series vises include easy lash adjustment and 52 mm mounting patterns. This allows them to work with automation-ready mounting systems and adapt to competing zero-point systems.
The Quick Lash Adjustment makes centerline adjustments fast and easy. As a result, operators can keep parts in the right position as the vise wears in through normal use. This feature also helps reduce downtime and keep vises in service longer.
Furthermore, spring-loaded gibs help keep parts square. They also improve part-positioning repeatability through repeated machining cycles.
The PF460 features standard 4-inch-wide jaws with openings from 2.625″ to 6.625″. Because of this range, it works well for many small-part workholding jobs. The PF-series vises replace the previous Kurt HP models. They also feature Kurt’s patented AngLock® design, which helps reduce jaw lift and deflection.
During clamping, AngLock® technology pushes the jaws down and forward. This creates more contact with the workpiece. As a result, the vise delivers strong, reliable holding power with less clamping force.
Kurt PF460 Vise Features
- Jaw opening: 2.625″ to 6.625″
- High clamping force helps hold parts securely
- AngLock® jaw design helps reduce jaw lift and deflection
- 4-inch jaw width for a wide range of small-part workholding jobs
- Easy centerline adjustment helps position parts accurately
- Quick Lash Adjustment helps reduce downtime and keep the vise in service longer
- Hex adjustment on both ends lets operators adjust the screw from either side

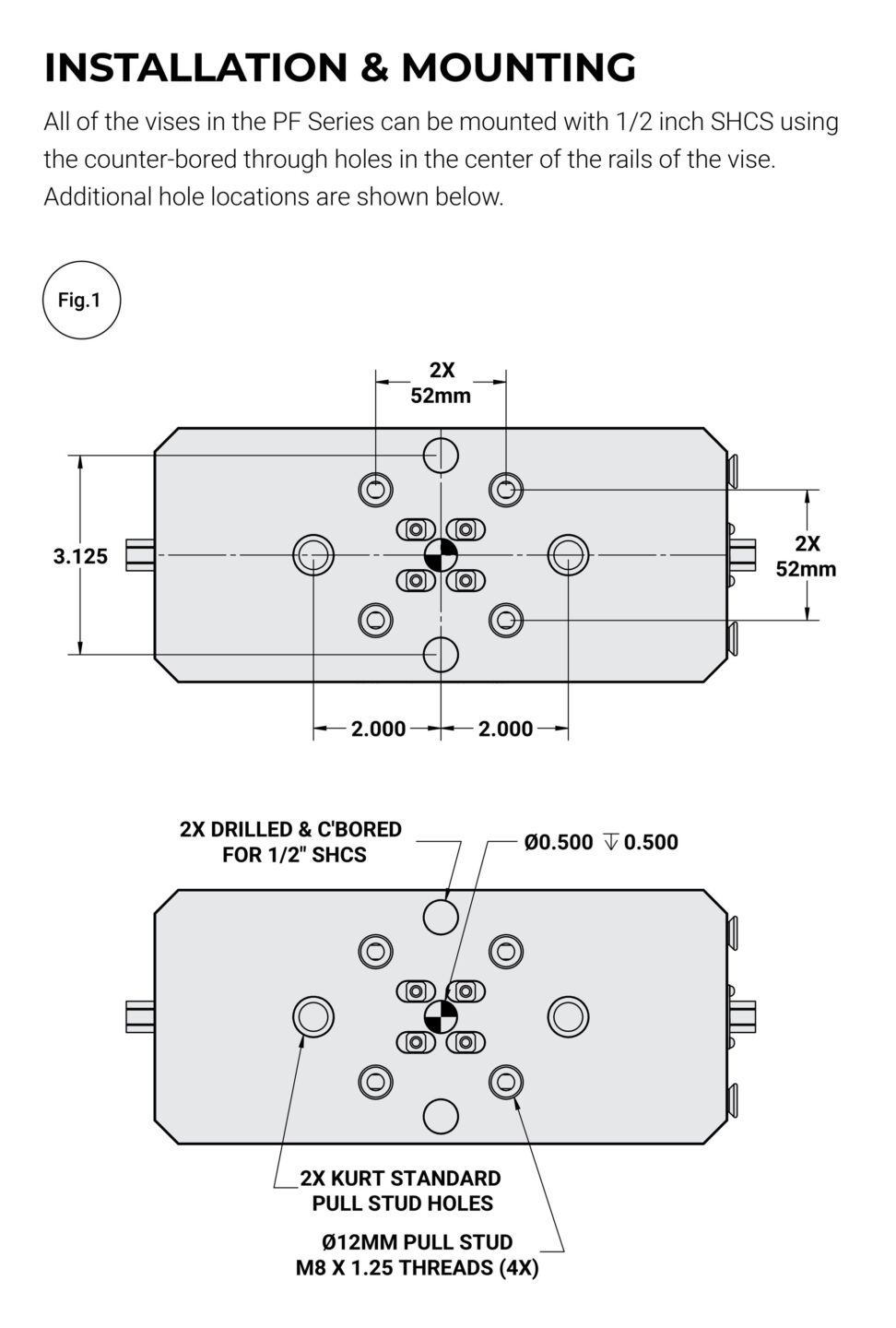

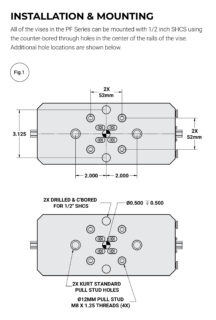

- 52 mm mounting pattern fits industry-standard zero-point systems
- Automation-ready design supports end-effector integration

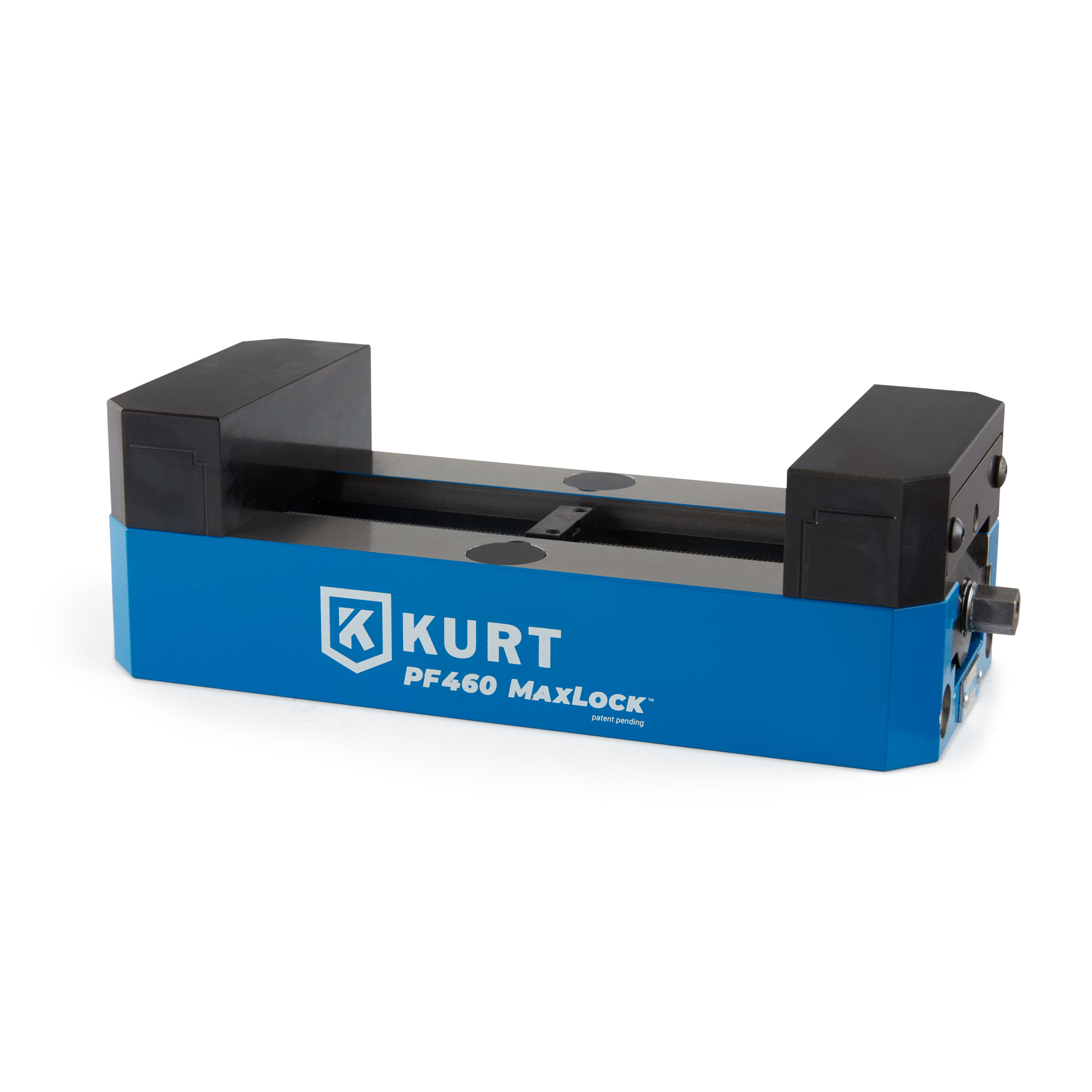

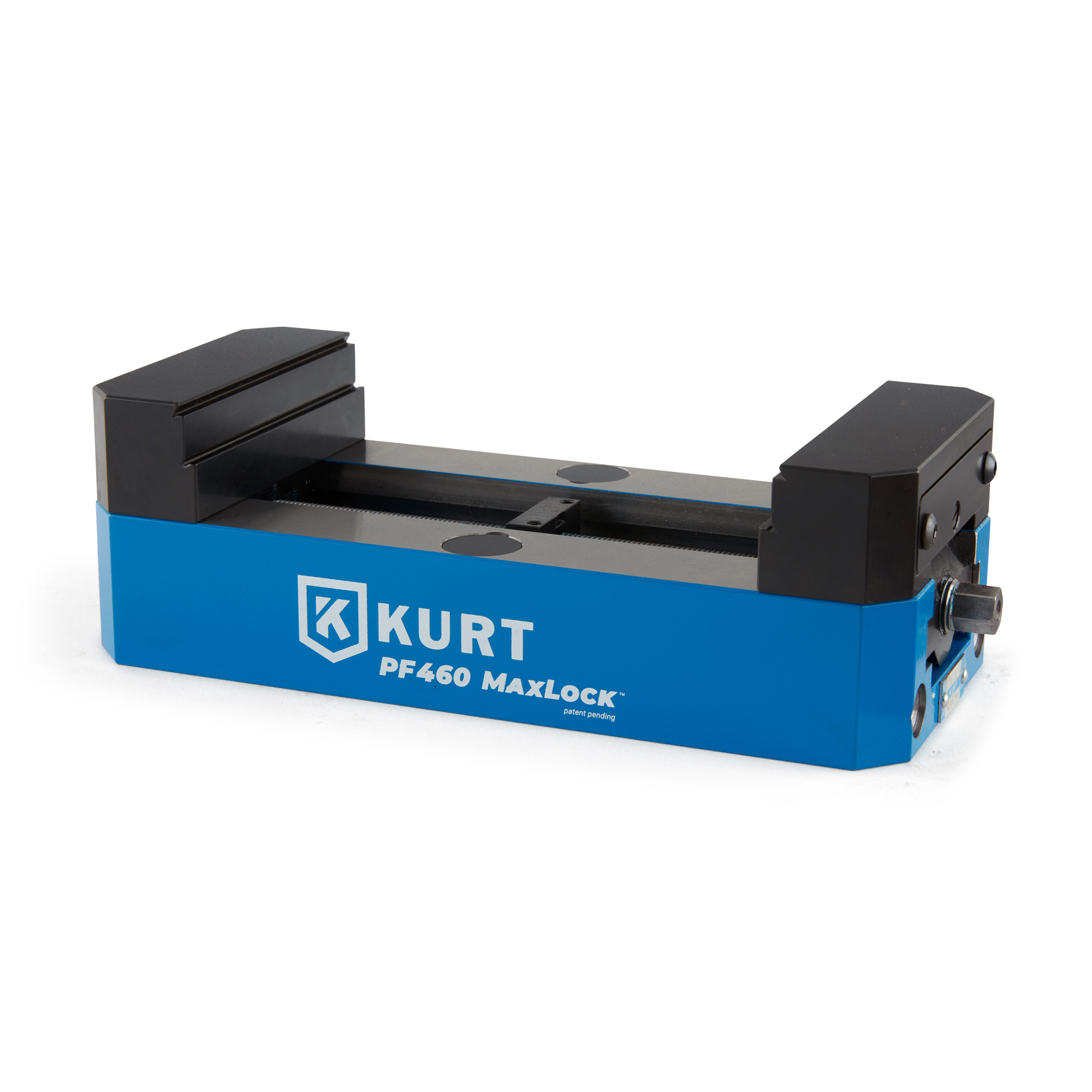

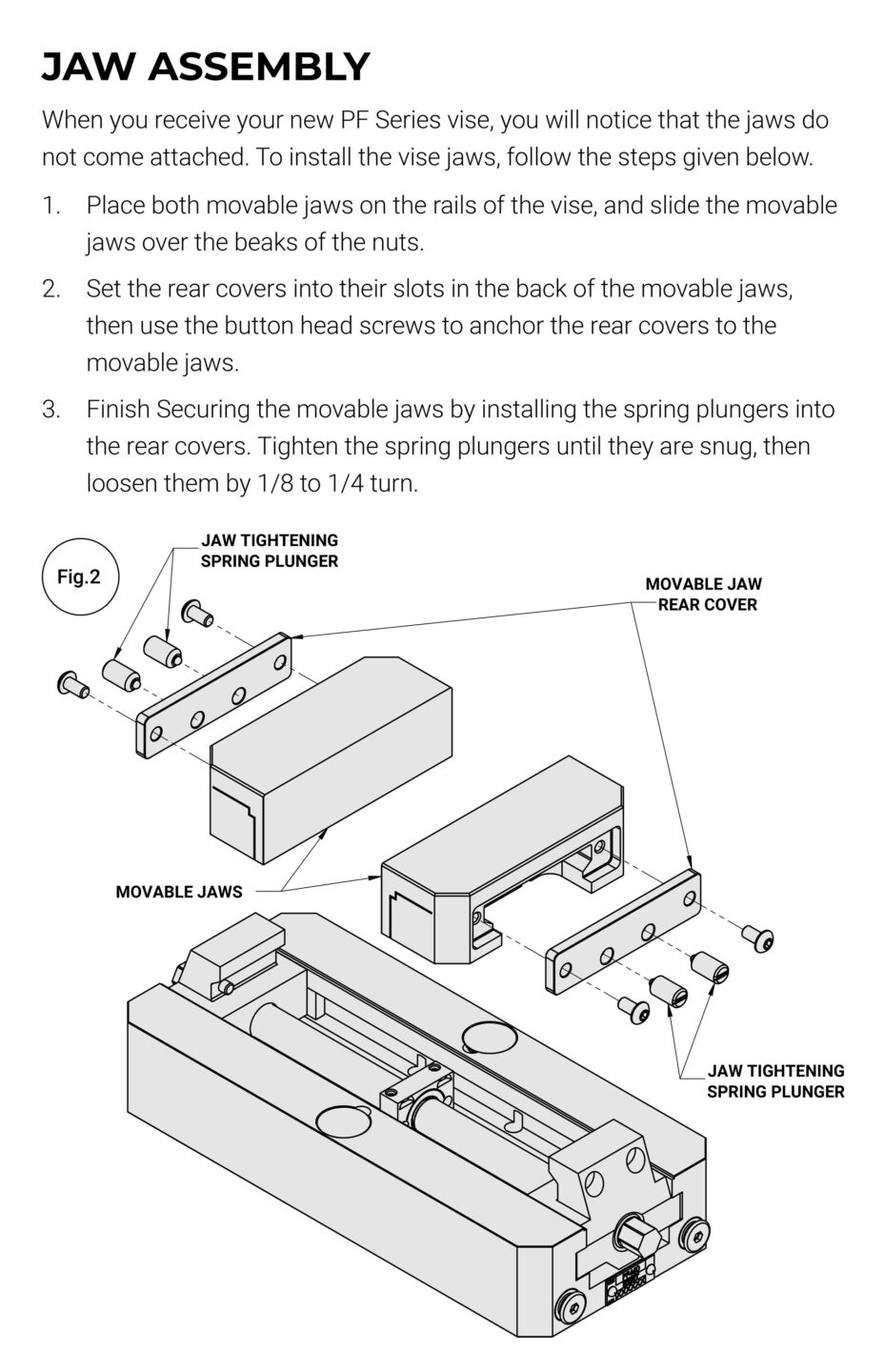

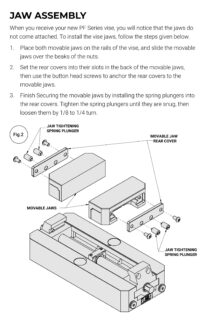

- Three movable jaw options: machinable, dovetail, and serrated
- Pre-hardened 4140 PH steel jaws feature a black oxide coating
- Reversible jaws and nuts allow ID clamping
- Gibbed jaw design helps keep parts square
- Maximum torque: 45 ft-lb
Resources

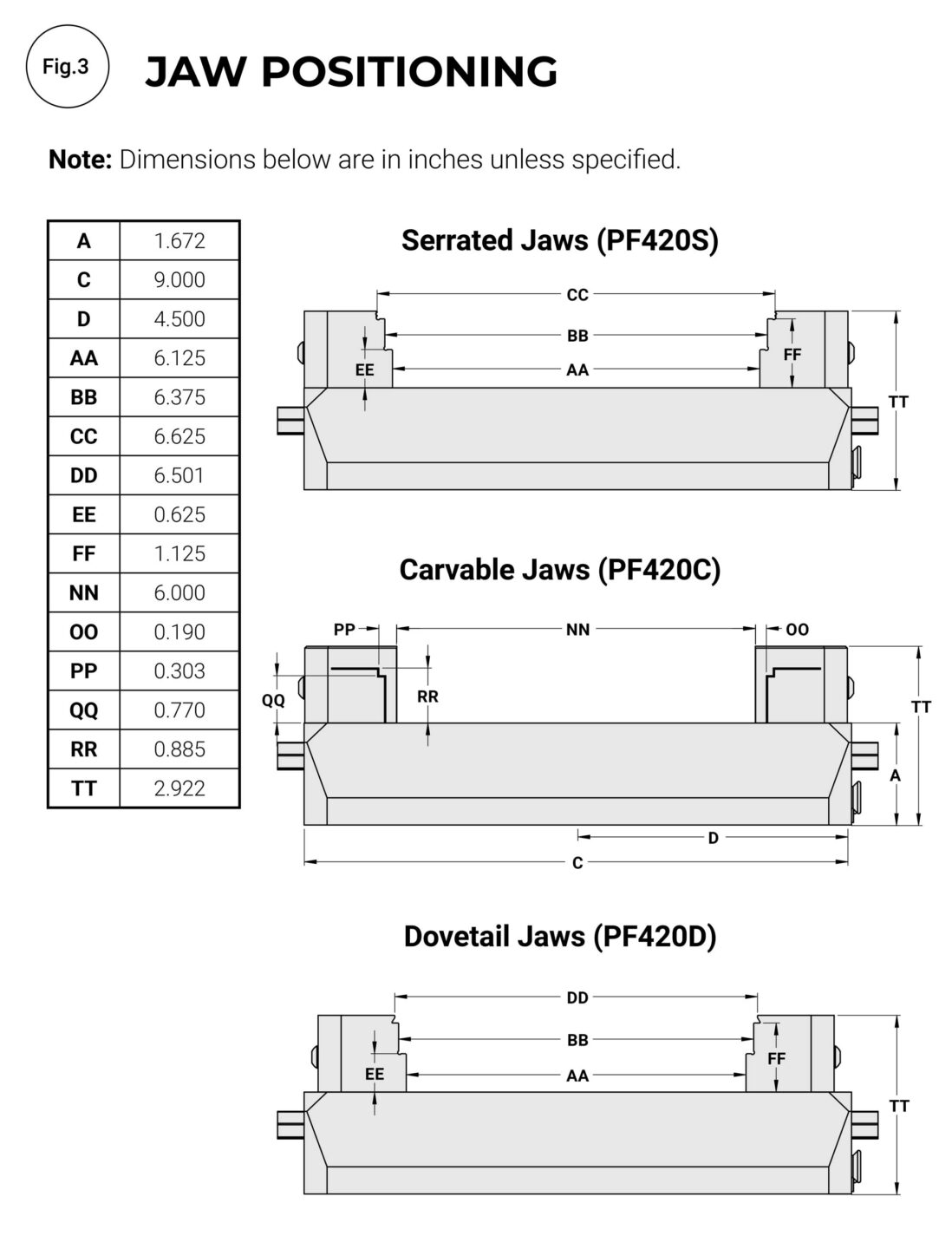

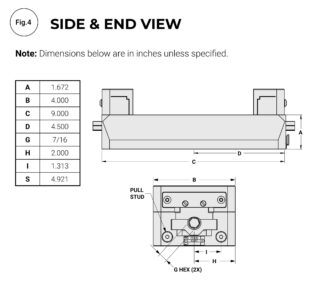

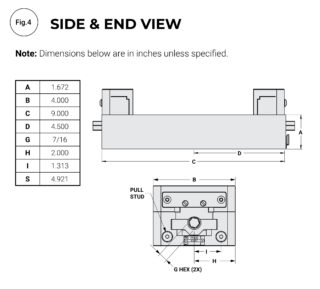

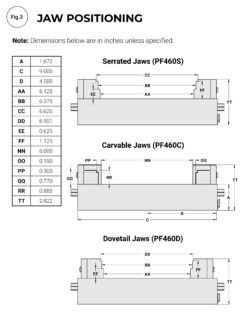

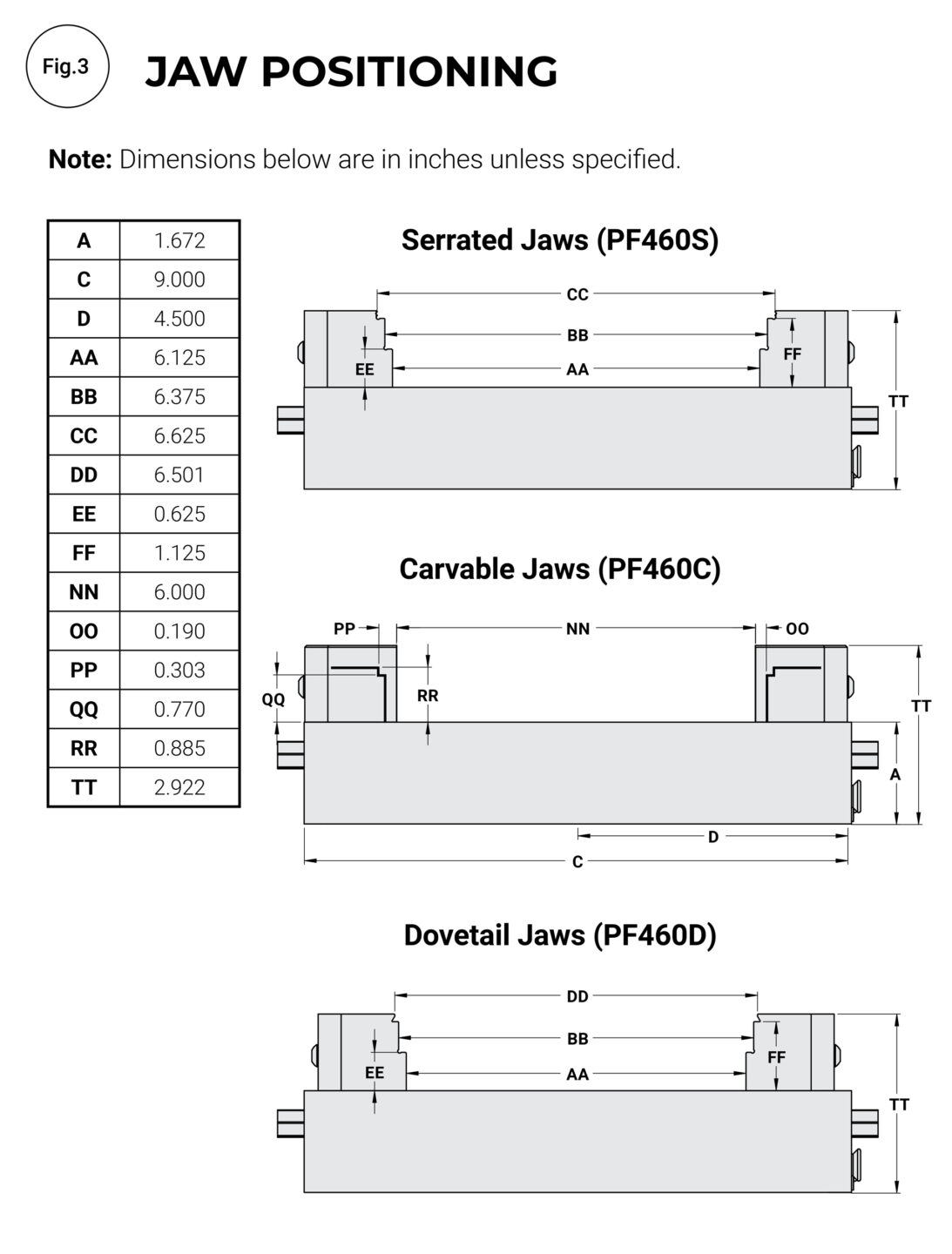

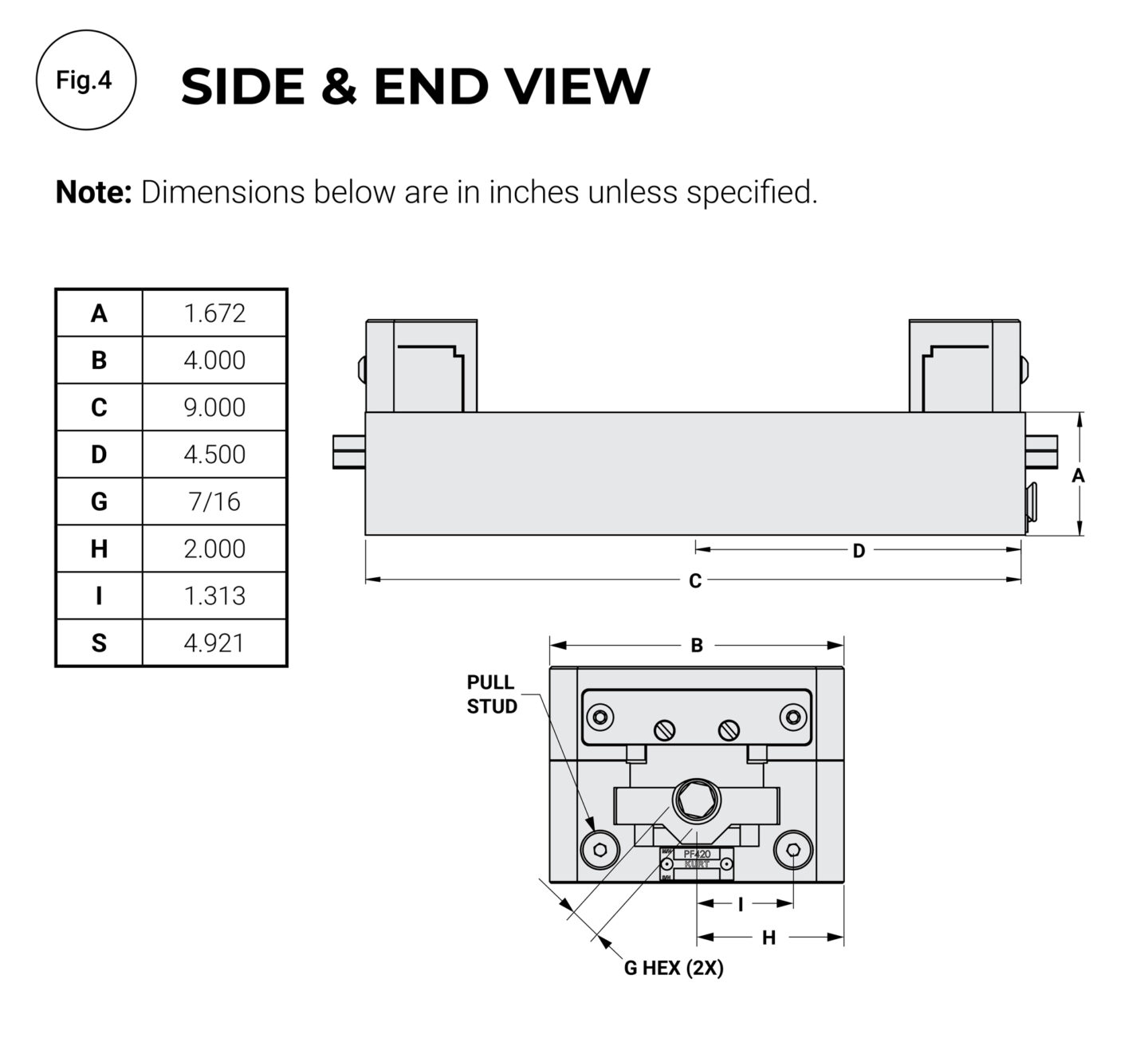

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 720 |
| 20 | 1,520 |
| 30 | 2,250 |
| 40 | 3,050 |
| 45 | 3,375 |
