Kurt Self Centering 5-Axis Vise – SCMX425

Part No. SCMX425

$2,196.00

AngLock® design pulls workpieces down and can be clamped on either the I.D. or the O.D. of a part. Carvable steel jaws are 4” wide and taller than average for increased spindle clearance during multi-axis machining operations.

Description

Description

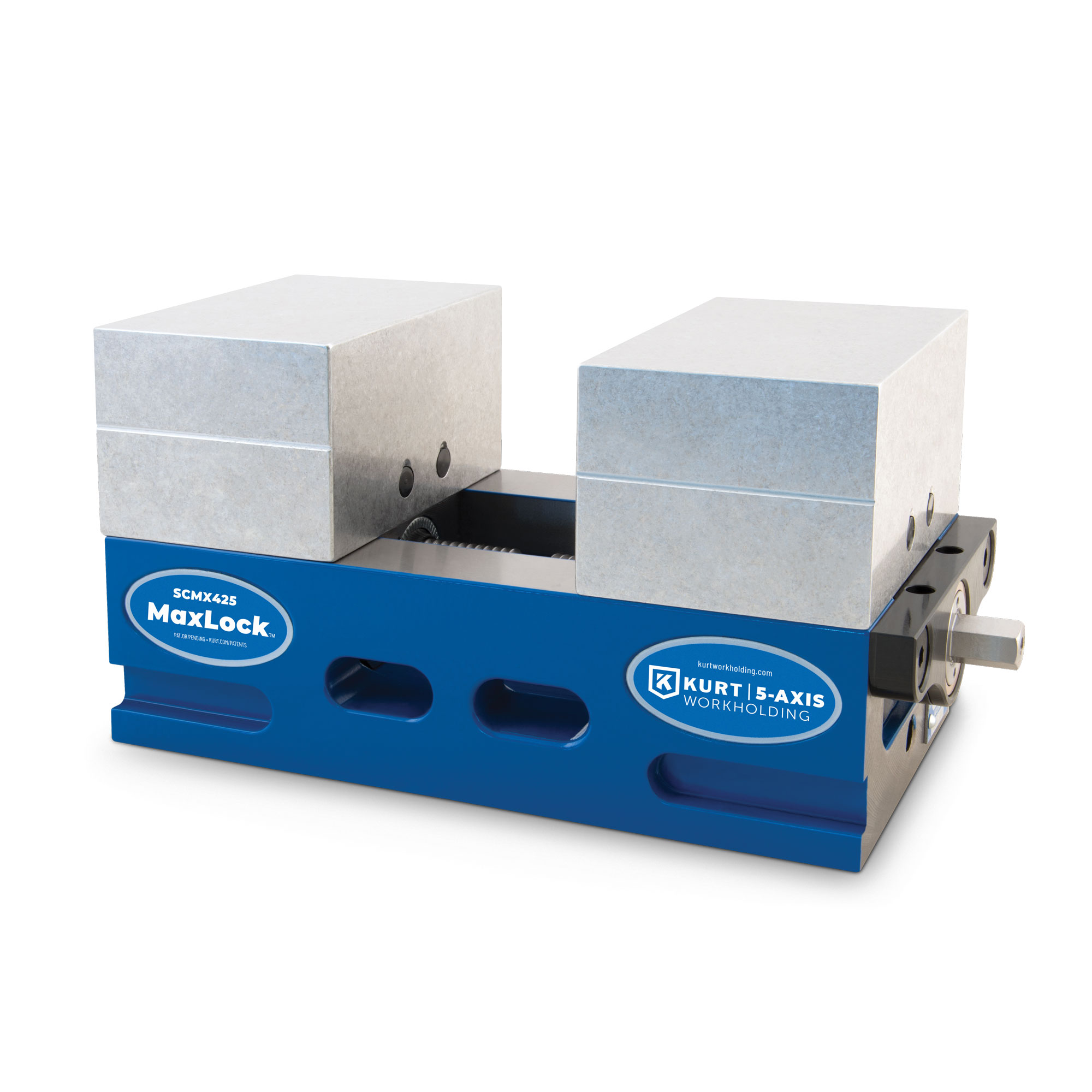

Kurt SCMX425 Self-Centering 5-Axis Vise

Kurt’s SCMX425 Self-Centering 5-axis vise features our AngLock® design, which pulls the work piece down to hold it more securely during machining. Parts can be clamped on either the I.D. or the O.D.

Jaws are 4” wide, and are taller than average, which provides increased spindle clearance for multi-axis machining operations. This vise can accommodate work pieces up to 6.5” long.

Offers flexible mounting options and reversible jaws for greater machining freedom.

Contact Kurt Workholding to learn more.

Kurt SCMX425 Self-Centering 5-Axis Vise Features

    • Self-centering vise designed specifically for 5-axis machining operations
    • ±0.0002” repeatability
    • Reversible, machinable steel jaws
  • Steps can be machined in for improved accuracy and to eliminate the need for parallels
  • Clamp parts on O.D. or I.D.
  • 4.0” maximum jaw width
  • Tall jaws offer increased spindle clearance
  • Multiple mounting options
  • A full line of vise accessories is available

Dimensional Data

Dimensional Data

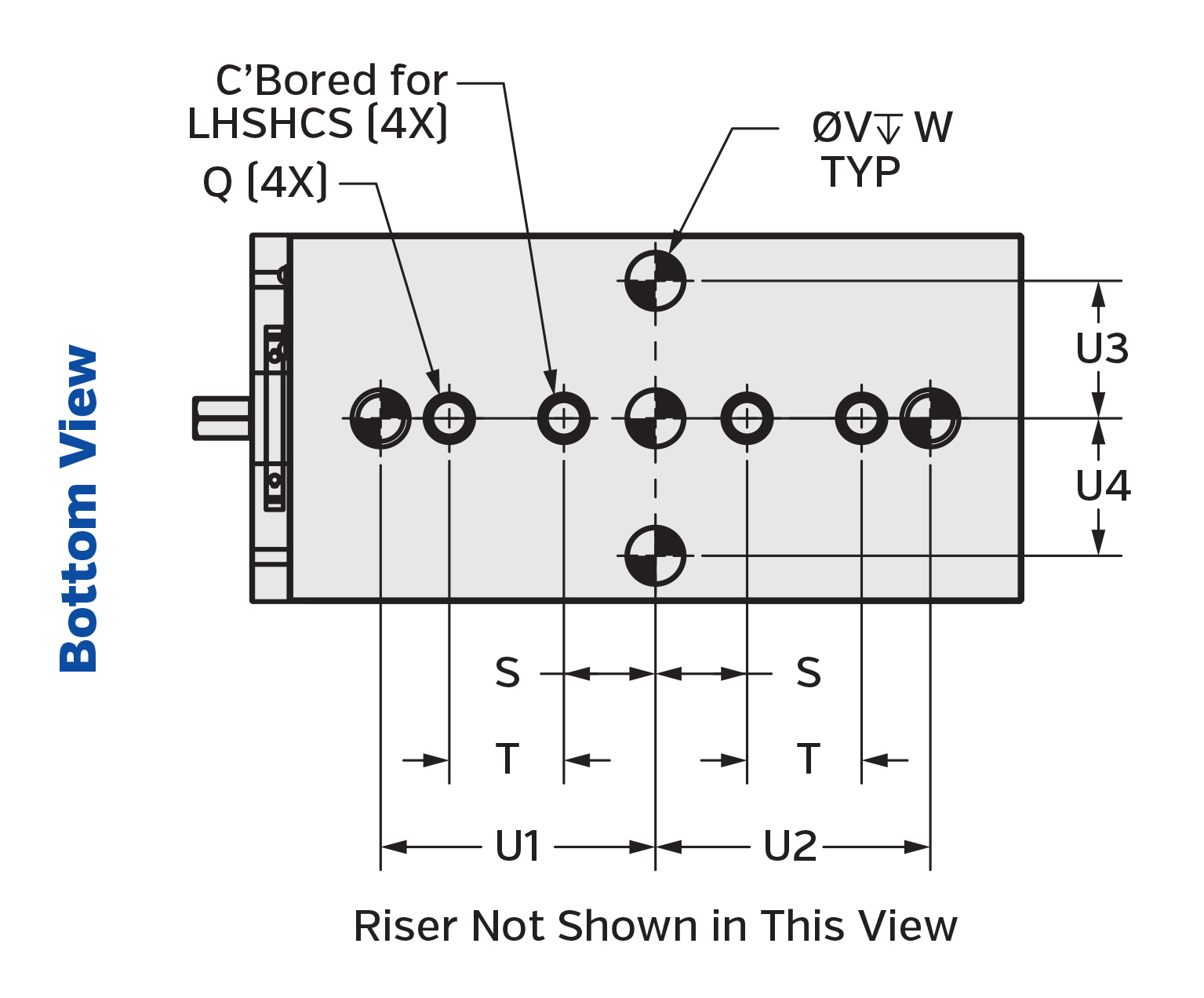

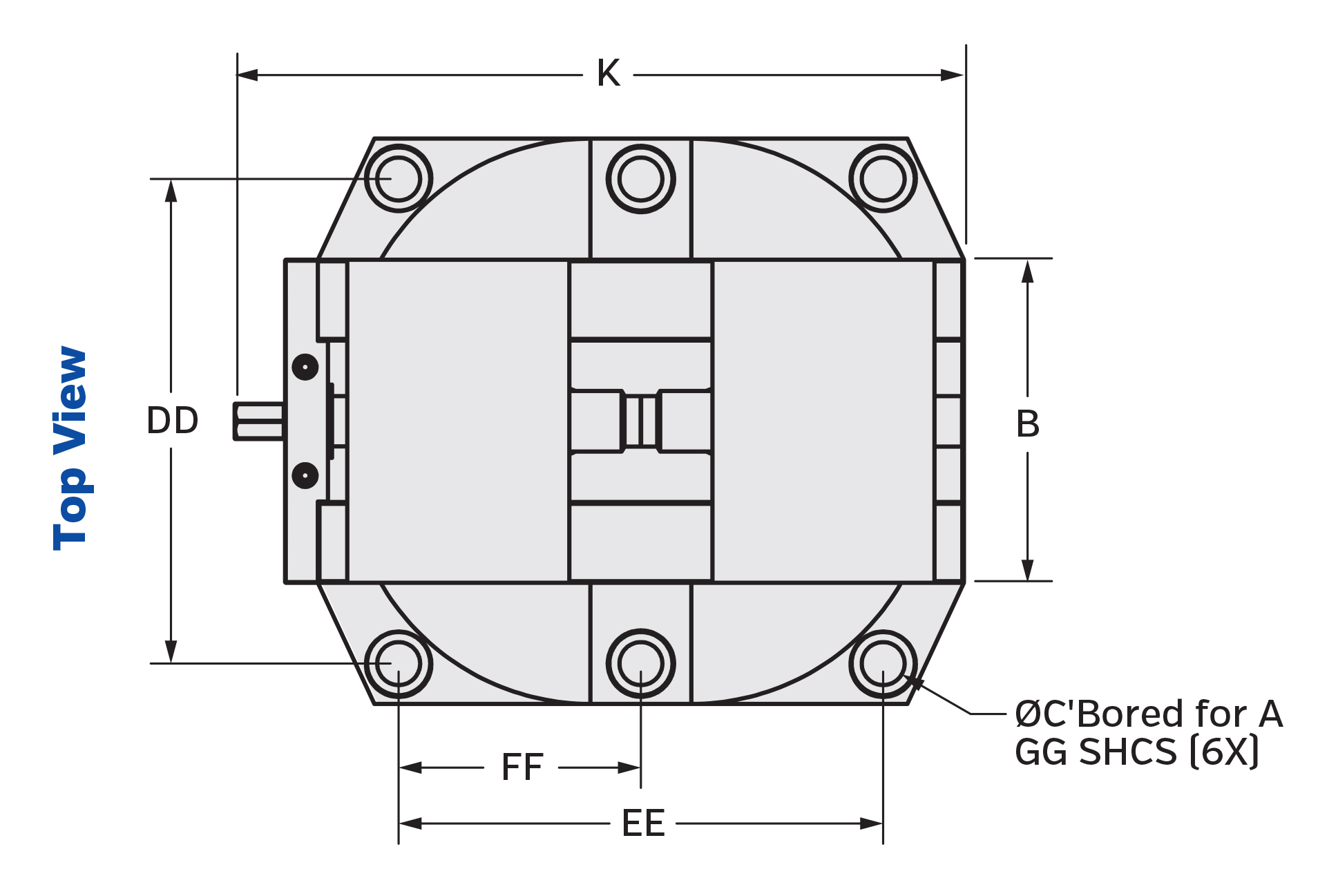

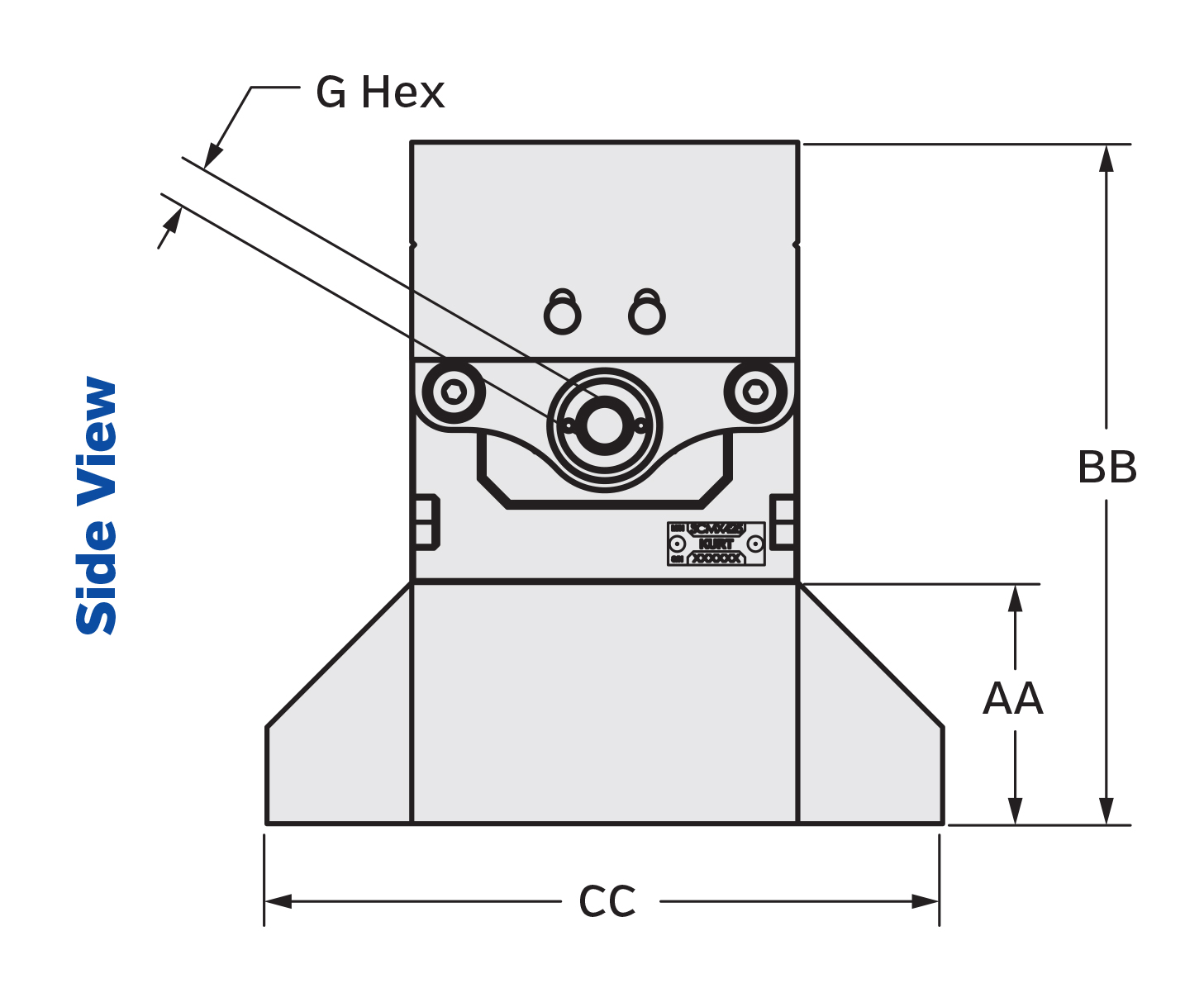

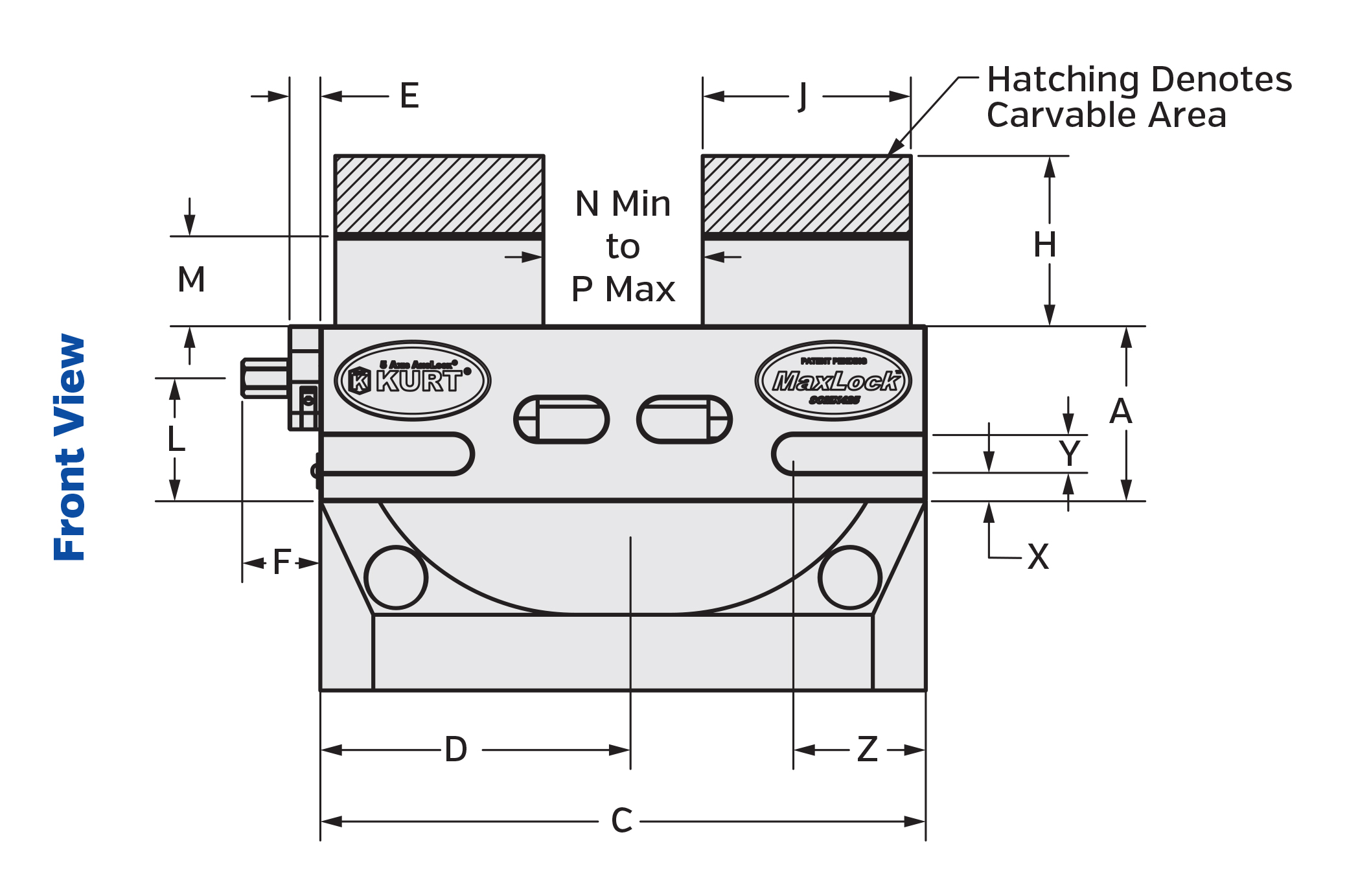

SCMX425 bottom drawing SCMX425 front drawing SCMX425 side drawing SCMX425 top drawing
SCMX425
A 2.313
B 4.000
C 8.000
D 4.000
E 0.690
F 1.120
G 3/8
H 2.250
J 2.750
K 9.120
L 1.625
M 1.125
N 0.000
P 2.500
Q 0.531 Ø
S 1.000
T 1.250
V 0.625
W 0.688
X 0.375
Y 0.500
Z 1.750
U1 3.000
U2 3.000
U3 1.500
U4 1.500
AA 2.500
BB 7.063
CC 7.000
DD 6.000
EE 6.000
FF 3.000
FF 1/2
SHIP WT 30 LBS
