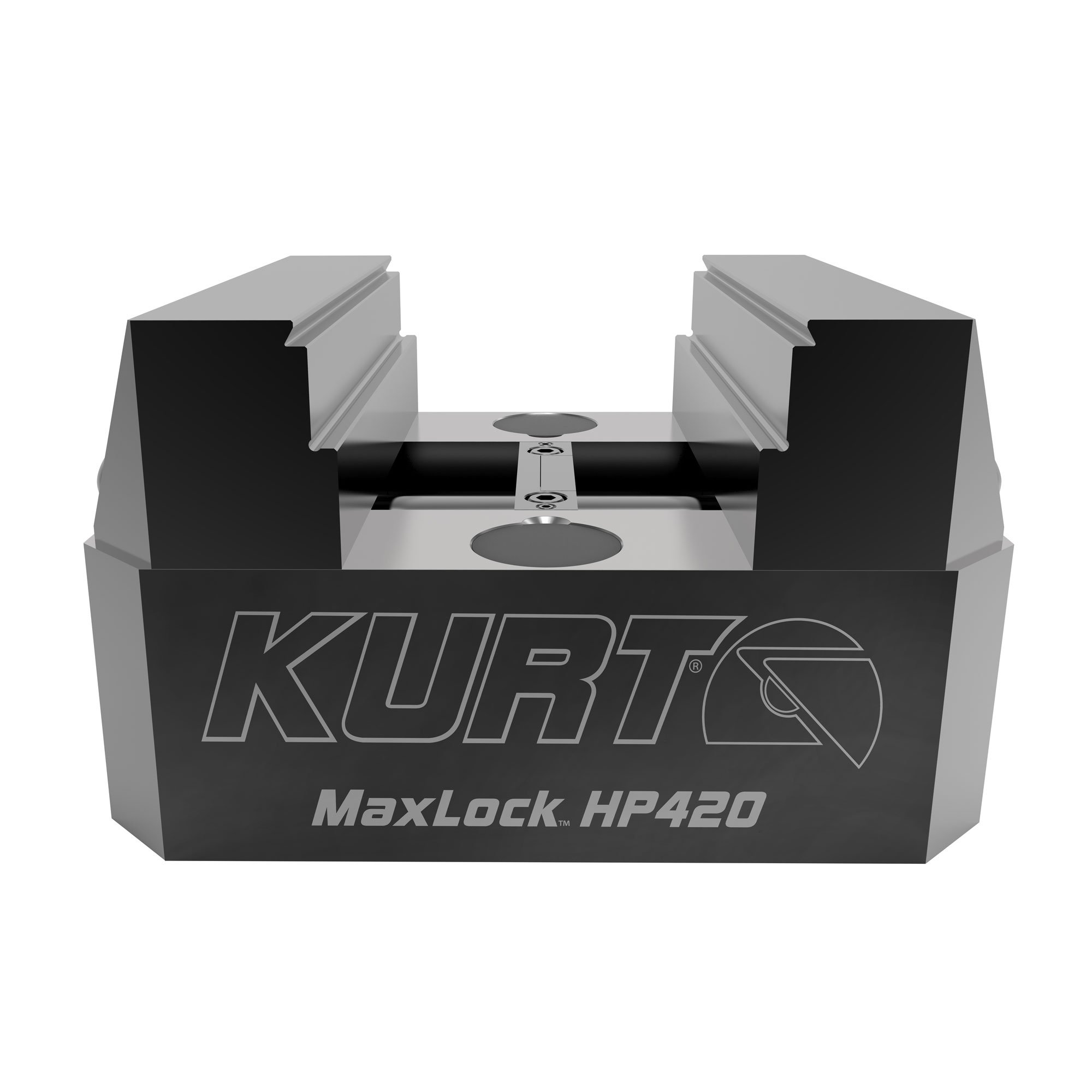

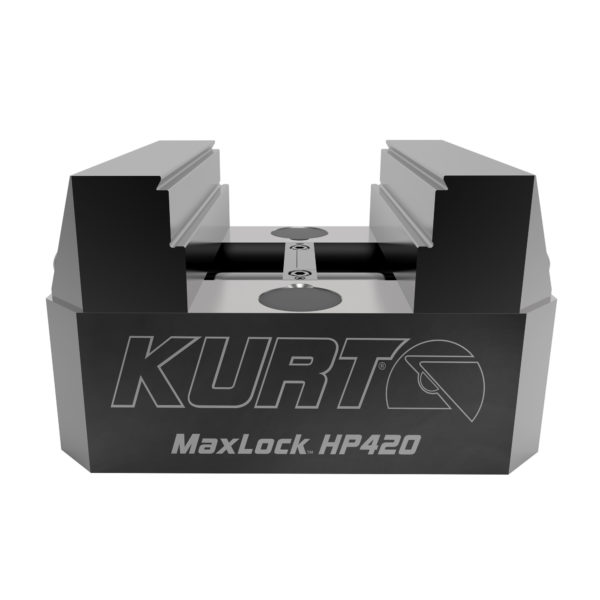

Kurt MaxLock™ 5-Axis Vise – Machinable Jaws – HP420C

Part No. HP420C

$1,250.00

Kurt Workholding’s low-profile, self-centering HP420C MaxLock™ 5-Axis Vise features our lift-control system for less jaw deflection than comparable models. Three-tier, 4140 pre-hardened steel dovetail jaws and AngLock® technology ensure high clamping force.

Out of stock

Want to be notified when this product is back in stock?

Description

Description

Kurt HP420C MaxLock 5-Axis Vise with Machinable Jaws

Kurt Workholding’s low-profile, self-centering MaxLock™ HP420C 5-axis vise is designed with less jaw deflection than most comparable models, thanks to our lift-control system. Three-tier, 4140 pre-hardened steel dovetail jaws and AngLock® technology ensure high clamping force.

The MaxLock HP Series self-centering vise is available in three lengths: 5”, 7”, and 9”. Center-line is easily adjustable to worktable rotation. The HP420C vise is easy to integrate into new or existing automation cells and gaging systems.

Order a Kurt HP420C MaxLock 5-Axis Vise  for your workholding application. Contact Kurt today to learn more.

Features & Benefits of Kurt’s HP420C MaxLock 5-Axis Vise

  • Machinable steel jaws
  • Integrated lift-control system combats lift
  • ±0.0005” repeatability
  • Self-centering vise
  • Center-line is easily adjustable to the center of table rotation
  • Easily integrates into automation cells and gaging systems
  • Jaws machined from 4140 heat-treated steel
  • Ductile iron body improves rigidity and vibration dampening
  • 3/4” screw diameter for strength
  • Screw is internally hexed to minimize footprint
  • Clamp on I.D. or O.D.
  • Hardened ways

Dimensional Data

Dimensional Data

Top View

Bottom View
End View
A 5.00
B 0/1.94
C NA
D NA
E 2.797
F 2.297
G 2.922
H 1.672
I 4.000
J 2.000
K 4.000
L 1.563
M 1.563
N Ø.500
O Ø.625
P 0.221
Q 0.417
