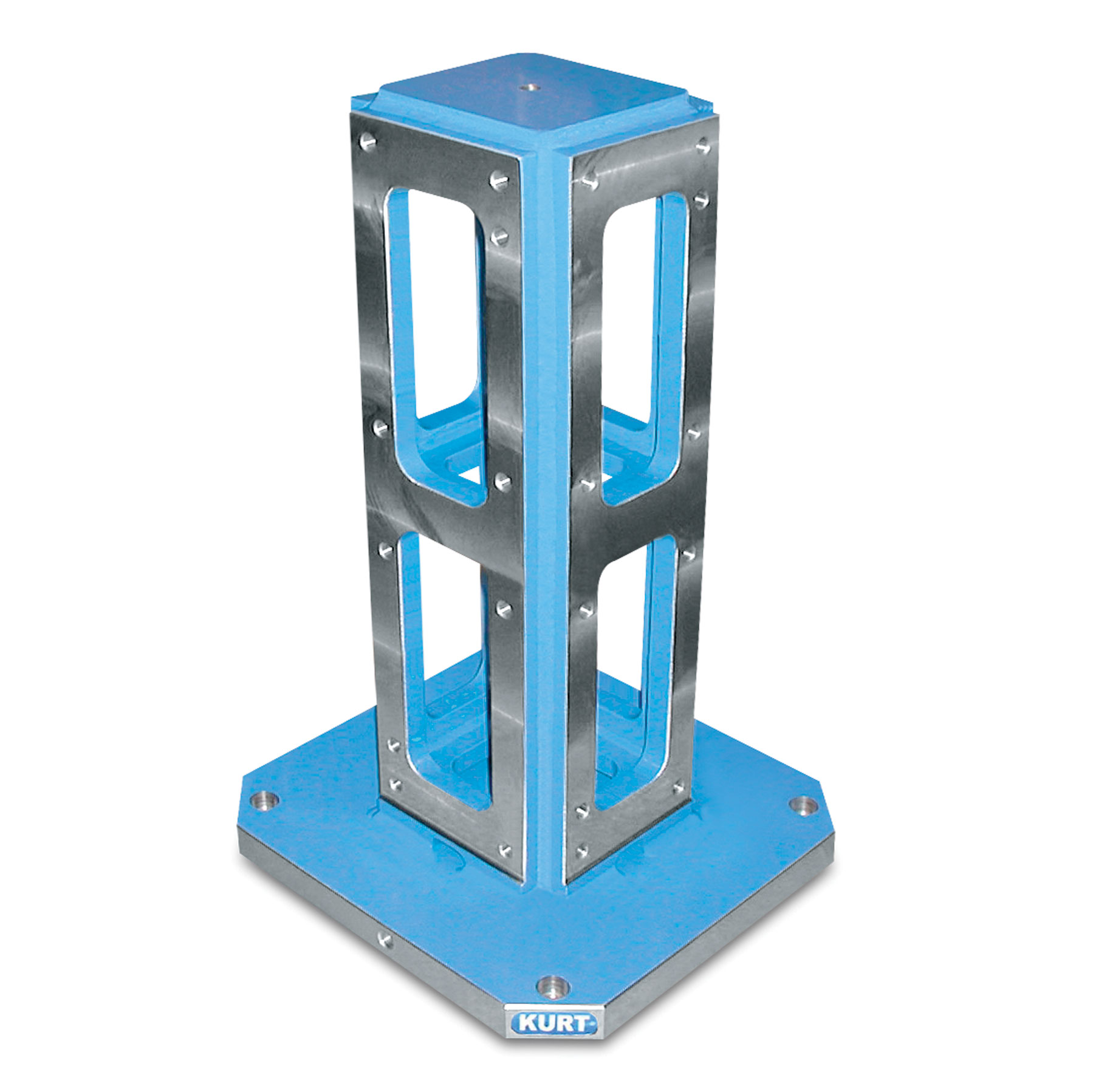

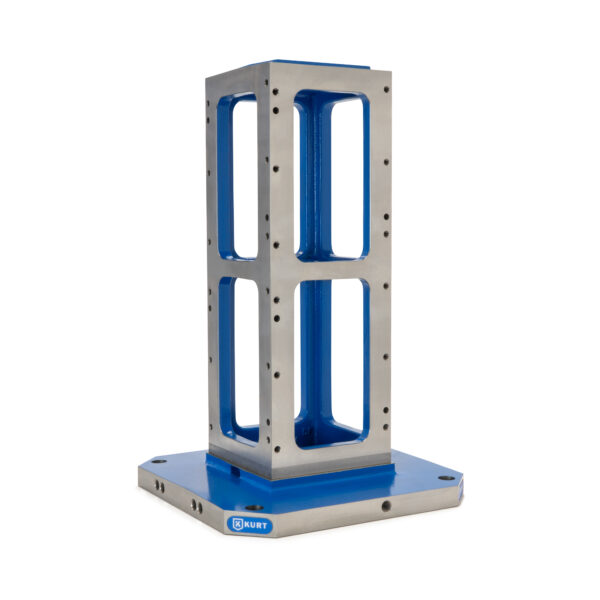

Kurt Cast Iron, 4 face, 400 mm Base – TC4C40808
Part No. TC4C40808
$3,344.00
Cast Iron, 4 face, 400 mm Base

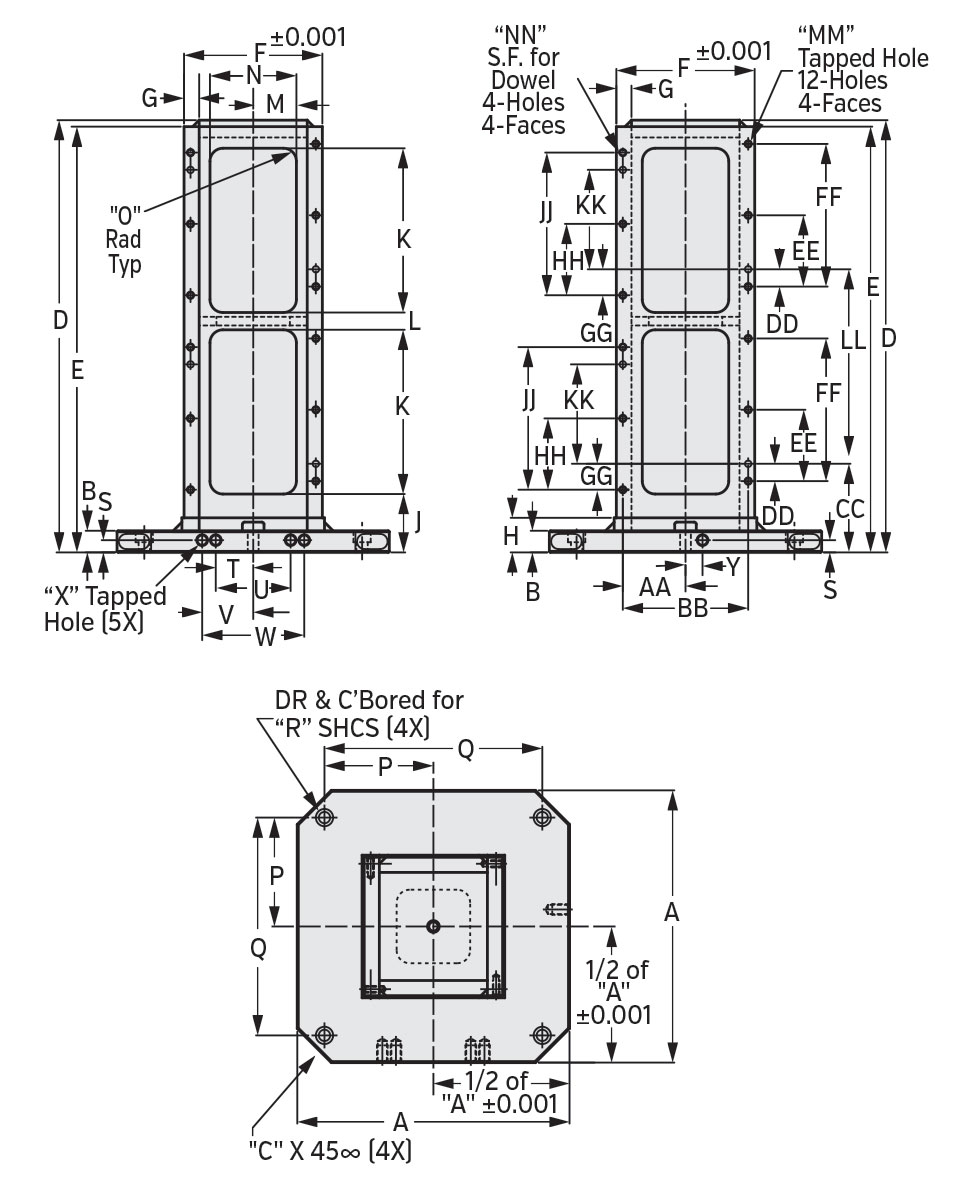

Dimensional Data
Dimensional Data
| Inch | MM | Wt. Kgs. | Wt. Lbs. | |
| A | x | 400mm | x | x |
| B | 1.250 | x | x | x |
| C | 1.970 | x | x | x |
| D | 25.000 | x | x | x |
| E | 24.625 | x | x | x |
| F | 8.000 | x | x | x |
| G | 0.875 | x | x | x |
| H | 2.000 | x | x | x |
| J | 3.375 | x | x | x |
| K | 9.500 | x | x | x |
| L | 1.000 | x | x | x |
| M | 2.500 | x | x | x |
| N | 5.000 | x | x | x |
| O | 0.750 | x | x | x |
| P | 6.299 | x | x | x |
| Q | 12.598 | x | x | x |
| R | 5/8 | x | x | x |
| S | 0.709 | x | x | x |
| T | 2.165 | x | x | x |
| U | 4.330 | x | x | x |
| V | 2.953 | x | x | x |
| W | 5.906 | x | x | x |
| X | 5/8-11NC X 1\" DP | x | x | x |
| Y | 0.984 | x | x | x |
| AA | 3.625 | x | x | x |
| BB | 7.250 | x | x | x |
| CC | 5.125 | x | x | x |
| DD | 1.000 | x | x | x |
| EE | 4.125 | x | x | x |
| FF | 8.250 | x | x | x |
| GG | 1.500 | x | x | x |
| HH | 4.125 | x | x | x |
| JJ | 8.250 | x | x | x |
| KK | 5.750 | x | x | x |
| LL | 11.250 | x | x | x |
| MM | 3/8-16NC X 0.88 DP | x | x | x |
| NN | 0.375Ø X 0.75 DP | x | x | x |
| Wt. Kgs. | x | x | 112 | x |
| Wt. Lbs. | x | x | x | 245 |
