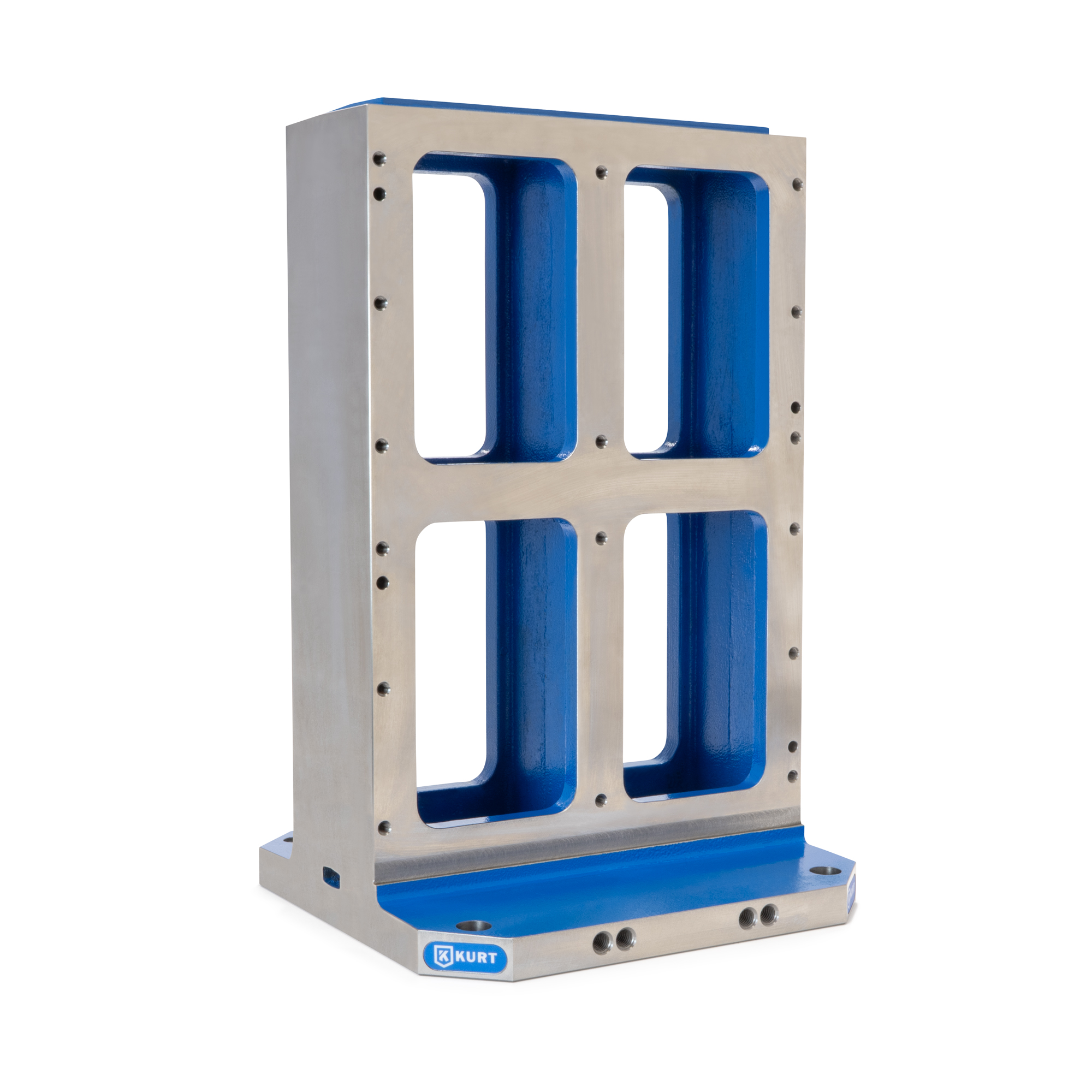

Kurt 2-Face Caged Tombstone with 400 mm Base – TC2C40616
Part No. TC2C40616
$3,885.00
Cast Iron, 2-face tombstone with 400 mm Base. Designed for versatility, fast setup changes and internal hydraulic or pneumatic plumbing.
Description
Description

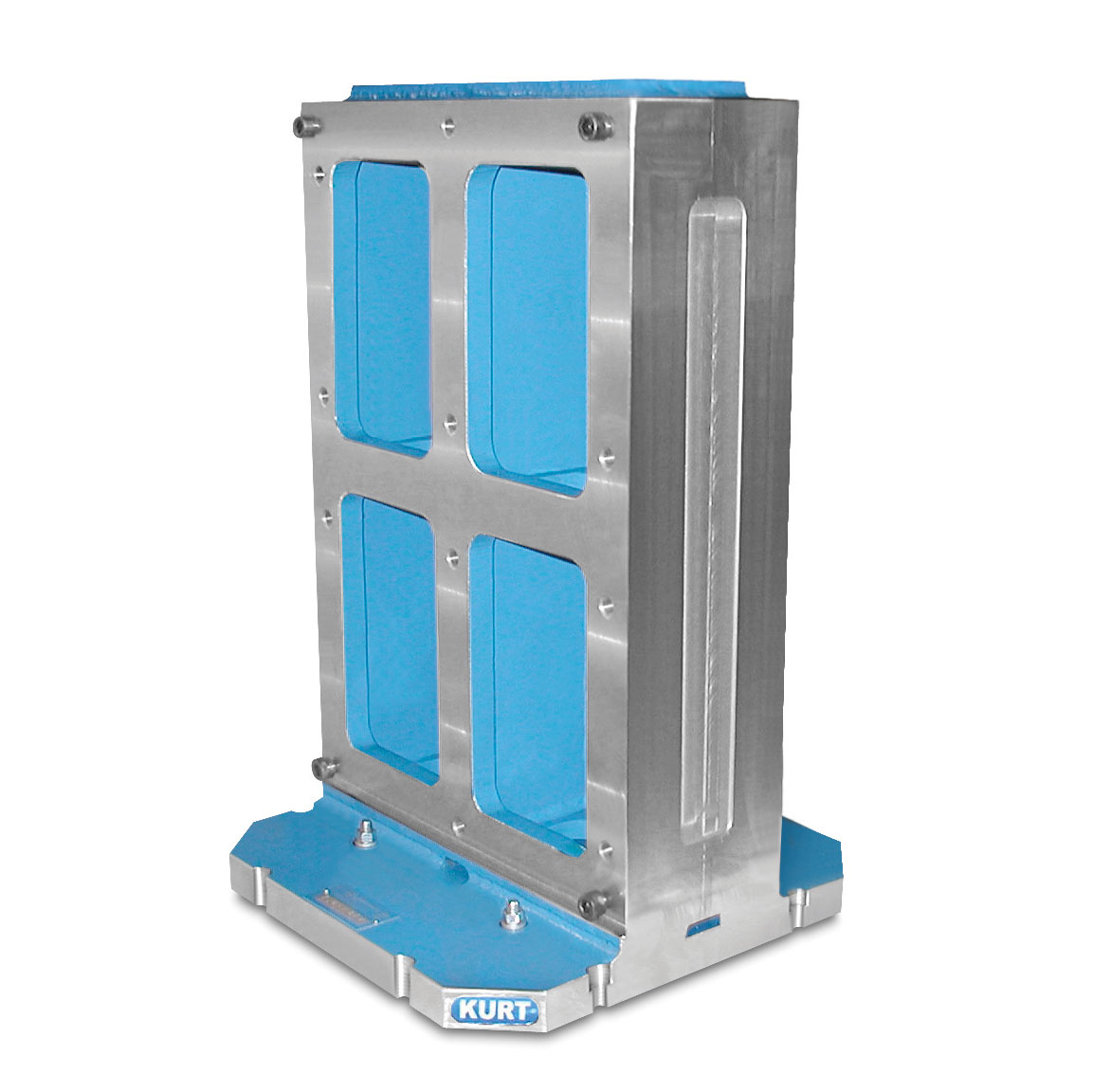

Kurt Workholding’s two-face caged tombstones are an excellent solution for high-density, versatile workholding on horizontal CNC machining centers. Our caged tombstones are over 30% lighter than most comparably sized tombstones with aluminum sub-plates, and are uniquely designed to reduce setup time. Kurt quick-change receiver bases can be mounted on subplates for easy vise swaps — see image gallery.
Kurt ToolBlox caged tombstones are a lower-cost alternative to dedicated fixtures. The bolt holes and dowel pattern on each face enable the fast and easy installation/removal of subplates, quick-change workholding and other workholding components, such as manual or hydraulic vises and swing clamp setups.

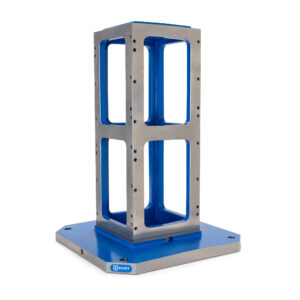

Kurt tombstone models are manufactured from Class 30 grey iron for durability, stability, and a long working life. Two-face and four-face models are available with 400 mm or 500 mm bases. Standard and custom sub-plates are available for all models.

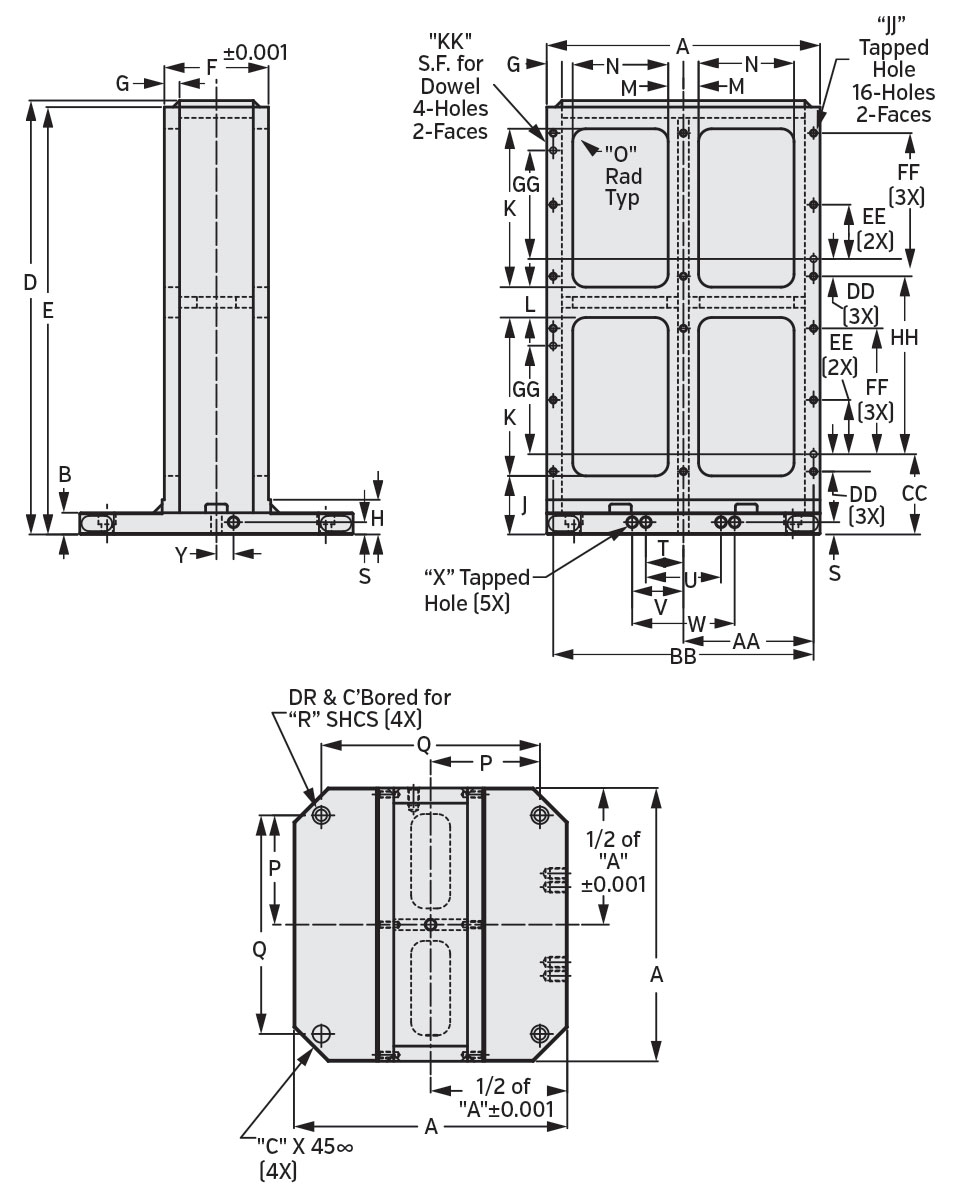

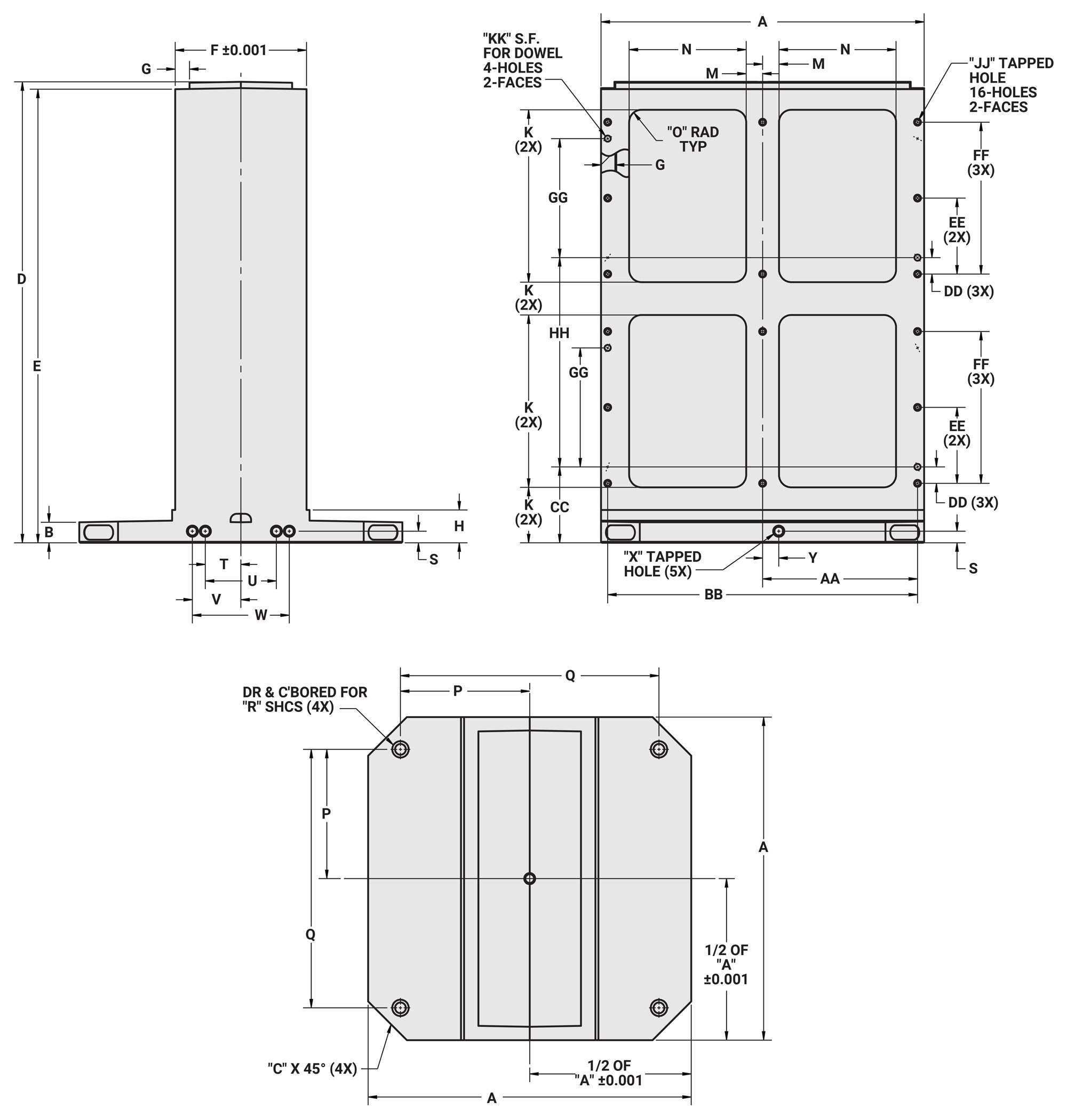

Dimensional Data
Dimensional Data
| TC2C40616 | |
| A | 400 mm |
| B | 1.250 |
| C | 1.970 |
| D | 25.000 |
| E | 24.625 |
| F | 6.000 |
| G | 0.875 |
| H | 2.000 |
| J | 3.375 |
| K | 9.125 |
| L | 1.750 |
| M | 0.875 |
| N | 5.500 |
| O | 0.750 |
| P | 6.299 |
| Q | 12.598 |
| R | 5/8 |
| S | 0.709 |
| T | 2.165 |
| U | 4.330 |
| V | 2.953 |
| W | 5.906 |
| X | 5/8-11NC x 1\" DP |
| Y | 0.984 |
| AA | 7.500 |
| BB | 15.000 |
| CC | 4.625 |
| DD | 1.000 |
| EE | 4.125 |
| FF | 8.250 |
| GG | 6.250 |
| HH | 11.250 |
| JJ | 3/8-16NC x 0.88 DP |
| KK | 0.375Ø x 0.75 DP |
| Est Weight | 326 Lbs (148 Kgs) |
