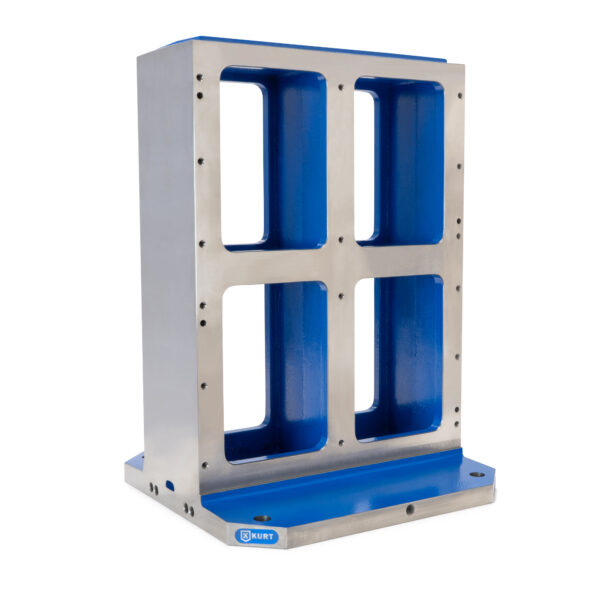

Kurt Cast Iron, 2 face, 500 mm Base – TC2C50820
Part No. TC2C50820
$4,878.00
Cast Iron, 2 face, 500 mm Base
Dimensional Data
Dimensional Data
| Inch | MM | Wt. Kgs. | Wt. Lbs. | |
| A | x | 500mm | x | x |
| B | 1.250 | x | x | x |
| C | 2.360 | x | x | x |
| D | 28.000 | x | x | x |
| E | 27.625 | x | x | x |
| F | 8.000 | x | x | x |
| G | 0.875 | x | x | x |
| H | 2.000 | x | x | x |
| J | 3.375 | x | x | x |
| K | 10.500 | x | x | x |
| L | 2.000 | x | x | x |
| M | 1.000 | x | x | x |
| N | 7.125 | x | x | x |
| O | 0.750 | x | x | x |
| P | 7.874 | x | x | x |
| Q | 15.748 | x | x | x |
| R | 5/8 | x | x | x |
| S | 0.709 | x | x | x |
| T | 2.165 | x | x | x |
| U | 4.330 | x | x | x |
| V | 2.953 | x | x | x |
| W | 5.906 | x | x | x |
| X | 5/8-11NC X 1\" DP | x | x | x |
| Y | 0.984 | x | x | x |
| AA | 9.4375 | x | x | x |
| BB | 18.875 | x | x | x |
| CC | 4.625 | x | x | x |
| DD | 1.000 | x | x | x |
| EE | 4.625 | x | x | x |
| FF | 9.250 | x | x | x |
| GG | 7.250 | x | x | x |
| HH | 12.750 | x | x | x |
| JJ | 3/8-16NC X 0.88 DP | x | x | x |
| KK | 0.375Ø X 0.75 DP | x | x | x |
| Wt. Kgs. | x | x | 248 | x |
| Wt. Lbs. | x | x | x | 546 |
