Kurt Hydraulic Vise Base w/ Hard Jaw Kit, 6″ – Metric – HDHLM6J

Part No. HDHLM6J

$3,433.00

Hydraulic Vise Base w/ Hard Jaw Kit, 6″

Description

Description

The HDHLM6J is a 6 inch wide Hydraulic High Density double station vise. This vise features quick change standard Kurt hard jaws with Metric fasteners.

NOTE: This is a single acting hydraulic vise.

Resources

Resources

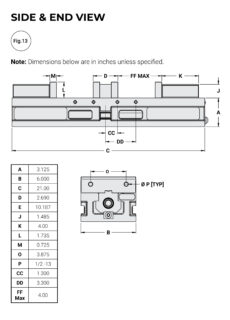

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Inch MM
A 3.125 79.375
B 6.000 152.400
C 21.000 533.400
D 10.192 258.877
E 3.250 82.550
F 21.250 539.750
G 10.625 269.875
K 2.500 63.500
L 5.000 127.000
M 5.000 127.000
N 1.728 43.891
O 6.000 152.400
P 4.000 101.600
Q 3.312 84.125
R 0.969 24.613
S 0.522 13.259
T 7/16-20 UNF 7/16-20 UNF
T O-RING PORT O-RING PORT
U 0.438 11.125
V 2.125 53.975
W 3.875 98.425
X M10x1.5 M10x1.5
Y 0.125 3.175
AA 0.625 15.875
AA INT HEX INT HEX
BB 0.438 11.125
CC 1.125 28.575
DD 3.125 79.375
EE M8x1.25 M8x1.25
FF 1.000 25.400
GG 0.984 25.000
HH 2.9528 75.00
JJ 5.000 127.000
KK 7.000 177.80
LL 6.890 175.000
MM 2.000 50.800
NN 1.969 50.000
OO M12 SHCS M12 SHCS
PP 1/2 SCHS 1/2 SCHS
QQ 0.625 15.875
RR 0.6299 16.000
SS 2.400 60.960
TT 1.194 30.328
Estimated Shipping Weight of Vise Body Only 70 Lbs 31.75 Kgs
