Kurt Hydraulic Vise Base w/ Cast Jaw Kit, 4″ – HDHLM4C

Part No. HDHLM4C

$2,421.00

Hydraulic Vise Base w/ Cast Jaw Kit, 4″

Description

Description

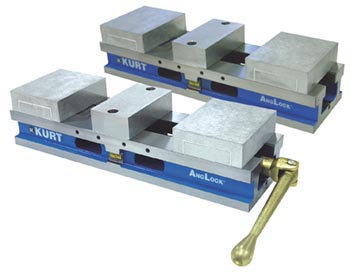

The HDHLM4C is a 4 inch wide Hydraulic High Density double station vise. This vise features quick change cast steel machinable jaws with Metric fasteners.

NOTE: This is a single acting hydraulic vise.

Resources

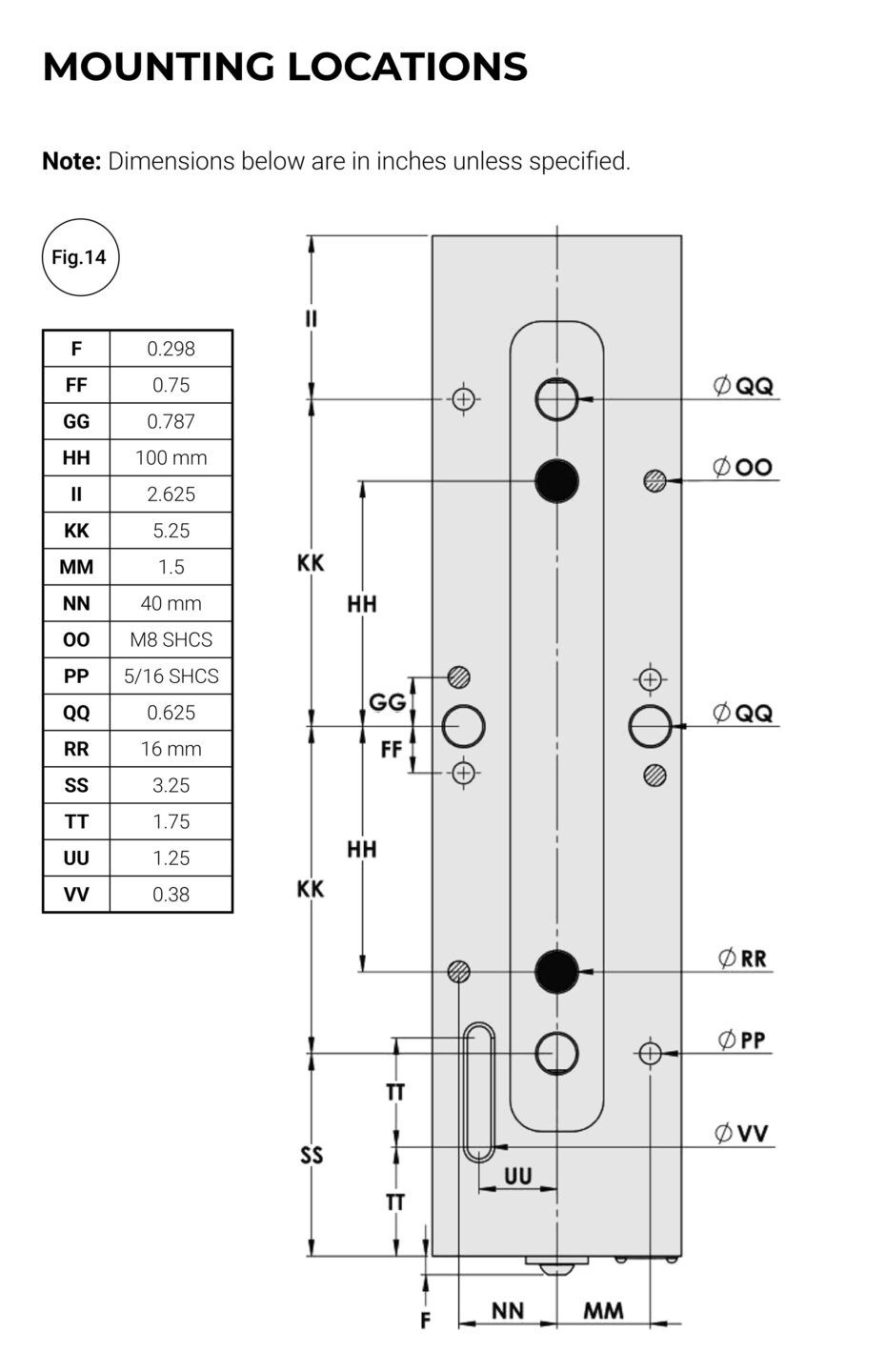

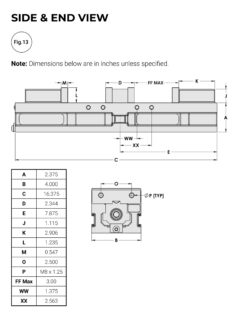

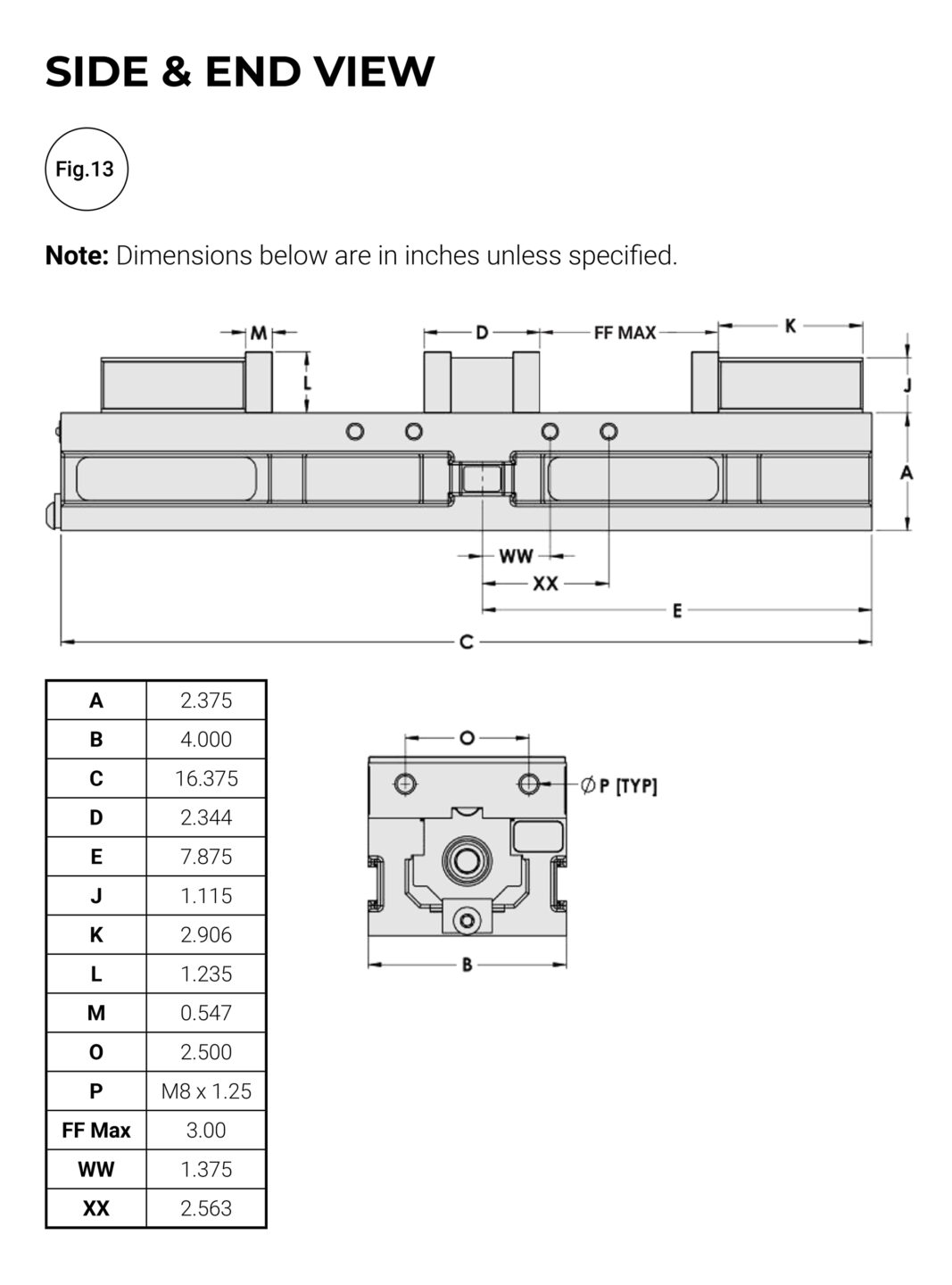

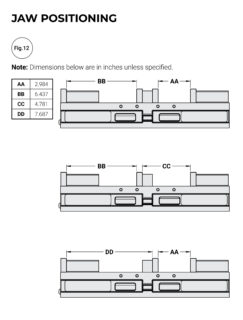

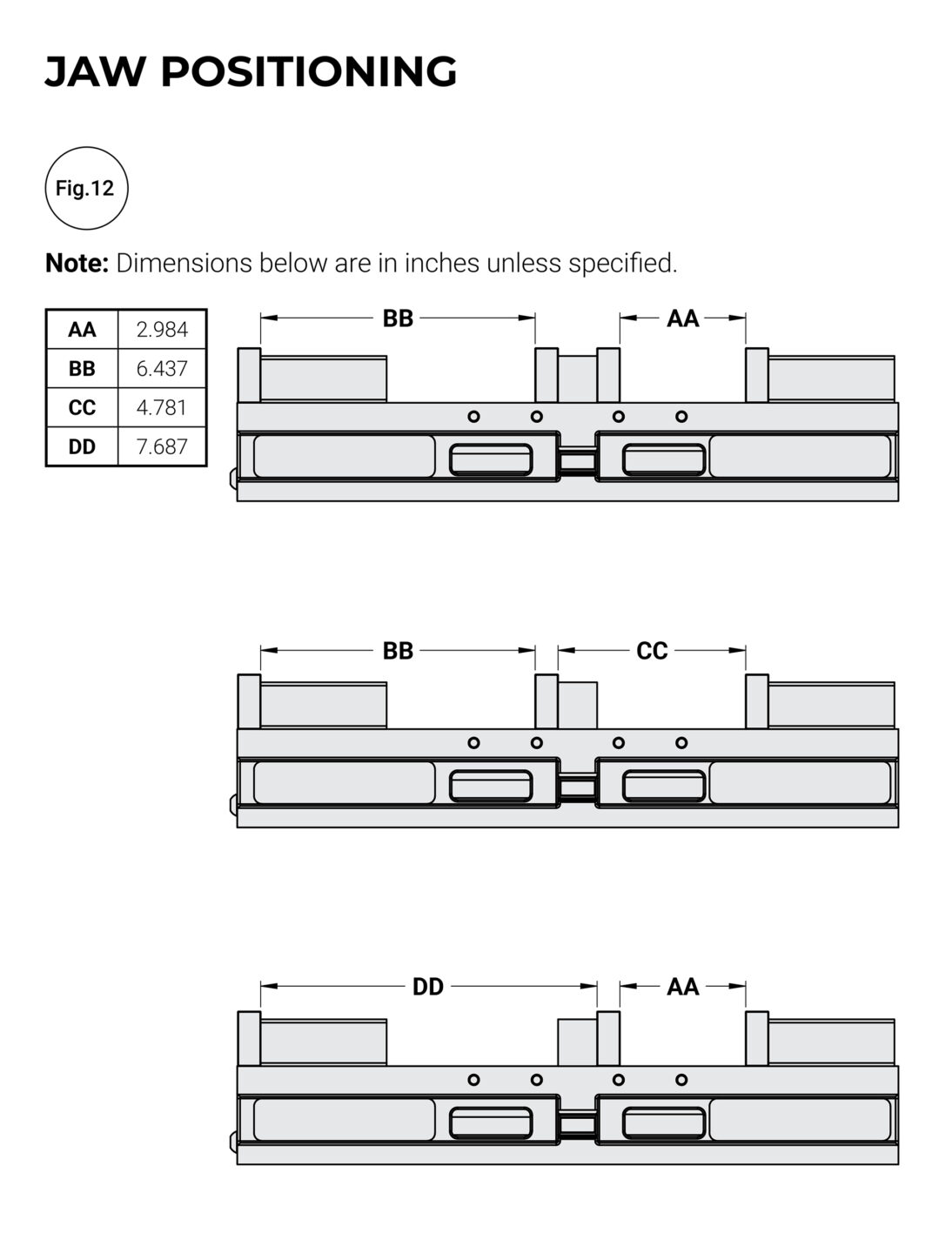

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Inch MM
A 2.375 60.325
B 4.000 101.600
C 16.375 415.925
D 7.875 200.025
E 2.500 63.500
F 16.468 418.287
G 8.234 209.144
K 1.625 41.275
L 3.250 82.550
M 4.000 101.600
N 1.400 35.560
O 4.000 101.600
P 2.984 75.794
Q 2.562 65.075
R 0.812 20.625
S 0.304 7.722
T 7/16-20 UNF 7/16-20 UNF
T O-RING PORT O-RING PORT
U 0.375 9.525
V 1.688 42.875
W 2.500 63.500
X M8 x 1.25 M8 x 1.25
Y 0.125 3.175
AA 0.437 11.099
AA INT HEX INT HEX
BB 0.375 9.525
CC 1.375 34.325
DD 2.563 65.100
EE M8 x 1.25 M8 x 1.25
FF 0.750 19.050
GG 0.787 20.000
HH 3.937 100.00
JJ 5.250 133.350
KK 5.250 133.350
LL 3.937 100.00
MM 1.500 38.100
NN 1.575 40.000
OO M8 SHCS M8 SHCS
PP 5/16 SHCS 5/16 SHCS
QQ 0.625 15.875
RR 0.6299 16.000
Estimated Shipping Weight of Vise Body Only 33 Lbs 14.96 Kgs
