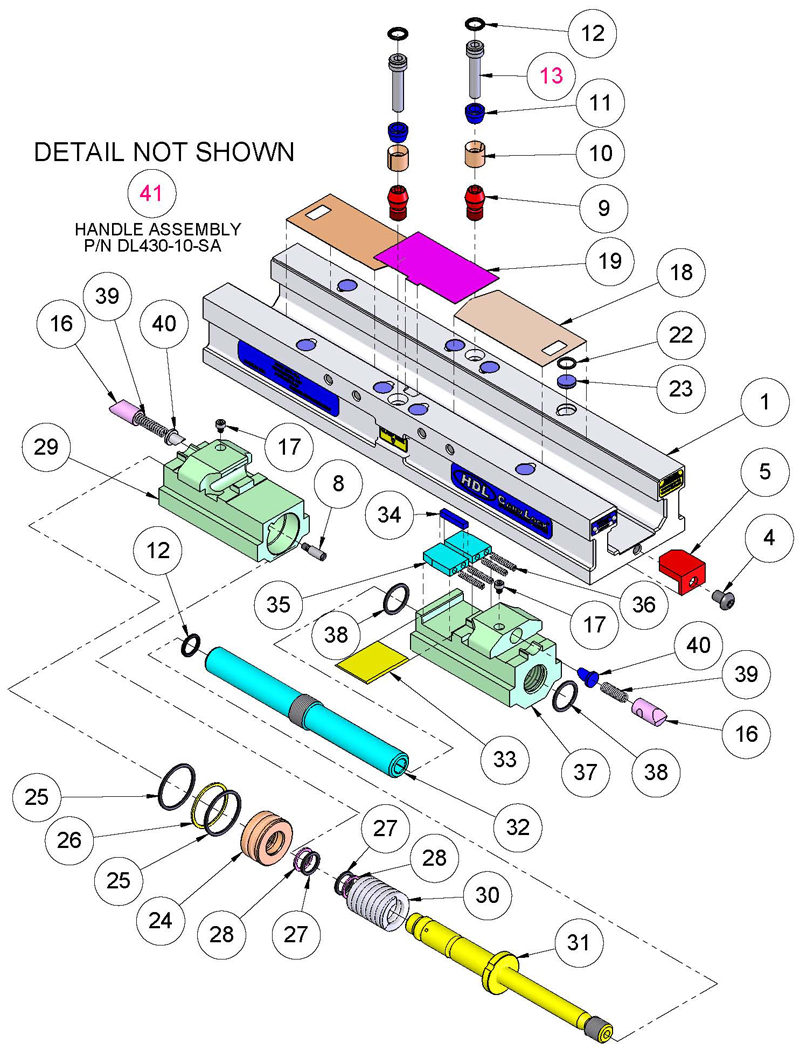

HDHLM4 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
152Kurt Screw, Drive, #2 X .25 - 07-023007-0230$3.00
00Kurt HDHL4 Repair Kit 1 - HDHL4-KIT1HDHL4-KIT1$51.00
112Kurt Clamp, Stationary Jaw - HDLM4-35HDLM4-35$22.00
92Kurt Locating Pin, Stationary Jaw for use with the HDLM4 Metric - HDLM4-277HDLM4-277$35.00
182Kurt Chip Guard, Movable - HDLM4-249HDLM4-249$10.00
191Kurt Chip Guard, Stationary - HDLM4-248HDLM4-248$7.00
102Kurt Clamp Sleeve - HDLM4-209HDLM4-209$25.00
238Kurt Plug, Protective - HDLM4-191HDLM4-191$5.00
132Kurt Screw, Alt. M8x1.25 SHCS for use with the HDLM4 Metric vers - HDLM4-18HDLM4-18$7.00
252Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$3.00
241Kurt Piston, Retaining Ring - HDHLM4-93HDHLM4-93$92.00
311Kurt Piston Screw - HDHLM4-89HDHLM4-89$198.00
272Kurt O-Ring, Buna N, #113 - HDHLM4-68HDHLM4-68$3.00
51Kurt Spacer, "L" Shaped - HDHLM4-61HDHLM4-61$59.00
331Kurt Cover - HDHLM4-53HDHLM4-53$44.00
321Kurt Screw Extention - HDHLM4-5HDHLM4-5$176.00
291Kurt Nut, Rear - HDHLM4-3RHDHLM4-3R$222.00
371Kurt Nut, Front - HDHLM4-3FHDHLM4-3F$167.00
402Kurt Pre-load Plunger - HDHLM4-334HDHLM4-334$37.00
341Kurt Spring, (Preload) Rectangular - HDHLM4-311HDHLM4-311$9.00
392Kurt Spring, Compression - HDLM4-267HDLM4-267$5.00
352Kurt Friction Clamp - HDHLM4-225HDHLM4-225$58.00
261Kurt Parker Parbak Ring - HDHLM4-188HDHLM4-188$3.00
282Kurt Parker Parbak Ring - HDHLM4-187HDHLM4-187$3.00
364Kurt Spring, Compressin - HDHLM4-169HDHLM4-169$6.00
421Kurt Retainig Ring - HDHLM4-147HDHLM4-147$3.00
162Kurt Spring Guide - HDHLM4-142HDHLM4-142$11.00
41Kurt Screw, BHCS M8 X 1.25 X 12MM LG for use with the HDLM4 Metr - 29-016829-0168$3.00
172Kurt Screw, SHCS, M4 X .7 X 50MM Long - 26-005026-0050$3.00
228Kurt Replacement O-Rings - MT4-96MT4-96$3.00
301Kurt Compression Spring - 4THU-874THU-87$25.00
123Kurt O-Ring, #110 - 360AU-99B360AU-99B$3.00
382Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$3.00
