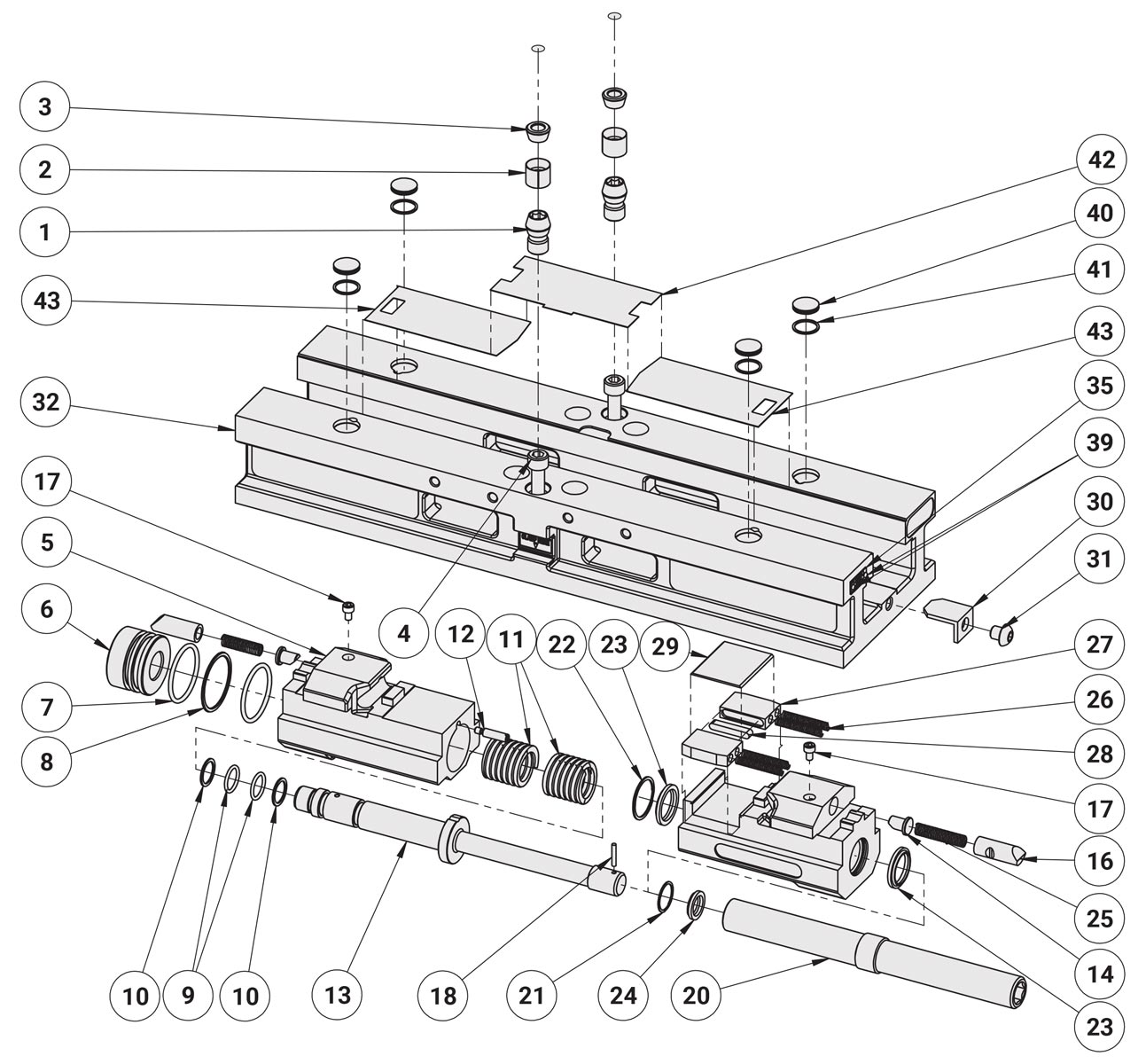

HDHLM6 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
241Kurt Spring (Pre-Load) - HDHLM6-311AHDHLM6-311A$20.00
231Kurt Cover - HDHLM6-53A-CPHDHLM6-53A-CP$45.00
221Kurt Friction, Clamp - HDHLM6-225A-CPHDHLM6-225A-CP$102.00
362Kurt Spring, Blue, Hydraulic Vise Only - HDH6-267HDH6-267$9.00
1Kurt HDHLM6 Repair Kit (Serial Numbers 1000 and Greater) - HDHLM6-KIT1HDHLM6-KIT1$88.00
331Kurt Stationary Jaw Locating Pin for use with the HDLM6 Metric v - HDM6-277AHDM6-277A$40.00
412Kurt Chip Guard, Movable - HDLM6-249HDLM6-249$8.00
421Kurt Chip Guard, Stationary - HDLM6-248HDLM6-248$9.00
352Kurt Spring Guide, Metric - HDHM6-142HDHM6-142$13.00
101Kurt Piston Screw - HDHLM6-89-CPHDHLM6-89-CP$256.00
181Kurt Spacer - HDHLM6-61HDHLM6-61$77.00
131Kurt Screw - HDHLM6-5-CPHDHLM6-5-CP$221.00
1Kurt Hydraulic Nut & Screw Assembly - HDHLM6-3-SAHDHLM6-3-SA$2,072.00
81Kurt Rear Nut - HDHLM6-3RHDHLM6-3R$551.00
171Kurt Front Nut - HDHLM6-3FAHDHLM6-3FA$336.00
91Kurt Timing Pin - HDHLM6-25HDHLM6-25$18.00
164Kurt Compression Spring - HDHLM6-169HDHLM6-169$8.00
501Kurt Plug, Nylon - HDHLM6-168HDHLM6-168$32.00
32Kurt O-Ring, Buna N, #223 - HDH6-96HDH6-96$6.00
21Kurt Hydraulic Piston - HDH6-93HDH6-93$74.00
52Kurt O-Ring, Buna N, #115 - HDH6-68HDH6-68$6.00
432Kurt Pre-load Plunger - HDH6-334HDH6-334$12.00
41Kurt O-Ring, Backer - HDH6-188HDH6-188$7.00
62Kurt O-Ring, Backer - HDH6-187HDH6-187$6.00
312Kurt Stationary Jaw Clamp - HD6-35HD6-35$23.00
322Kurt Clamp Sleeve - HD6-209HD6-209$29.00
481Kurt Extension Handle Assembly - DL640X-10-SADL640X-10-SA$106.00
121Kurt Wiper Ring - DL430-97DL430-97$7.00
152Kurt Wiper Ring - DL430-331DL430-331$7.00
141Kurt Retaining Ring - DL430-231DL430-231$6.00
111Kurt Retaining Ring - DL430-217DL430-217$7.00
72Kurt Compression Spring - 360HU-87A360HU-87A$56.00
392Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
191Kurt Screw, BHCS, M10 X 1.5 X 12 for use with the HDLM6 Metric v - 29-021829-0218$7.00
302Kurt Screw, SHCS, M10 X 1.5 X 45mm LG for use with the HDLM6 Met - 26-023226-0232$6.00
342Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-008226-0082$6.00
