Kurt Hydraulic Vise Base w/ Aluminum 2.5 Jaw Kit, 6″ – HDHLM6AL2.5
Part No. HDHLM6AL2.5
$3,415.00
Hydraulic Vise Base w/ Aluminum 2.5 Jaw Kit, 6″
Description
Description
| Call Factory for Availability |
The HDHL6AL2.5 is a 6 inch wide Hydraulic High Density double station vise. This vise features quick change 2.5″ high machinable aluminum jaws with Metric fasteners.
NOTE: This is a single acting hydraulic vise.
Resources
Resources

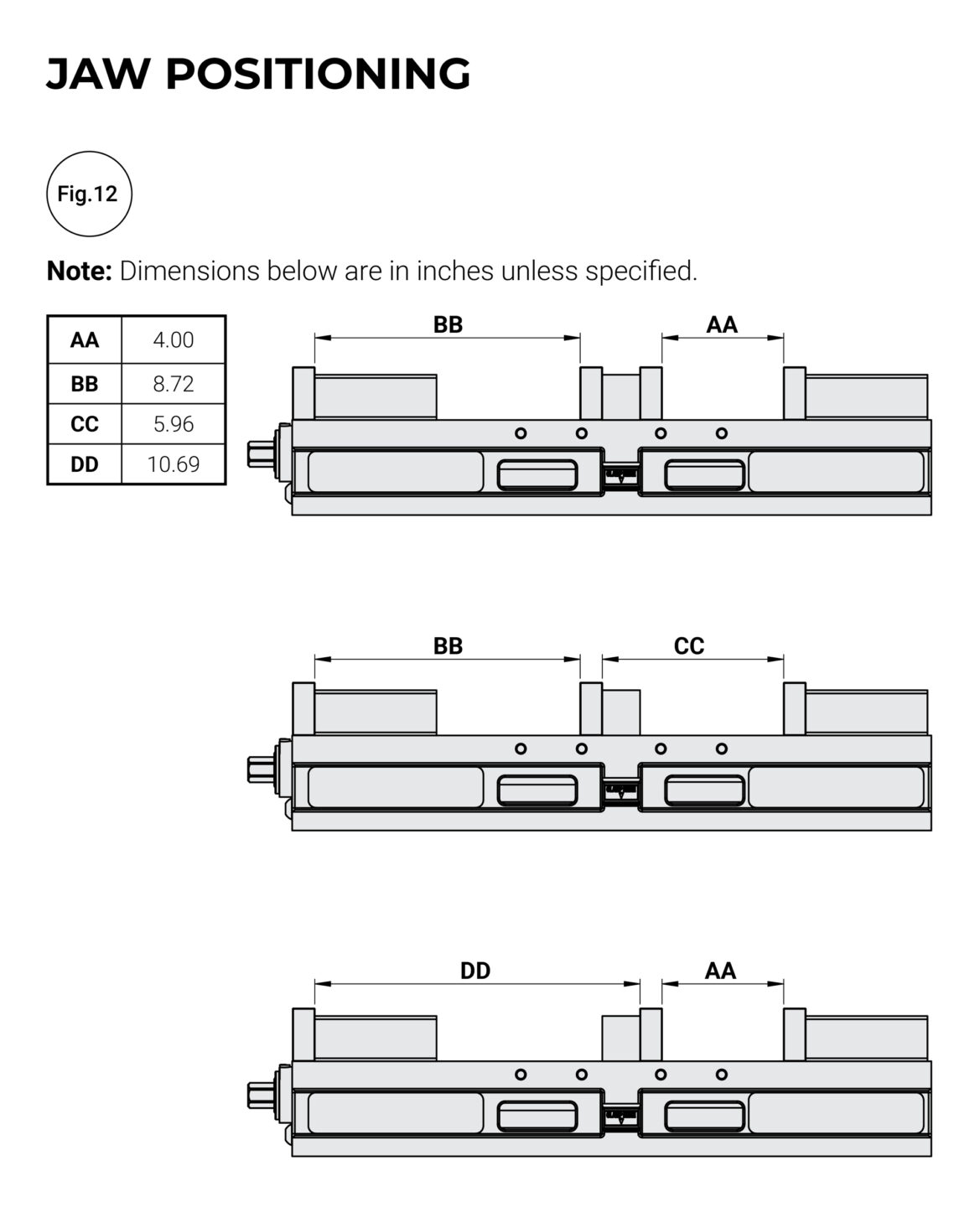

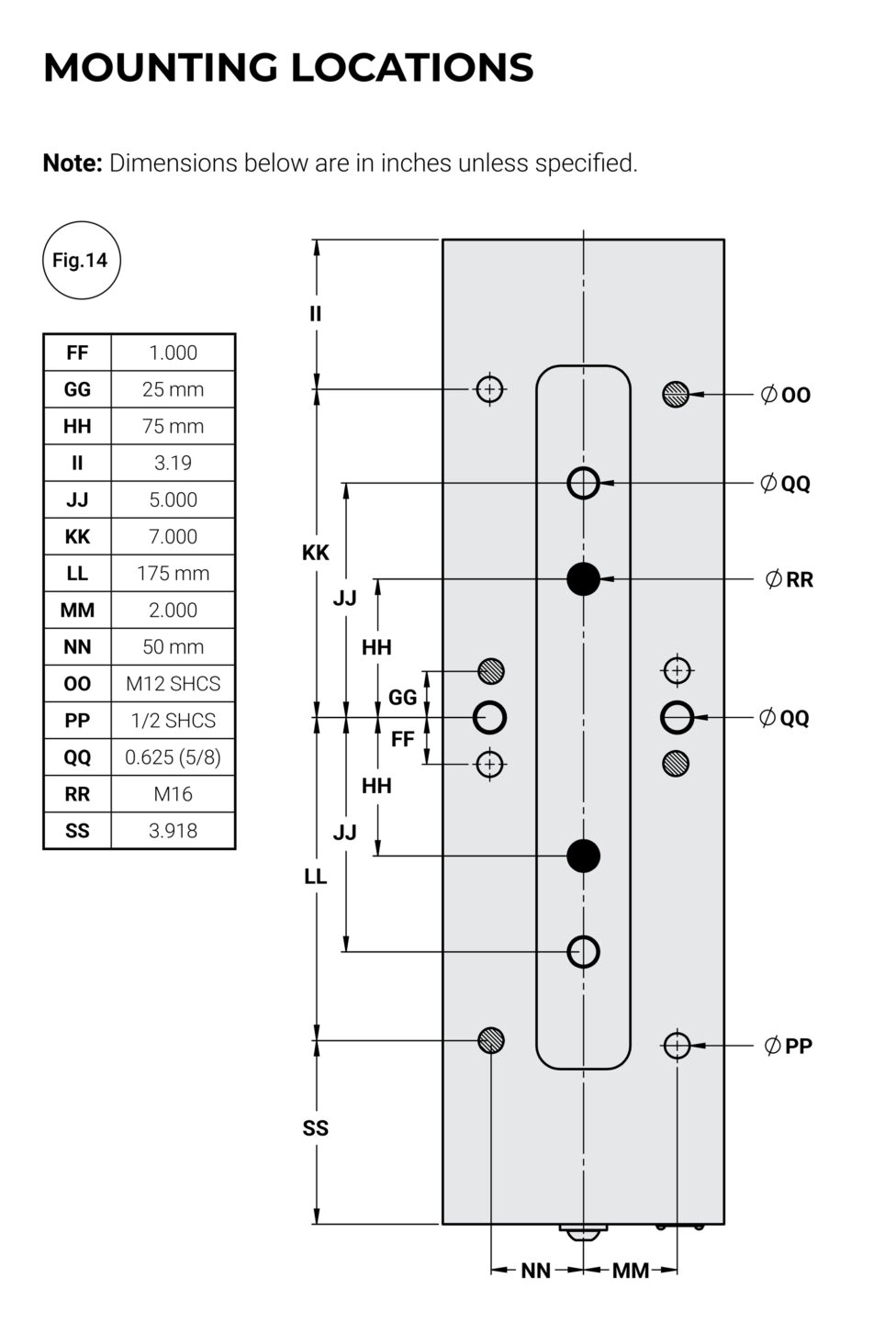

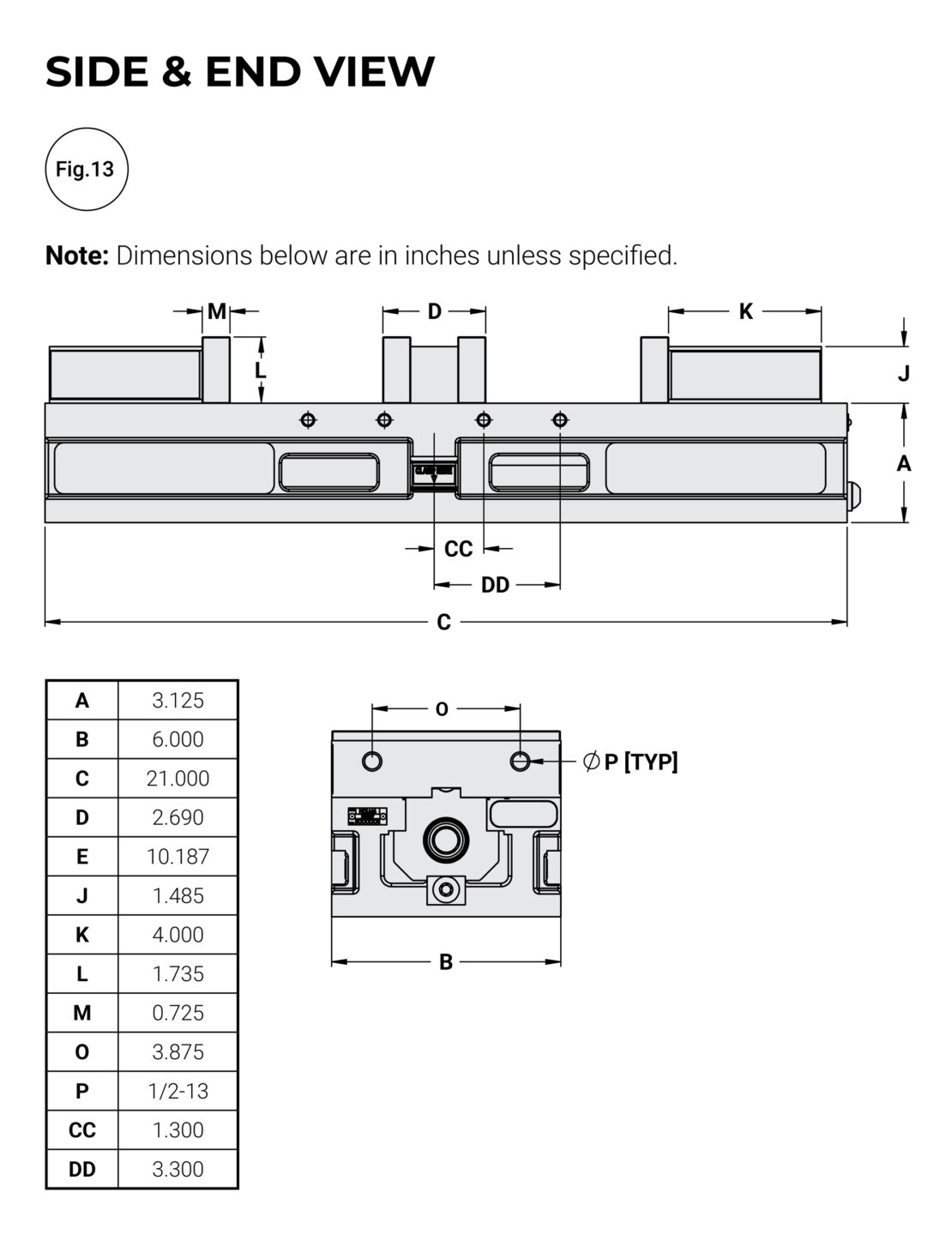

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 1,540 |
| 20 | 2,500 |
| 30 | 3,350 |
| 40 | 4,300 |
| 50 | 5,750 |
| 60 | 6,850 |
| 70 | 7,450 |
| Hydraulic PSI | Force in lbs. |
| 500 | 850 |
| 1,000 | 1,600 |
| 1,500 | 2,300 |
| 2,000 | 3,100 |
| 2,500 | 3,950 |
| 3,000 | 4,750 |
| 3,500 | 5,450 |
| 4,000 | 6,350 |
| 4,500 | 7,100 |
