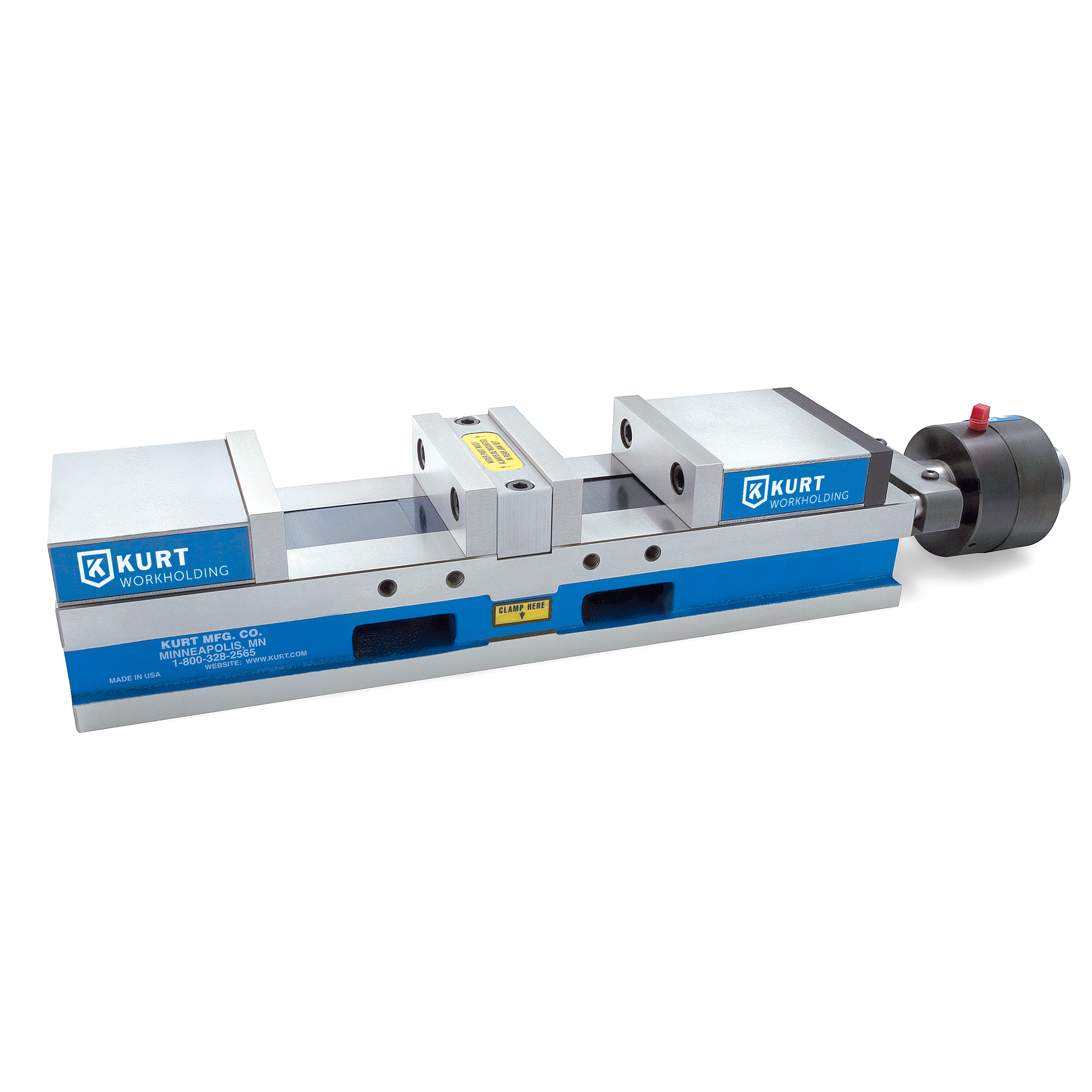

Kurt Hydraulic DoubleLock Vise, 8″ – DLH800

Part No. DLH800

$7,856.00

Hydraulic DoubleLock Vise, 8″

Description

Description

The DLH800 hydraulic DoubleLock vise provides repeatable clamping for high accuracy machining and handles a higher horsepower cut than the manual version. The compact design features a wide range of clamping forces up to 12,600 lbs. 1/4″ stroke – 1/8″ per side.

NOTE: This is a single acting hydraulic vise.

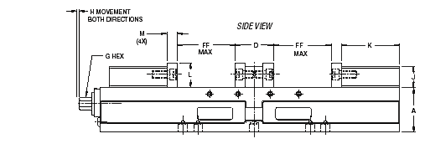

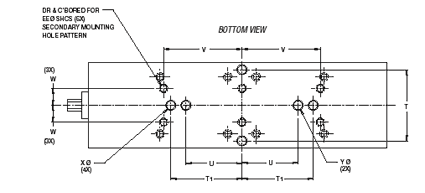

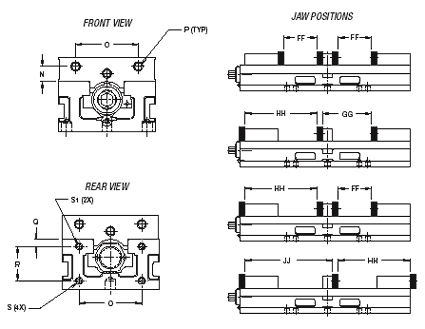

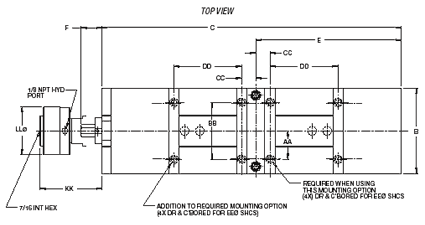

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Cubic Inch Inch Pounds
A x 3.750 x
B x 8.060 x
C x 30.000 x
D x 4.000 x
E x 15.000 x
H x 0.190 x
J x 1.965 x
K x 6.000 x
L x 2.200 x
M x 1.075 x
N x 1.220 x
O x 4.750 x
P x 5/8-11 x
Q x 0.750 x
R x 2.375 x
S x 1/2-13 x
T x 7.000 x
V x 8.000 x
W x 3.625 x
X x 0.750 x
AA x 2.500 x
BB x 5.000 x
CC x 1.000 x
DD x 7.500 x
EE x 1/2 x
FF x 6.000 x
GG x 8.925 x
HH x 13.075 x
JJ x 16.000 x
KK x 6.240 x
LL x 3.375 x
S1 x 5/8-11 x
T1 x 7.000 x
Hyd Displacement cu. In. 2.36 x x
Ship wt x x 360

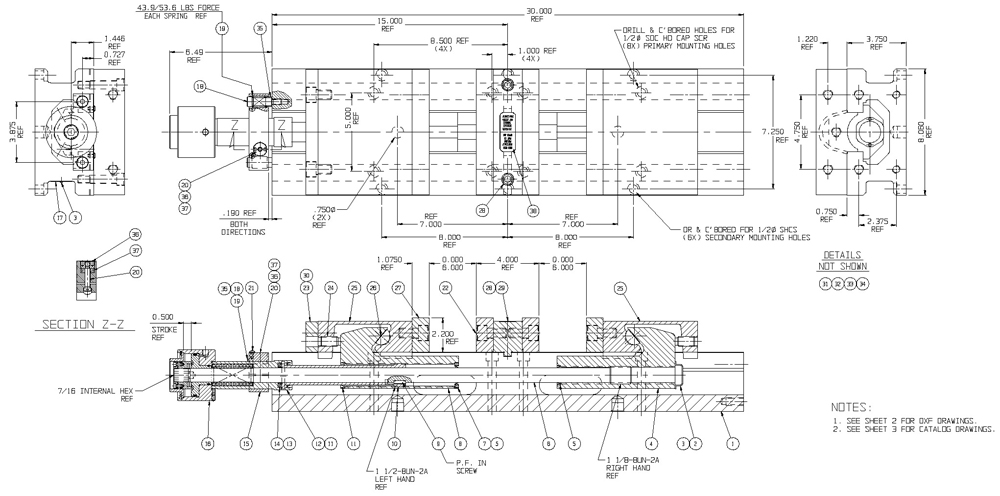

2D/3D CAD
