Kurt Hydraulic Vise Base w/ Hard Jaw Kit, 4″ – English – HDHL4J

Part No. HDHL4J

$2,724.00

Hydraulic Vise Base w/ Hard Jaw Kit, 4″ – English

Description

Description

The HDHL4J is a 4 inch wide Hydraulic High Density double station vise. This vise features quick change standard Kurt hard jaws with English fasteners.

Resources

Resources

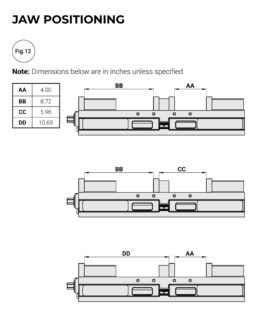

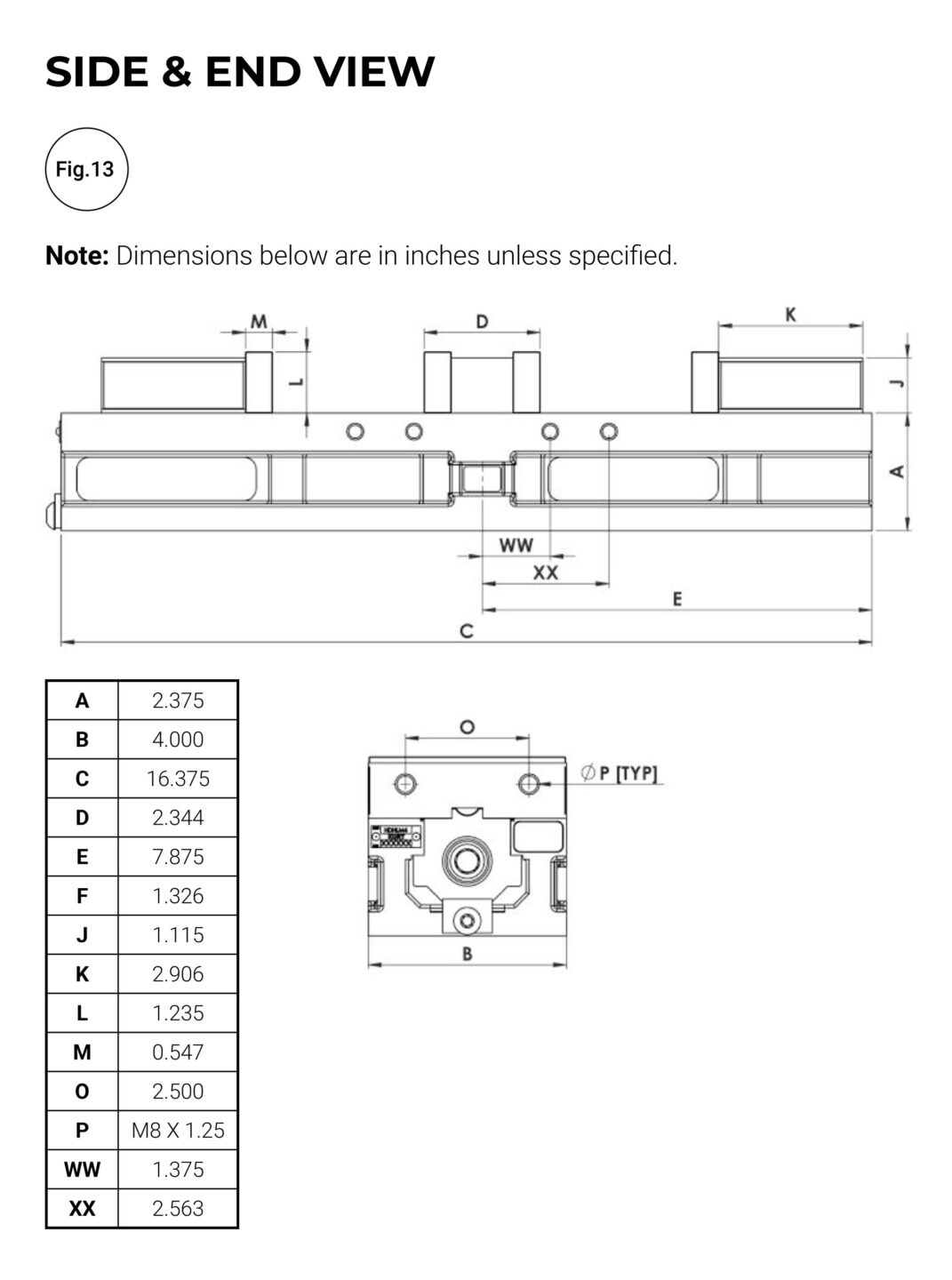

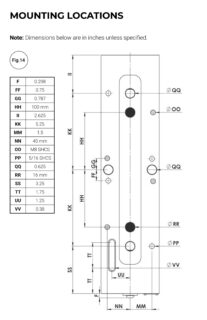

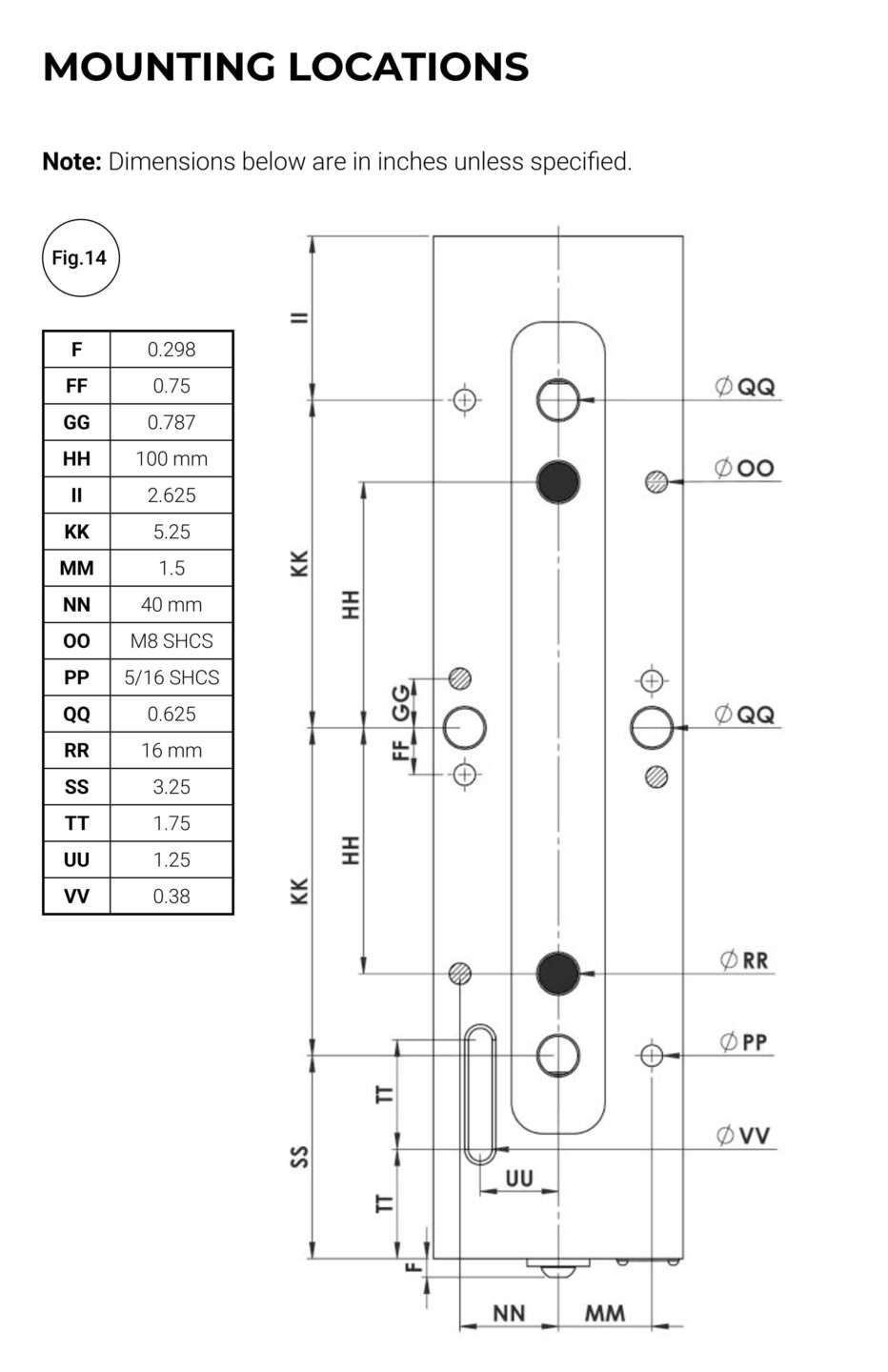

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Inch MM
A 2.375 60.325
B 4.000 101.600
C 16.375 415.925
D 7.875 200.025
E 2.500 63.500
F 16.468 418.287
G 8.234 209.144
K 1.625 41.275
L 3.250 82.550
M 4.000 101.600
N 1.400 35.560
O 4.000 101.600
P 2.984 75.794
Q 2.562 65.075
R 0.812 20.625
S 0.304 7.722
T 7/16-20 UNF 7/16-20 UNF
T O-RING PORT O-RING PORT
U 0.375 9.525
V 1.688 42.875
W 2.500 63.500
X M8 x 1.25 M8 x 1.25
Y 0.125 3.175
AA 0.437 11.099
AA INT HEX INT HEX
BB 0.375 9.525
CC 1.375 34.325
DD 2.563 65.100
EE M8 x 1.25 M8 x 1.25
FF 0.750 19.050
GG 0.787 20.000
HH 3.937 100.00
JJ 5.250 133.350
KK 5.250 133.350
LL 3.937 100.00
MM 1.500 38.100
NN 1.575 40.000
OO M8 SHCS M8 SHCS
PP 5/16 SHCS 5/16 SHCS
QQ 0.625 15.875
RR 0.6299 16.000
Estimated Shipping Weight of Vise Body Only 33 Lbs 14.96 Kgs
