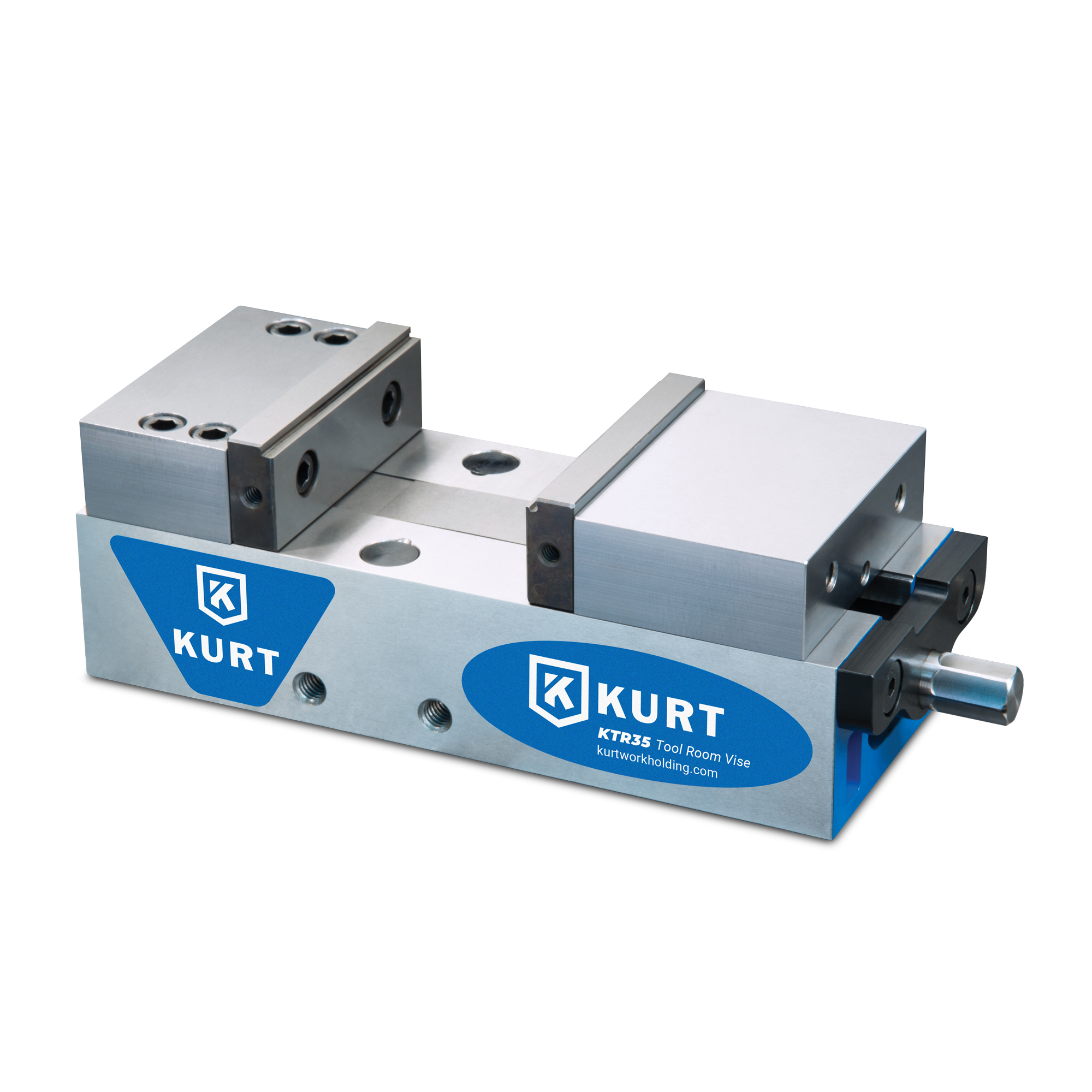

Kurt Tool Room / Sine Vise – KTR35

Part No. KTR35

$816.00

Sold exclusively through the Kurt Workholding website, the KTR35 – Kurt Tool Room Vise is an extremely versatile vise designed to fit on the smallest of machine tables.

Description

Description

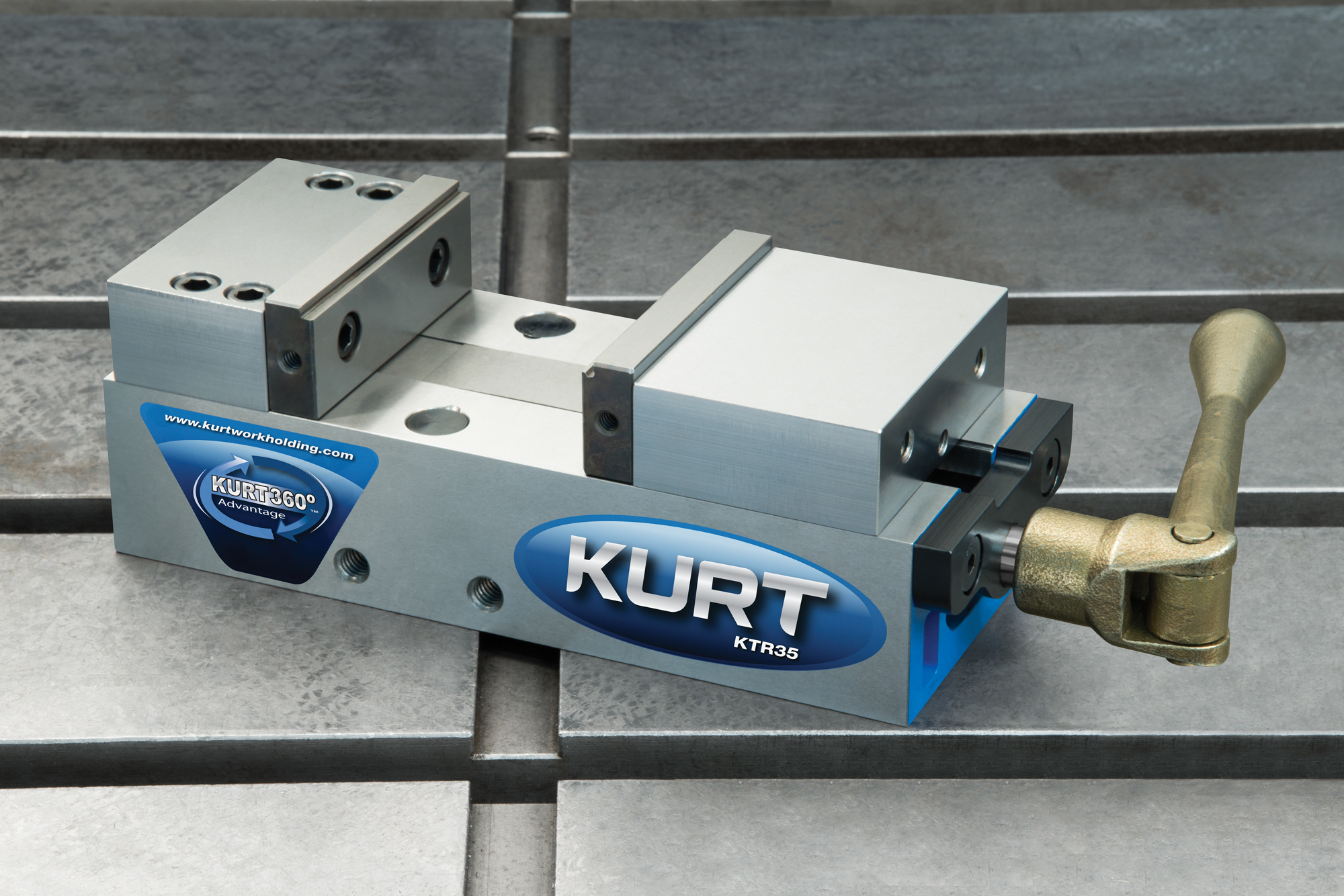

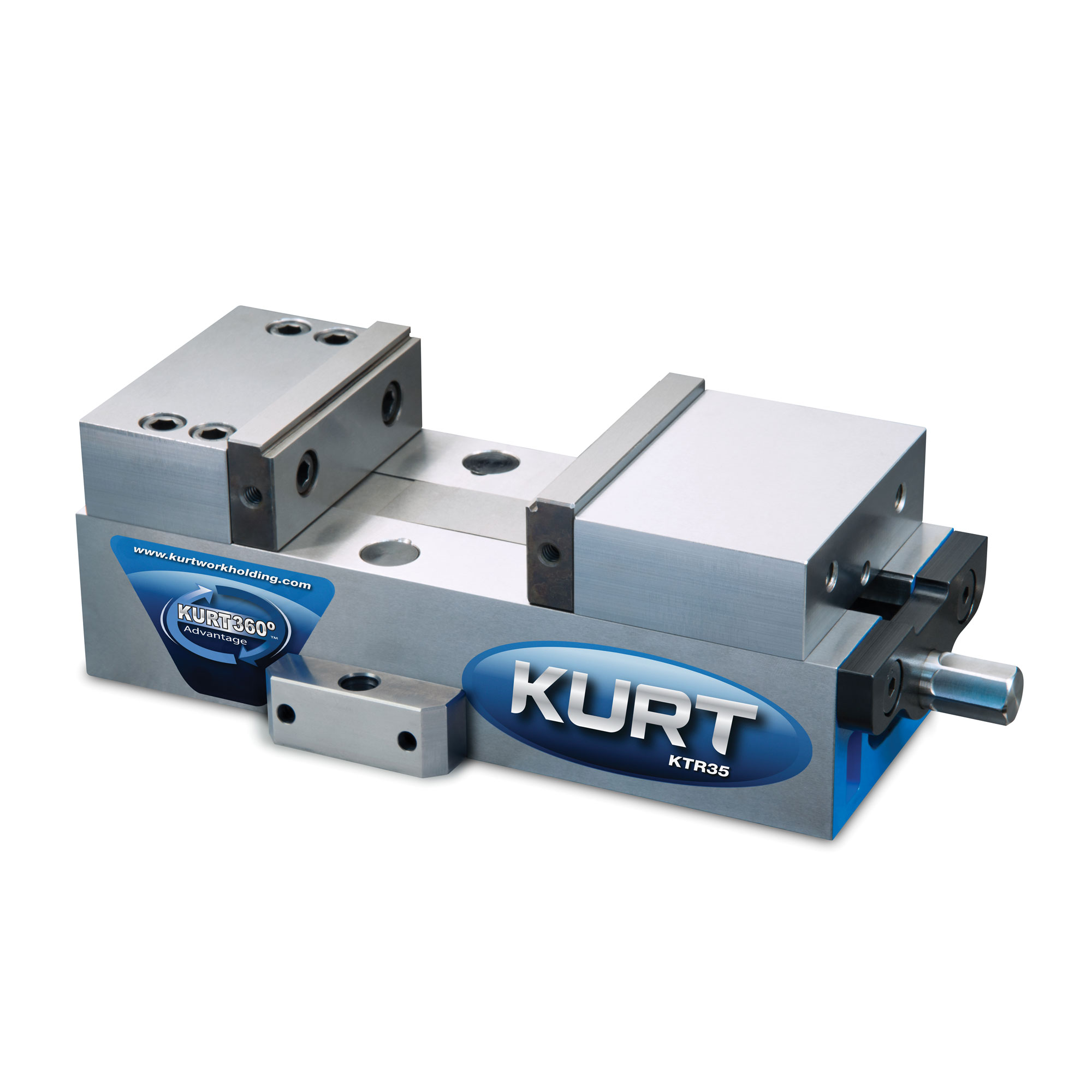

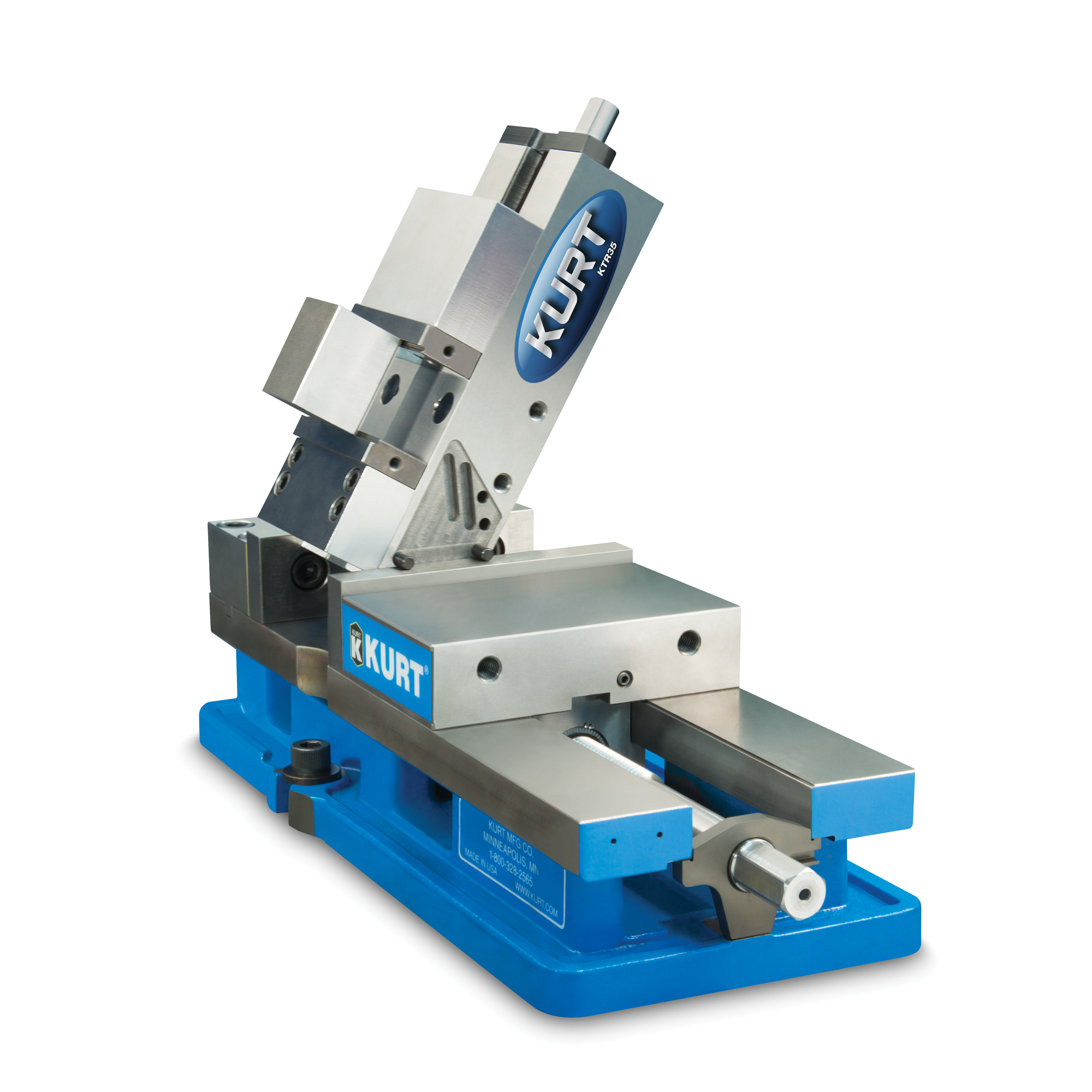

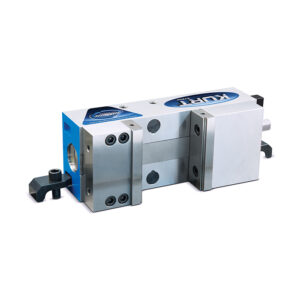

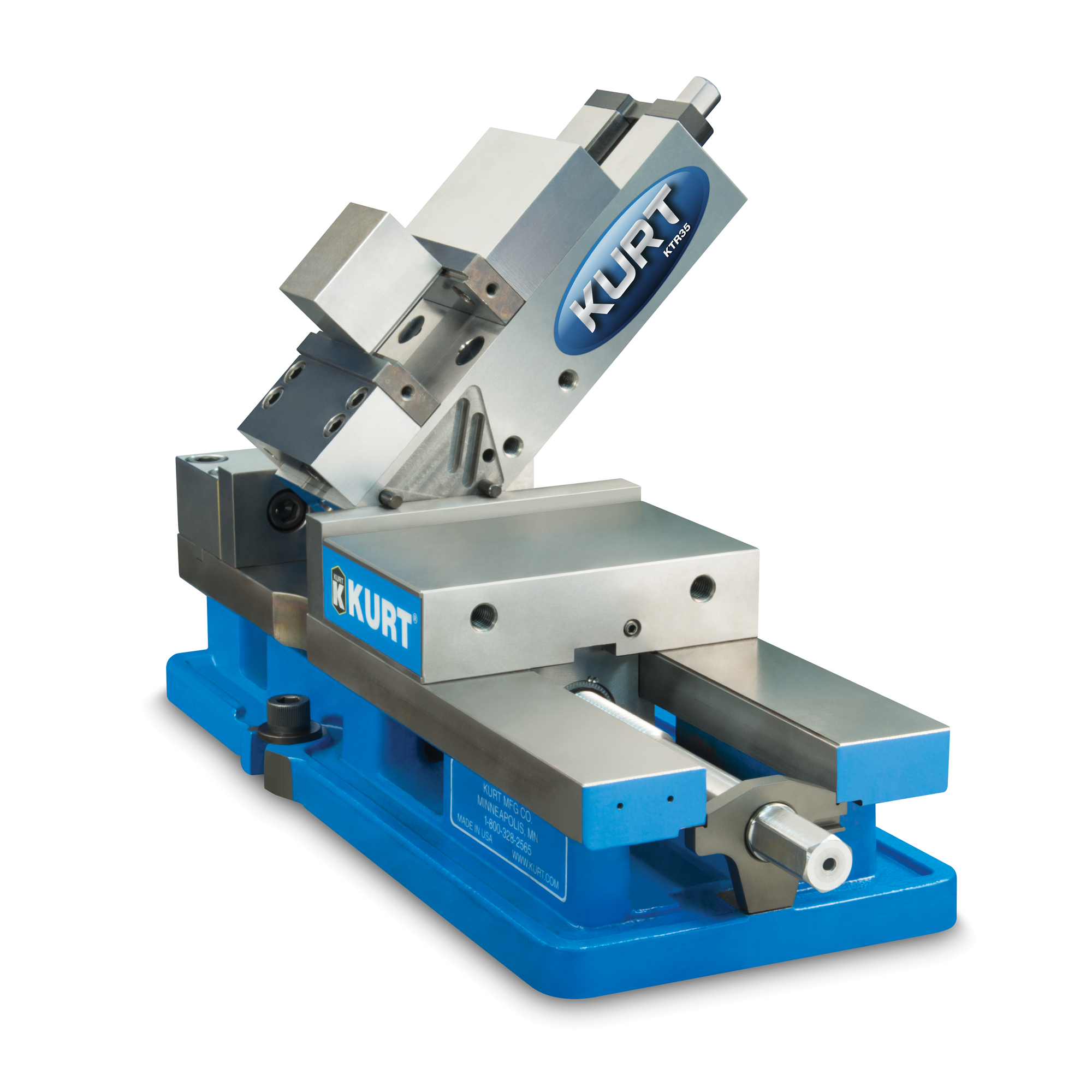

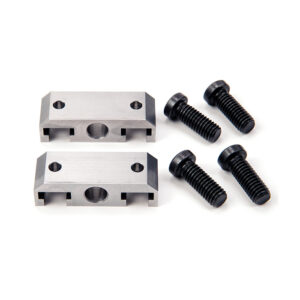

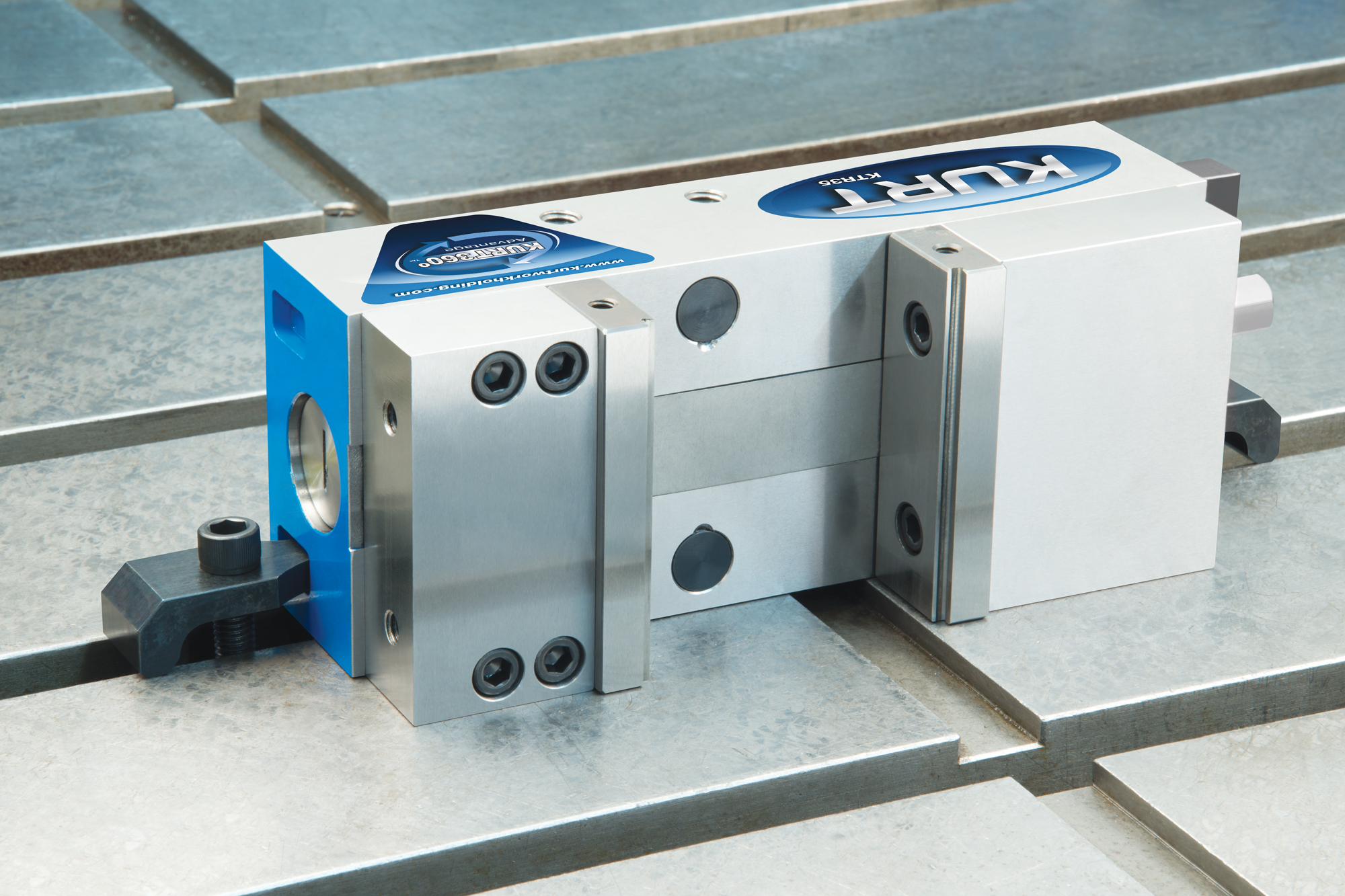

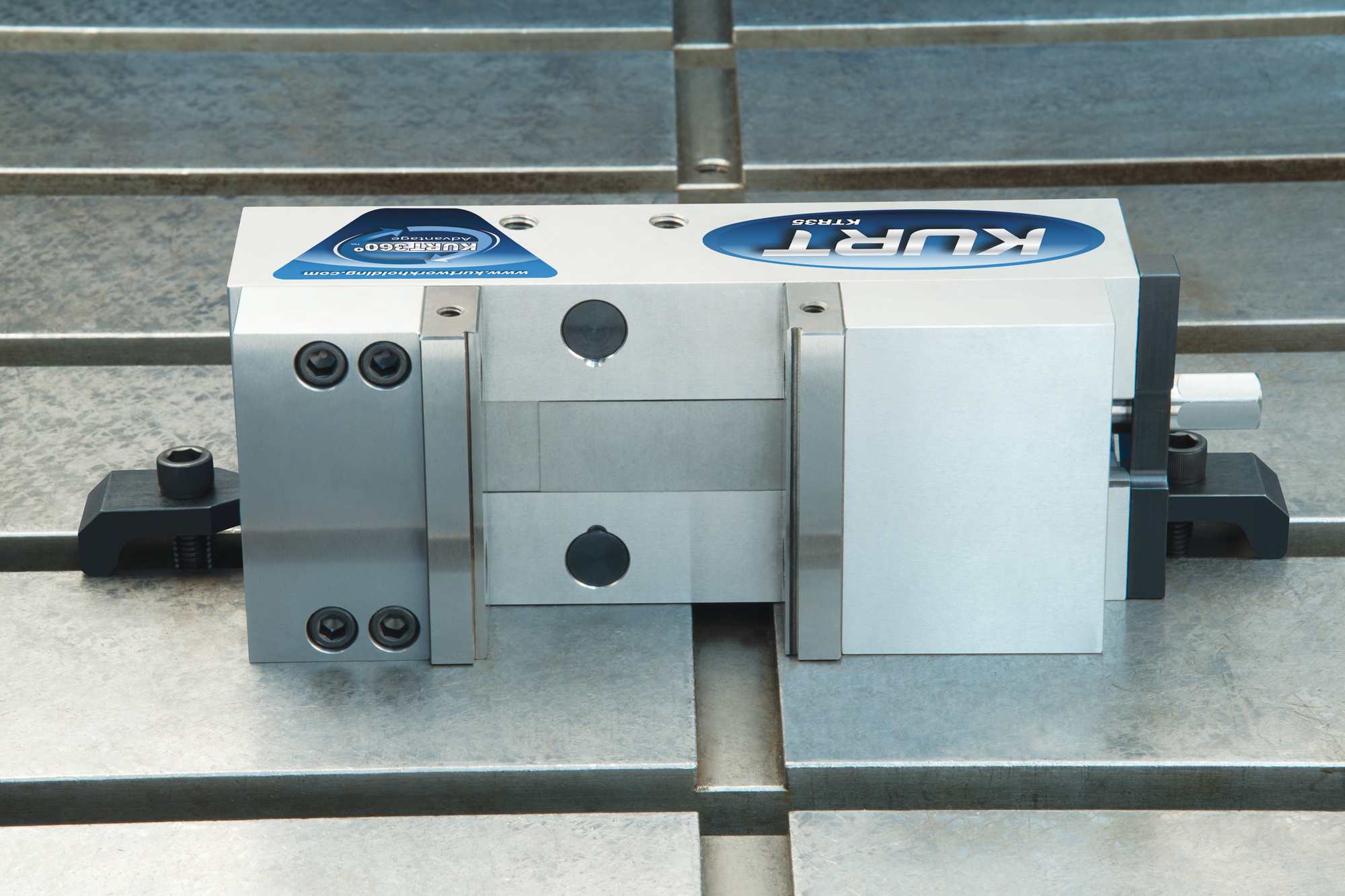

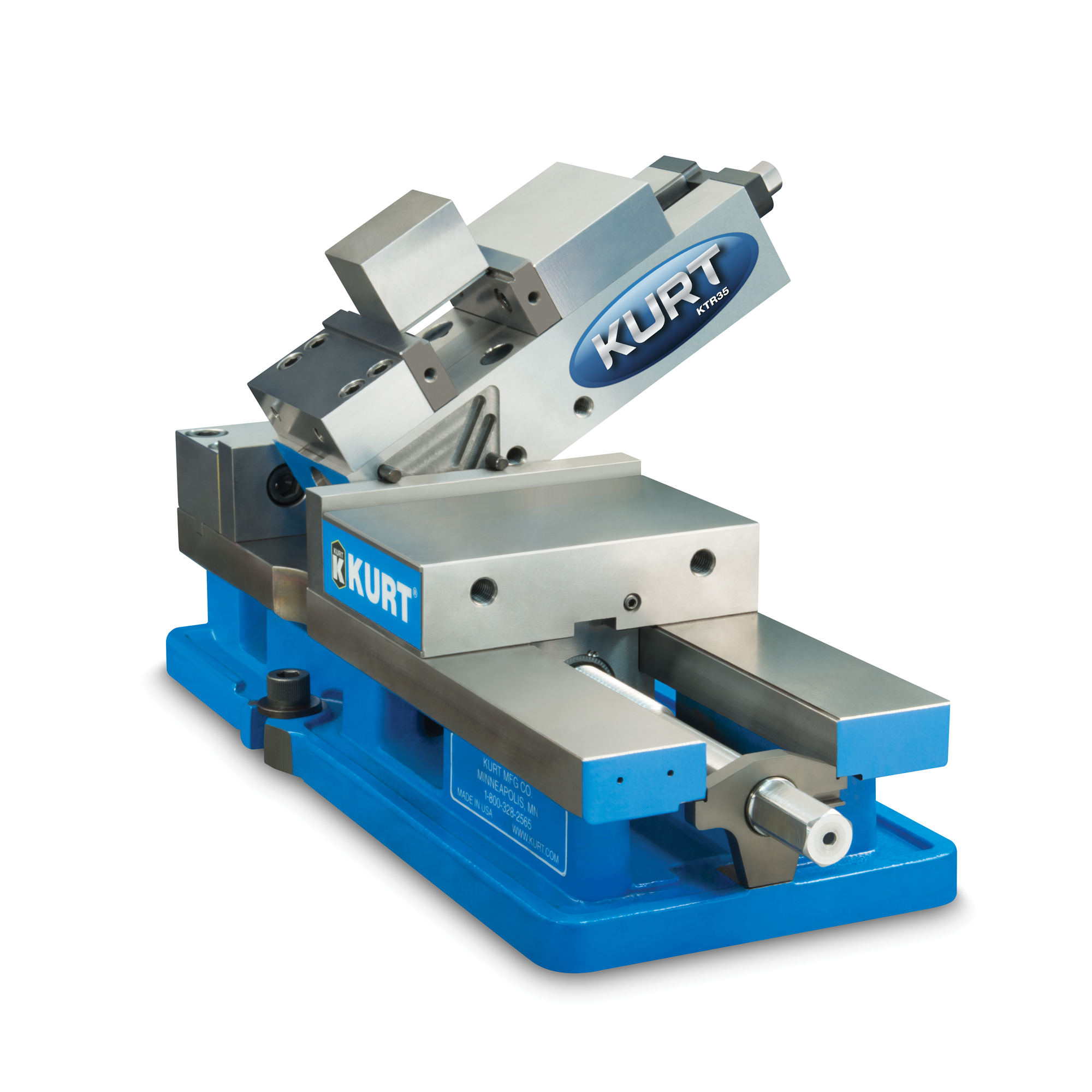

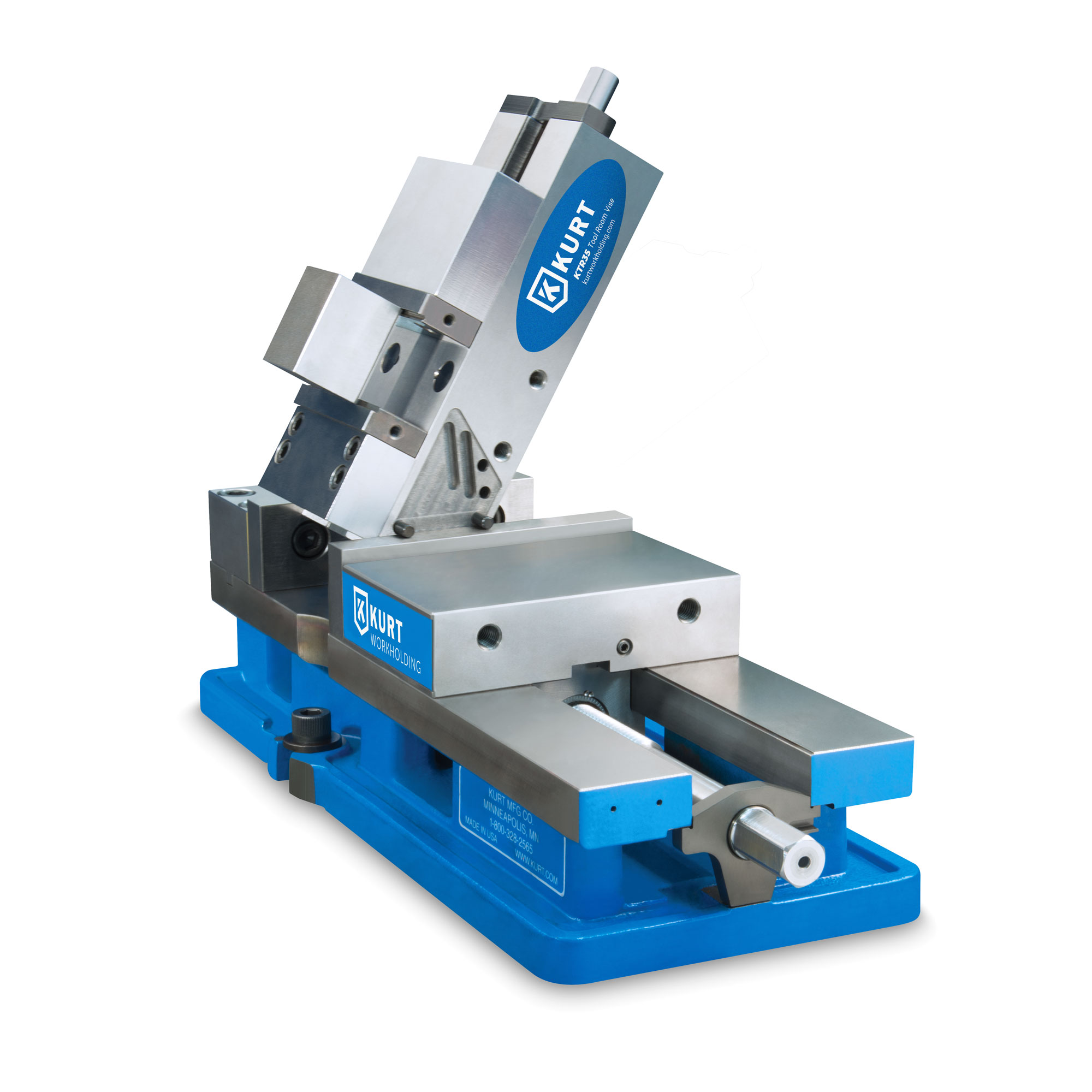

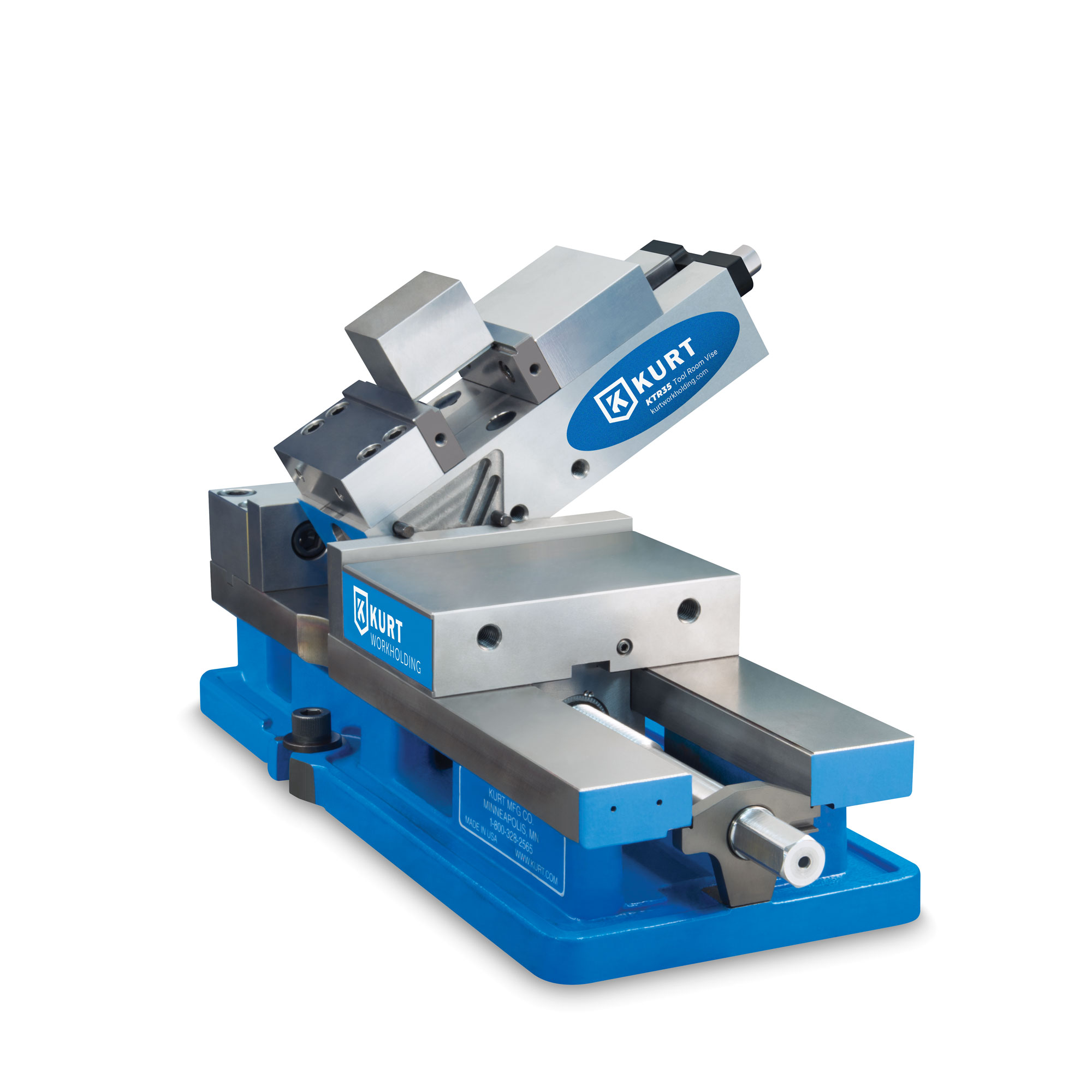

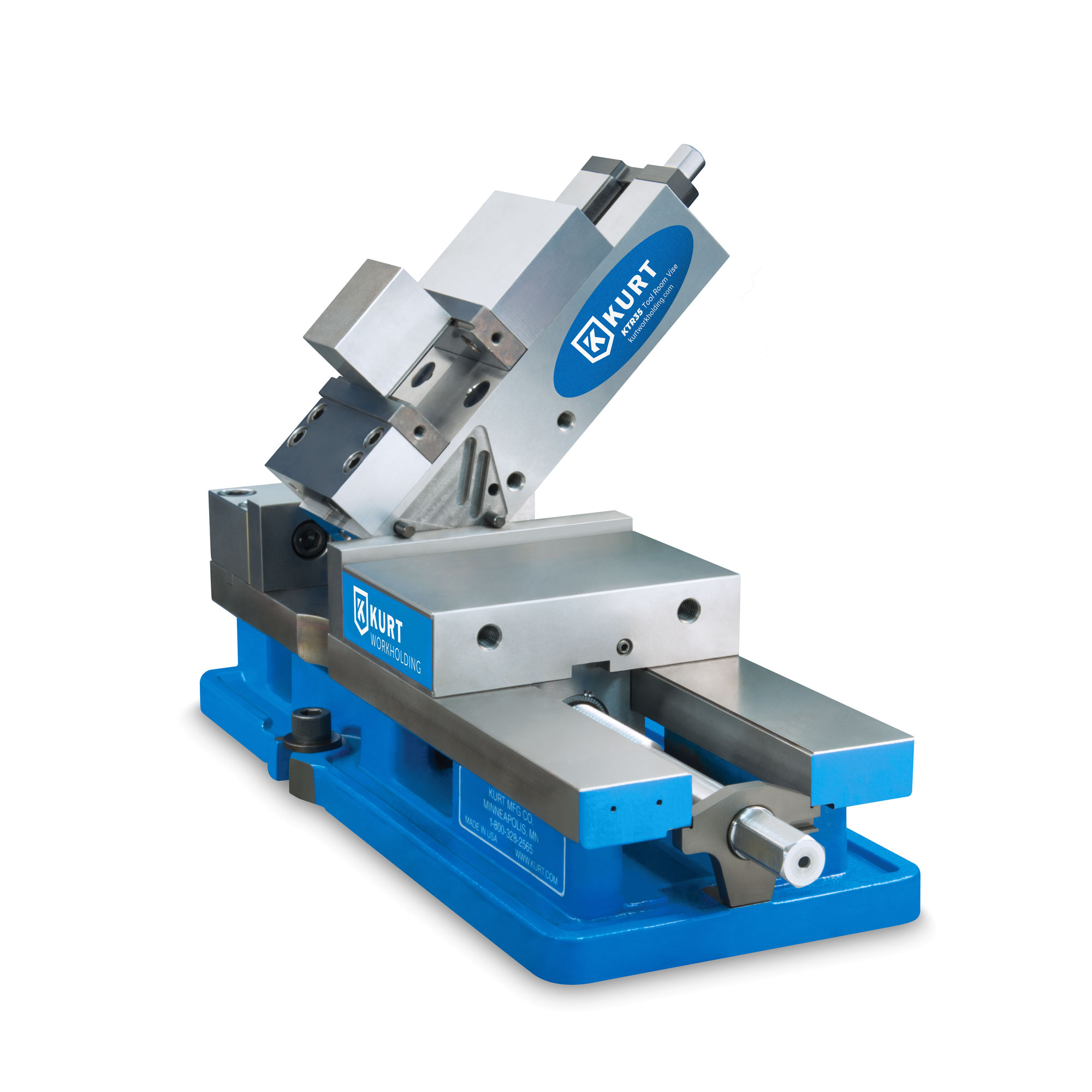

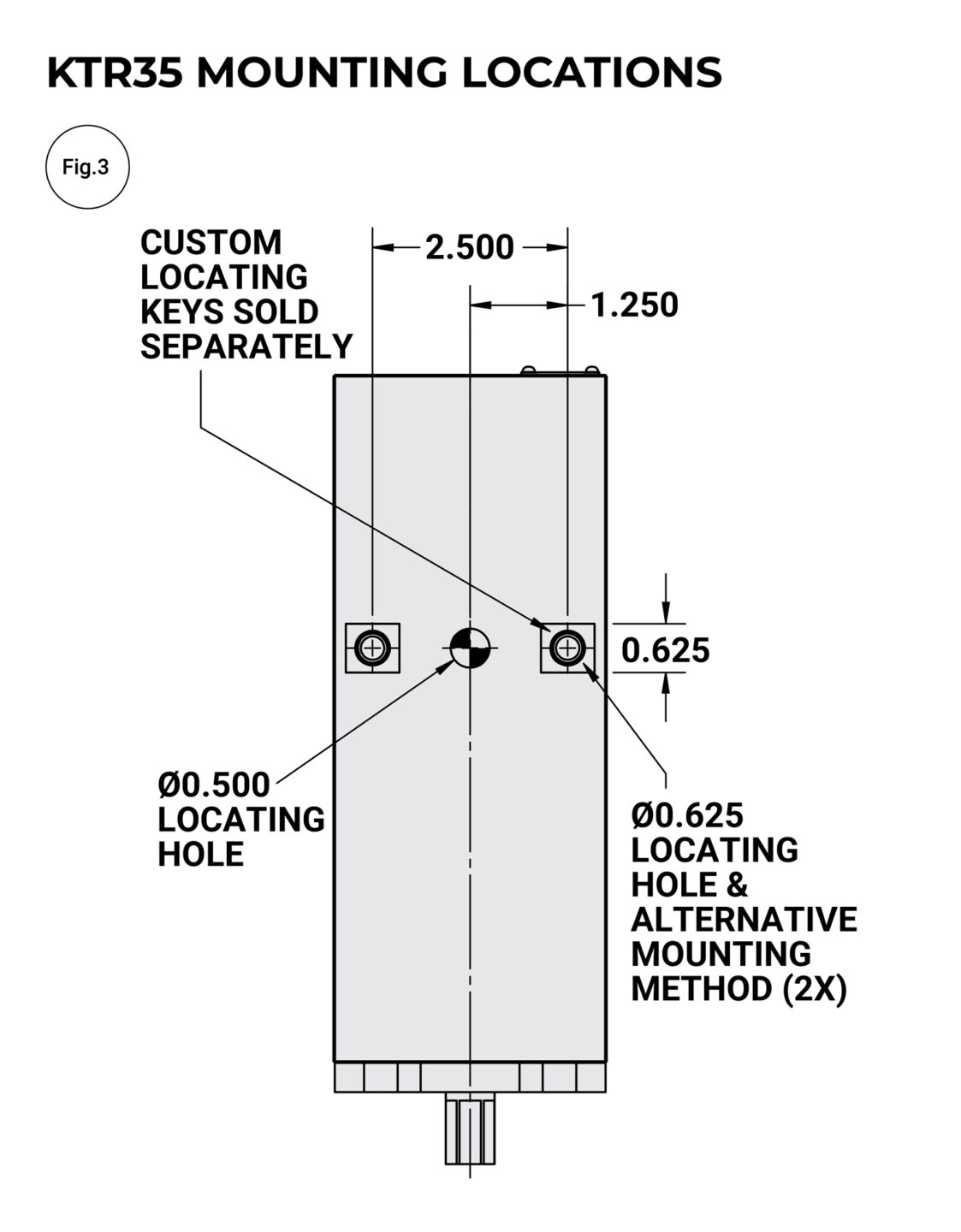

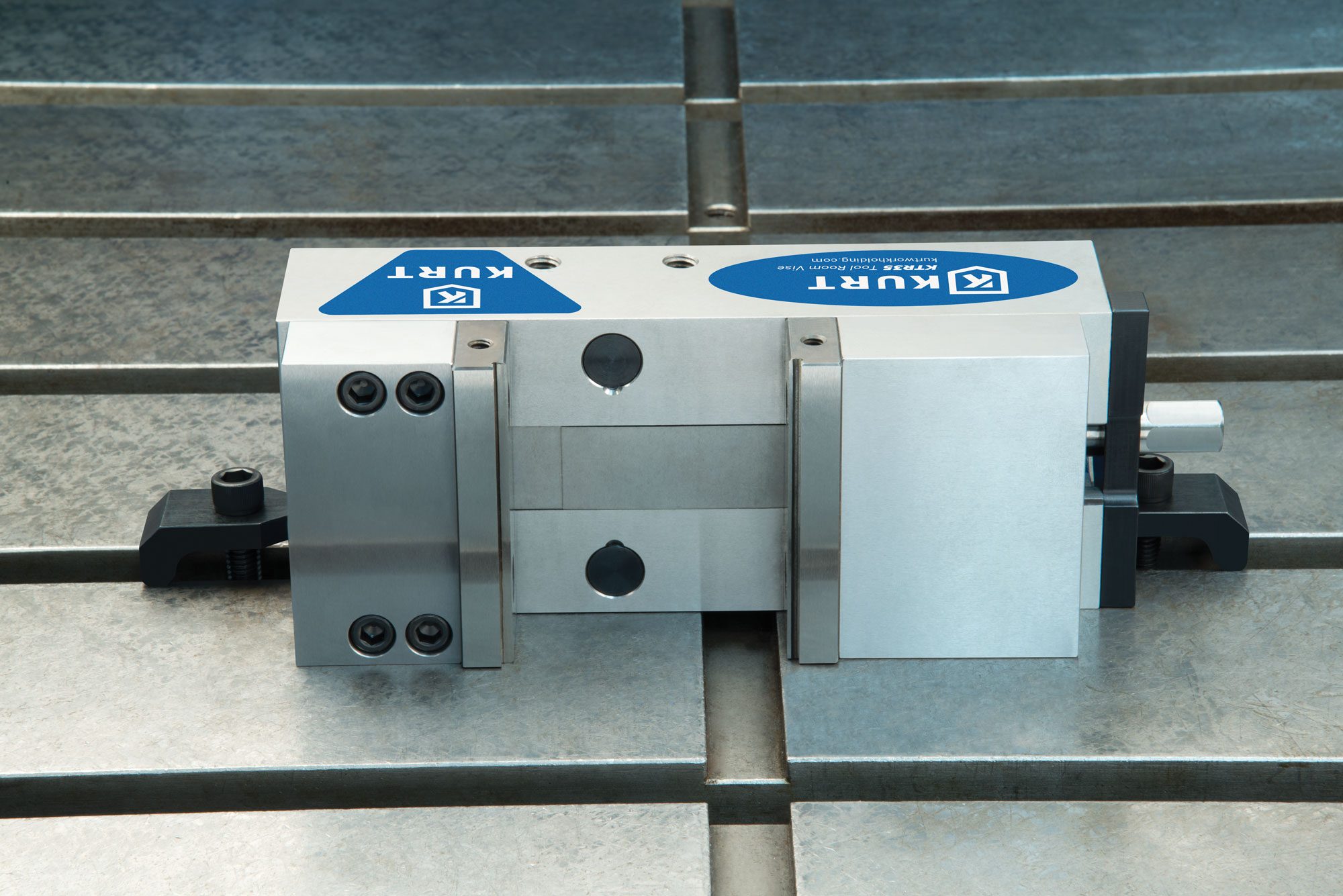

Sold exclusively through the Kurt Workholding website, the Kurt Tool Room Vise is an extremely versatile vise designed to fit on the smallest of machine tables. The KTR35 vise is ground on all sides to allow multiple vises to be mounted side by side using through through-the-body mounting and the optional toe clamp kit. This vise can also be used as a sine vise when using another vise as a receiver. The KTR35 vise image shows optional outrigger clamps.

Features

  • Jaw width: 3.470”
  • Overall jaw height: 1.235”
  • Jaw height to step: 1.118”
  • Max. opening: 4.060”
  • Max. clamping force: 4,500 lbs.
  • Hex size: 0.561”
  • Overall length: 10.125” (including hex)
  • Base height: 2.000”
  • Total weight: 20 lbs.

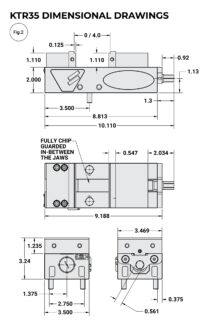

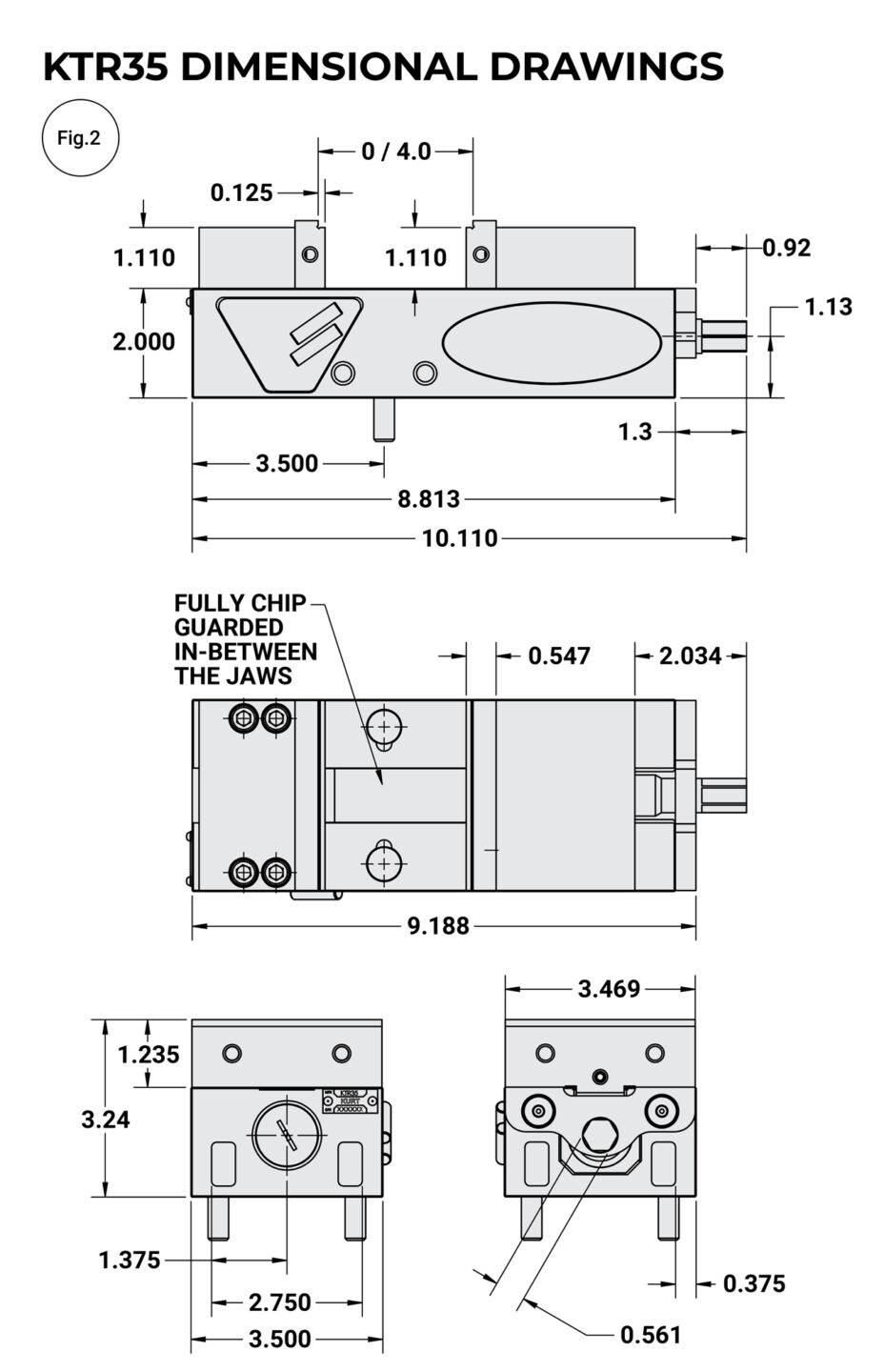

Dimensional Data

Dimensional Data

Inch
Hex Size 0.561
Jaw Height 1.235
Jaw Height to Step 1.118
Jaw Width 3.470
Base Height 2.000
Max. Opening 4.060
Overall Length 10.125
Max. Clamp Force 4500lbs
Weight 20lbs
