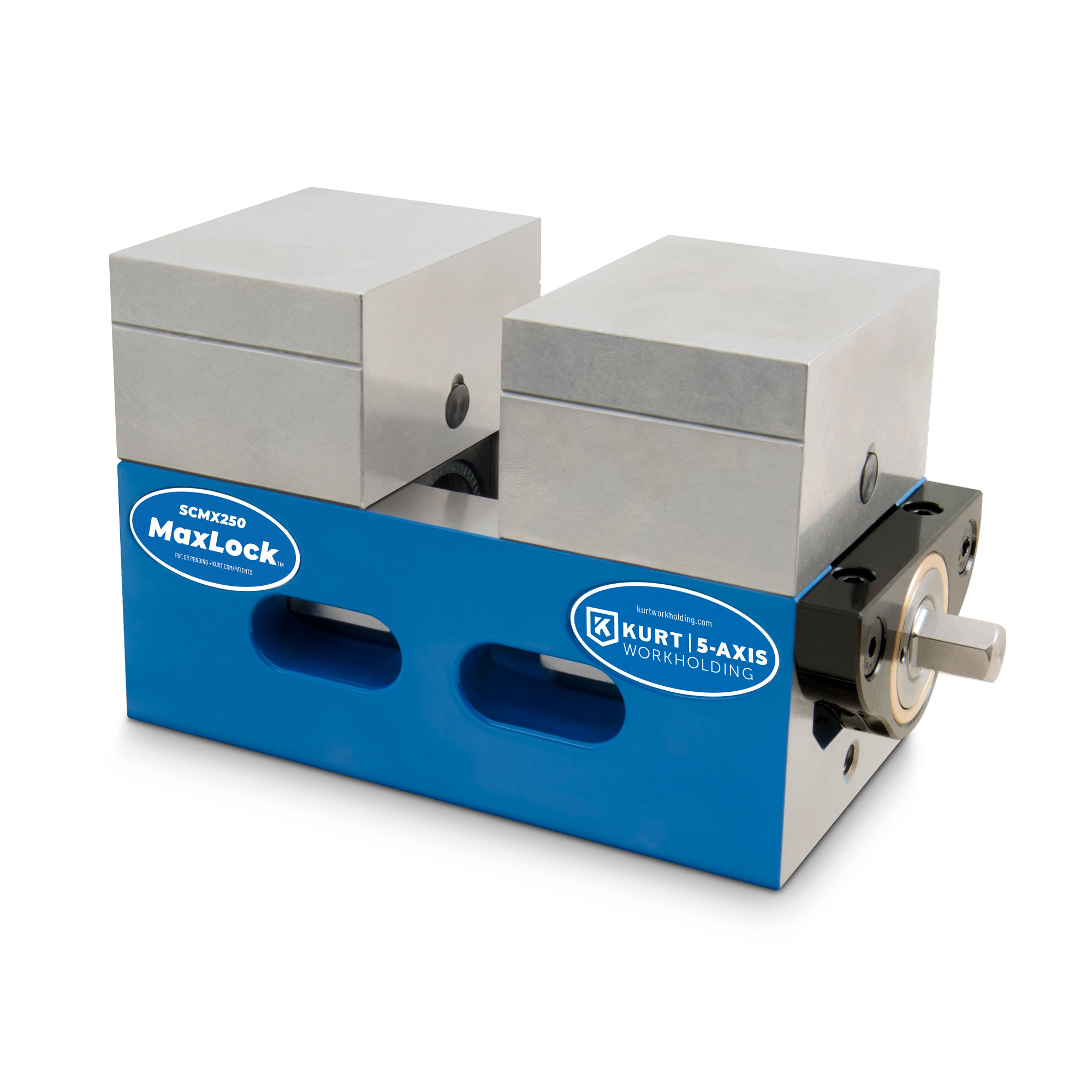

Kurt Self Centering 5-Axis Vise – SCMX250AL

Part No. SCMX250AL

$1,553.00

AngLock® design pulls workpieces down and can be clamped on either the I.D. or the O.D. of a part. Carvable aluminum jaws are 2-1/2” wide and taller than average for increased spindle clearance during multi-axis machining operations.

Description

Description

Kurt SCMX250AL Self-Centering 5-Axis Vise

Kurt’s SCMX250AL Self Centering 5-axis vise utilizes our AngLock® design to pull the workpiece down. Parts can be clamped on either the I.D. or the O.D.

Jaws are 2-1/2” wide, and are taller than average to allow for increased spindle clearance during multi-axis machining operations.

Comes standard with carvable aluminum jaws.

The SCMX250 offers flexible mounting options and reversible jaws for greater machining capabilities.

Contact Kurt Workholding to learn more.

Features of  SCMX250AL Self-Centering 5-Axis Vise

  • Self-centering vise designed for 5-axis machining
  • Repeatability within ±0.0002”
  • Reversible, machinable aluminum jaws
  • Users can machine in a step for higher accuracy, eliminating the need for parallels
  • Clamp parts on I.D. or O.D.
  • 2.5” maximum jaw width
  • Tall jaws provide better spindle clearance
  • Flexible mounting options
  • A full line of vise accessories is available

Dimensional Data

Dimensional Data

Data
Data
Data
Data
SCMX250
A 2.000
B 2.500
C 5.000
D 2.500
E 0.690
F 1.110
G 5/16
H 1.500
J 2.000
K 6.110
L 1.344
M 0.940
N 0.000
P 1.000
Q 0.406
S 1.000
T    -
V 0.375
W 0.500
X    -
Y    -
Z    -
U1    -
U2 2.000
U3    -
U4    -
SHIP WT 10 LBS
