Kurt Quick Change 3-position 178 mm Base – 96-A356

Description

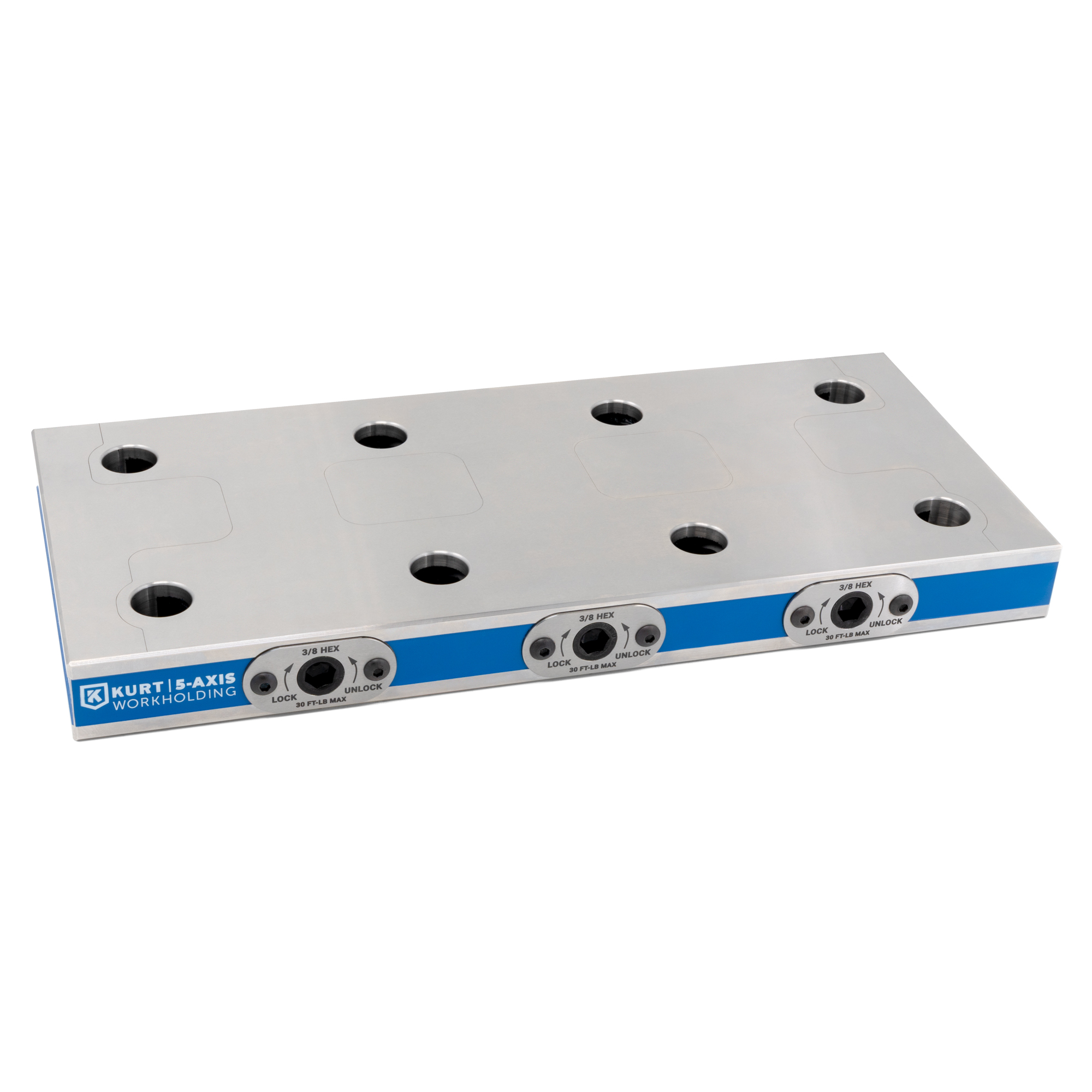

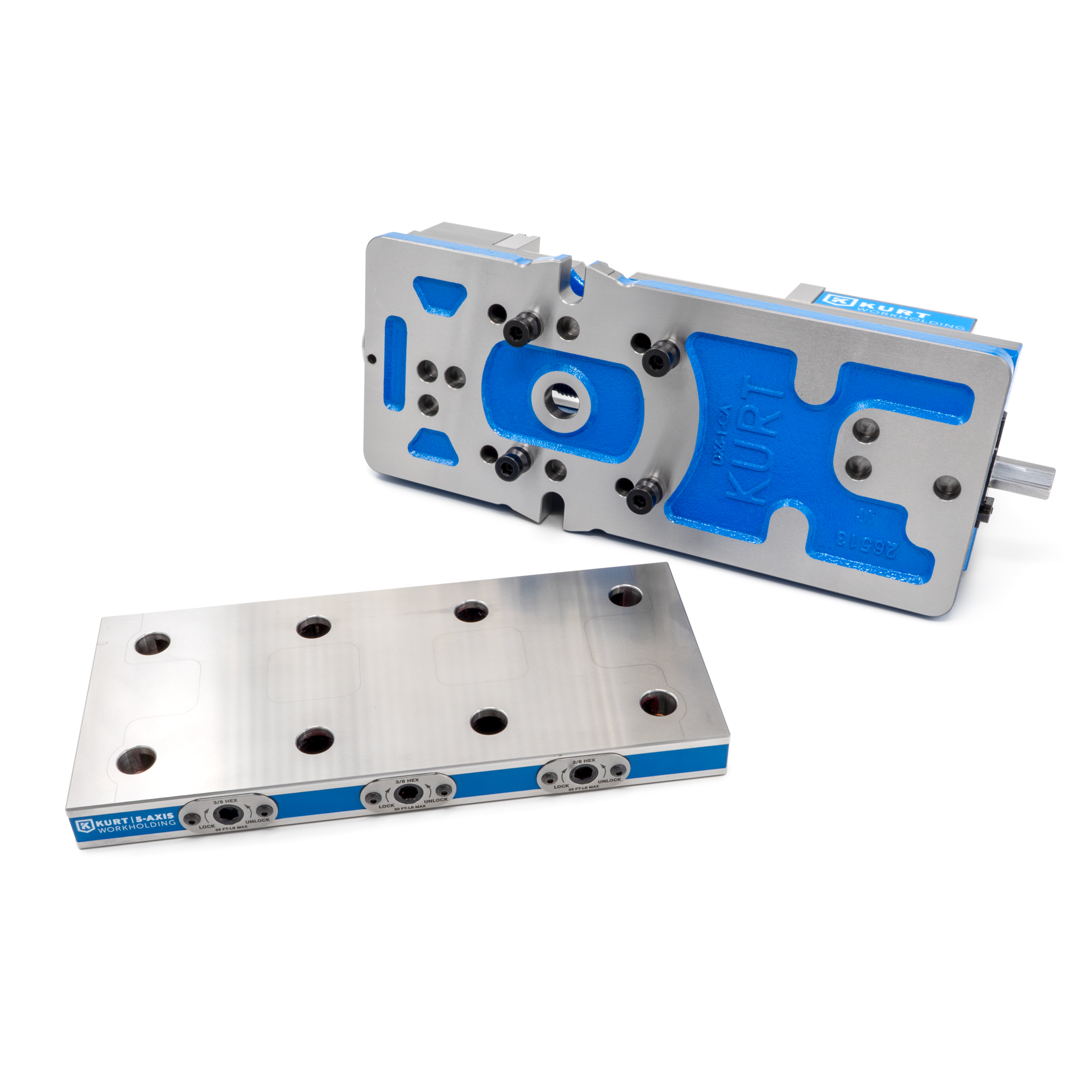

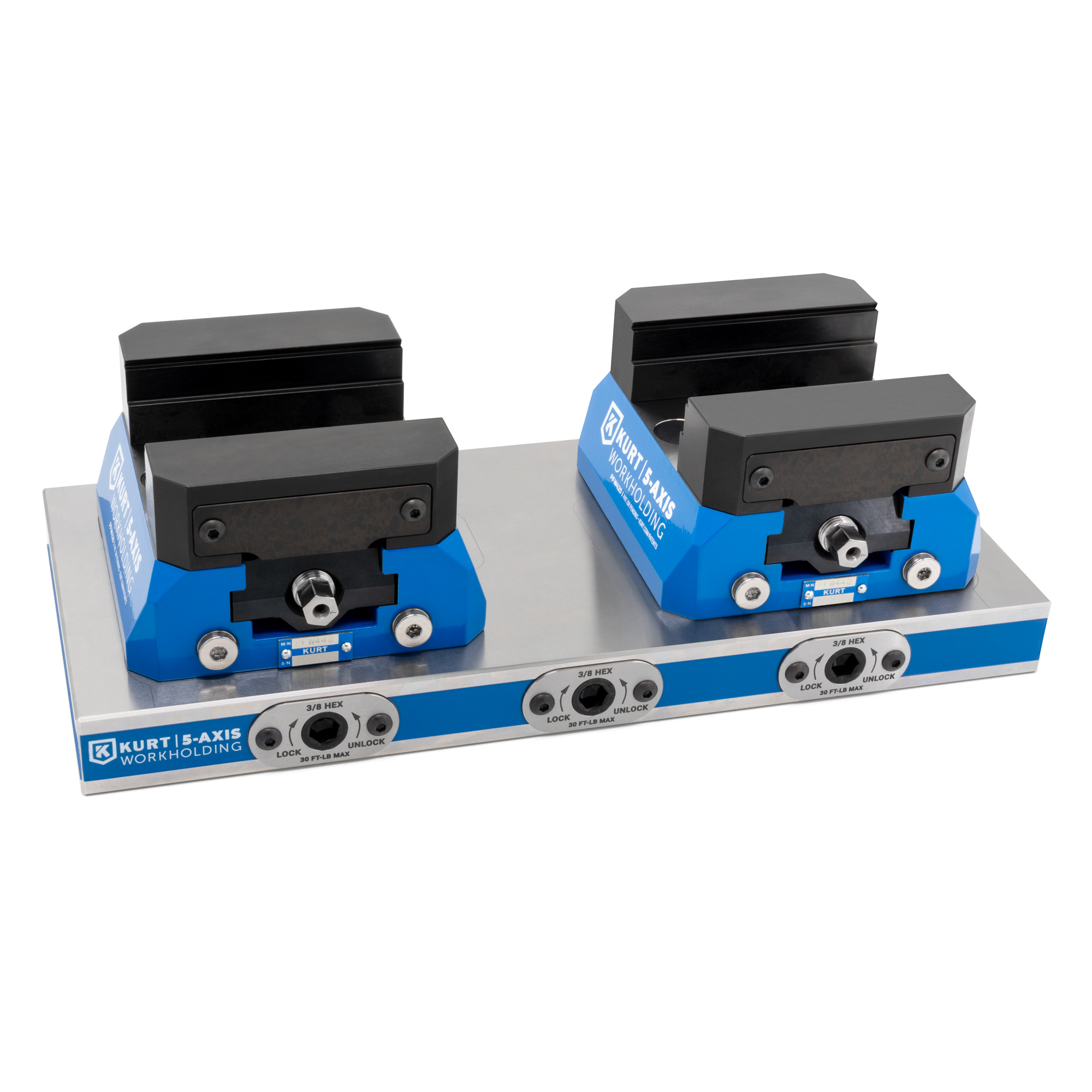

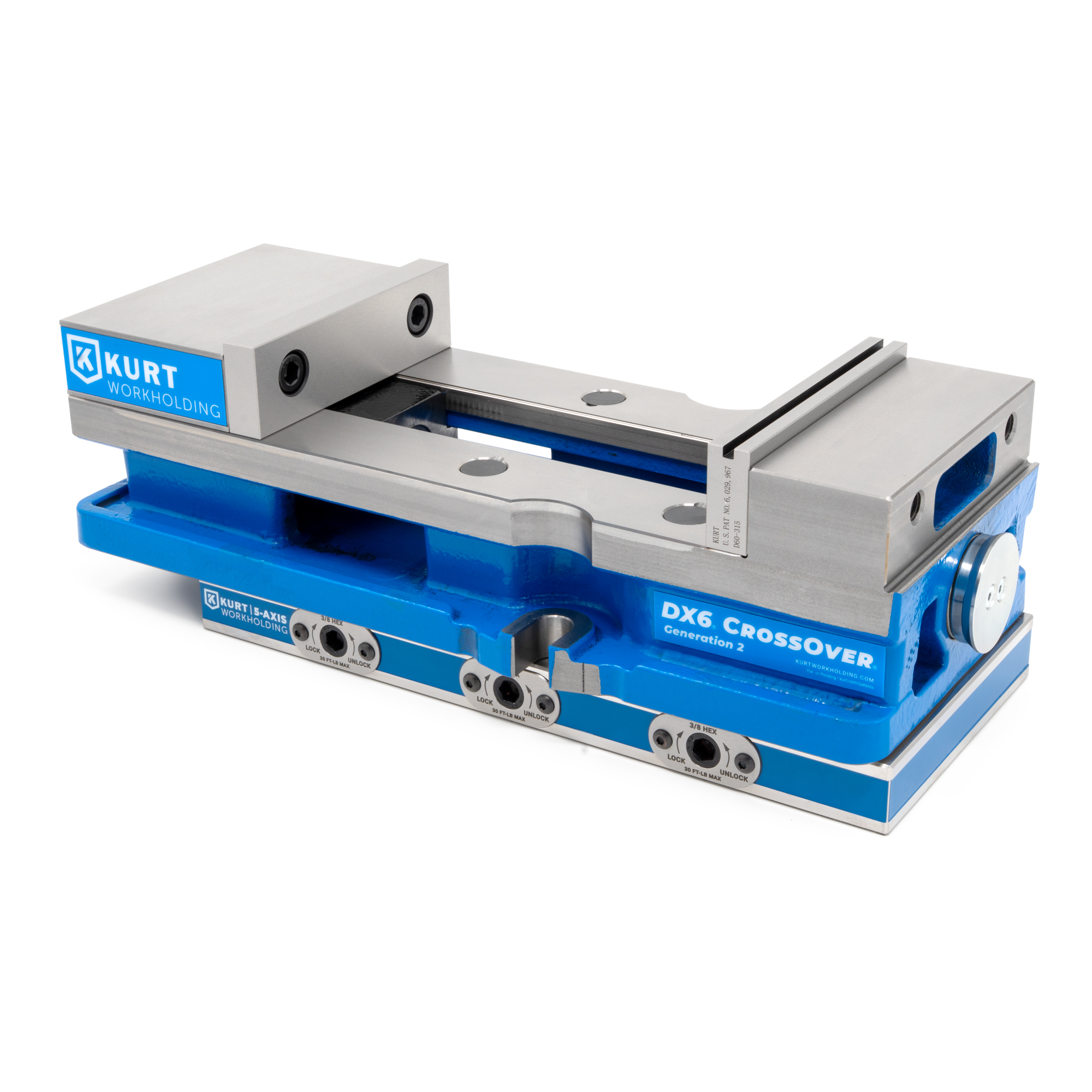

Introducing the new 3-position quick-change base, Kurt Workholding’s new 96 mm zero-point receiver base. 3-position quick-change bases are designed for use with Kurt PFW 5-Axis Vises but can also be used with standard milling vises like the Kurt DX6 models or with any other vise with a 96 mm mounting option. Can be directed mounted to tables in a vertical machining center or mounted to a tombstone for quick-change horizontal machining center setups.

Designed to be an asset for small shops or scalable for large enterprise applications, the 5-axis modular vise and pallet system allows a shop to make a minimal initial investment and add more Kurt vises and pallets as needed. Zero-point mounting with a common pull-stud pattern across the Kurt lineup ensures ongoing product compatibility.

This Kurt 96 mm quick change base does not ship predrilled for mounting. Refer to machine table requirements for mounting patterns and drill and counterbore holes on Kurt pallet for your own machine application. Mounting hole locations can be machined into the base outside of the yellow areas shown on the drawings below.

Once the base is drilled and counterbored holes have been made, secure the base to the machine table with socket head cap screws.

Pallet precision bores must be protected from chips and coolant. If pallet is not being utilize, leave vise mounted in pallet to cover bores. If this is not an option, utilize stand alone pull down studs to act as a chip guard.

Zero-point pallets are not predrilled for mounting locations—allowing users to custom drill holes for their machine application. For a nominal fee, Kurt’s Custom Engineered Workholding team can drill and counterbore mounting holes. Contact CEW for a quote.

Product dimensions: 356 mm x 158 mm x 1.25″

Includes 2 sets of 4 pull studs and 3/8″ hex wrench
