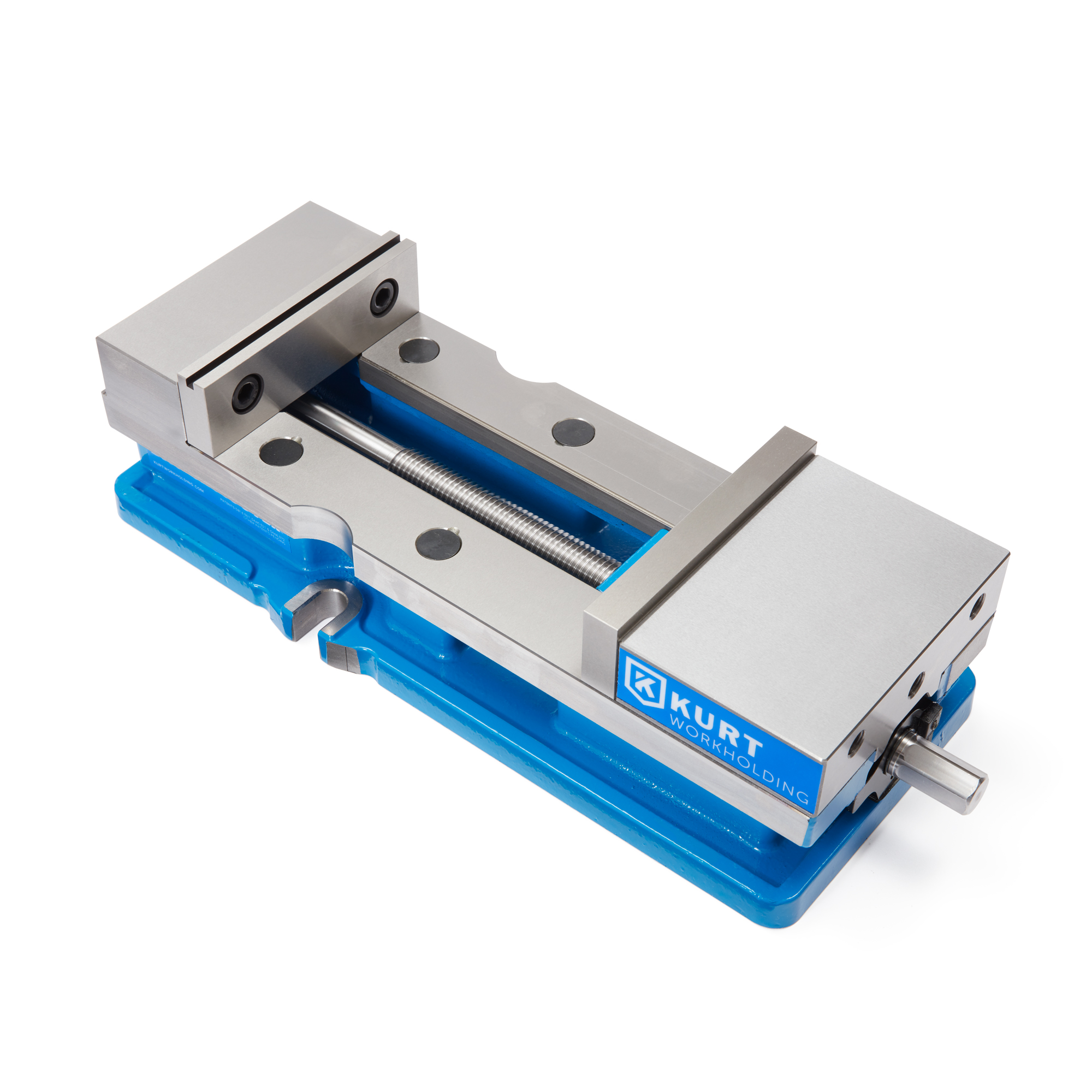

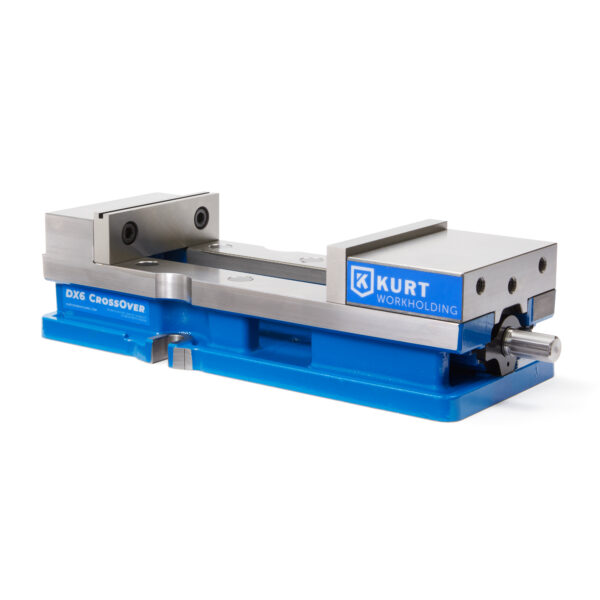

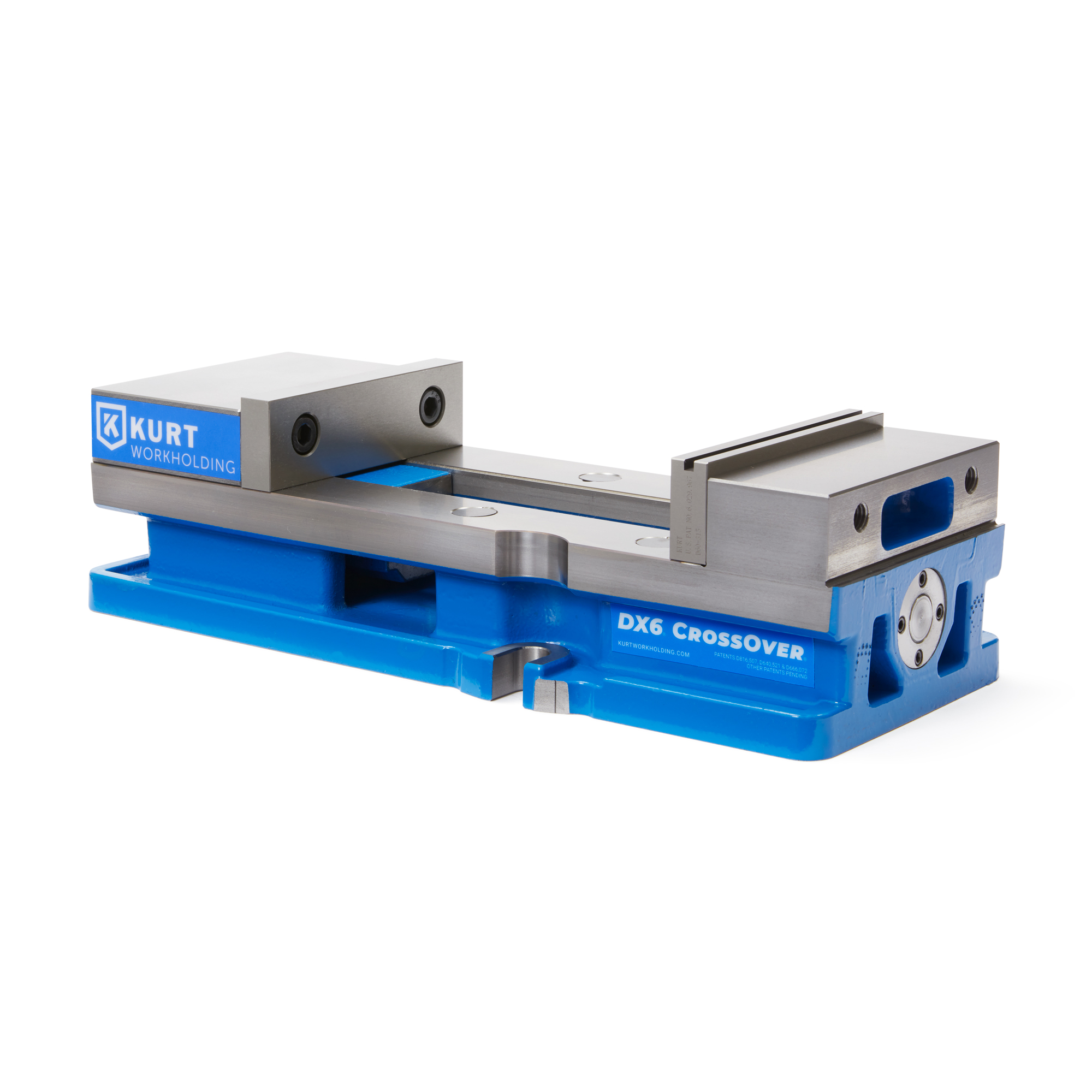

Kurt DX6® CrossOver® Vise

Part No. DX6

$655.00

Description

Description

6” Vise with 9.0” Opening

The Best D-Series Vise We’ve Ever Produced

Combining all the great features of our world-renowned Kurt D688 and 3600V vises, along with new state-of-the-art workholding features, Kurt® Workholding’s revolutionary DX6® CrossOver® vise achieves new levels in precision and performance where flatness and parallelism are important.

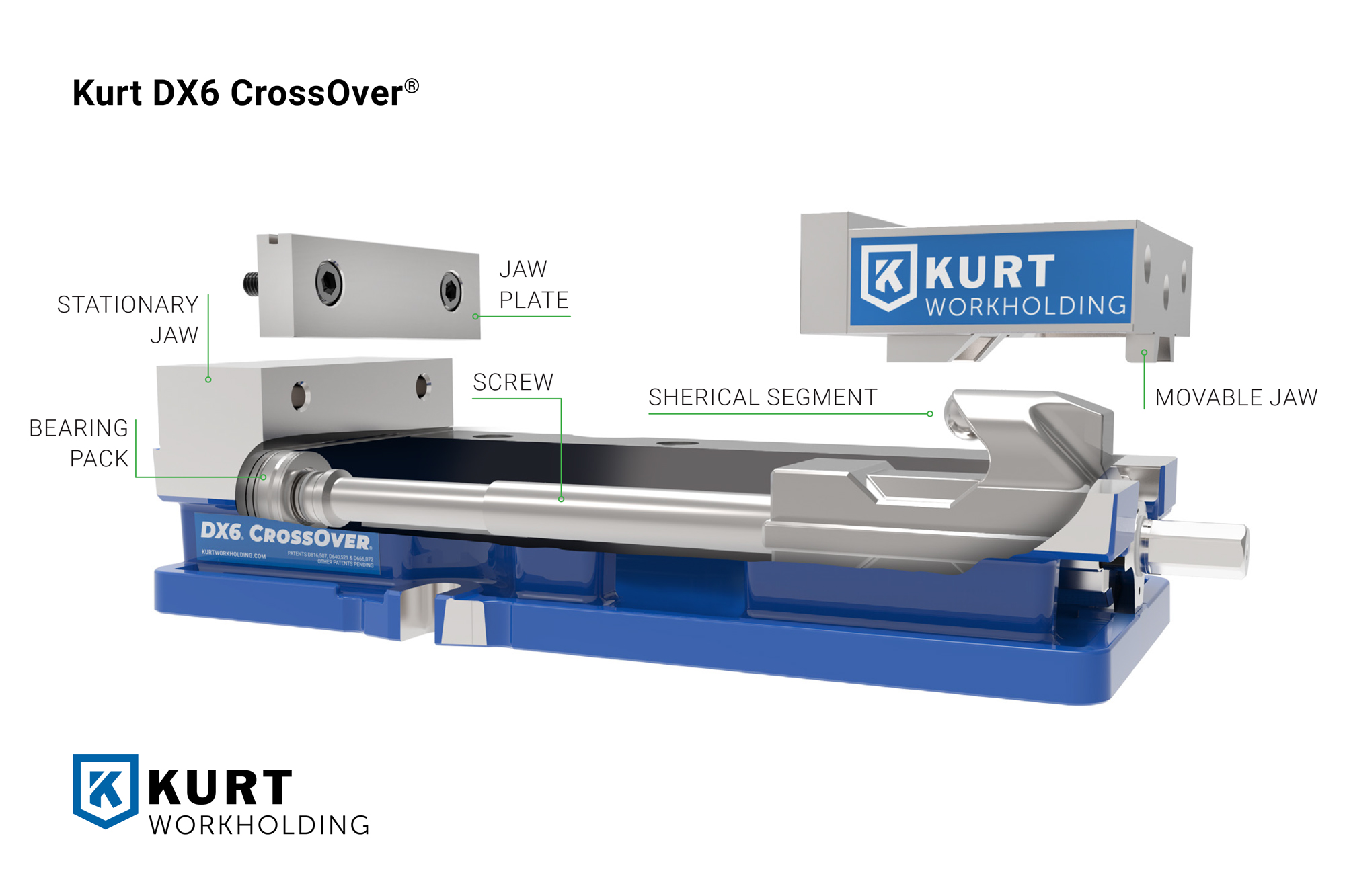

By every measure, this is a better vise than our own D688. The DX6 CrossOver vise features the same bed height and keyway to the stationary jaw face as the D688, a redesigned nut with lighter weight, and a new brush seal design. The bearing pack is larger, stronger, and more durable than our other designs, and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance.

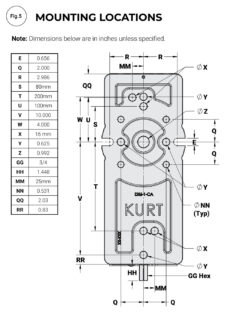

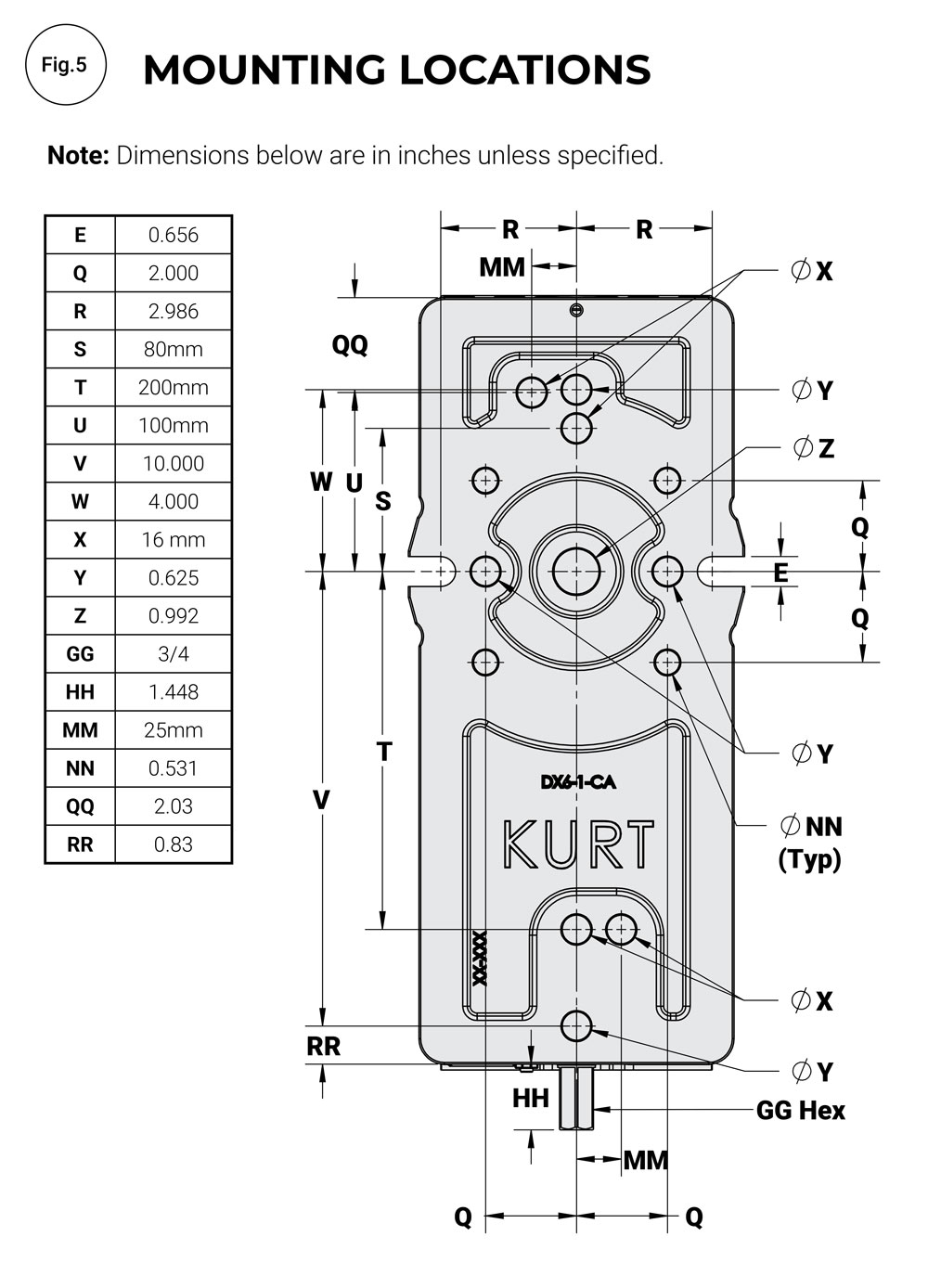

We have moved away from keyways on our redesigned vises and there are several reasons for this change. For more information, please check out our mounting page or sine keys page.

With our commitment and Lifetime Ironclad Warranty, the DX6 CrossOver vise is destined to become the go-to vise for all your machining applications. Order yours today, or contact Kurt Workholding to learn more.

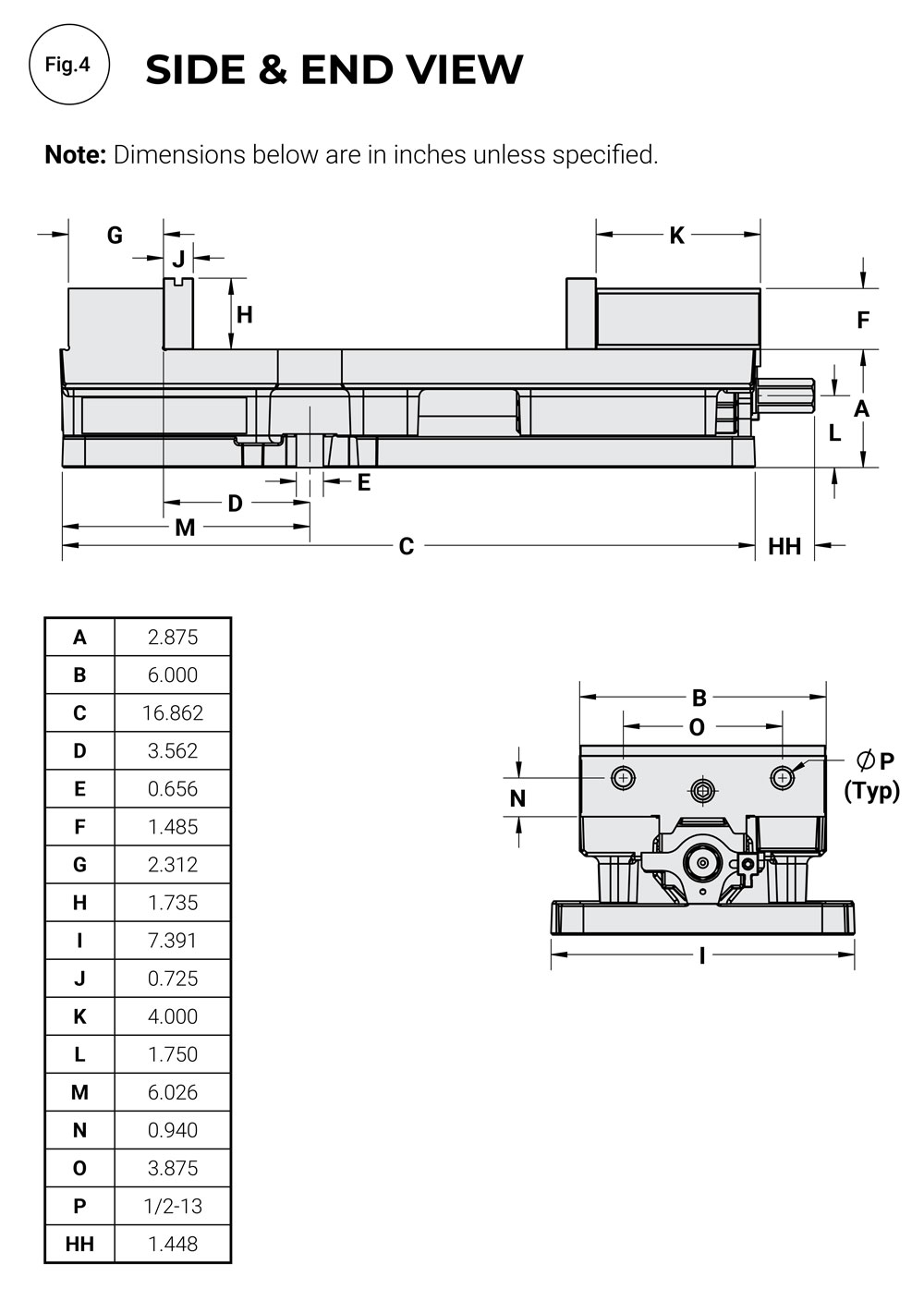

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Inch
A 2.875
B 6.000
C 16.810
D 3.234
E 0.656
F 1.485
G 2.312
H 1.735
I 7.391
J 0.725
K 4.000
L 1.750
M 0.328
N 0.940
O 3.875
P 1/2-13
P metric M12
Q 2.00
R 2.986
S 80mm
T 200mm
U 100mm
V 10.000
W 4.000
X 16mm
Y 0.625
Z 0.992

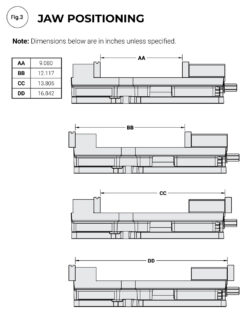

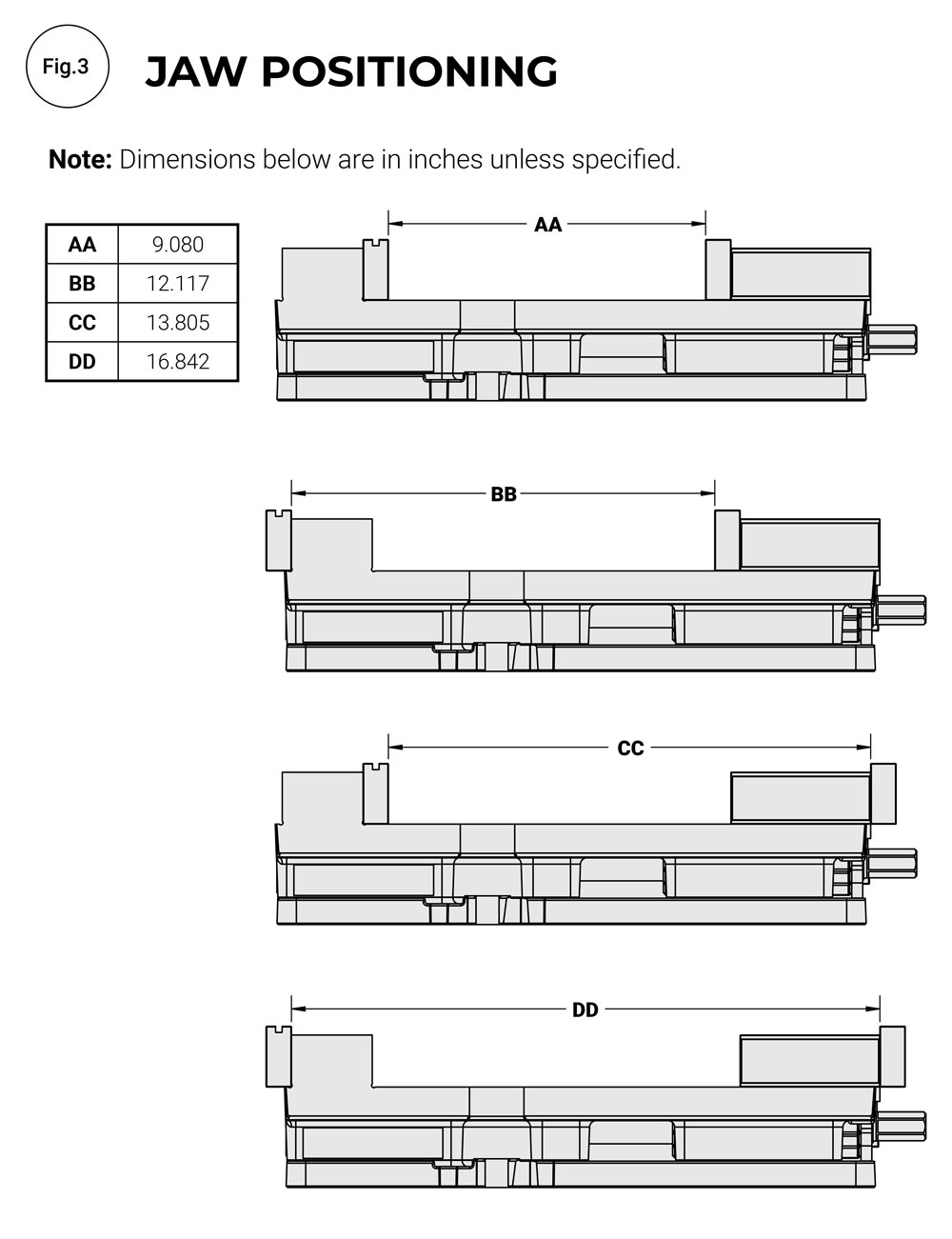

AA 9.080
BB 12.117
CC 13.8050
DD 16.842
EE 2.4801
FF 3.375
GG 3/4
HH 1.448
MM 25mm
Ship Wt. Lbs. 78

Clamping Force Pounds

Clamping Force Pounds

Torque Ft. Lbs. Force Lbs.
10 512
20 1487
30 2464
40 3440
50 4415
60 5391
70 6367
80 7342
