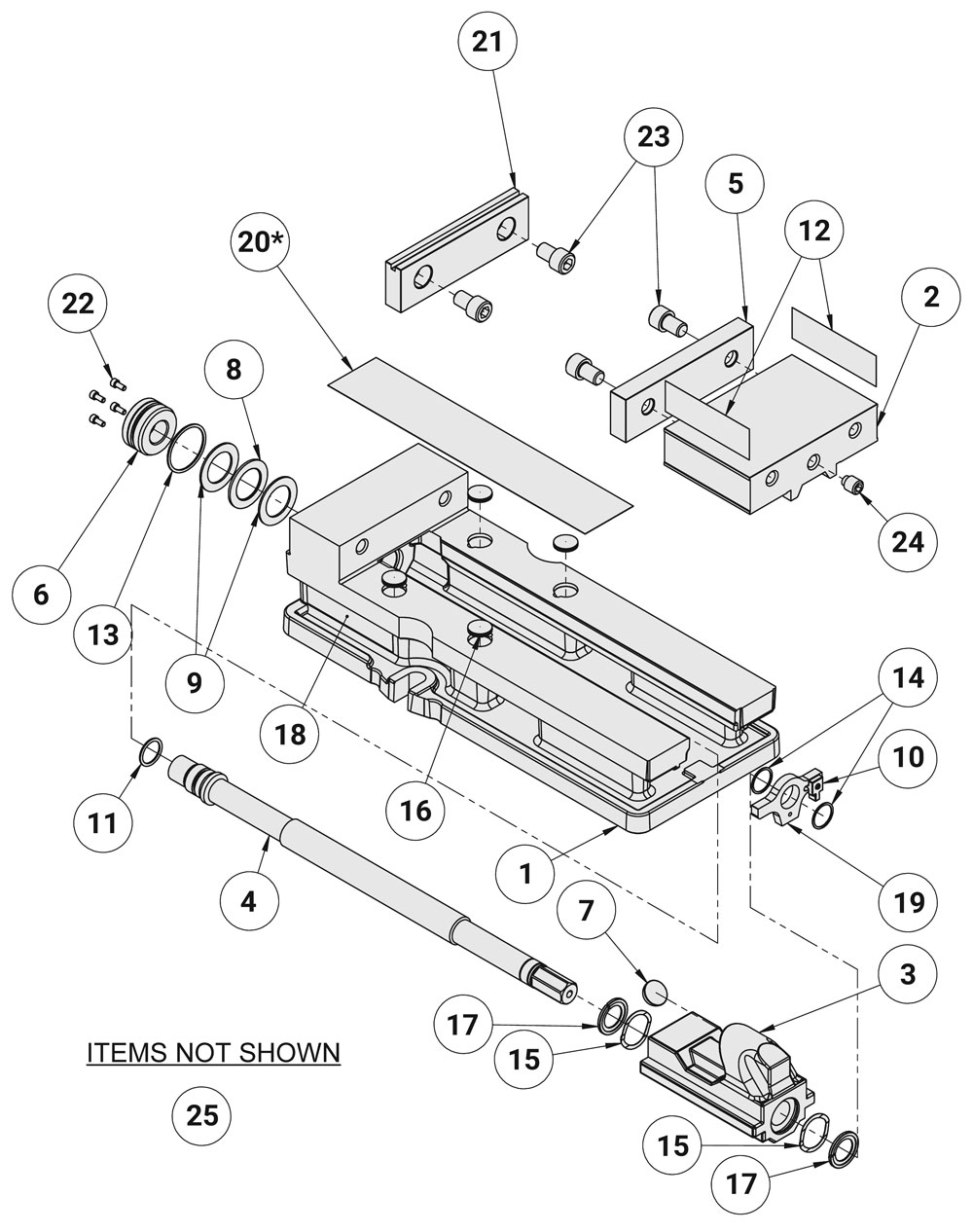

DX6 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
232Kurt Wave Spring - DX6-169DX6-169$3.00
281Kurt Set Screw - 01-313401-3134$4.00
Kurt DX6 Repair Kit - DX6-KITDX6-KIT$19.00
294Kurt Low Cap Screw - 00-339200-3392$3.00
211Kurt Screw Support - DX6-224DX6-224$22.00
51Kurt Rear Stationary - DX6-6DX6-6$178.00
41Kurt Screw - DX6-5DX6-5$59.00
31Kurt Nut - DX6-3DX6-3$68.00
21Kurt Movable - DX6-2DX6-2$117.00
111Kurt Workstop Assembly - WSRL46WSRL46$19.00
221Kurt Chip Guard, Long - DL600-249DL600-249$4.00
91Kurt Thrust Bearing - D80-41D80-41$4.00
192Kurt Internal Brush Seal - D688-211D688-211$7.00
81Kurt Spherical Segment - D60-9D60-9$6.00
61Kurt Jaw Plate, 6" - D60-7D60-7$38.00
241Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$41.00
00Kurt Handle Assembly - D60I-10-SAD60I-10-SA$31.00
131Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$3.00
71Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$16.00
102Kurt Thrust Washer - 3600V-423600V-42$4.00
184Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$2.00
172Kurt Spiral Retaining Ring - 3600V-1473600V-147$3.00
161Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$3.00
274Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$3.00
261Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$3.00
