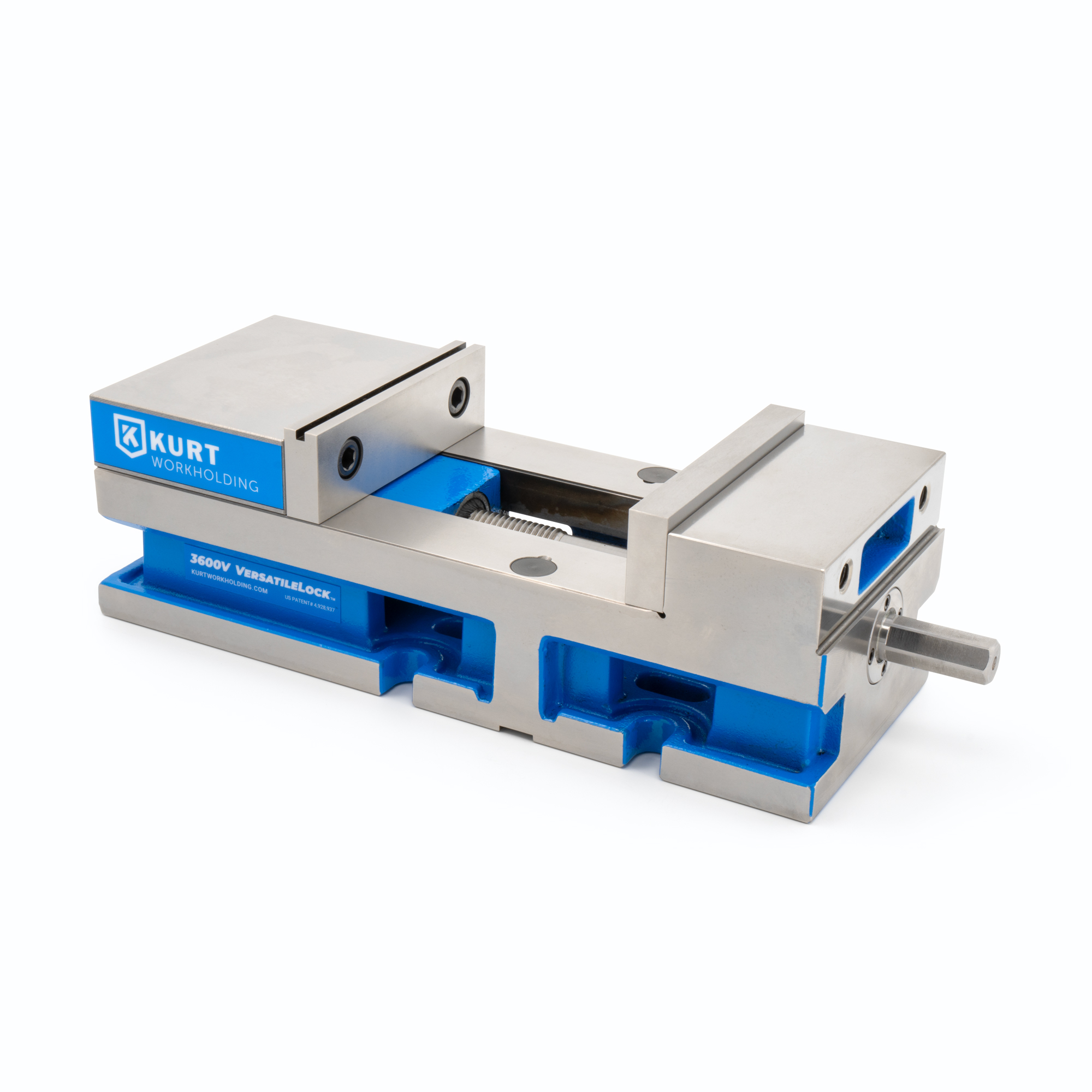

Kurt VersatileLock Short Reverse Vise – 3630V
Part No. 3630V
$1,541.00
Manual VersatileLock Short Reverse Vise, 6″
Description
Description
The VersatileLock vise is the industry’s ultimate single station CNC vise. It offers ultra-precision function through these important design features: The original, time proven Kurt AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces jaw stationary deflection by at least 80%. The one piece vise body and stationary jaw provide greater strength while reducing weight. Use the VersatileLock in this configuration for the added benefit of easier part programming in “Y axis” positive direction. It also reduces the “reach-over” distance making part loading safer and easier for the operator.
Features
- Can be mounted upright or on either side.
- Matched stationary jaw to keyway including the body height ±0.001″.
- 0.0005″ clamping repeatability.
- Footprint on the short version is 13 inches, ideal for the smallest machines.
- Sine key or fixture key compatible
Mounting instructions

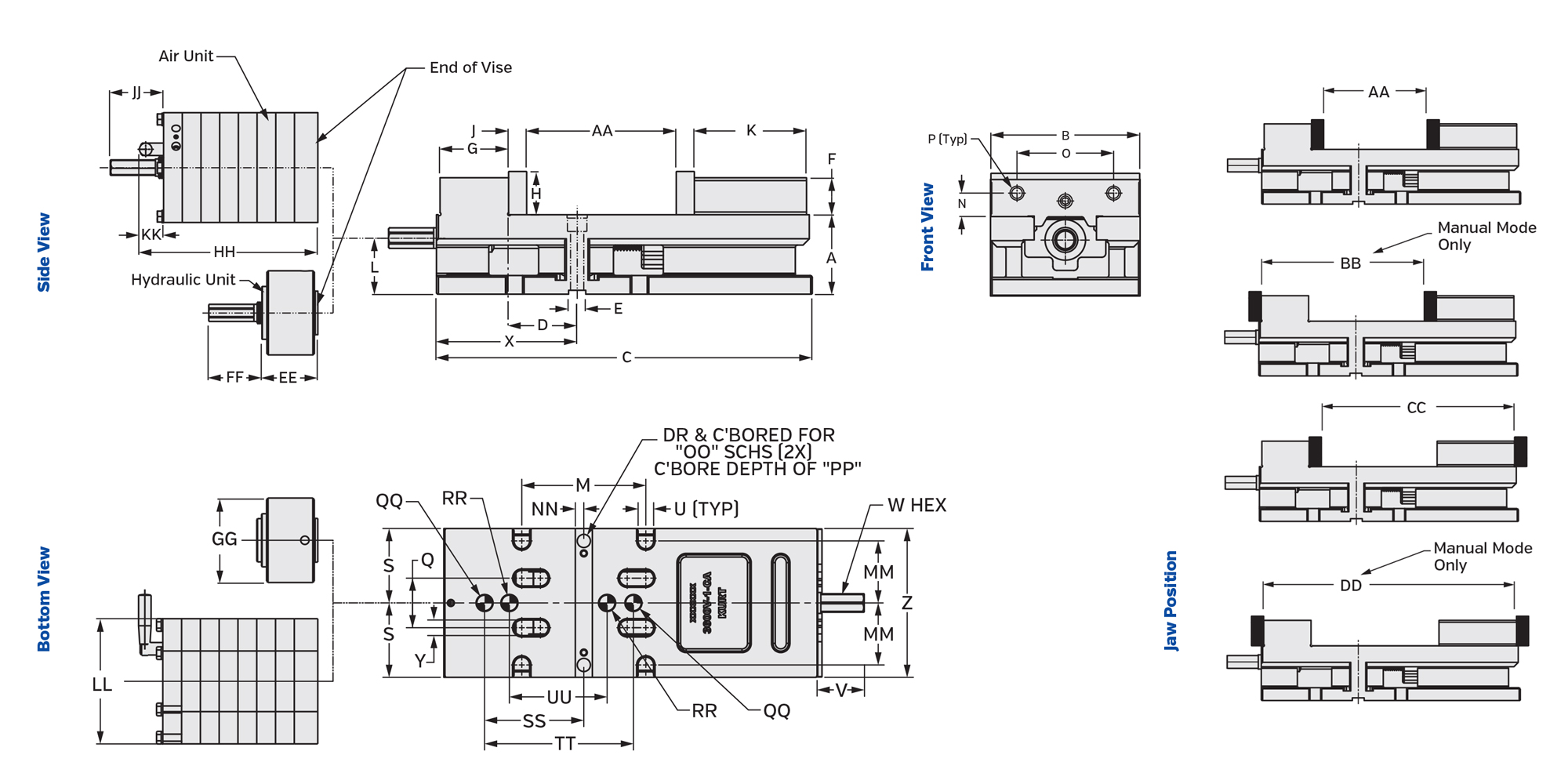

Dimensional Data
Dimensional Data
Inch | Pounds | |
A | 3.187 | x |
B | 6.000 | x |
C | 12.940 | x |
D | 2.750 | x |
E | 0.688 | x |
F | 1.485 | x |
G | 2.750 | x |
H | 1.735 | x |
J | 0.725 | x |
K | 4.500 | x |
L | 2.250 | x |
M | 5.000 | x |
N | 0.937 | x |
O | 3.875 | x |
P | 1/2-13 | x |
Q | 2.000 | x |
R | 4.250 | x |
S | 3.000 | x |
T | 1.380 | x |
U | 0.630 | x |
V | 1.940 | x |
W | 3/4 | x |
X | 5.640 | x |
Y | 0.630 | x |
Z | 6.000 | x |
AA | 4.000 | x |
BB | 7.500 | x |
CC | 9.250 | x |
DD | 12.750 | x |
NN | 2.500 | x |
OO | 0.344 | x |
PP | 1/2 | x |
0.671 | x | |
Ship Wt. Lbs. | x | 64 |
