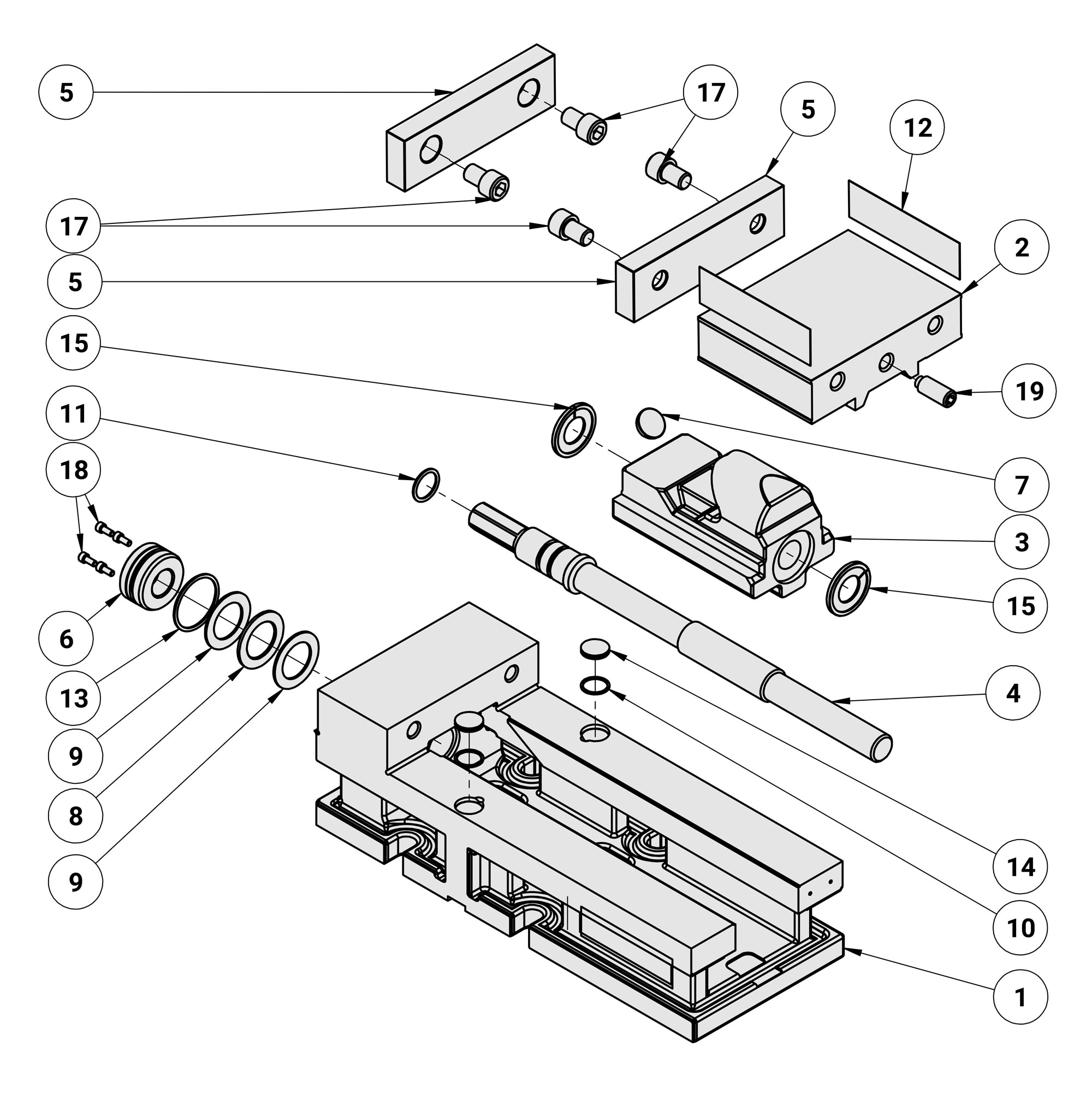

3610V Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
192Kurt Screw, Drive, #2 X .25 - 07-023007-0230$6.00
81Kurt Spherical Segment - D60-9D60-9$9.00
92Kurt Jaw Plate, 6" - D60-7D60-7$48.00
71Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
51Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$54.00
41Kurt Screw, Reverse - 3610V-53610V-5$215.00
31Kurt Nut, Reverse w/ Brush Seals - 3610V-33610V-3$121.00
131Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
111Kurt Thrust Bearing Assembly - 3600V-723600V-72$11.00
171Kurt Chip Guard, Long - 3600V-2493600V-249$9.00
161Kurt Chip Guard, Short - 3600V-2483600V-248$7.00
62Kurt Internal Brush Seal - 3600V-2113600V-211$10.00
21Kurt Movable Jaw - 3600V-23600V-2$256.00
222Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
121Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
212Kurt O-Ring, Buna N, 008 - 225-01225-01$6.00
101Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$8.00
144Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
154Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
