Kurt VersatileLock Reverse Vise – 3610V
Part No. 3610V
$1,245.00
Manual VersatileLock Reverse Vise, 6″
Description
Description
Use the Kurt 3610V VersatileLock in this configuration for the added benefit of easier part programming in “Y axis” positive direction. It also reduces the “reach-over” distance; making part loading safer and easier for the operator.
Features
- Can be mounted upright or on either side.
- Matched stationary jaw to the keyway including the body height ±0.001″.
- 0.0005″ clamping repeatability.
- Sine key or fixture key compatible

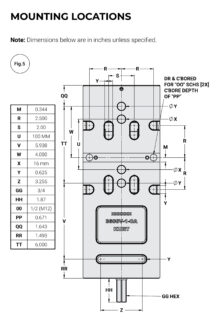

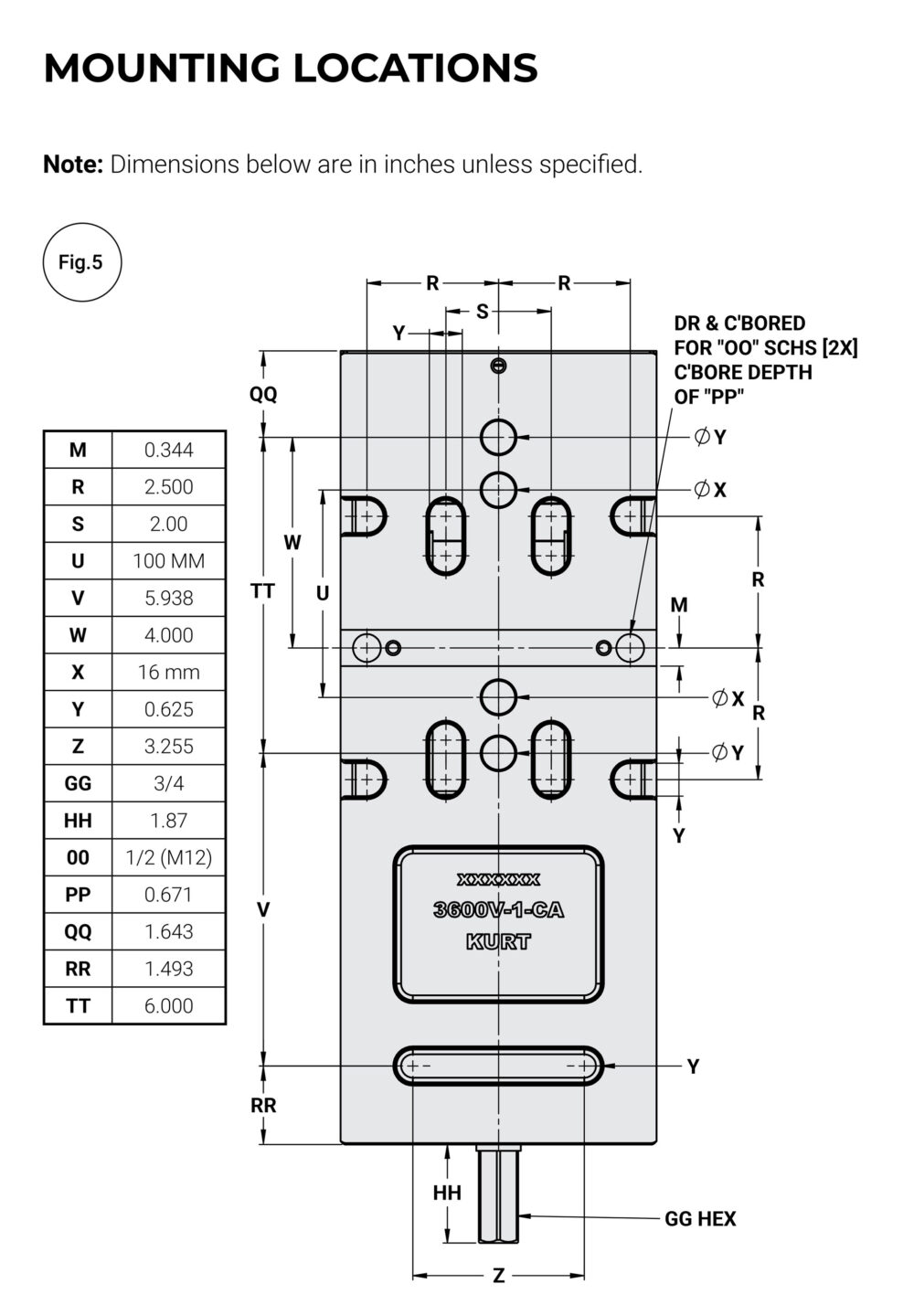

Mounting instructions
Resources
Resources

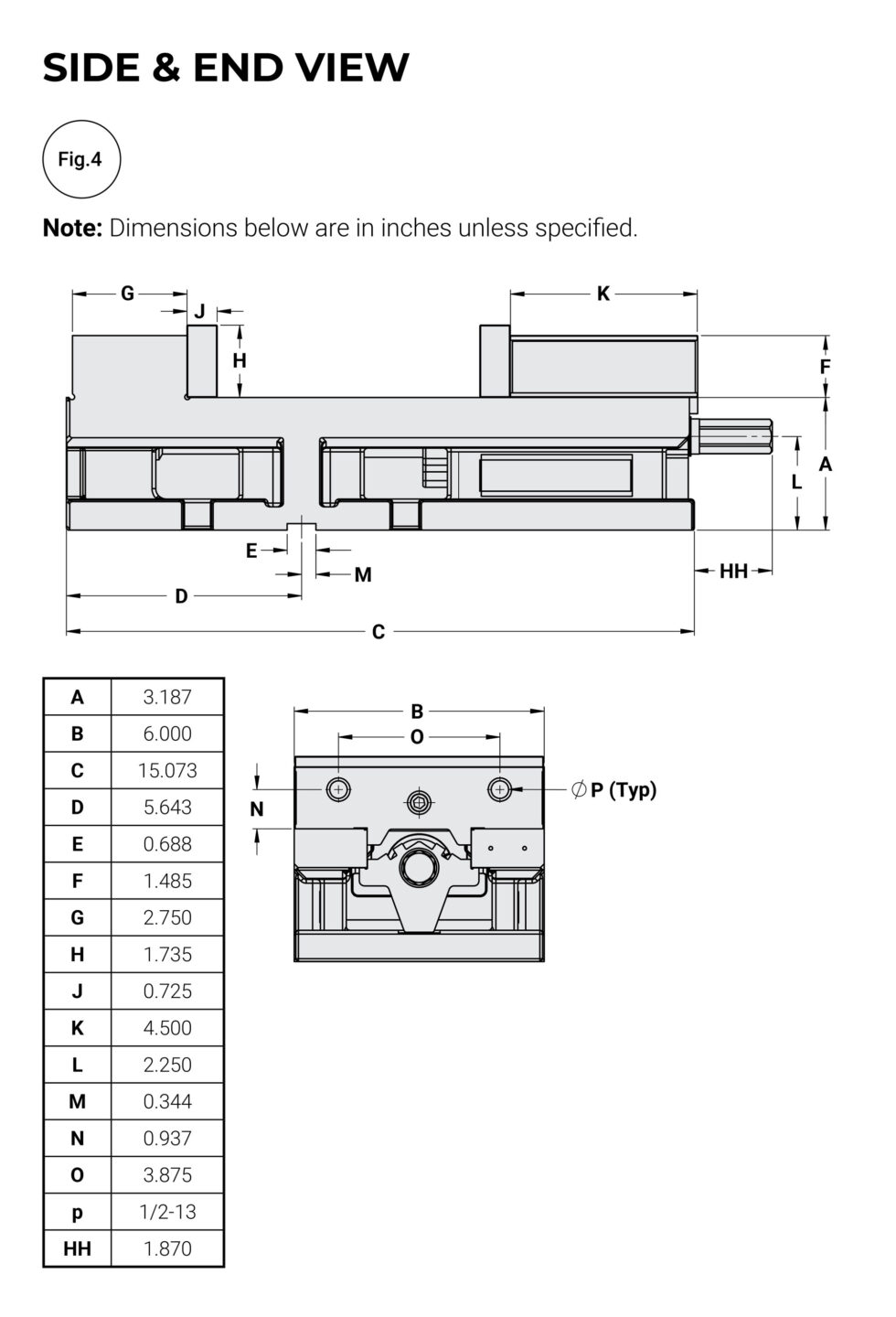

Dimensional Data
Dimensional Data
Inch | Pounds | |
A | 3.187 | x |
B | 6.000 | x |
C | 15.060 | x |
D | 2.750 | x |
E | 0.688 | x |
F | 1.485 | x |
G | 2.750 | x |
H | 1.735 | x |
J | 0.725 | x |
K | 4.500 | x |
L | 2.250 | x |
M | 5.000 | x |
N | 0.937 | x |
O | 3.875 | x |
P | 1/2-13 | x |
Q | 2.000 | x |
R | 4.250 | x |
S | 3.000 | x |
T | 1.380 | x |
U | 0.630 | x |
V | 1.940 | x |
W | 3/4 | x |
X | 5.640 | x |
Y | 0.630 | x |
Z | 6.000 | x |

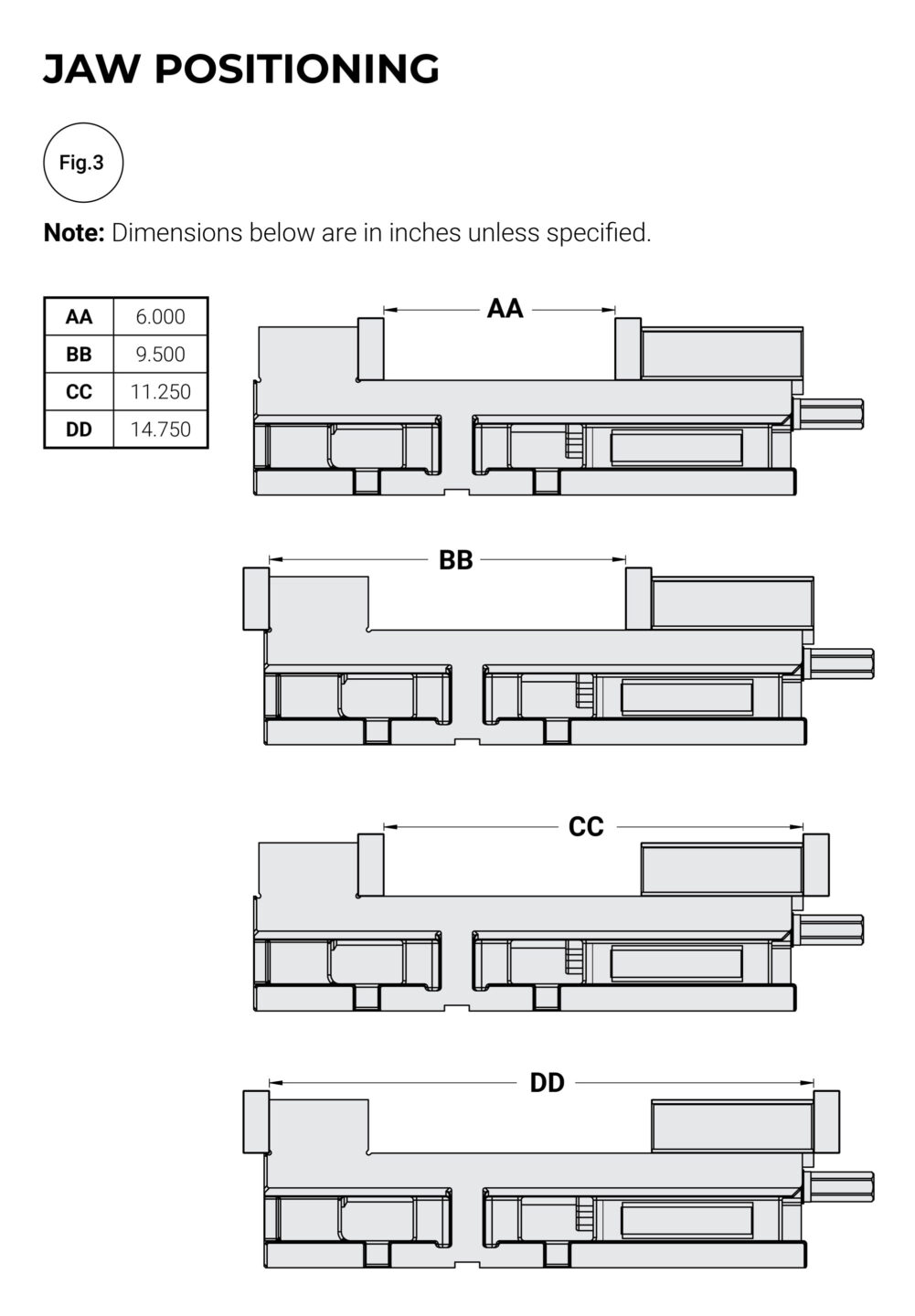

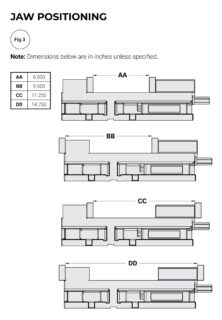

AA | 6.000 | x |
BB | 9.500 | x |
CC | 11.250 | x |
DD | 14.750 | x |
NN | 2.500 | x |
OO | 0.344 | x |
PP | 1/2 | x |
0.671 | x | |
Ship Wt. Lbs. | x | 68 |
