Kurt Hydraulic Vise Base w/ Hard Jaw Kit, 6″ – English – HDHL6J-SD
Part No. HDHL6J-SD
Original price was: $3,571.00.$2,856.00Current price is: $2,856.00.
Hydraulic Vise Base w/ Hard Jaw Kit, 6″ – English
1 in stock
Description
Description
These vises have minor porosity in the body and/or the movable jaws.
This does not effect the functionality or the warranty.
ALL SCRATCH AND DENT SALES ARE FINAL.

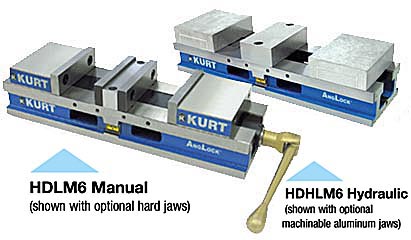

The HDHL6J is a 6-inch wide Hydraulic High Density double station vise. This vise features quick change standard Kurt hard jaws with English fasteners.
Resources
Resources
Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 1,540 |
| 20 | 2,500 |
| 30 | 3,350 |
| 40 | 4,300 |
| 50 | 5,750 |
| 60 | 6,850 |
| 70 | 7,450 |
| Hydraulic PSI | Force in lbs. |
| 500 | 850 |
| 1,000 | 1,600 |
| 1,500 | 2,300 |
| 2,000 | 3,100 |
| 2,500 | 3,950 |
| 3,000 | 4,750 |
| 3,500 | 5,450 |
| 4,000 | 6,350 |
| 4,500 | 7,100 |
Replacement Parts
Replacement Parts
HDHLM6/HDHL6 Replacement PartsReviews
