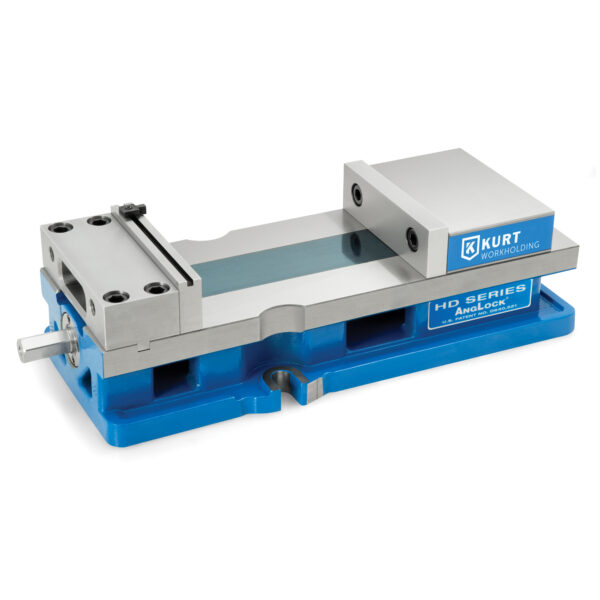

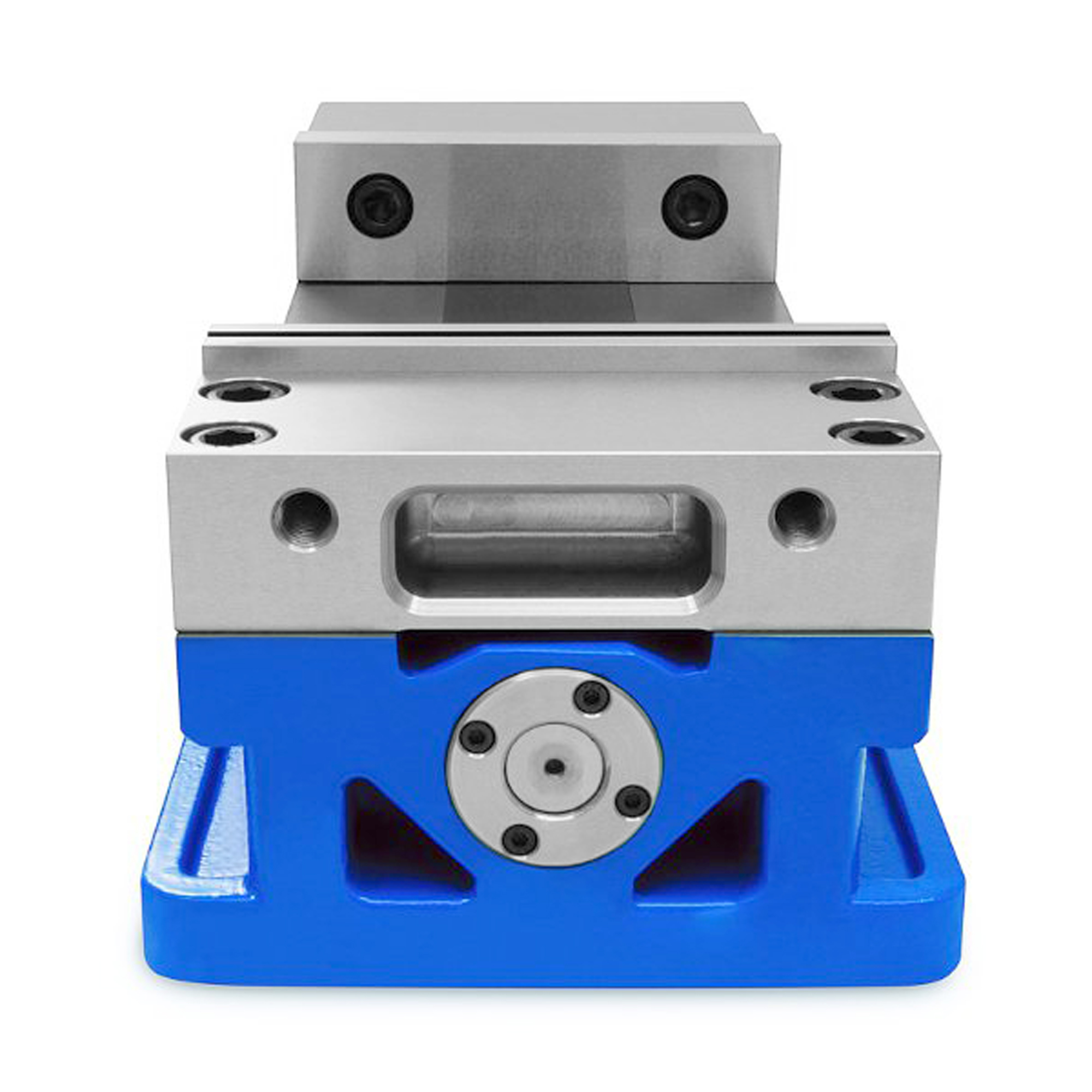

The Kurt HDM691 Metric Vise is the first 6″ “pull-type” vise with a full 9″ opening between jaws. This is the metic version of the HD691.
Description
Description
Features
- Easier programming in the “Y” axis positive direction
- Reduces “reach-over” distance making part loading safer and easier
- A full 9″ opening between jaws when using standard jaw plates
- Wider more stable stationary jaw equals less deflection
- Four bolt stationary jaw bolts from the top which reduces stress in the body so the vise stays flatter after assembly
- No need to remove the vise from the table to clean
- Narrower body allows for more vises in the work envelope
- Taller body design equals less deflection under clamping load
- Bolts and locates directly on standard grid plates: 40mm, 50mm or 2″

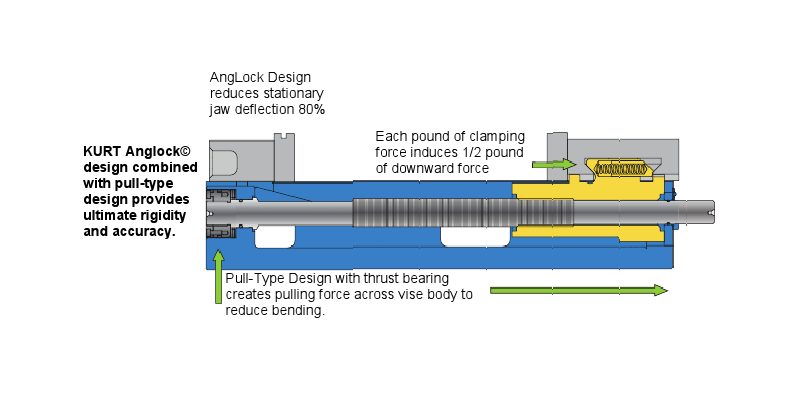

- “Pull-type” design reduces stress in the body which results in more accurate clamping
- Quick change movable jaw, the HD platform movable jaw allows for quick change and carvability to hold that odd shaped part
- GrooveLock® workstop included
- Uses sine keys for alignment
- Swivel base available, Part #D50-4-SA
- Body height matched ±0.0005″
- Ship weight approx 75lbs
Dimensional Data
Dimensional Data

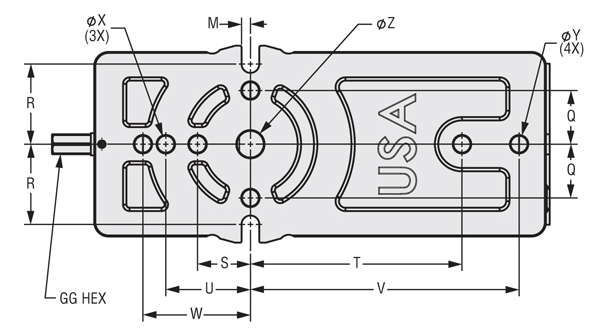

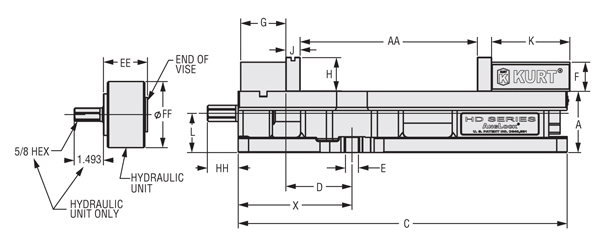

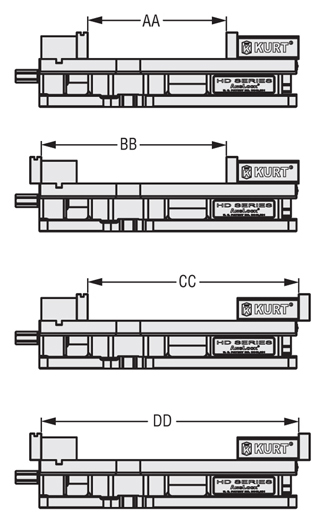

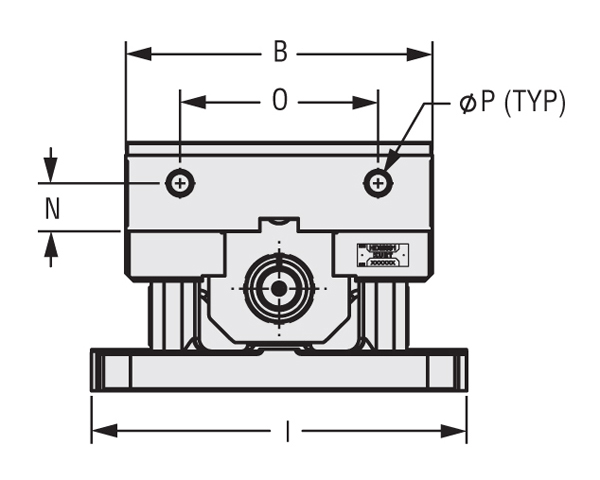

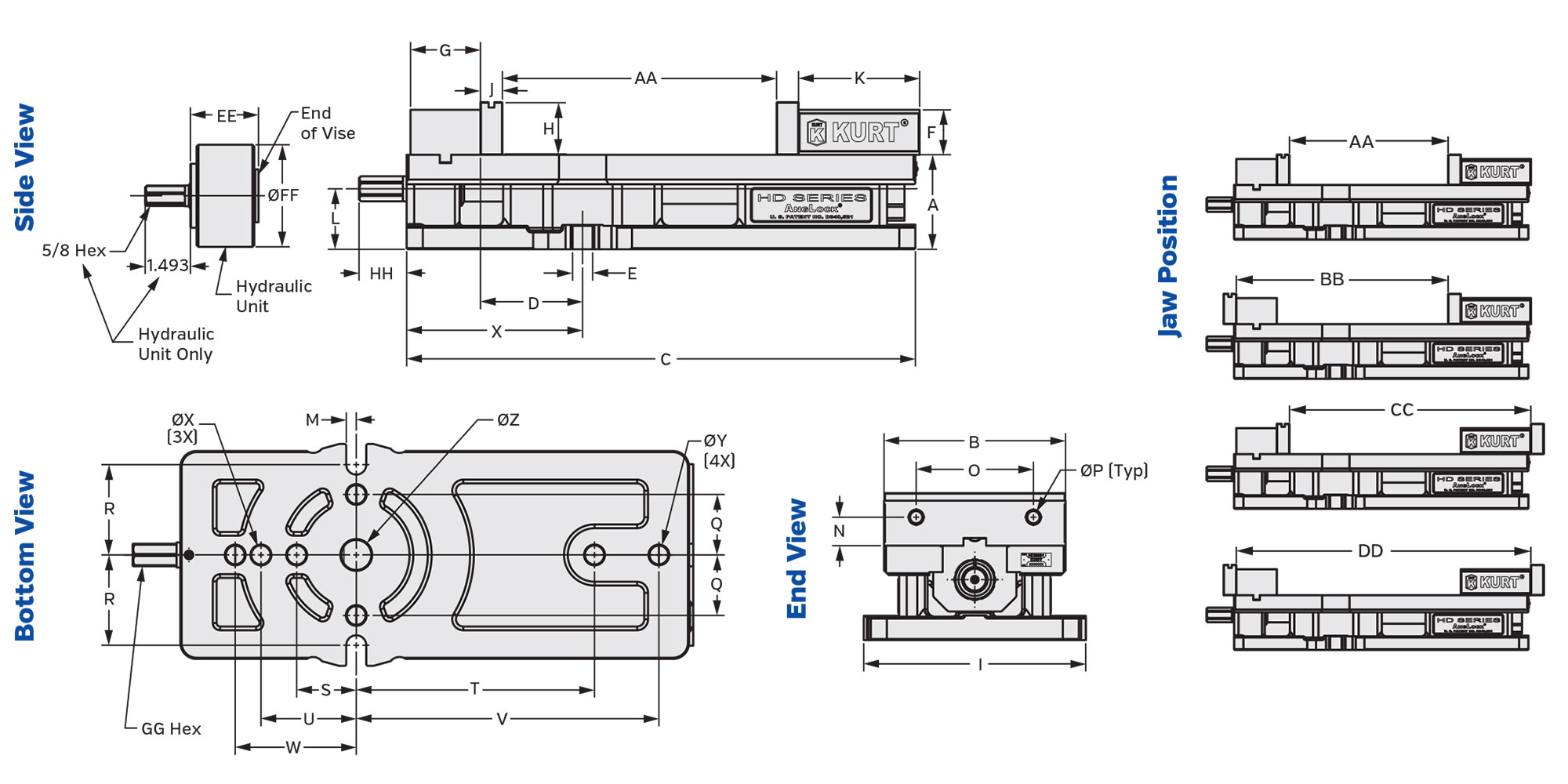

HD691/HDM691/HDH691/HDHM691 | |
A | 3.125 |
B | 6.000 |
C | 16.810 |
D | 3.375 |
E | 0.6600 |
F | 1.485 |
G | 2.312 |
H | 1.735 |
I | 7.338 |
J | 0.725 |
K | 4.000 |
L | 2.000 |
M | 0.330 |
N | 0.940 |
O | 3.875 |
P | 1/2-13 |
P METRIC | M12 |
Q | 2.000 |
R | 2.986 |
S | 50MM |
T | 200MM |
U | 80MM |
V | 10.000 |
W | 4.000 |
X | 16MM |
Y | 0.625 |
Z | 0.992 |
AA | 9.062 |
BB | 12.099 |
CC | 13.787 |
DD | 16.824 |
EE | 2.250 |
FF | 3.375 |
GG | 3/4 |
HH | 1.575 |
SHIP WT | 75 LBS |
Clamping Force Pounds
Clamping Force Pounds
Torque (Ft. Lbs.) | Clamping Force (Lbs.) |
10 | 975 |
20 | 1625 |
30 | 2400 |
40 | 3250 |
50 | 3700 |
60 | 4275 |
70 | 4700 |
80 | 5250 |
