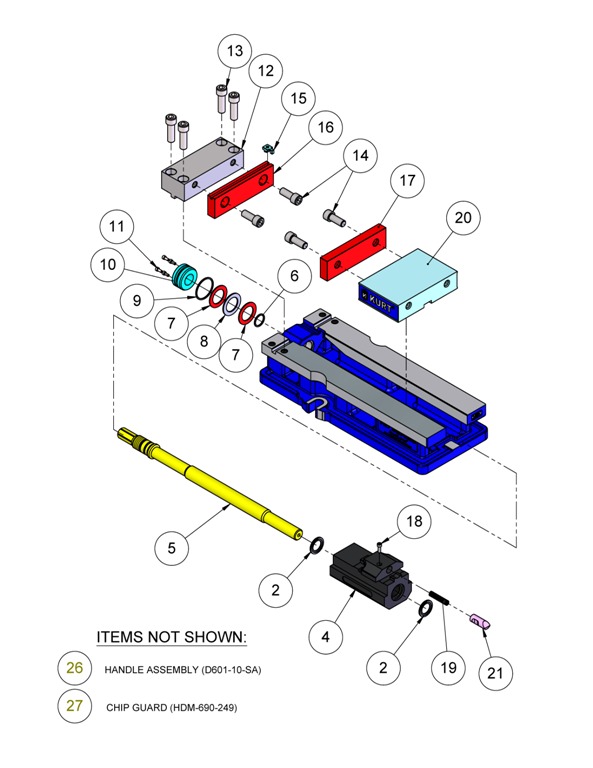

HD691 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
1341/2-13 x 1-5/8 Socket Head Cap Screw00-1439$6.00
DX6R-5 REVERSE SCREW$69.00
41Kurt Nut, Machined - HDM691-3HDM691-3$147.00
201Kurt Hard Movable Jaw, J Style (English) - HDL6J-2HDL6J-2$198.00
271Kurt Chip Guard Long - HDM690-249HDM690-249$12.00
181Kurt SHCS #10-32UNC x 1/4 LG - 00-025100-0251$5.00
121Kurt Stationary Jaw - HD690-6HD690-6$268.00
51Kurt Screw (Rev.) - HD691-5HD691-5$95.00
191Kurt Spring, Red, Manual Vise Only - HD6-197HD6-197$5.00
151Kurt Workstop Assembly - WSRL46WSRL46$22.00
211Kurt Spring Guide, Metric - HDM6-142HDM6-142$11.00
81Kurt Thrust Bearing - D80-41D80-41$6.00
22Kurt Internal Brush Seal - D688-211D688-211$9.00
171Kurt Jaw Plate, 6" - D60-7D60-7$46.00
161Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$50.00
261Kurt Handle Assembly - D60I-10-SAD60I-10-SA$38.00
101Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$51.00
61Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$5.00
72Kurt Thrust Washer - 3600V-423600V-42$6.00
91Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$5.00
144Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$5.00
114Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$5.00
