Kurt HDL4 Repair Kit 1 – HDL4-KIT1
Part No. HDL4-KIT1
$29.00
HDL4-KIT1
Description
Description

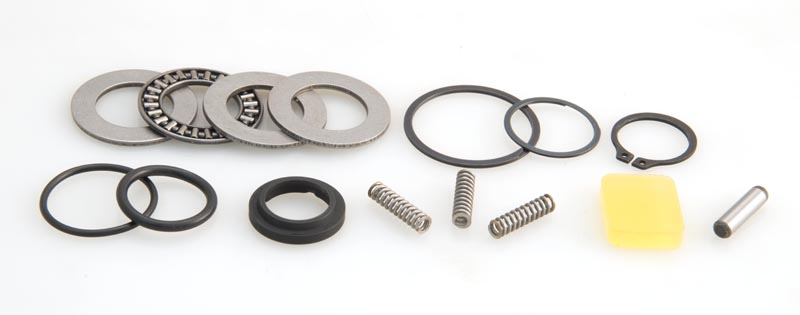

| HDL4-KIT1 Parts Included | Part No. | QTY |
| Dowel Pin, 3/16 DIA. | 04-0030 | 1 |
| Bearing, Thrust | D40-41 | 1 |
| Thrust Washer, .060 – .063 | DL400-42A | 3 |
| O-Ring, .750 ID x .937 OD | DL430-127 | 1 |
| O-Ring, Buna N, #021 | DL430-128 | 1 |
| O-Ring, 1.0 ID x 1.25 OD | DL430-129 | 1 |
| Retaining Ring | DL430-147A | 1 |
| Retaining Ring | DL430-217 | 1 |
| Retaining Ring | DL430-231 | 1 |
| O-Ring, Buna N, #022 | DL430-68 | 1 |
| Wiper Ring | DL430-97 | 1 |
| Clutch Spring, Stainless | DL640-215 | 3 |
| Spring, Pre-Load | HDLM4-311 | 1 |
