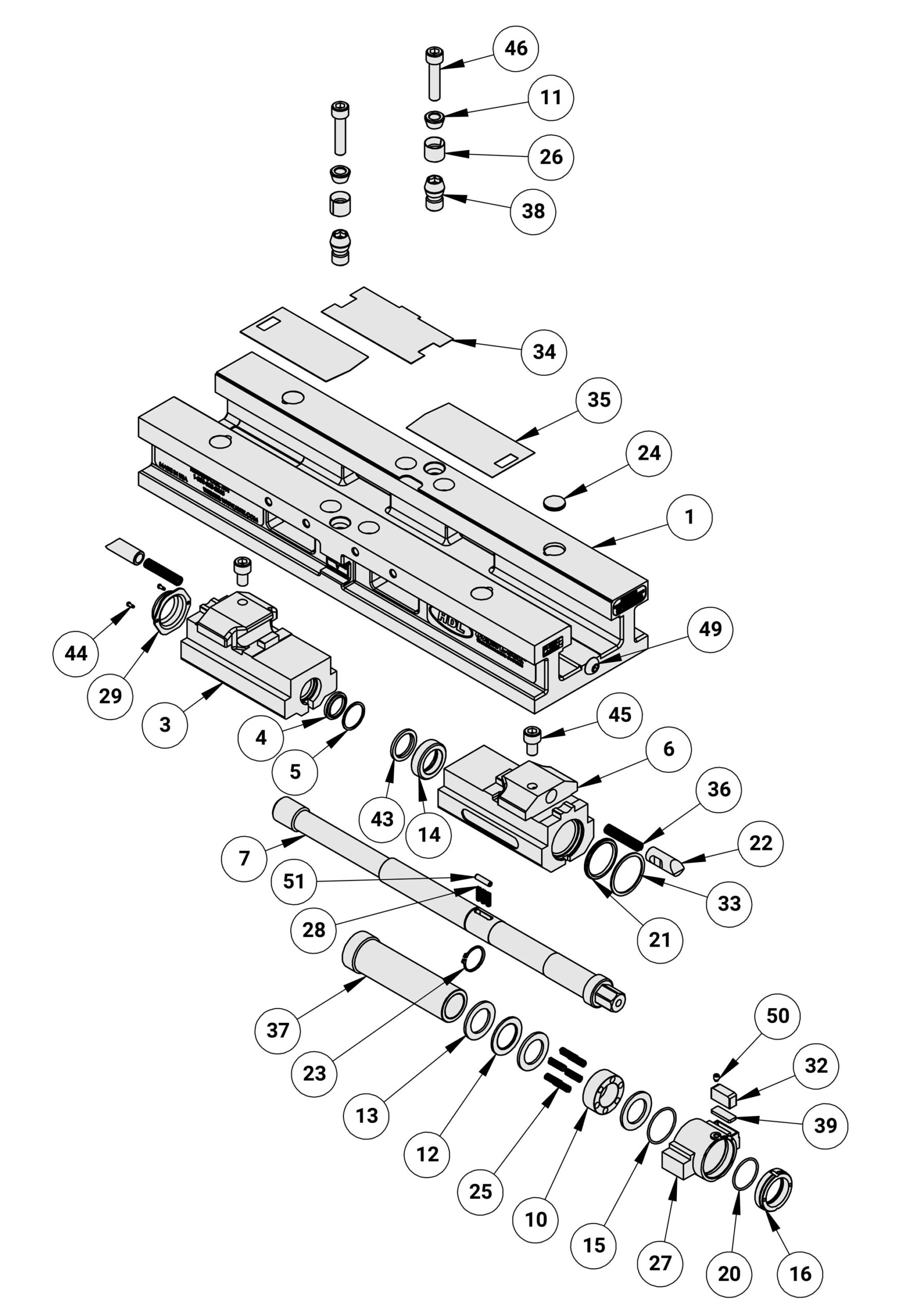

HDLM4/HDL4 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
0Kurt Hard Stationary Jaw, J Style (Metric) - HDLM4J-6HDLM4J-6$139.00
132Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
0Kurt Stationary Jaw Pin Assembly, 4 piece - HDLM4-277-KITHDLM4-277-KIT$308.00
72Kurt Locating Pin, Stationary Jaw for use with the HDL4 English - HDL4-277HDL4-277$45.00
112Kurt Screw, Alt. 5/16-18 UNC SHCS for use with the HDL4 English - HDL4-18HDL4-18$10.00
0Kurt HDL Nut & Screw Assembly - HDLM4-3-SAHDLM4-3-SA$719.00
0Kurt HDL4 Repair Kit 1 - HDL4-KIT1HDL4-KIT1$31.00
271Kurt Spacer - HDLM4-61HDLM4-61$29.00
141Kurt Screw - HDLM4-5HDLM4-5$87.00
241Kurt Nut, Rear - HDLM4-3R-SAHDLM4-3R-SA$169.00
321Kurt Nut, Front - HDLM4-3F-SAHDLM4-3F-SA$187.00
92Kurt Clamp, Stationary Jaw - HDLM4-35HDLM4-35$29.00
351Kurt Spring, Pre-load - HDLM4-311HDLM4-311$13.00
72Kurt Locating Pin, Stationary Jaw for use with the HDLM4 Metric - HDLM4-277HDLM4-277$45.00
172Kurt Chip Guard, Movable - HDLM4-249HDLM4-249$13.00
181Kurt Chip Guard, Stationary - HDLM4-248HDLM4-248$10.00
361Kurt Clamp, Friction - HDLM4-225HDLM4-225$20.00
381Kurt Holding Block - HDLM4-212AHDLM4-212A$72.00
82Kurt Clamp Sleeve - HDLM4-209HDLM4-209$33.00
238Kurt Plug, Protective - HDLM4-191HDLM4-191$8.00
112Kurt Screw, Alt. M8x1.25 SHCS for use with the HDLM4 Metric vers - HDLM4-18HDLM4-18$10.00
152Kurt Spring Guide - HDLM4-142HDLM4-142$12.00
472Kurt Spring, Compression - HDLM4-267HDLM4-267$8.00
421Kurt Collar - DL430-8ADL430-8A$20.00
331Kurt O-Ring, 1.0 I.D. X 1.25 O.D. - DL430-129DL430-129$6.00
281Kurt O-Ring, .750 I.D. X .937 O.D. - DL430-127DL430-127$6.00
41Kurt Screw, BHCS M8 X 1.25 X 12MM LG for use with the HDLM4 Metr - 29-016829-0168$6.00
411Kurt Screw, SS, Half Dog Point, M4 X .7 x 6MM Long - 28-109428-1094$6.00
162Kurt Screw, SHCS, M4 X .7 X 50MM Long - 26-005026-0050$6.00
451Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$6.00
291Kurt Retaining Ring - DL430-147ADL430-147A$6.00
391Kurt O-Ring, Buna N, #021 - DL430-128DL430-128$6.00
228Kurt Replacement O-Rings - MT4-96MT4-96$6.00
303Kurt Clutch Spring, Stainless - DL640-215DL640-215$6.00
251Kurt Wiper Ring - DL430-97DL430-97$7.00
401Kurt Collar, Threaded - DL430-91-PDL430-91-P$35.00
311Kurt Clutch - DL430-273ADL430-273A$50.00
341Kurt Retaining Ring - DL430-231DL430-231$6.00
261Kurt Retaining Ring - DL430-217DL430-217$7.00
434Kurt Spring - DL430-197DL430-197$6.00
373Kurt Thrust Bearing Washer, 0.060-0.063 - DL400-42ADL400-42A$8.00
201Kurt End Cap - DL400-218DL400-218$12.00
441Kurt Thrust Bearing - D40-41D40-41$8.00
481Kurt Handle Assembly - D40XI-10-SAD40XI-10-SA$45.00
102Kurt O-Ring, #110 - 360AU-99B360AU-99B$6.00
461Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$6.00
41Kurt Screw, BHCS, 5/16-18 X 1/2 - 03-014103-0141$6.00
