Description

Kurt XL vises are designed for the clamping of extremely large parts for both die and CNC applications. The jaw openings provide up to 28.750″ of versatile jaw opening space. These precise locking vises are ideal for high horsepower “hogging out” operations. Kurt XL vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.

The newest hydraulic vise models are capable of:

• Single acting with unclamp spring return, or double acting with hydraulic unclamp. Fittings for both configurations are included.
• Female threaded ports on body: 1/8″ NPT.
• Two Included adapters: Male 1/8” NPT to Male #4 JIC.

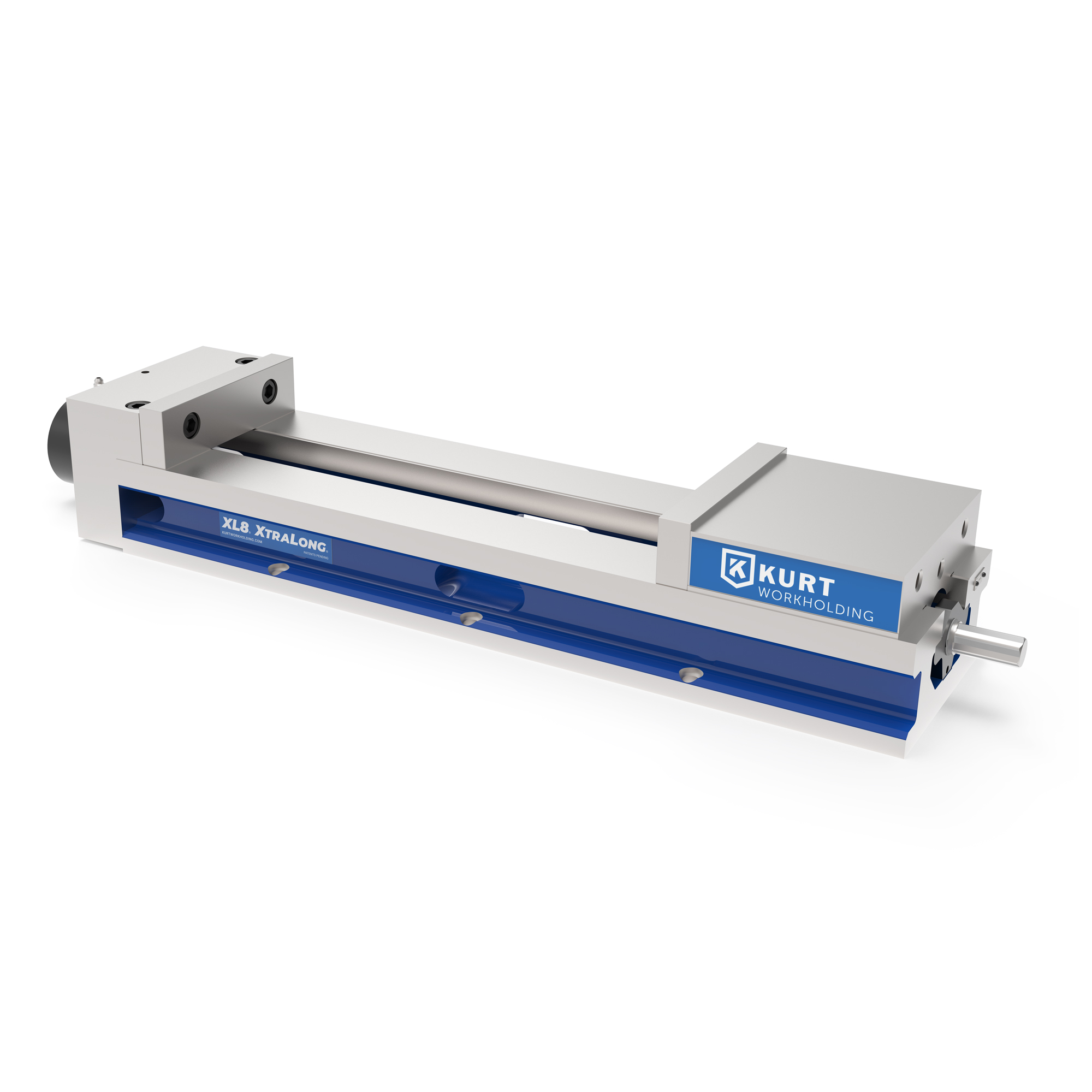

XL8H Features

• Precision clamping force up to 7,350 Lbs.
• Jaw lift reduction due to AngLock design.
• Ductile iron body provides up to 80,000 lb.
• 8” jaw widths with jaw openings from 0″-21″ with a maximum of 28.765″ (in the outside jaw positions).
• “Pull-Type” clamping provides high precision and repeatability.
• Excellent for high horsepower “hogging out” applications.
• Manual and hydraulic models available.
• Hydraulic feature a 1/4″ stroke.
• Available internal hex screw.

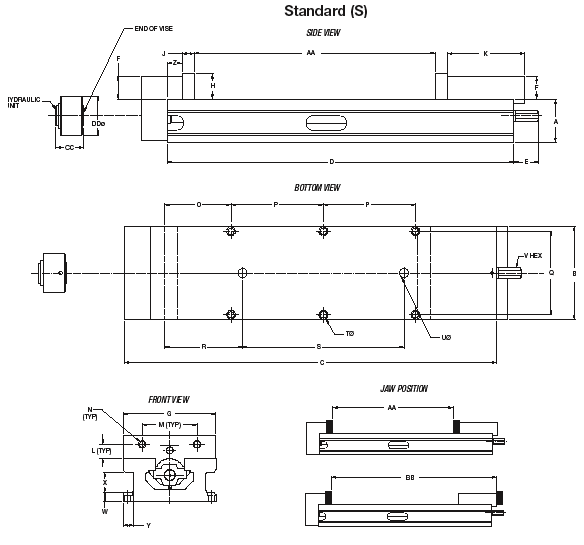

Dimensional Data
