Kurt Hydraulic VersatileLock Reverse Vise, 6″ – 3610H

Part No. 3610H

$1,965.00

Hydraulic VersatileLock Reverse 6″ Vise

Description

Description

Use the VersatileLock in this configuration for the added benefit of easier part programming in “Y axis” positive direction. It also reduces the “reach-over” distance making part loading safer and easier for the operator.

New hydraulic models come with single and double acting actuation. Only requires switching out a brass fitting with the supplied hydraulic fitting.
Single acting: hydraulic clamping and spring return for unclamping
Double acting: hydraulic to clamp and unclamp for faster, more precise setup

Features

  • Can be mounted upright or on either side
  • Matched stationary jaw to the keyway including the body height ±0.001″
  • 0.0005″ clamping repeatability
  • Metric versions available – call factory
  • Hydraulic unit has 1/4″ stroke
  • Sine key or fixture key compatible

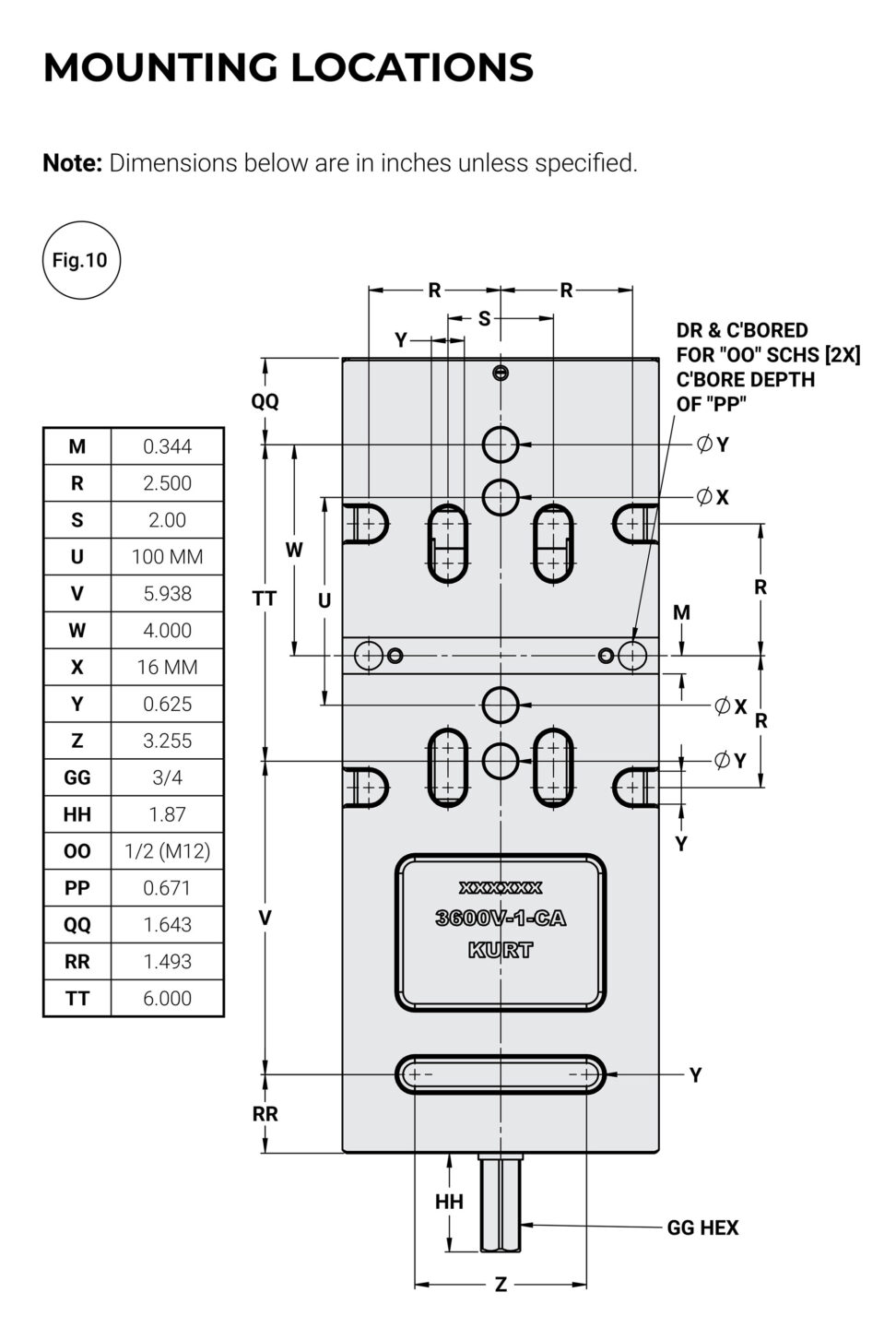

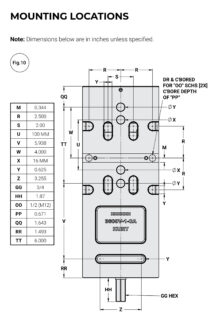

Mounting Instructions

Resources

Dimensional Data

Dimensional Data

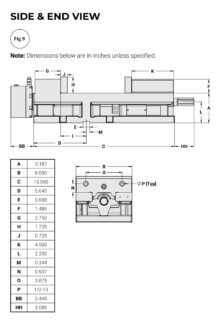

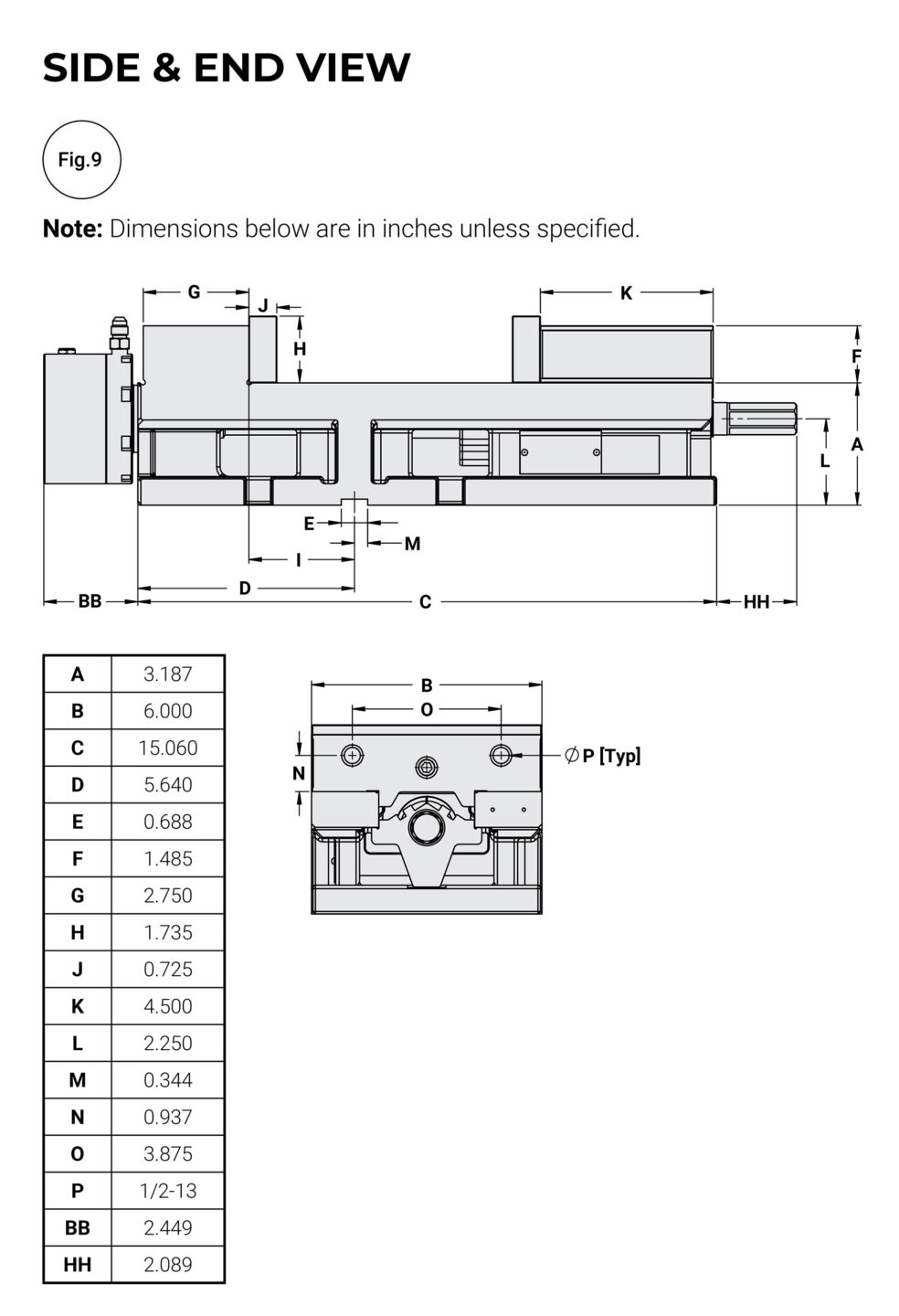

vise dimension drawings
Inch Pounds
A 3.187 x
B 6.000 x
C 15.060 x
D 2.750 x
E 0.688 x
F 1.485 x
G 2.750 x
H 1.735 x
J 0.725 x
K 4.500 x
L 2.250 x
M 5.000 x
N 0.937 x
O 3.875 x
P 1/2-13 x
Q 2.000 x
R 4.250 x
S 3.000 x
T 1.380 x
U 0.630 x
V 1.940 x
W 3/4 x
X 5.640 x
Y 0.630 x
Z 6.000 x

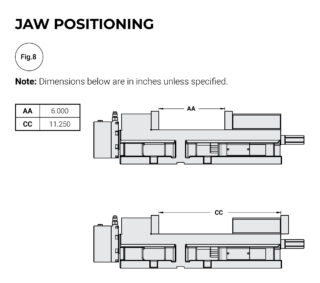

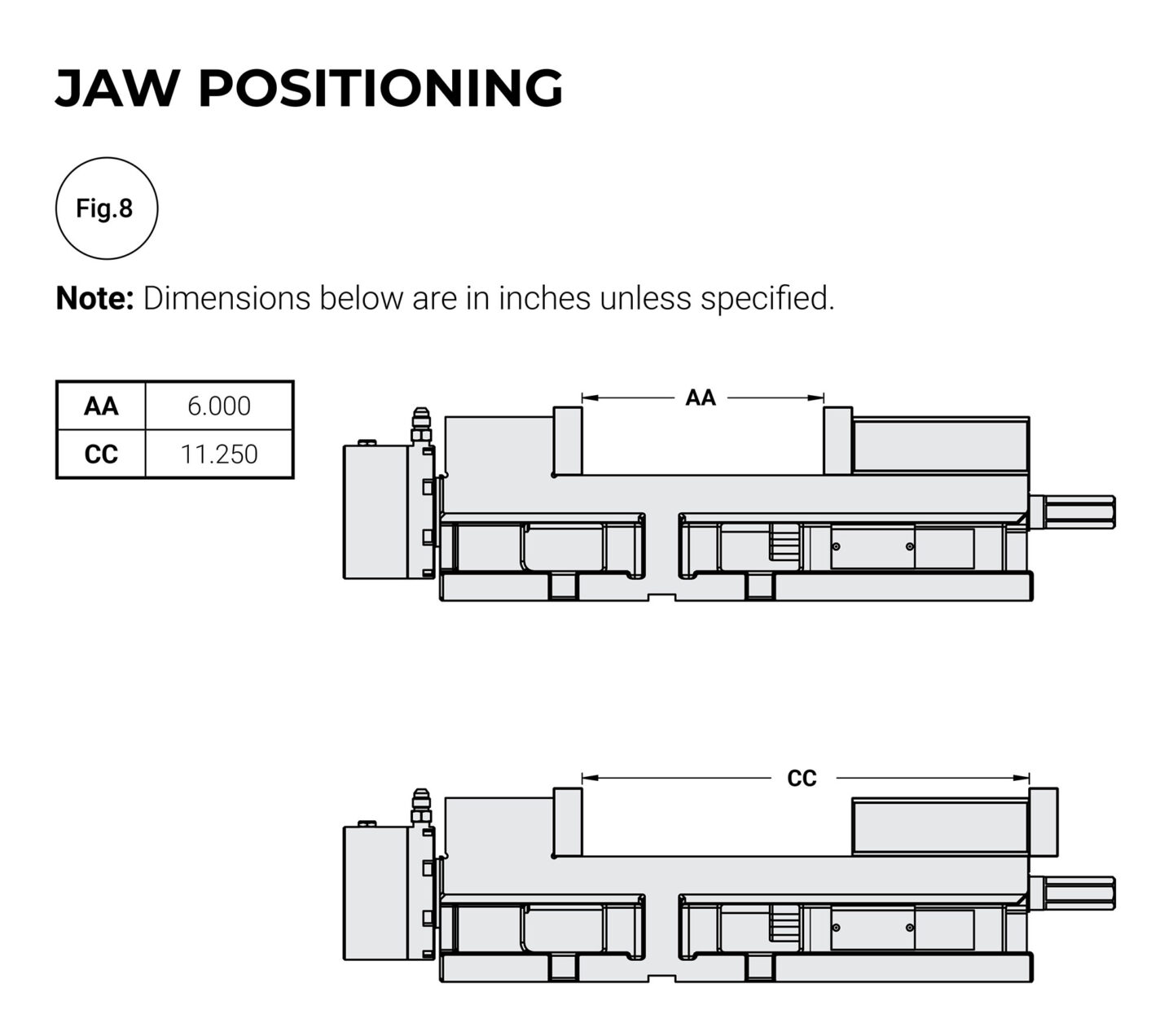

AA 6.000 x
CC 11.250 x
EE 2.410 x
FF 1.940 x
GG 3.375 x
NN 2.500 x
OO 0.344 x
PP 1/2 x
QQ 0.671 x
Ship Wt. Lbs. x 73

Clamping Force Pounds

Clamping Force Pounds

Hydraulic PSI 3610H
400 900
800 1525
1200 2750
1600 3650
2000 4600
2400 5500
2800 6425
3200 7350
Hyd. Displacement cu. in. 0.69
