Kurt Extra Capacity Air Reverse Vise, 6″ – XL6AR
Part No. XL6AR
$4,230.00
Kurt Workholding is an industry leading provider of advanced quality 6″ extra capacity reverse air vises for your industrial vise workholding needs. Contact us today for more information regarding our XL reverse air vises or request a quote for an in-depth price analysis.
Description
Description

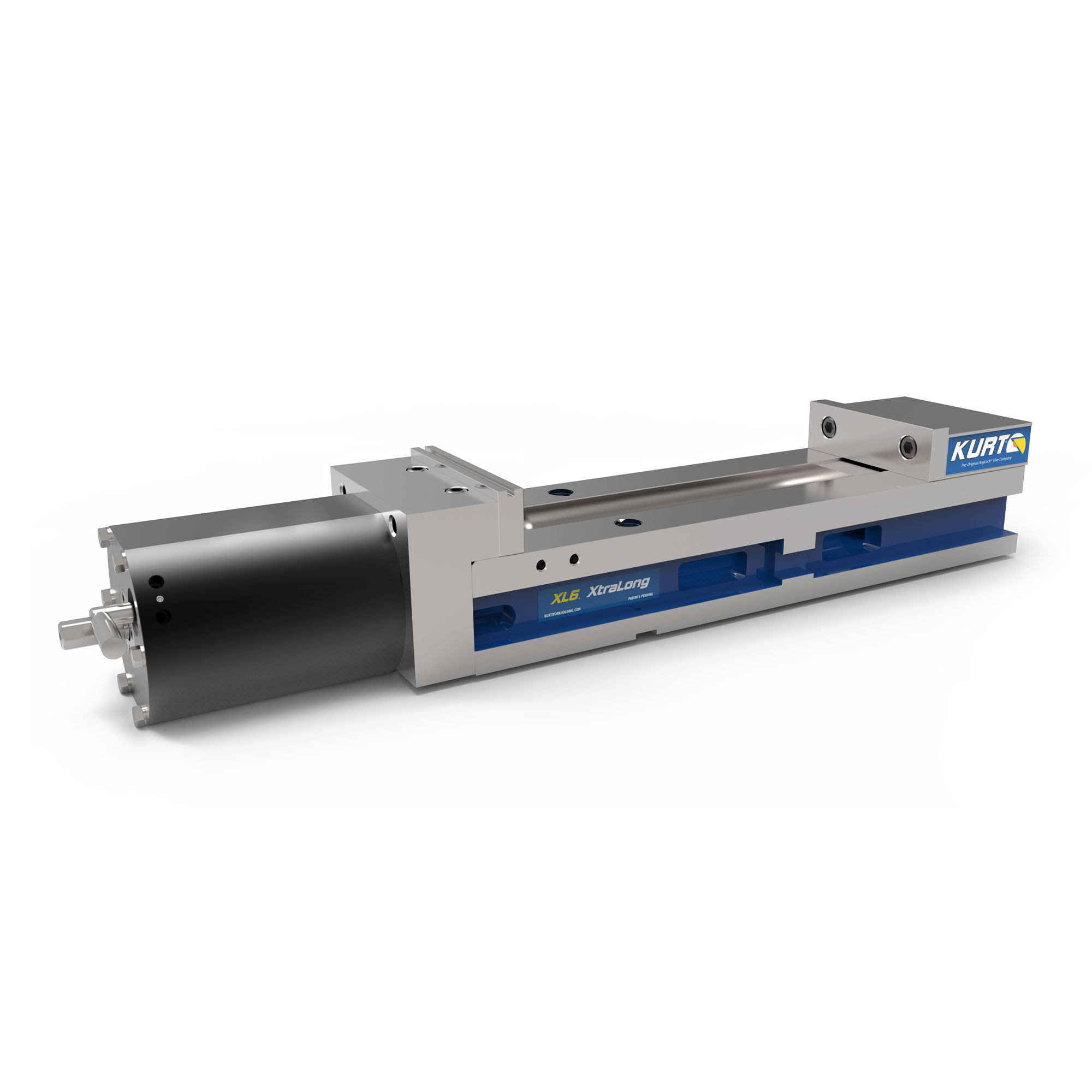

Kurt XL reverse air vises are designed for the clamping of extremely large parts for both die and tool CNC applications. The jaw openings provide up to 19.25″ of versatile jaw opening space. These precise locking reverse air vises are ideal for high horsepower “hogging out” operations. Kurt XL reverse air vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.
XL6AR Features
- Precision clamping force up to 5,000 Lbs.
- Jaw lift reduction due to AngLock design.
- Ductile iron body provides up to 80,000 lb.
- 6” jaw widths with jaw openings from 0″-14.50″ with a maximum of 19.25″ (in the outside jaw positions).
- “Pull-Type” clamping provides high precision and repeatability.
- Part loading is safer and easier for the operator due to reverse model “reach-over” distance reduction. Also, part programming is simpler in the “Y” axis positive direction.
- Air, manual and hydraulic models available.
- Hydraulic and air feature a 1/4″ stroke.
- Air power option provides a “gentle touch” for delicate parts that is precise and repeatable.
- Available internal hex screw.
- Sine key or fixture key compatible
NOTE: The air unit will hang below the bottom of the vise by .200”. The vise will need to be set on a riser or placed in such a way that the air unit hangs off the edge of the table.
Mounting Instructions
Dimensional Data
Dimensional Data
Inch | |
A | 3.125 |
B | 6.000 |
C | 22.400 |
D | 5.287 |
E | 0.688 |
F | 1.485 |
G | 4.500 |
H | 1.735 |
J | 0.725 |
K | 4.000 |
L | 20.680 |
M | 0.940 |
N | 3.875 |
O | 1/2-13 |
P | 5.500 |
Q | 5.500 |
R | 5.000 |
S | 1.188 |
T | 100 MM |
U | 5.000 |
V | 0.625 |
W | 16 MM |
X | 0.438 |
Y | 1.500 |
Z | 0.625 |
AA | 14.500 |
BB | 19.250 |
CC | 0.690 |
DD | 1.470 |
EE | 0.630 |
FF | 0.850 |
GG | 0.800 |
HH | 0.360 |
JJ | 0.630 |
KK | 1.250 |
NN | 7.200 |
PP | 1.000 |
5.00 | |
RR | 3.500 |
SS | 0.531 |
TT | 4.000 |
Ship Wt. Lbs. | 106 |
