Kurt DX4HR Hydraulic Reverse Vise – DX4HR

Part No. DX4HR

$1,997.00

Combines all the great features of our DX4 vises with hydraulic actuation. Features a 4″ jaw with a 9.0″ opening. Reverse vise.

Description

Description

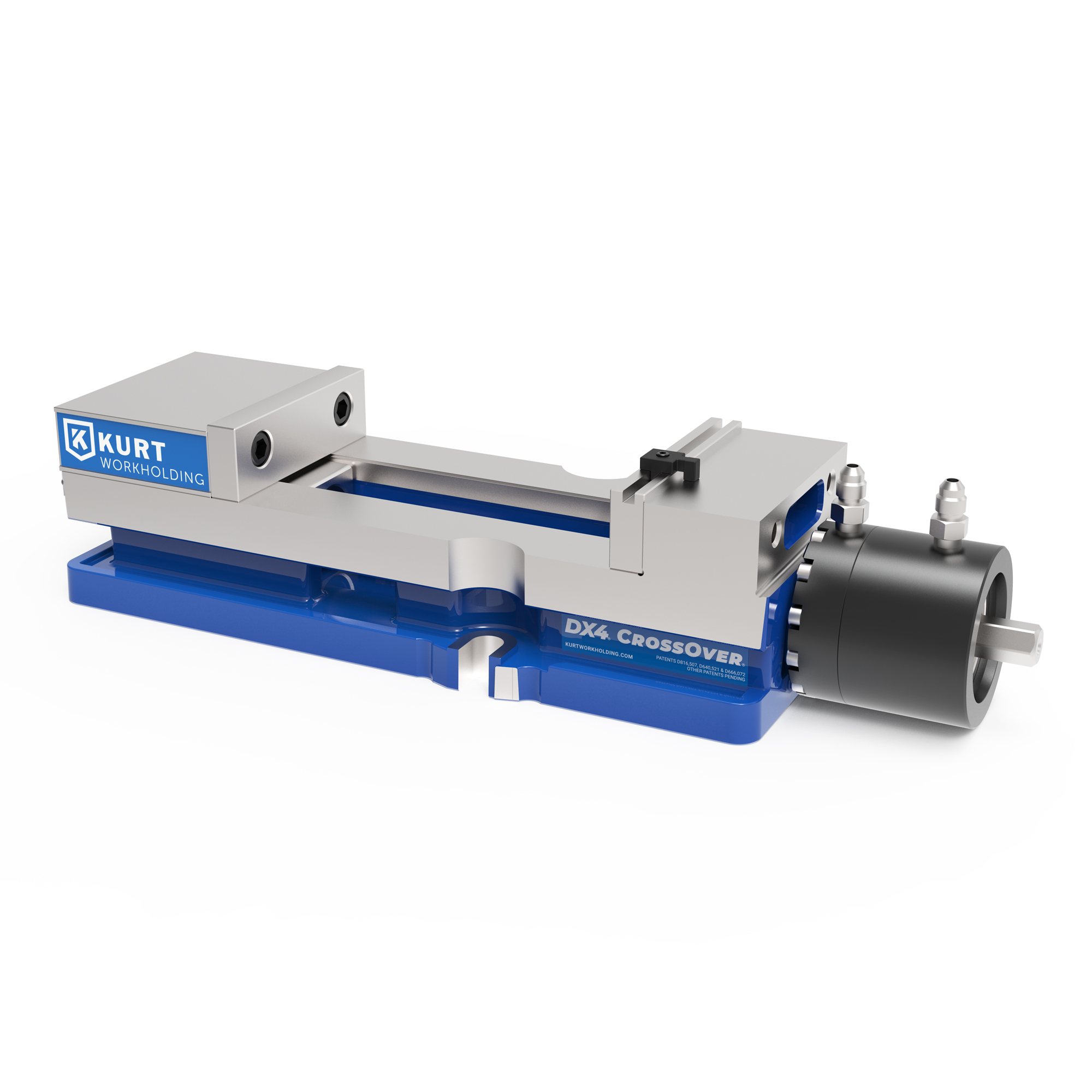

The Kurt DX4HR reverse vise is our newest addition to the automated DX vise series. The DX4HR reverse vise shares many of the same great features of Kurt’s DX4 CrossOver® vise with the addition of hydraulic actuation—allowing the vise to open and close using a Kurt pump system. Kurt pumps can make our hydraulic vise models actuate manually with a lever or foot-switch or operate within a fully automated robotic workflow as part of an automated machining cell.

Features a cast-on stationary jaw for less deflection—and a more stable vise body when clamping, 4-inch wide jaws with a 9-inch opening and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance. Kurt hydraulic models come with single and double acting actuation that only requires switching out a brass fitting with the supplied hydraulic fitting.

  • Single acting: hydraulic clamping and spring return for unclamping
  • Double acting: hydraulic to clamp and unclamp for faster, more precise setup

The Kurt hydraulic unit has 1/4″ stroke.

Features Kurt’s Lifetime Ironclad Warranty.

For mounting information, please check out our mounting page or sine keys page.

Mounting Instructions

Resources

Dimensional Data

Dimensional Data

Kurt DX4H Side and End View
Kurt DX4H Mounting Locations
Kurt DX4H Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Ft-Lbs Force in lbs.
20 1,900
30 3,050
40 4,300
50 5,350
60 6,450
70 7,400
Hydraulic PSI Force in lbs.
500 750
1,000 1,450
1,500 2,250
2,000 3,100
2,500 3,800
3,000 4,750
3,200 4,950
