Kurt DX6® CrossOver® Hydraulic Vise – DX6H
Part No. DX6H
$1,684.00
Description
Description

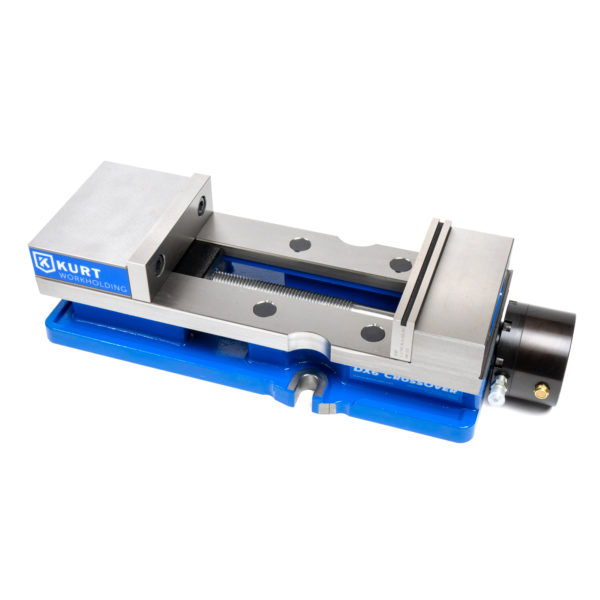

6” Vise with 9.0” Opening
The Best D-Series Vise We’ve Ever Produced
Kurt® Workholding’s revolutionary DX6® CrossOver® hydraulic vise combines all the great features of our world-renowned Kurt D688 and 3600V vises, along with new state-of-the-art workholding features. The DX6 CrossOver hydraulic vise achieves new levels in precision and performance where flatness and parallelism are important.
By every measure, this is a better vise than our own D688. The DX6 CrossOver vise features the same bed height and keyway to the stationary jaw face as the D688, a redesigned nut with lighter weight, and a new brush seal design. The bearing pack is larger, stronger, and more durable than our other designs, and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance.
New hydraulic models come with single and double acting actuation. Only requires switching out a brass fitting with the supplied hydraulic fitting.
Single acting: hydraulic clamping and spring return for unclamping
Double acting: hydraulic to clamp and unclamp for faster, more precise setup
Metric versions available – call factory.
Hydraulic unit has 1/4″ stroke.
With our commitment and Lifetime Ironclad Warranty, the DX6 CrossOver vise is destined to become the go-to vise for all your machining applications. Order yours today, or contact Kurt Workholding to learn more.
We have moved away from keyways on our redesigned vises and there are several reasons for this change. For more information, please check out our mounting page or sine keys page.
Mounting Instructions
Resources
Resources

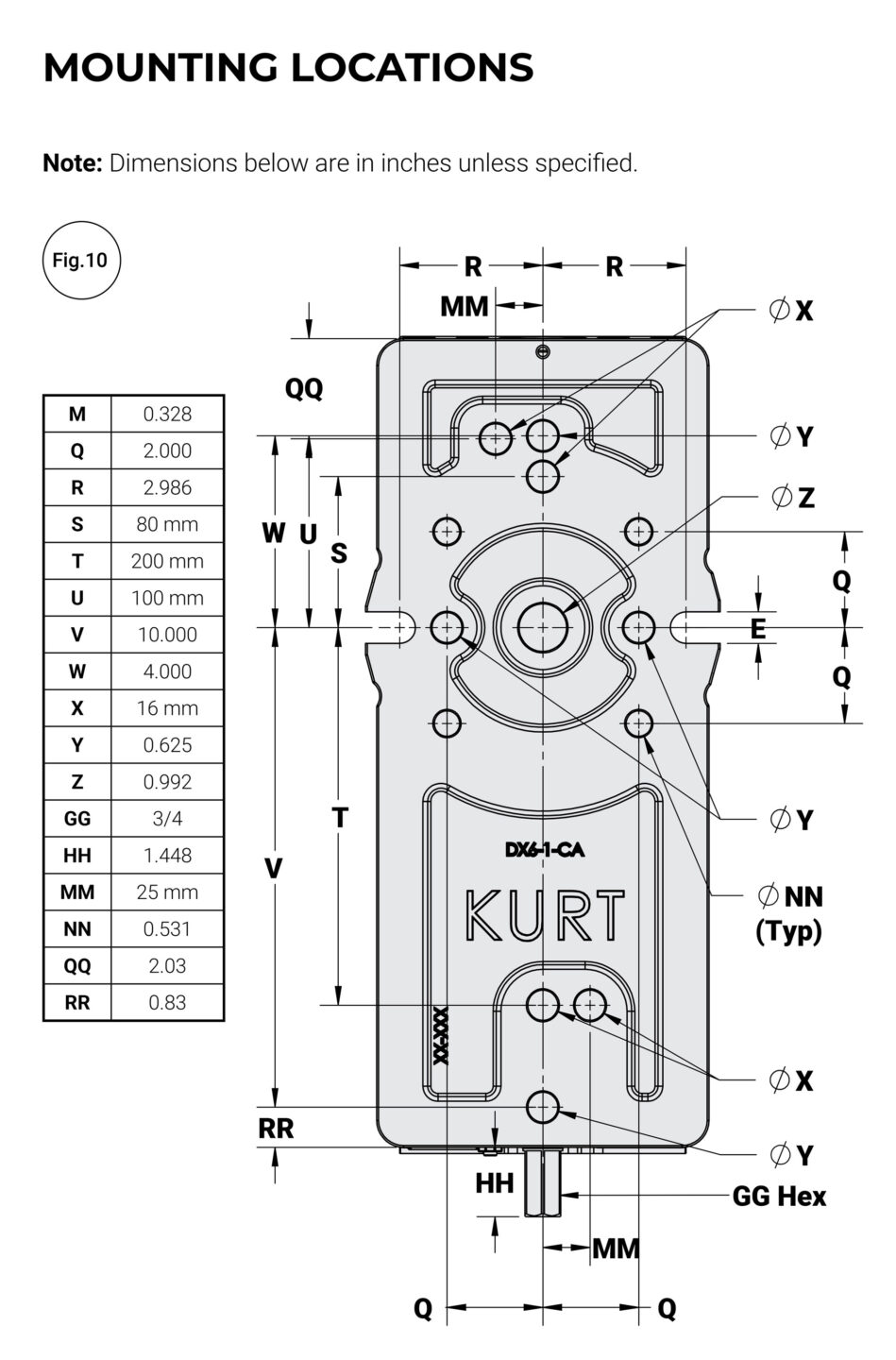

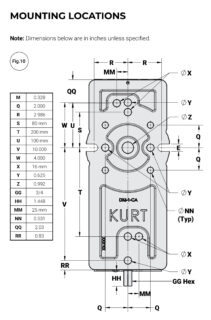

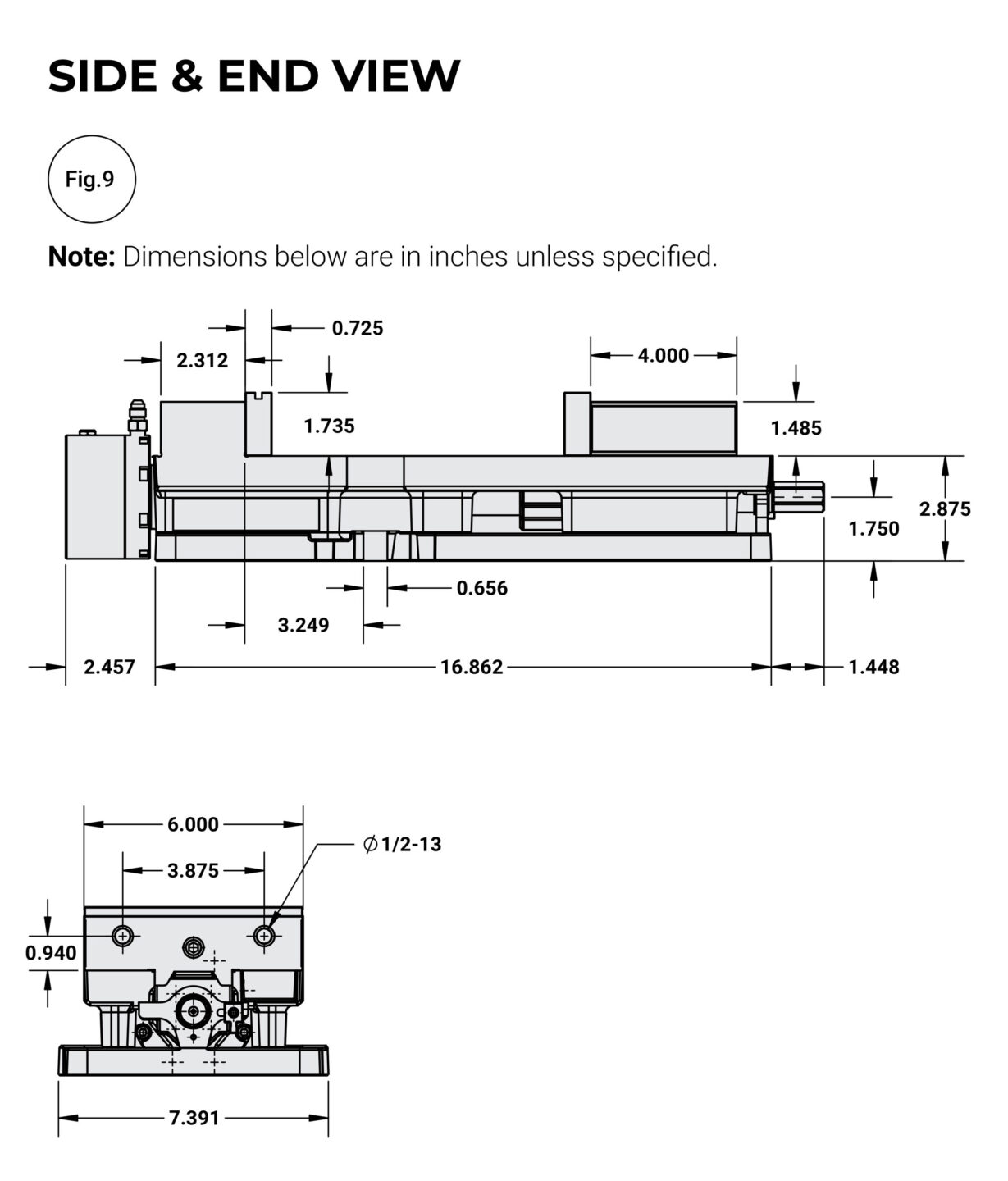

Dimensional Data
Dimensional Data
Inch | ||
A | 2.875 | |
B | 6.000 | |
C | 16.810 | |
D | 3.234 | |
E | 0.656 | |
F | 1.485 | |
G | 2.312 | |
H | 1.735 | |
I | 7.391 | |
J | 0.725 | |
K | 4.000 | |
L | 1.750 | |
M | 0.328 | |
N | 0.940 | |
O | 3.875 | |
P | 1/2-13 | |
P metric | M12 | |
Q | 2.00 | |
R | 2.986 | |
S | 80mm | |
T | 200mm | |
U | 100mm | |
V | 10.000 | |
W | 4.000 | |
X | 16mm | |
Y | 0.625 | |
Z | 0.992 | |

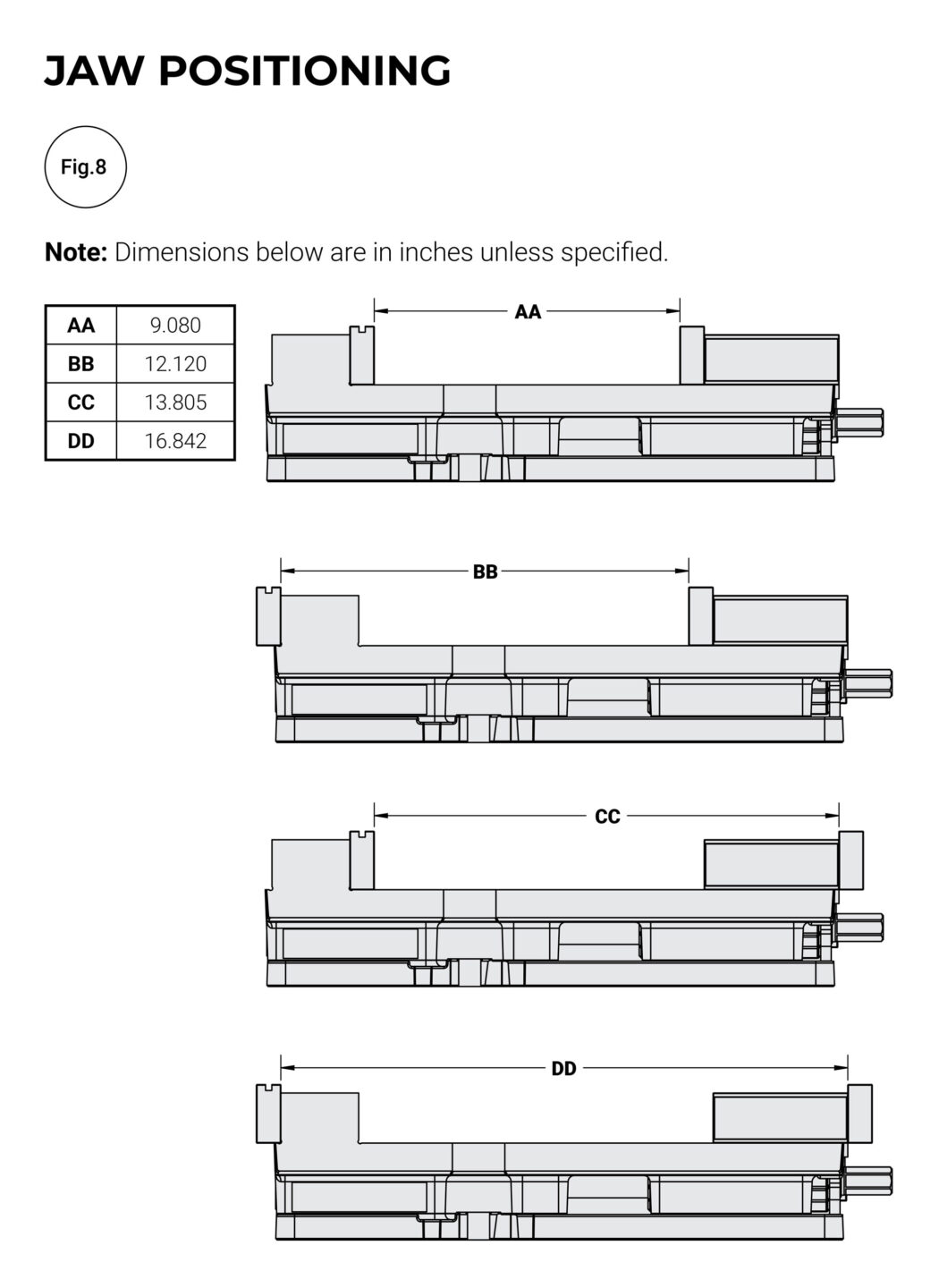

AA | 9.080 | |
BB | 12.117 | |
CC | 13.8050 | |
DD | 16.842 | |
EE | 2.4801 | |
FF | 3.375 | |
GG | 3/4 | |
HH | 1.448 | |
MM | 25mm | |
Ship Wt. Lbs. | 78 |
Clamping Force Pounds
Clamping Force Pounds
Hydraulic PSI | Force Lbs. |
500 | 800 |
1, 000 | 2,050 |
1,500 | 3,000 |
2,000 | 4,050 |
2,500 | 5,100 |
3,000 | 6,100 |
3,200 | 6,700 |
