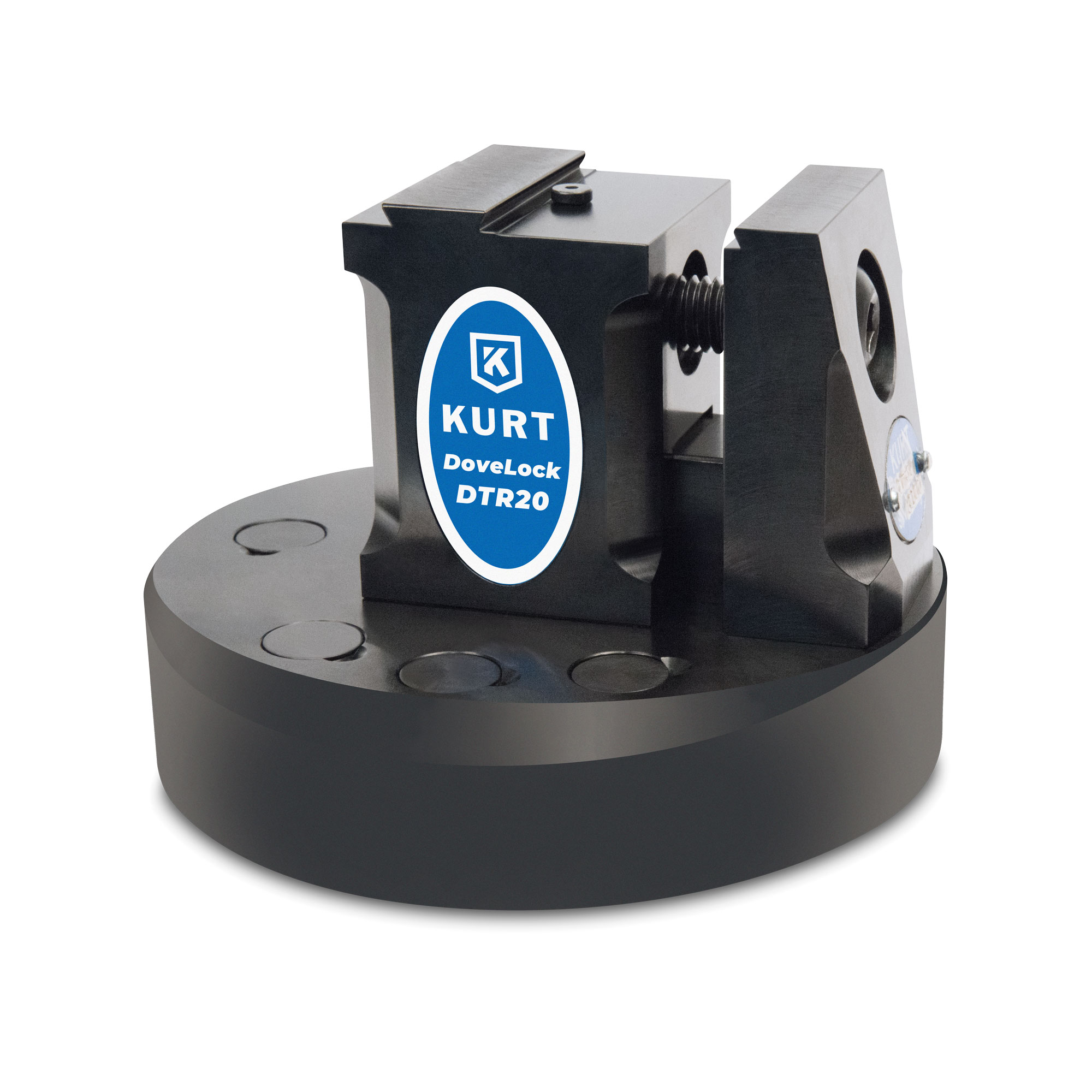

Kurt DoveLock 5-Axis Vise – DTR20

Part No. DTR20

$825.00

The DoveLock™ DTR20 5-axis dovetail vise from Kurt Workholding is designed to handle the toughest machining operations. Manufactured from pre-hardened 4140 steel, our DTR20 dovetail vise maintains part rigidity and minimizes deflection/clamp creep during high-pressure machining.

Description

Description

The DoveLock™ DTR20 5-axis dovetail vise from Kurt Workholding is designed to handle the toughest machining operations. Manufactured from pre-hardened 4140 steel, our DTR20 dovetail vise maintains part rigidity and minimizes deflection/clamp creep during high-pressure machining.

The unique design of this dovetail workholding device, which positions the clamping screw high up in the clamping envelope, is the key to deflection reduction. Additional anti-deflection control is achieved via the movable jaw slide which is retained within the stationary jaw.

Order a DoveLock™ DTR20 dovetail vise for your machining application, or contact Kurt Workholding to learn more.

Features of the DoveLock™ DTR20 Dovetail Vise

  • Movable dovetail vise jaws are reversible to accommodate a broad range of widths
  • Easy part prep requires only 0.125″ of material to hold the workpiece in place
  • Imbedded locating pin keeps part location accurate when applying side load pressure
  • Movable and stationary jaws are matched pairs
  • Pre-configured mounting pattern to fit most machine tables
  • Sturdy, durable dovetail vise weighs just 11 lbs.
  • Lifetime Ironclad Warranty

Resources

Dimensional Data

Dimensional Data

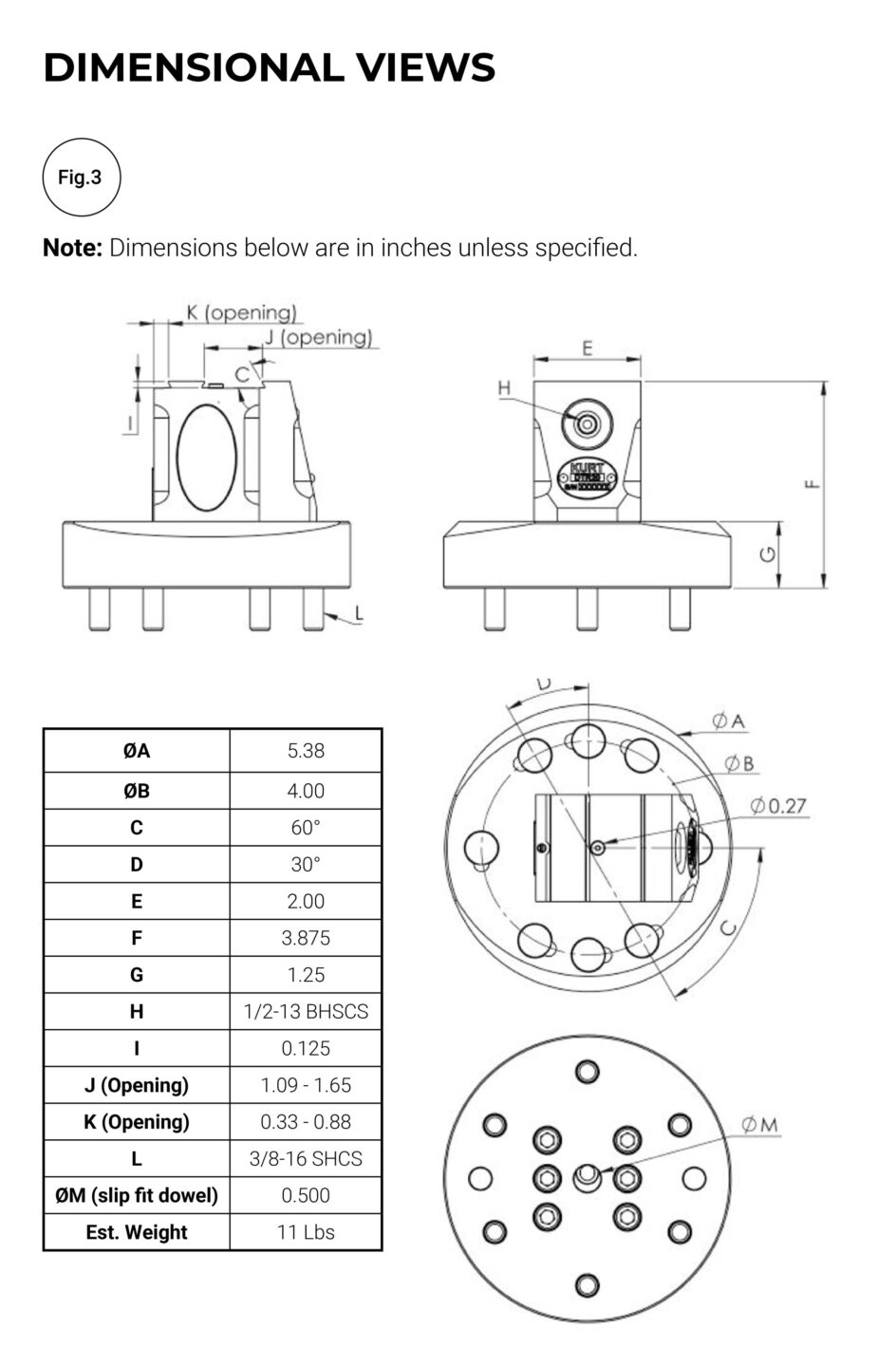

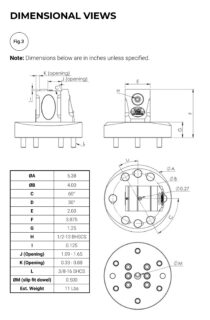

DTR20 Dimensional Views

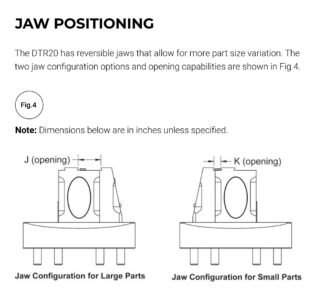

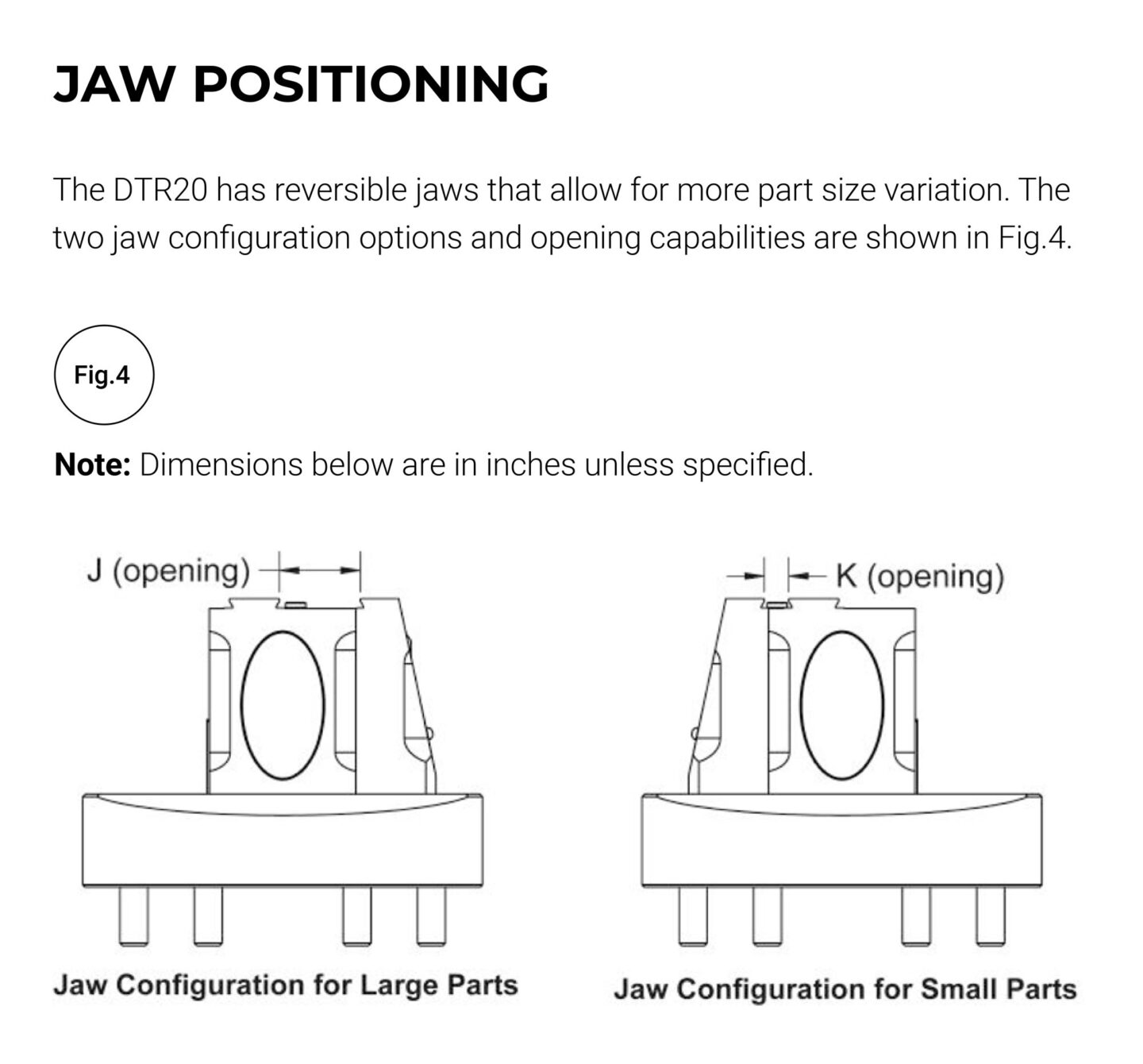

DTR20 Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Inch-Lbs. Clamping Force - Lbs
80 1,000
160 2,000
240 3,000
320 4,000

Videos

Replacement Parts

Replacement Parts

DTR20 Vise Replacement Parts
