Kurt DTR20 Vise Replacement Parts

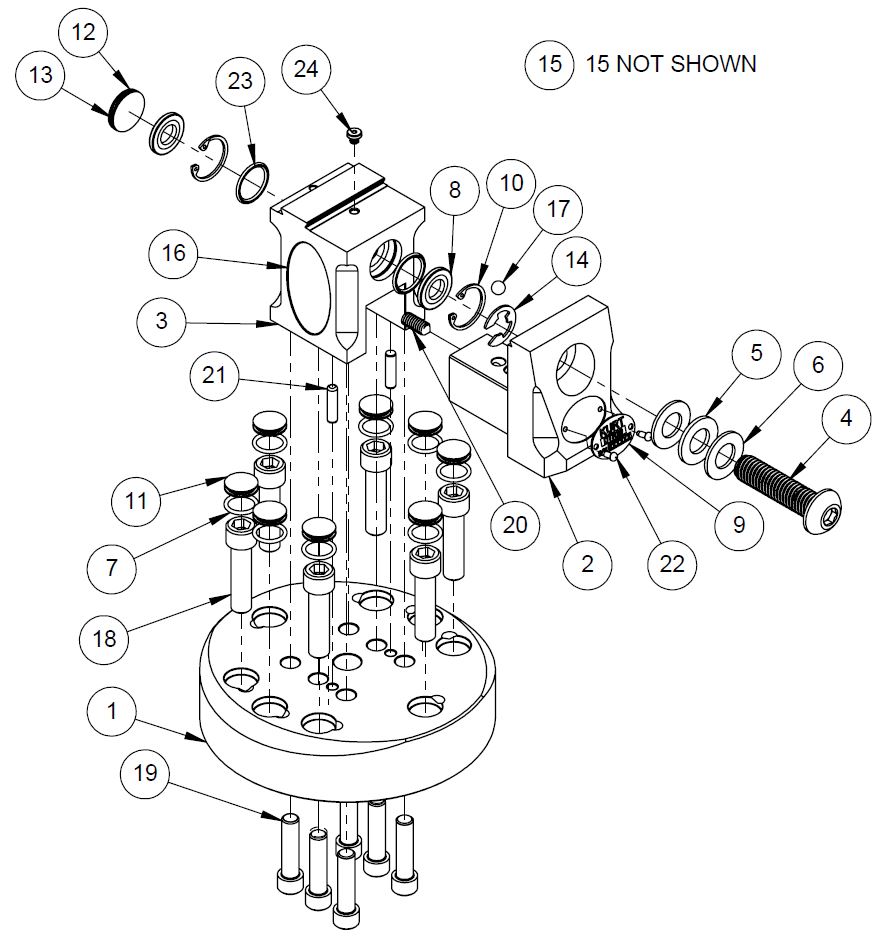

CalloutQty NeededNamePart No.PriceBuy
222Kurt Screw, Drive, #2 X .25 - 07-023007-0230$6.00
201Kurt 1/4-20 CPSS - 01-127701-1277$6.00
171Kurt Steel Ball - DTR20-355DTR20-355$6.00
102Kurt Retaining ring - DTR20-147DTR20-147$6.00
41Kurt SBHCS 1/2-13 x 2.0LG - DTR20-18DTR20-18$10.00
21Kurt Movable & Stationary Jaw Assembly - DTR20-2-SADTR20-2-SA$264.00
11Kurt Body - DTR20-1DTR20-1$305.00
241Kurt LHCS 8-32 x 1/4LG - 00-318900-3189$6.00
196Kurt 5/16-24 x 1.25LG - 00-035700-0357$6.00
186Kurt SHCS 3/8-16 x 1.50LG - 00-135900-1359$6.00
141Kurt Retaining Ring - DT20-231DT20-231$6.00
118Kurt Protective Plug - 3400V-1913400V-191$8.00
82Kurt BRUSH SEAL - SDW25-211SDW25-211$16.00
62Kurt Thrust Bearing Washer - SDW25-42SDW25-42$10.00
51Kurt THRUST BEARING - SDW25-41SDW25-41$11.00
232Kurt Replacement O-Rings - MT6-96MT6-96$6.00
0Kurt Handle Assembly - D40XI-10-SAD40XI-10-SA$45.00
78Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$6.00
121Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
212Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$6.00
