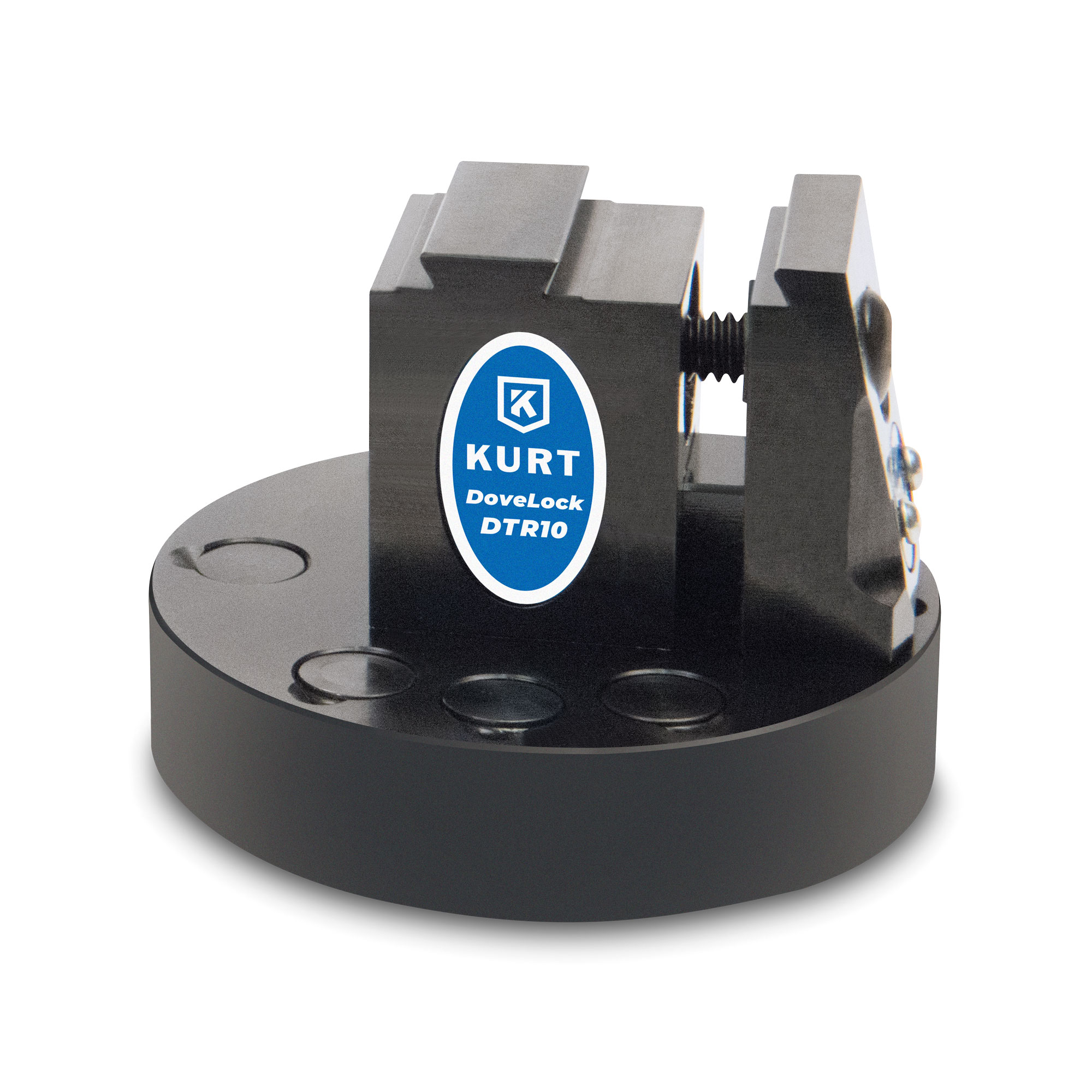

Kurt DoveLock 5-Axis Vise – DTR10

Part No. DTR10

$721.00

Kurt’s DoveLock™ DTR10 5-axis dovetail vise is designed for today’s aggressive machining needs. Manufactured from pre-hardened 4140 steel, this dovetail workholding solution maintains part rigidity and minimizes deflection or clamp creep when under high machining pressure.

Description

Description

Kurt’s DoveLock™ DTR10 5-axis dovetail vise is designed for today’s aggressive machining needs. Manufactured from pre-hardened 4140 steel, this dovetail workholding solution maintains part rigidity and minimizes deflection or clamp creep when under high machining pressure.

Deflection is reduced by the unique KURT® design which places the clamping screw high in the clamping envelope. Additional anti-deflection control is provided by the movable jaw slide, which is retained within the stationary jaw.

Order a DTR10 DoveLock™ dovetail vise for your machining application, or contact Kurt Workholding to learn more.

Features of the DoveLock™ DTR10 Dovetail Vise

  • Movable dovetail vise jaws are reversible to allow for a wide range of widths
  • Easy part prep requires only 0.125″ of material to hold the workpiece in place
  • Movable and stationary jaws are matched pairs
  • Pre-configured mounting pattern to fit most machine tables
  • Weighs just 1.5 lbs.
  • Lifetime Ironclad Warranty

Resources

Dimensional Data

Dimensional Data

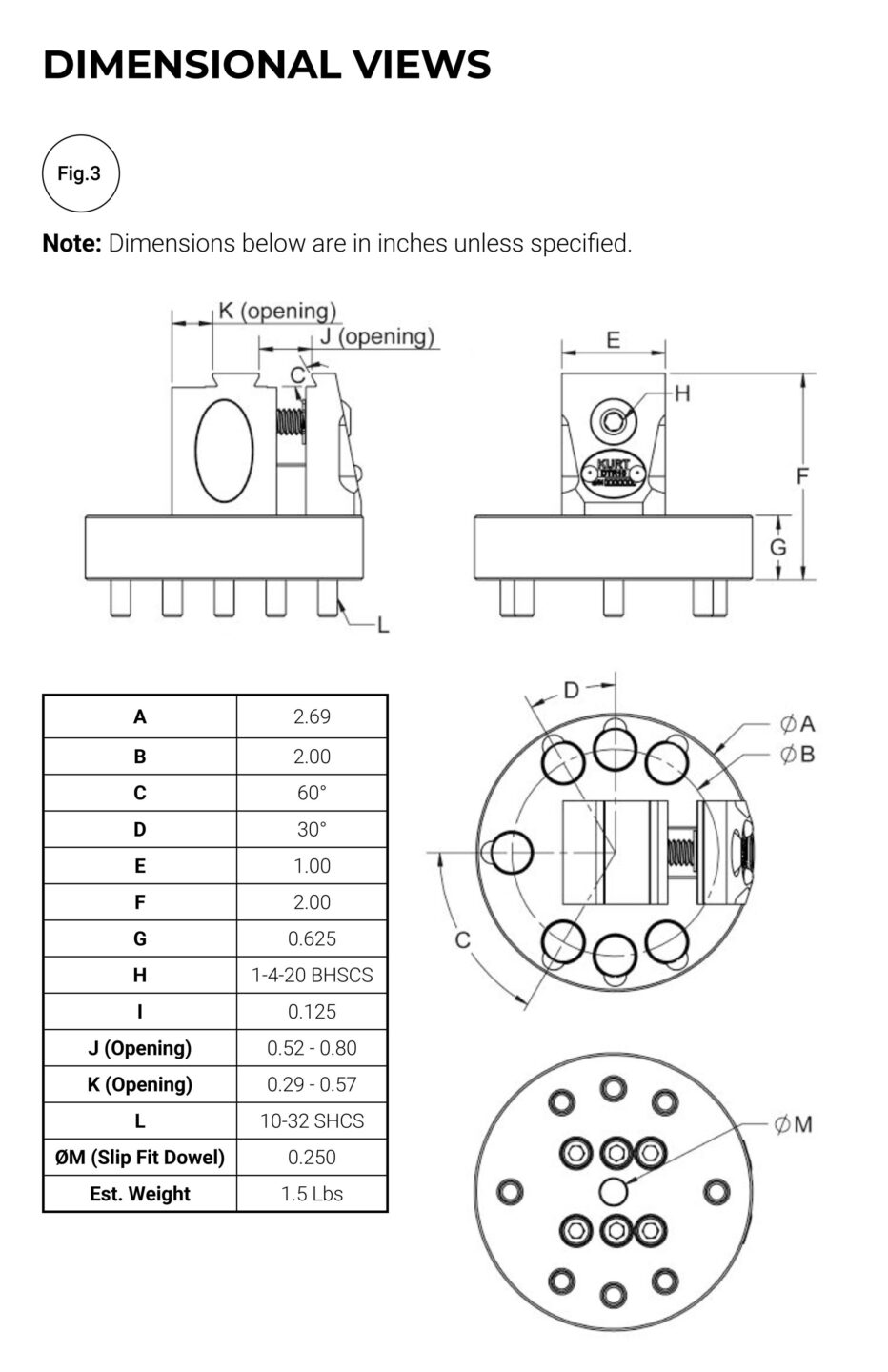

DTR10 Dimensional Views

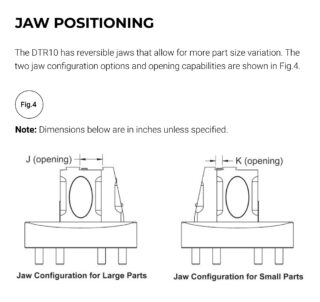

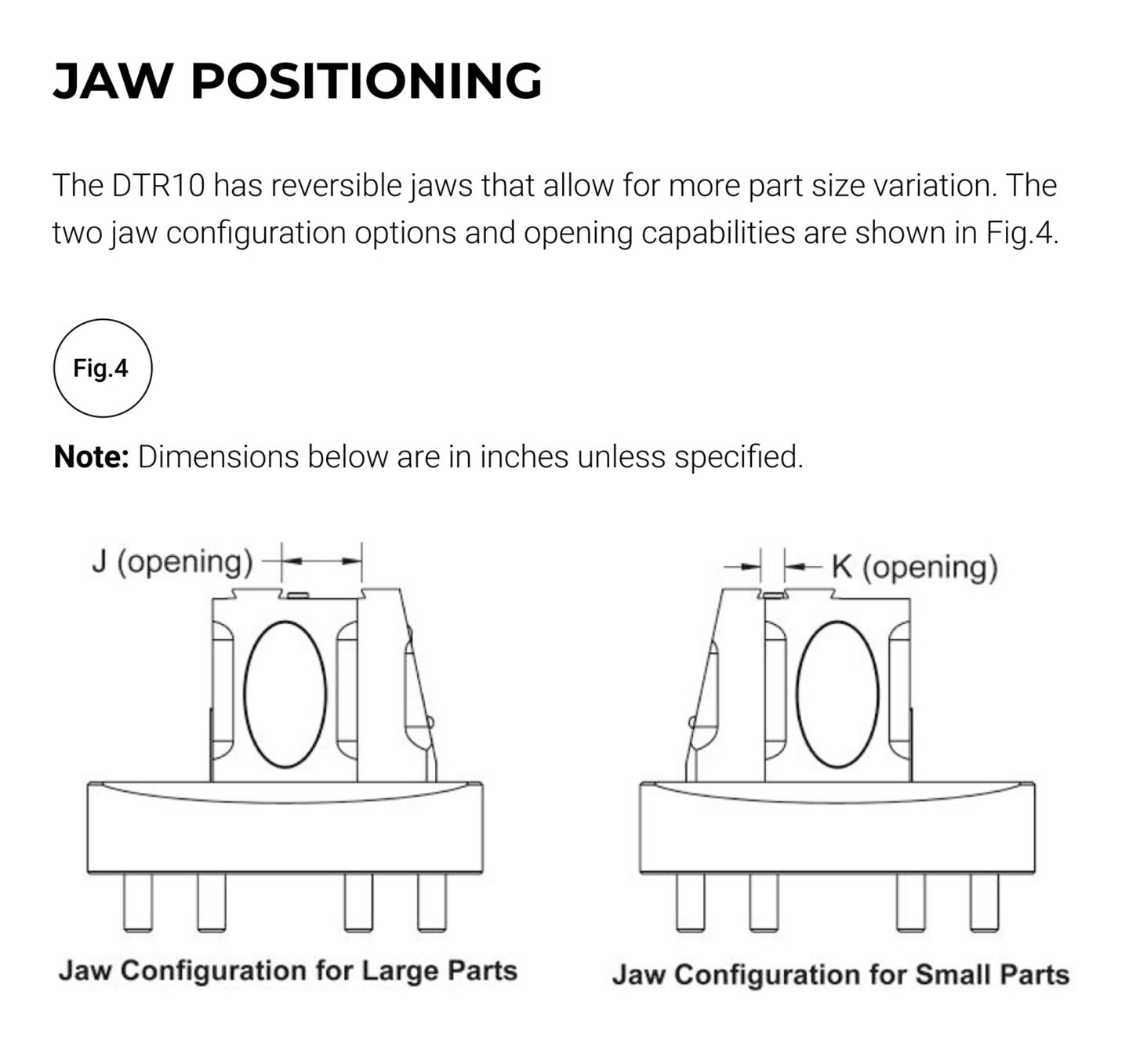

DTR10 Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Inch-Lbs. Clamping Force - Lbs
30 360
60 760
90 1,350
120 1,900
150 2,580

Replacement Parts

Replacement Parts

DTR10 Vise Replacement Parts
