Kurt AngLock® 5-Axis Vise – MX350

Part No. MX350

$2,243.00

Specially engineered to hold parts more safely and securely during multi-axis machining, using our AngLock® design to pull the part down, this multi-axis vise gives users a wider clamping range before the vise setup must be changed with faster loading and unloading and mounting on 2” grid patterns or  up to a 100mm grid. Locator bolts are included for quick alignment on 2” grids.

Description

Description

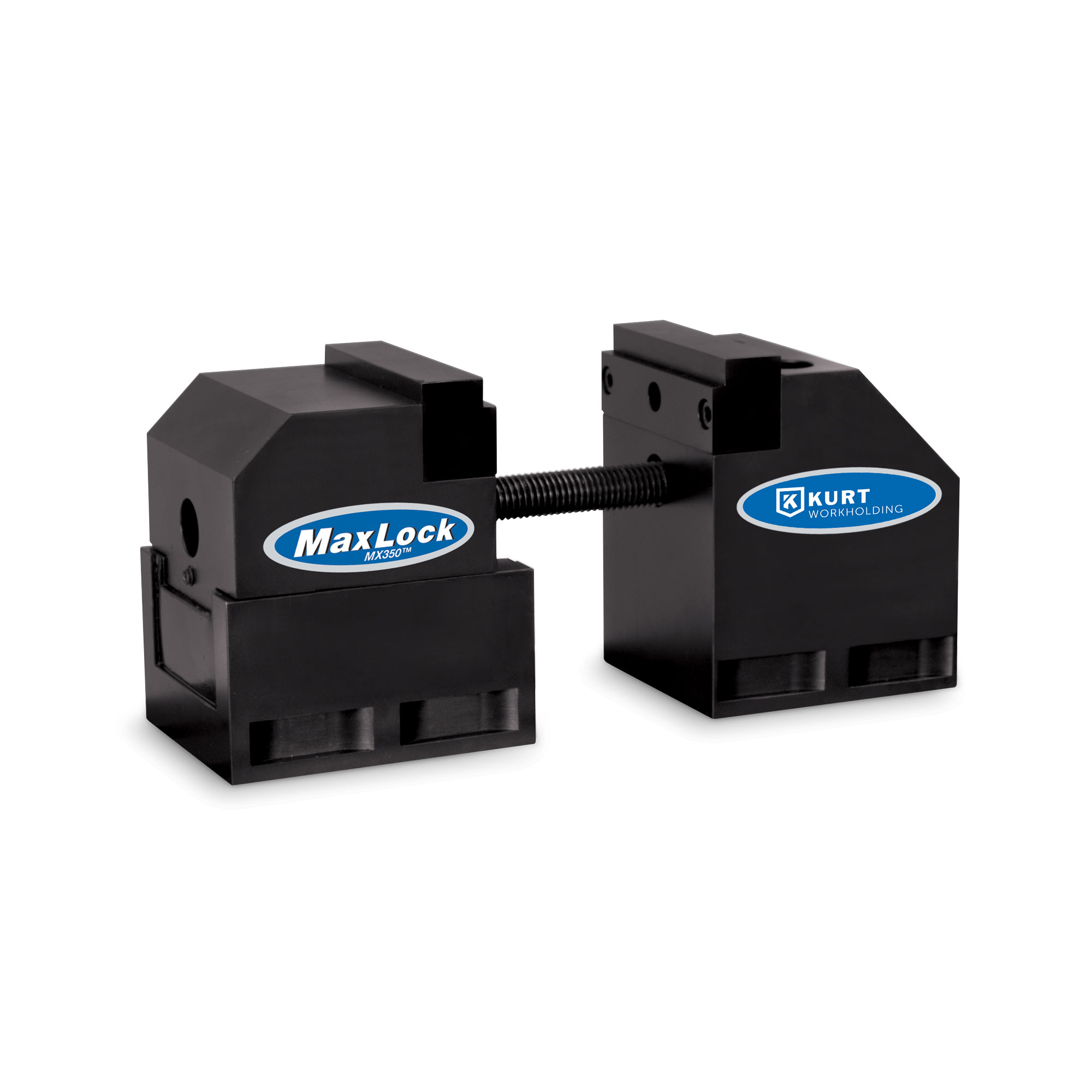

Kurt MX350 AngLock® 5-Axis Vise

Kurt’s MX350 AngLock® 5-axis vise is specially engineered to hold parts more safely and securely during multi-axis machining, using our AngLock® design to pull the part down.

With a 0.625″ stroke, this multi-axis vise gives users a wider clamping range before the vise setup must be changed. Loading and unloading the vise is also faster and easier.

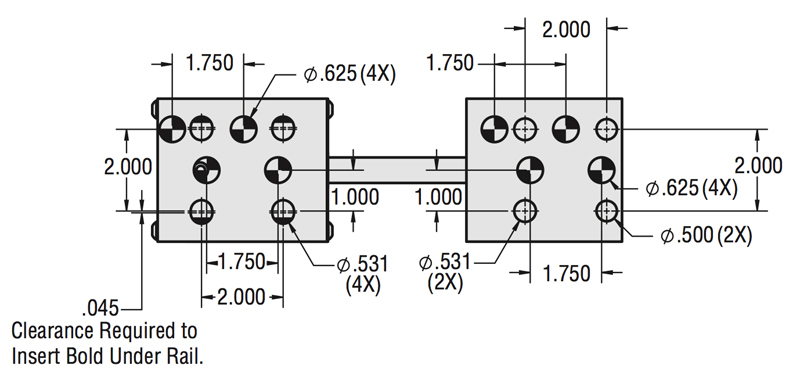

The modular design of the MX350 5-axis vise allows for mounting on 2” grid patterns, or, with the included risers, up to a 100mm grid. Locator bolts are included for quick alignment on 2” grids. When mounted on risers, precision-machined 5/8” holes enable quick alignment using Kurt sine keys. Auxiliary clamping slots for toe clamps allow for even greater mounting flexibility.

Order a Kurt  MX350 5-axis vise for your 5-axis machining operation. Contact Kurt Workholding to learn more.

Features of Kurt MX350 AngLock® 5-Axis Vises

  • 0.625” stroke allows for a wide range of clamping without changing vise setuip
  • Modular design offers a variety of mounting options
  • Users can finish machine horizontal surfaces of jaw plates for higher accuracy and to eliminate the need for parallels
  • Jaw option: double-step 40 RC jaws with CDN coating on the vertical position of the step
  • Jaw option: machinable semi-hard steel jaws (3 lengths available)
  • Fully chip-guarded design allows for faster load times & provides smoother operation
  • Screw is easy for users to change out, allowing for a broad range of part sizes
  • Provides up to 7,000 lbs. of clamping force
  • A full line of vise accessories is available
