Kurt DX8 CrossOver Vise – DX8
Part No. DX8
$2,526.00
The new DX8® CrossOver® vise is a direct replacement for the venerable D810. The revolutionary new DX8® CrossOver® vise achieves new levels in precision and performance where flatness and parallelism are paramount. Features a cast on stationary allowing for less deflection and more stability of the vise body during clamping.
Description
Description

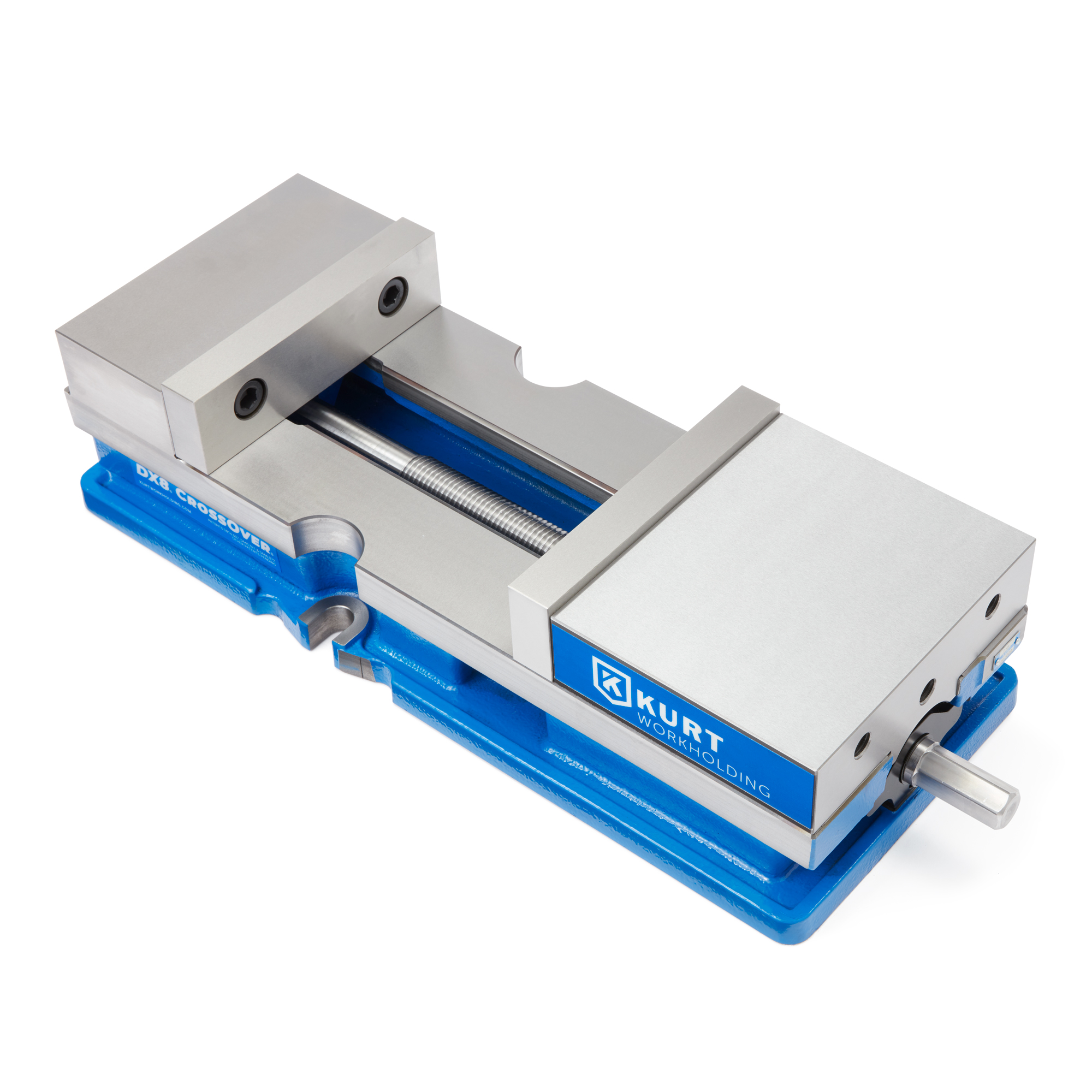

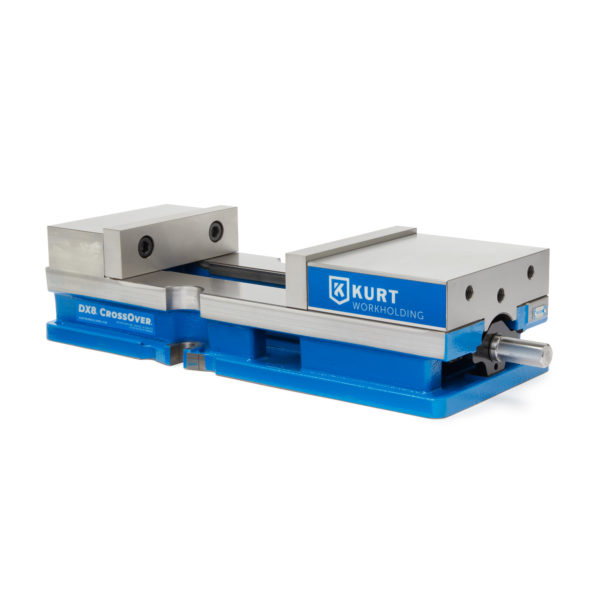

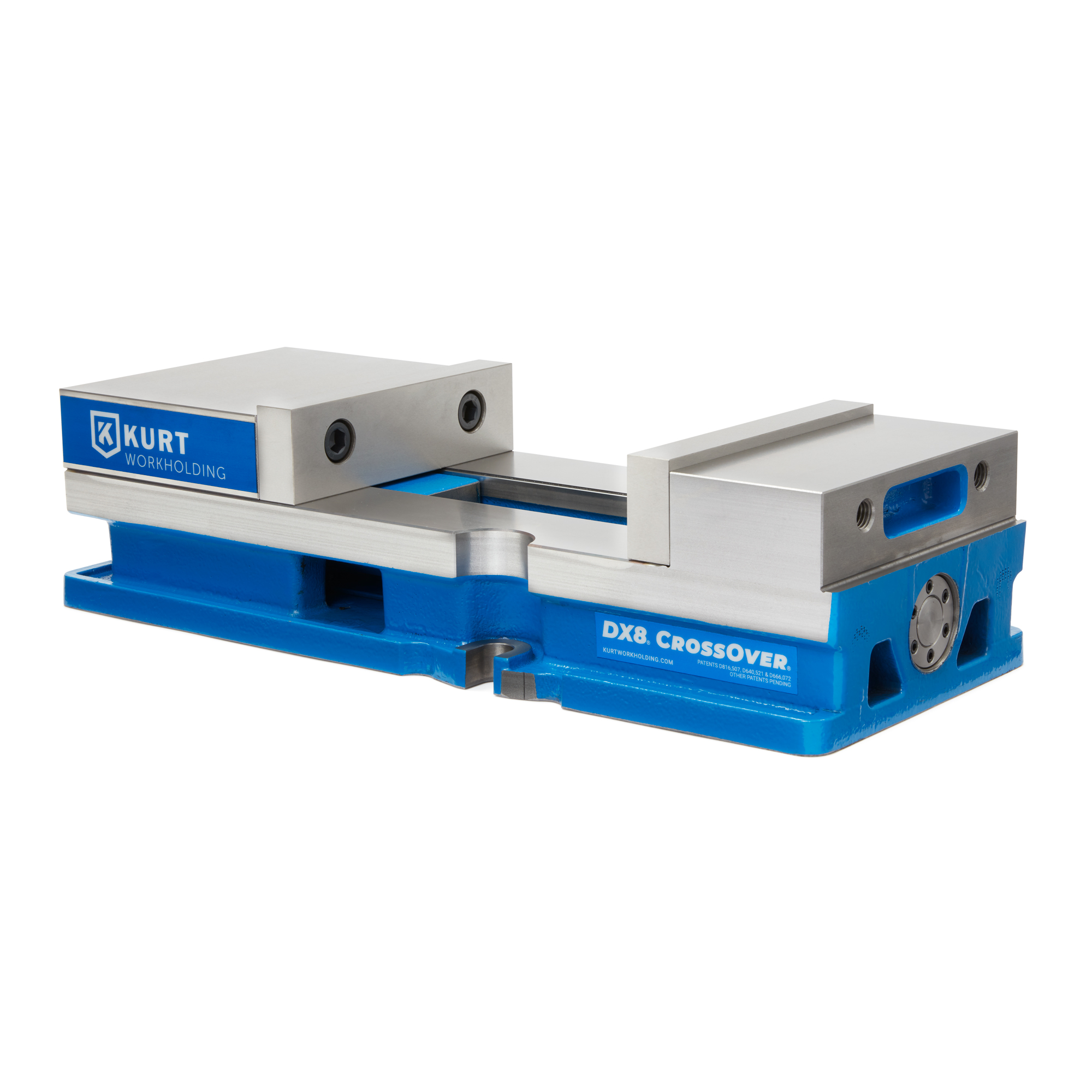

Kurt DX8 CrossOver Vise – 8″ Vise with 10″ Opening
The Kurt DX8® CrossOver® Vise delivers exceptional precision, stability, and performance for demanding CNC machining applications. This 8-inch vise features a 10-inch jaw opening and directly replaces the trusted Kurt D810 vise.
The DX8 combines proven features from the Kurt D810 and 3800V vises with advanced workholding technology. As a result, machinists get improved accuracy, durability, and clamping performance.
Additionally, the DX8 features a cast-in stationary jaw that reduces deflection and increases vise body stability during clamping. This design helps maintain flatness and parallelism for precision machining operations.

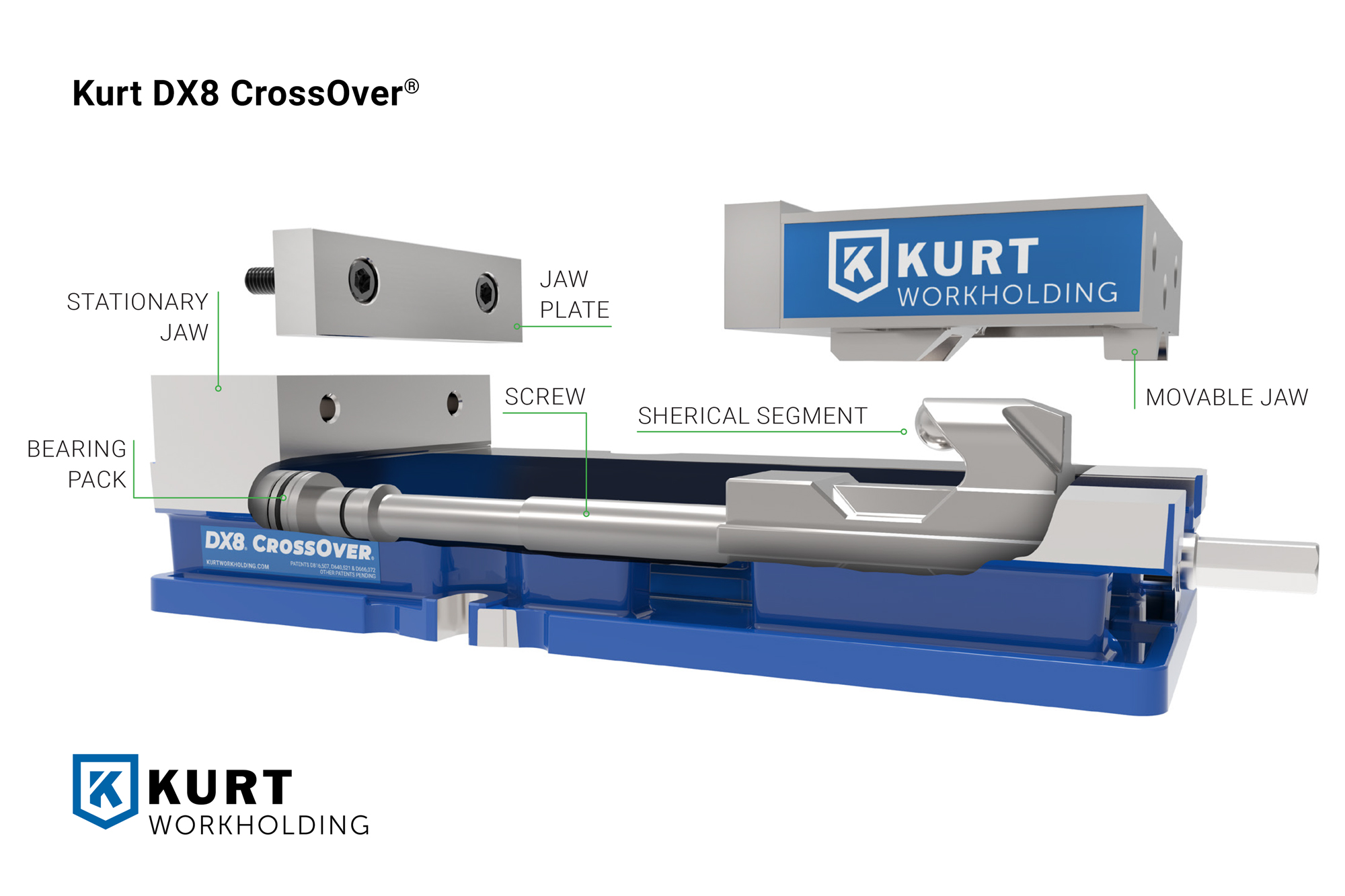

Improved Design and Clamping Performance
The Kurt DX8 CrossOver Vise builds on the success of the D810 with several important upgrades.
First, the DX8 maintains the same bed height and keyway-to-stationary-jaw-face dimensions as the D810. This makes it a convenient replacement for existing machining setups.
The redesigned nut also reduces weight, while the updated brush seal helps protect internal components from chips and debris.
In addition, the DX8 features a larger, stronger bearing pack for improved durability and long-term performance.
Precision Workholding with AngLock Technology
The DX8 features Kurt’s proprietary AngLock® spherical segment technology. This advanced design provides all-directional alignment while reducing jaw lift during clamping.
As a result, operators can achieve more consistent clamping performance and improved workpiece accuracy.
These features make the DX8 an excellent choice for machining applications that require precise flatness and parallelism.

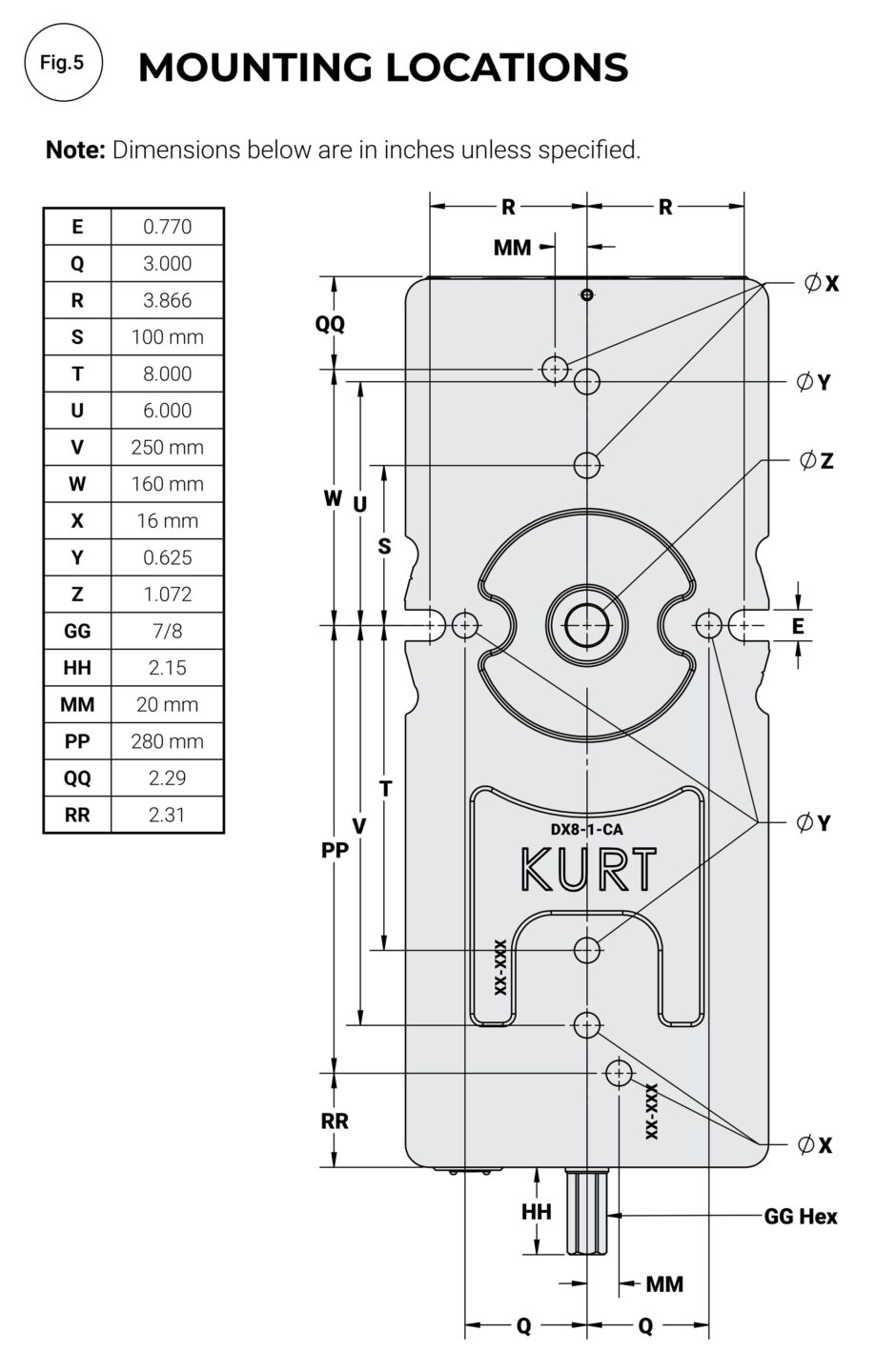

Easier Mounting with Sine Keys
The Kurt DX8 CrossOver Vise uses sine keys for easier mounting and accurate positioning.
This mounting design helps simplify vise installation while maintaining reliable alignment on the machine table.
For additional information, explore our vise mounting guide or browse our selection of sine keys and fixture keys.
Kurt DX8 CrossOver Vise Features & Benefits
The DX8 offers several advantages for CNC machining and precision workholding:
- 8-inch vise with 10-inch opening: Accommodates a wide range of workpiece sizes.
- Direct D810 replacement: Maintains the same bed height and keyway-to-stationary-jaw-face dimensions.
- Cast-in stationary jaw: Reduces deflection and improves stability during clamping.
- AngLock technology: Provides all-directional alignment and minimizes jaw lift.
- Improved bearing pack: Delivers greater strength, durability, and long-term performance.
- Redesigned nut: Reduces weight for improved handling.
- Updated brush seal: Helps protect internal vise components from chips and debris.
- Sine key mounting: Simplifies installation and supports accurate positioning.
- Precision clamping: Helps maintain flatness and parallelism in demanding machining applications.
Built for Long-Term CNC Machining Performance
The Kurt DX8 CrossOver Vise combines proven engineering with modern workholding improvements. Its durable construction, precise clamping system, and convenient mounting features make it a reliable choice for machine shops.
Furthermore, Kurt backs the DX8 with its Lifetime Ironclad Warranty, providing added confidence in your investment.
Upgrade your workholding setup with the Kurt DX8 CrossOver Vise. Order yours today or contact Kurt Workholding to learn more.
Resources

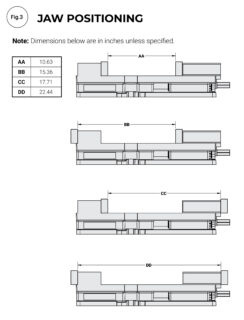

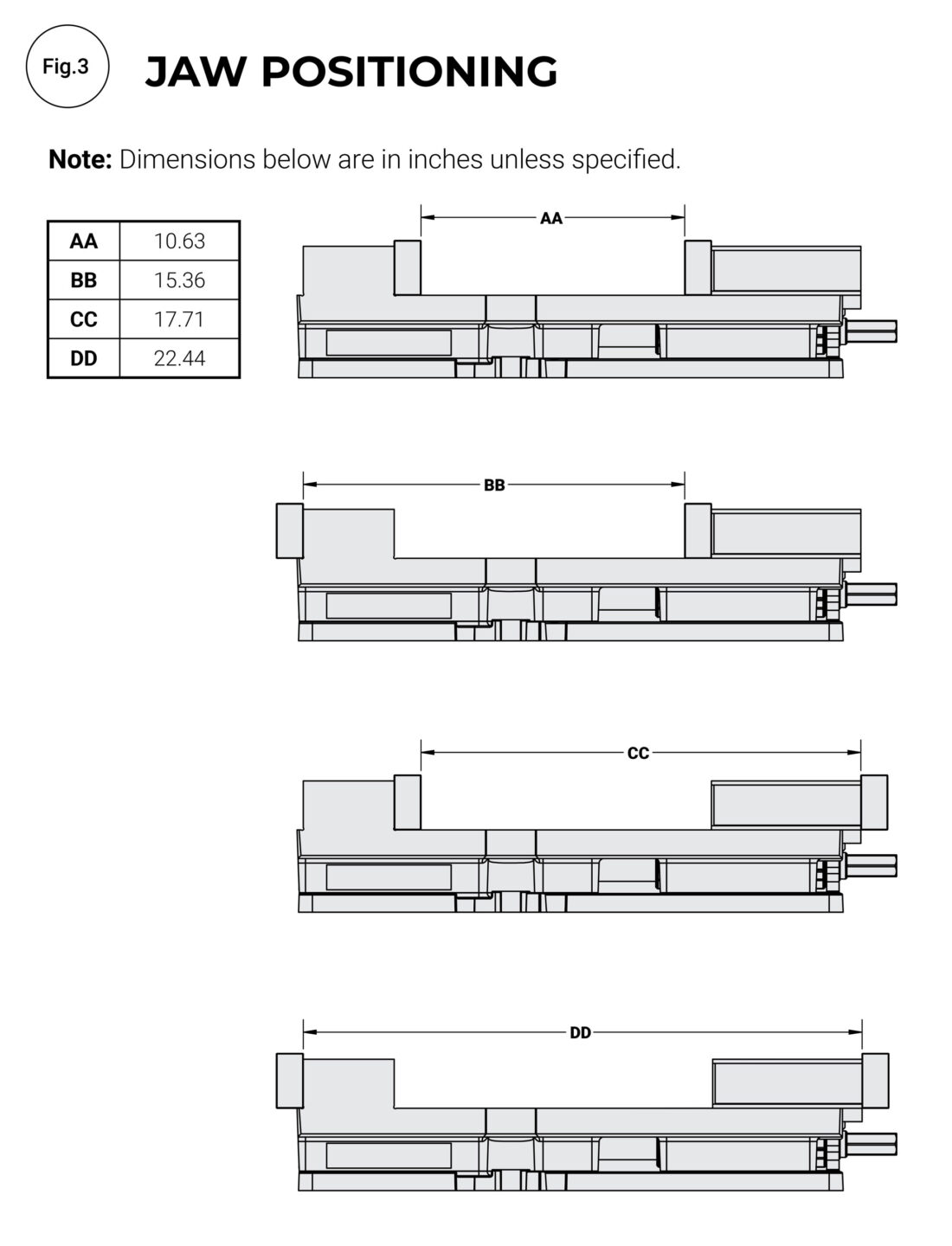

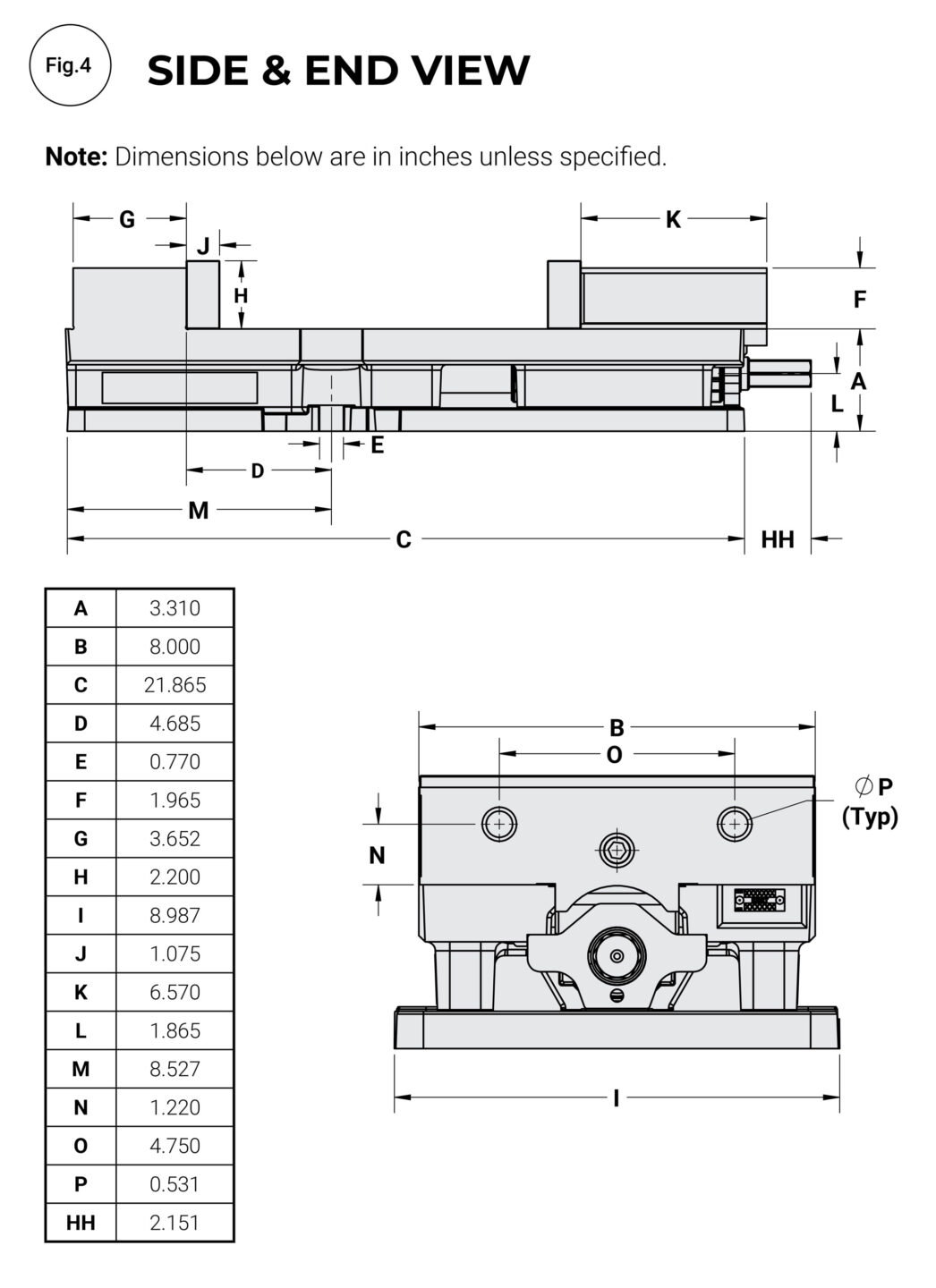

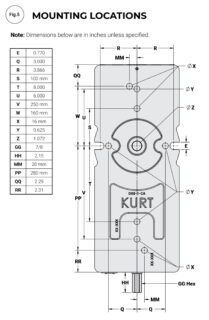

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 850 |
| 20 | 1,500 |
| 30 | 2,200 |
| 40 | 3,000 |
| 50 | 3,600 |
| 60 | 4,100 |
| 70 | 4,850 |
| 80 | 5,500 |
| 90 | 5,900 |
| 100 | 6,200 |
