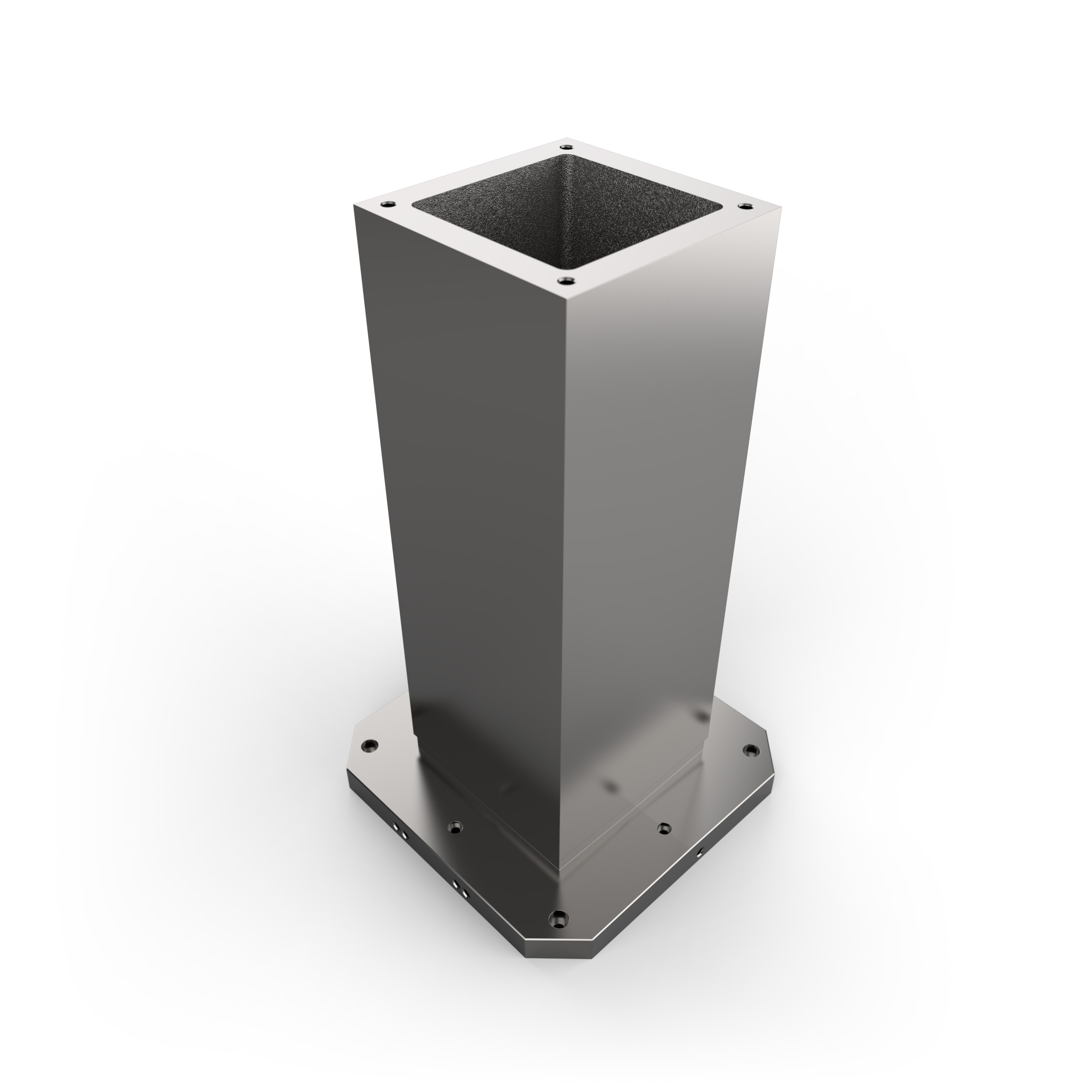

Kurt Cast Iron, 4 face, 500 mm Base – TB4C51212

Part No. TB4C51212

$4,420.00

Cast Iron, 4 face, 500 mm Base

Dimensional Data

Dimensional Data


Dimension Inches unless noted
A 500 mm x 500 mm
B 12.00
C 34.00
D 1.50
E 1.75
F 400 mm
G (SHCS) 5/8" or M16
H 2.90
J 16.00
K 16.00
L 55 mm
M 75 mm
N 18 mm
P 5/8-11UNC
Q (SHCS) 1/2" or 13 mm
Est. Weight 333 Kgs/734 Lbs
Surface Datum A Base Flatness 0.001
Face Perp. To Base 0.003
Edge Locator Perp. 0.0015
Face Dimension 12.000 ±0.007
Face Locator to Edge Parallelism 0.002
