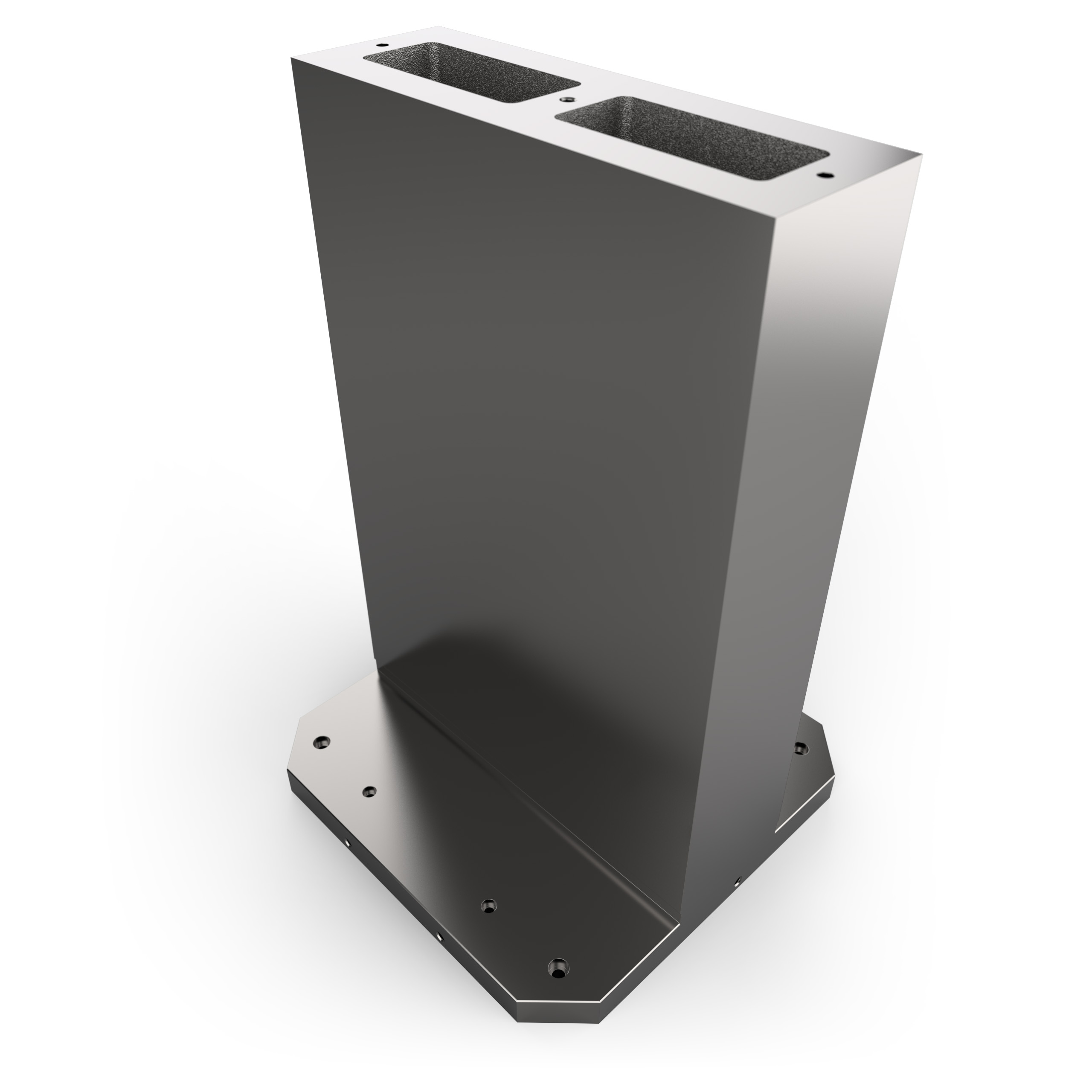

Kurt Cast Iron, 2 face, 630 mm Base – TB2C60825
Part No. TB2C60825
$11,892.00
Cast Iron, 2 face, 630 mm Base
Dimensional Data
Dimensional Data
| Dimension | Inches unless noted |
| A | 630 mm x 630 mm |
| B | 8.00 |
| C | 38.00 |
| D | 2.00 |
| E | 2.00 |
| F | 500 mm |
| G (SHCS) | 5/8\" or M16 |
| H | 3.00 |
| J | 10.00 |
| K | 20.00 |
| L | - |
| M | 100 mm |
| N | 18 mm |
| P | 5/8-11UNC |
| Q (SHCS) | 1/2\" or 13 mm |
| Est. Weight | 663 Kgs/1461 Lbs |
| Surface Datum A Base Flatness | 0.001 |
| Face Perp. To Base | 0.003 |
| Edge Locator Perp. | 0.0015 |
| Face Dimension | 8.000 ±0.002 |
| Face Locator to Edge Parallelism | 0.001 |
