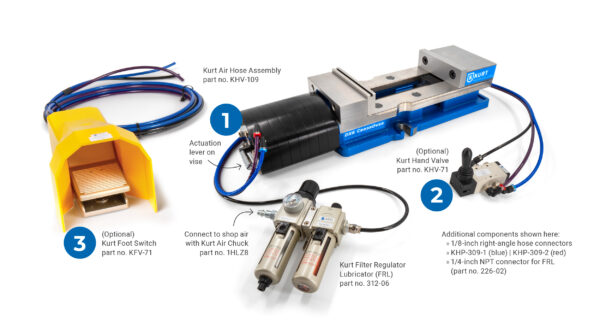

pneumatic vise automation options 2

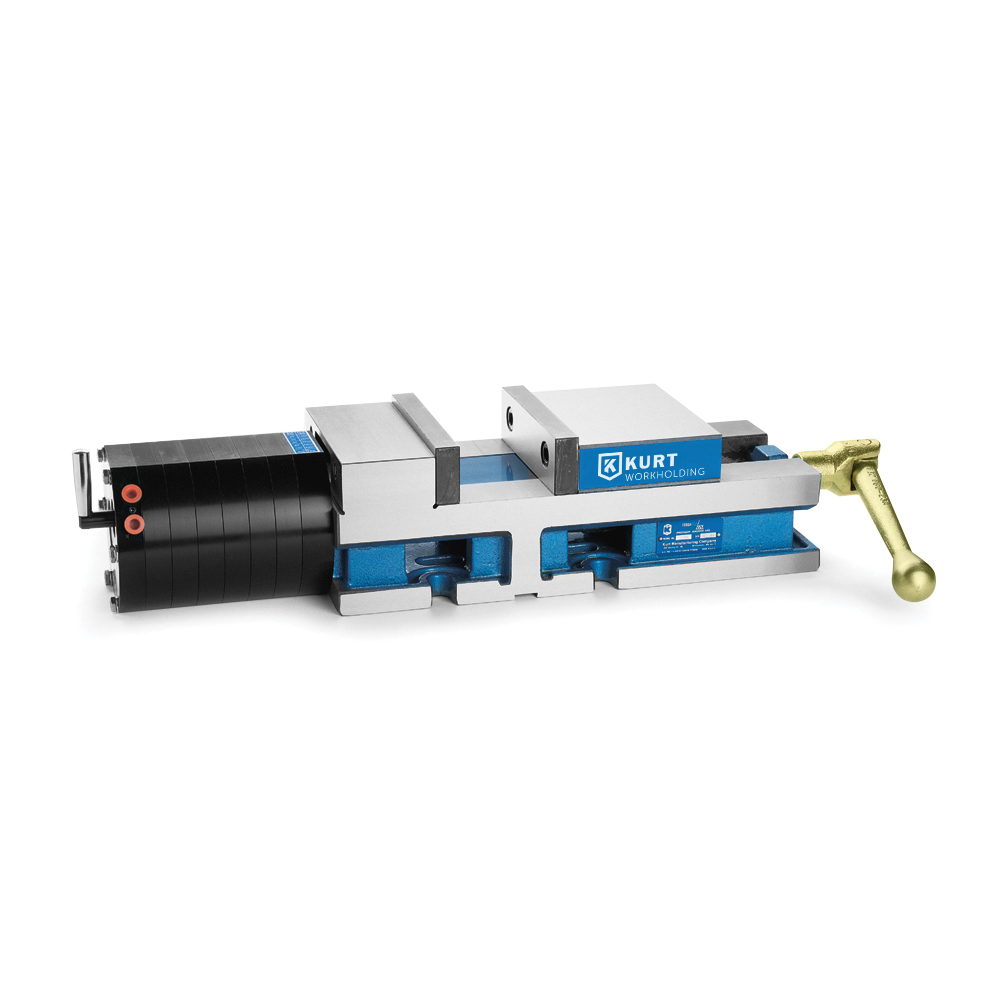

Kurt Air VersatileLock Vise, 6″ – 3600A

Part No. 3600A

$3,082.00

Kurt 3600A allows easy turnkey pneumatic automation setups using shop air.

Description

Description

The original Kurt Anglock vises are designed for precision clamping. The “Pull-type” action of the 3600A VersatileLock pneumatic vise design reduces jaw stationary deflection by at least 80%. This vise has a one-piece body and stationary jaw design which reduce weight and increases strength while providing .0005 clamping repeatability. It offers ultra-high precision through many important features. Click here to learn more about options for automating a pneumatic vise.

Features

  • Ground sides that allow side mounting.
  • Upright and back to back mounting.
  • Using the body through holes allows side by side mounting.
  • .0005 clamping repeatability
  • Sine key or fixture key compatible

Mounting instructions

https://youtu.be/rBEAfMp3Euo

Resources

Resources

Dimensional Data

Dimensional Data

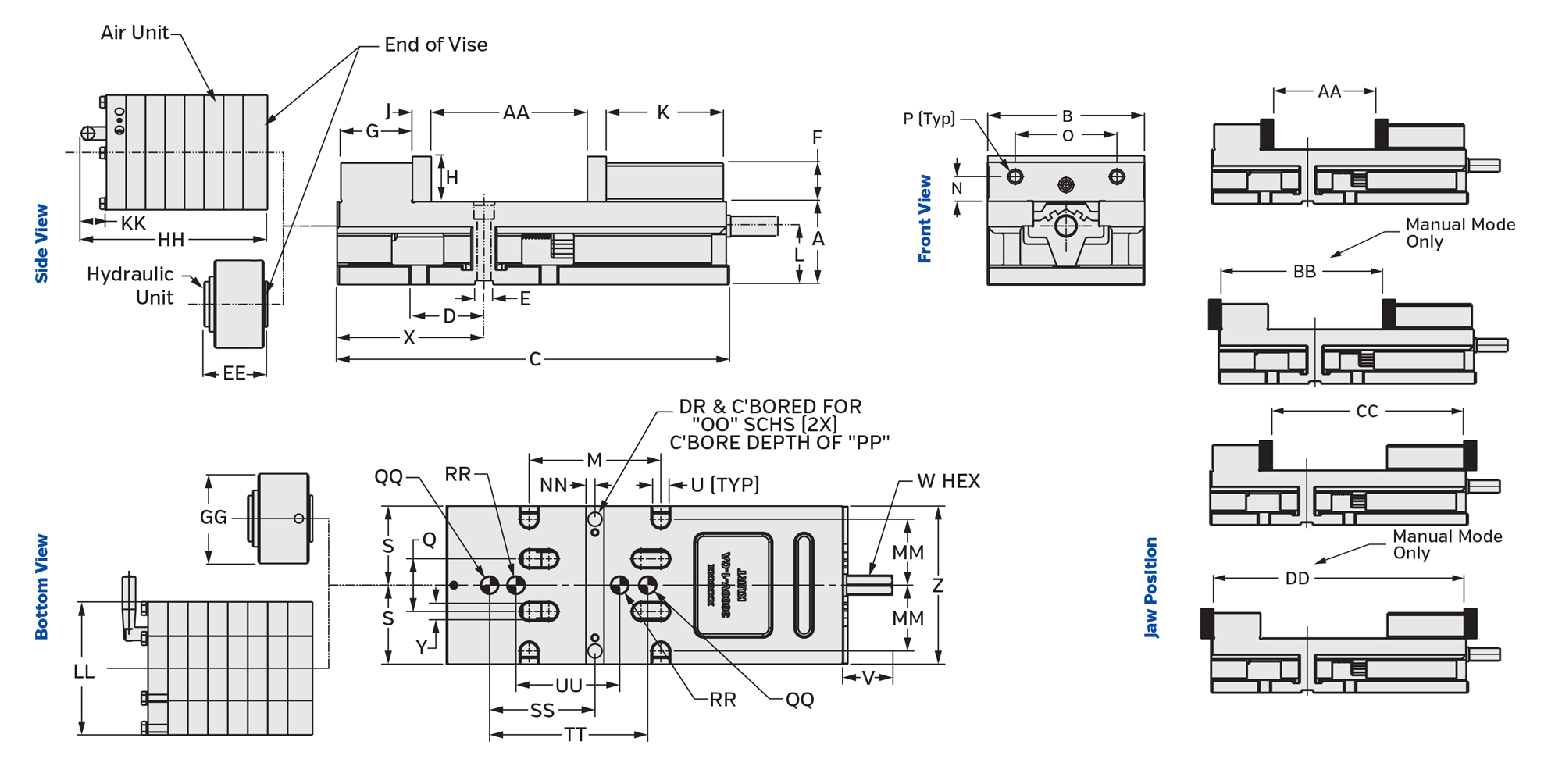

vise dimension drawings
Inch Pounds
A 3.187 x
B 6.000 x
C 15.060 x
D 2.750 x
E 0.688 x
F 1.485 x
G 2.750 x
H 1.735 x
J 0.725 x
K 4.500 x
L 2.250 x
M 5.000 x
N 0.937 x
O 3.875 x
P 1/2-13 x
Q 2.000 x
R 4.250 x
S 3.000 x
T 1.380 x
U 0.630 x
V 1.940 x
W 3/4 x
X 5.640 x
Y 0.630 x
Z 6.000 x
AA 6.000 x
CC 11.250 x
HH 7.220 x
KK 1.030 x
LL 5.000 x
MM 2.500 x
NN 0.344 x
OO 1/2 x
PP 0.671 x
QQ 0.625 x
RR 16 MM x
SS 4.000 x
TT 6.000 x
UU 100 MM x
Ship Wt. x 75

Clamping Force Pounds

Clamping Force Pounds

Air PSI Clamping Force - Lbs
10 320
20 840
30 1,280
40 1,780
50 2,200
60 2,720
70 3,240
80 3,800
90 4,380
100 5,000
