Kurt Air VersatileLock Reverse Vise, 6″ – 3610A
Part No. 3610A
$3,018.00

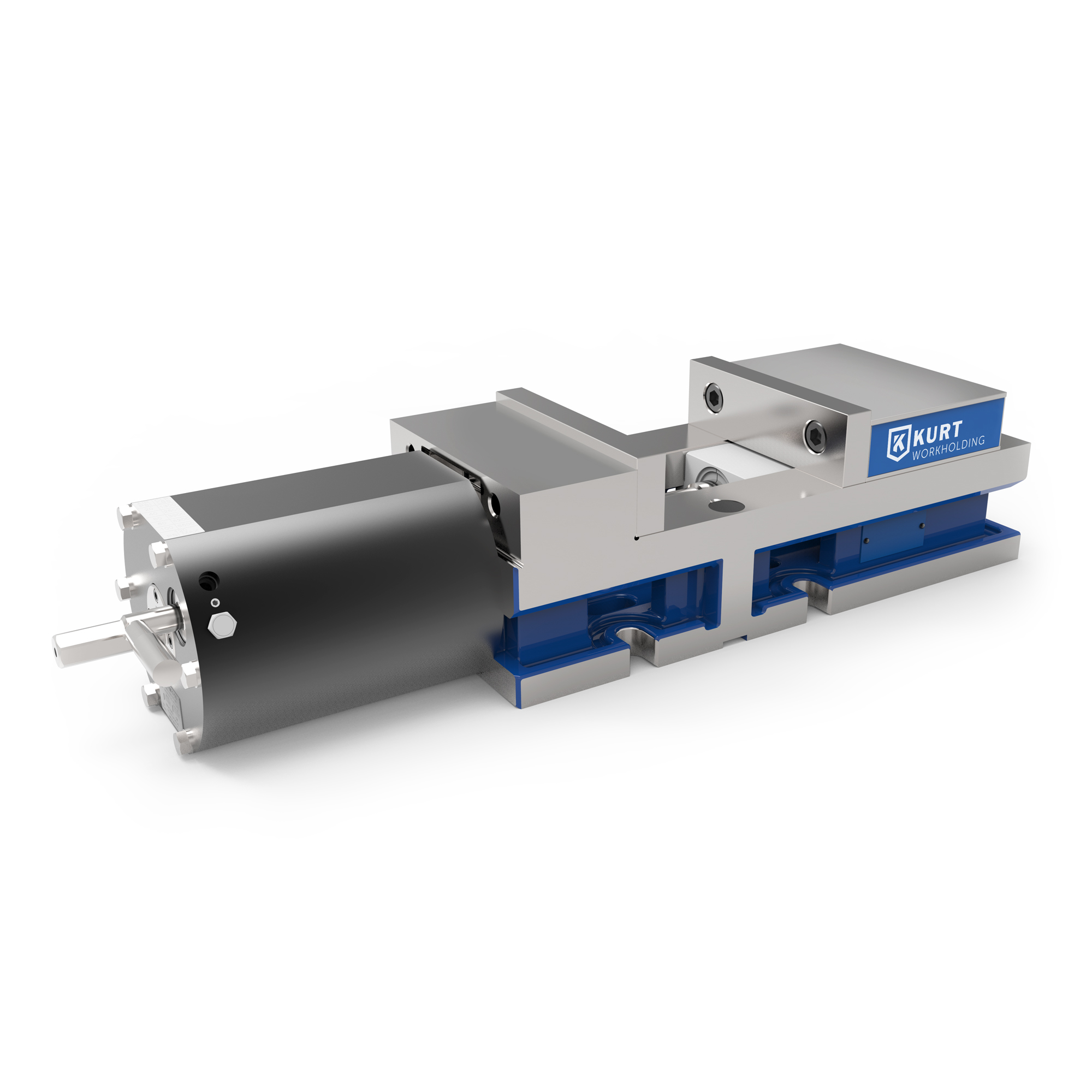

Air VersatileLock Reverse 6″ Vise
Description
Description
Use the VersatileLock in this configuration for the added benefit of easier part programming in “Y axis” positive direction. It also reduces the “reach-over” distance making part loading safer and easier for the operator.
Features
- Can be mounted upright or on either side
- Matched stationary jaw to the keyway including the body height ±0.001″
- 0.0005″ clamping repeatability
- Sine key or fixture key compatible
Mounting instructions
Dimensional Data
Dimensional Data
Inch | Pounds | |
A | 3.187 | x |
B | 6.000 | x |
C | 15.060 | x |
D | 2.750 | x |
E | 0.688 | x |
F | 1.485 | x |
G | 2.750 | x |
H | 1.735 | x |
J | 0.725 | x |
K | 4.500 | x |
L | 2.250 | x |
M | 5.000 | x |
N | 0.937 | x |
O | 3.875 | x |
P | 1/2-13 | x |
Q | 2.000 | x |
R | 4.250 | x |
S | 3.000 | x |
T | 1.380 | x |
U | 0.630 | x |
V | 1.940 | x |
W | 3/4 | x |
X | 5.640 | x |
Y | 0.630 | x |
Z | 6.000 | x |
AA | 6.000 | x |
CC | 11.250 | x |
HH | 7.220 | x |
JJ | 2.100 | x |
KK | 1.030 | x |
LL | 5.000 | x |
MM | 5/8 | x |
NN | 2.500 | x |
OO | 0.344 | x |
PP | 1/2 | x |
0.671 | x | |
Ship Wt. Lbs. | x | 74 |
