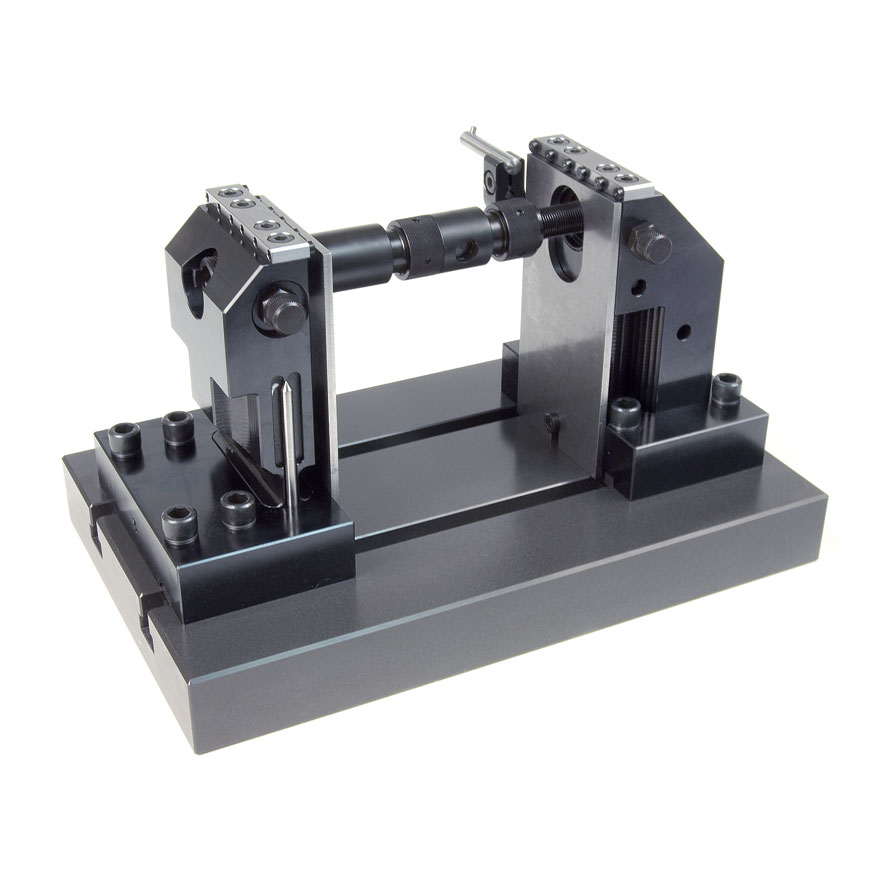

Schenke VB 5 Axis Clamping System, 175 mm (6″) – 740-01-000-51
Part No. 740-01-000-51
Kurt VB 5 Axis Schenke Clamping System, 175 mm (6″)
Want to be notified when this product is back in stock?
Description
Description
The Kurt VB 175 mm 5 Axis Schenke Clamping System gets your work piece up and clear of the machining head. This taller version allows for larger head clearance required on large 5 Axis machines.
* The clamping height above the machine table can be raised by using the mounting block raise.
740-04-25-00 25 mm raise or 740-04-050-00 50 mm raise
* See vise accessories to order mounting blocks and support plates. See note below.
- Clamping height above machine table: 175 mm* (6.889″)
- Extended height +25 mm: 200 mm* (7.874″)
- Extended height +50 mm: 225 mm* (8.858″)
- Jaw width: 100 mm (3.937″)
- Clamping with with standard set:: 20-236 mm (0.787″-9.291″)
- Clamping depth: 8 mm (0.315″)
