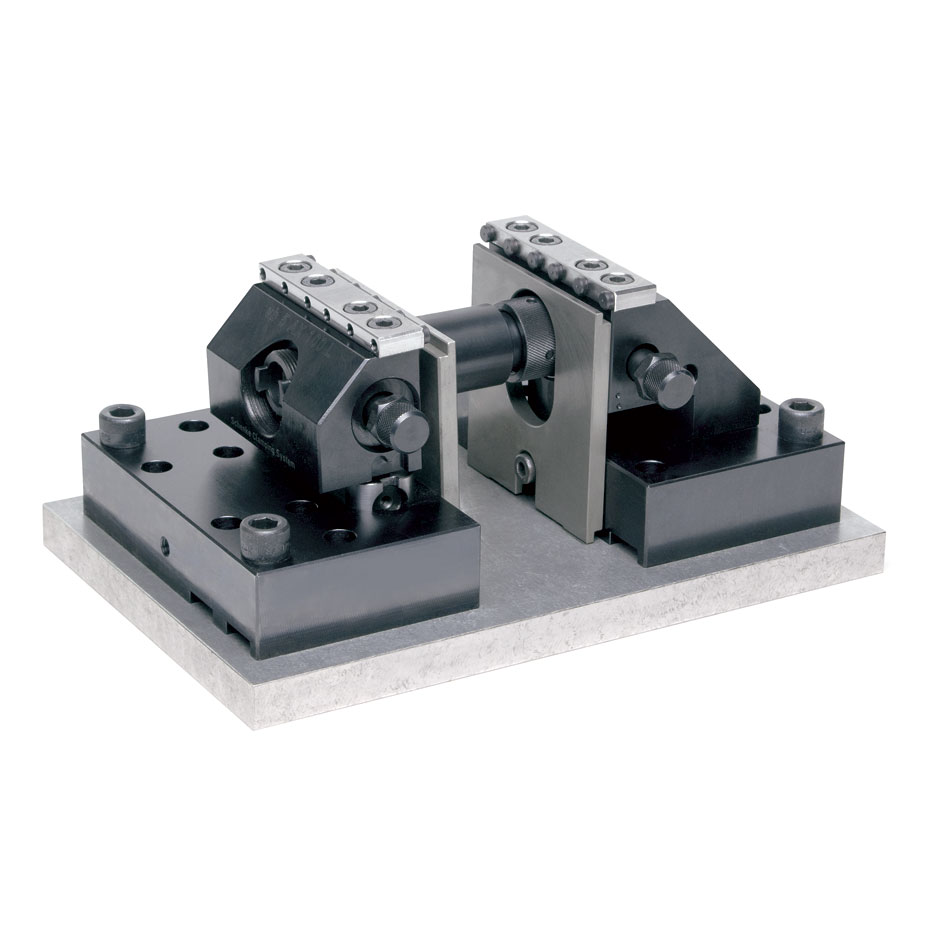

Schenke VB 5 Axis Clamping System, 100 mm (4″) – 740-01-003-61
Part No. 740-01-003-61
The Kurt VB 100 mm 5 Axis Schenke Clamping System has an 8mm clamping depth and gets your workpiece up and clear of the machining head. Learn more about our 5 axis vises and clamping systems.
Want to be notified when this product is back in stock?
Description
Description
The Kurt VB 100 mm 5 Axis Schenke Clamping System gets your work piece up and clear of the machining head. This short version allows for lower profile machining and still has the head clearance required on 5 Axis machines.
* The clamping height above the machine table can be raised by using the mounting block raise.
740-04-025-00 25 mm raise or 740-04-050-00 50 mm raise
* See vise accessories to ordered mounting blocks and support plates. See note below.
- Clamping height above machine table: 100 mm* (3.937″)
- Extended height +25 mm: 125 mm* (4.921″)
- Extended height +50 mm: 150 mm* (5.906″)
- Jaw width: 100 mm (3.937″)
- Clamping with with standard set:: 20-236 mm (0.787″-9.291″)
- Clamping depth: 8 mm (0.315″)
- * The clamping height above the machine table can be raised by using the mounting block raise. 740-04-025-00 25 mm raise or 740-04-050-00 50 mm raise?
Resources
Resources
Reviews
Reviews
1 review for Schenke VB 5 Axis Clamping System, 100 mm (4″) – 740-01-003-61
You must be logged in to post a review.
gpinard –
This is one of the best 5 axis work holding I’ve used. Highly recommended for R&D work environment.
