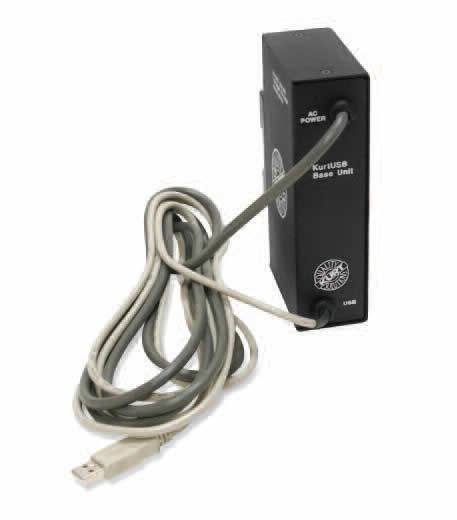

KurtUSB Base Module – e1

Part No. e1

$655.00

The Base Module is the first component in any of the KurtUSB Systems. Other modules are also available from Kurt Engineered Systems.

Description

Description

The KurtUSB Base Module provides power and the standard PC USB cable connection back to the host computer for a KurtUSB interface system. Each Base Module can support up to five gage interface or I/O KurtUSB modules (See each module for a description of capabilities). The Base unit requires one standard 110/220 Volt outlet (See example listed below). The standard USB cable is 2 meters in length. The Base Module is the first unit in any KurtUSB system and by using a quick 9-pin connector other data modules can be quickly and easily interfaced.

Additional Information:
Input Voltage: 110/220 VAC @ 50/60 Hz
Auto Switching
Input Current: 1.3/0.6 amps

Dimensions
Height X Length X Width
6-1/8” X 3-5/18” X 1-3/4”

Input Voltage: 110/220 VAC @ 50/60 Hz
Auto Switching
Input Current: 1.3/0.6 amps

Dimensions

Height X Length X Width
6-1/8? X 3-5/18? X 1-3/4?
