Kurt VersatileLock® 8″ Manual Vise – 3800V

Part No. 3800V

$2,110.00

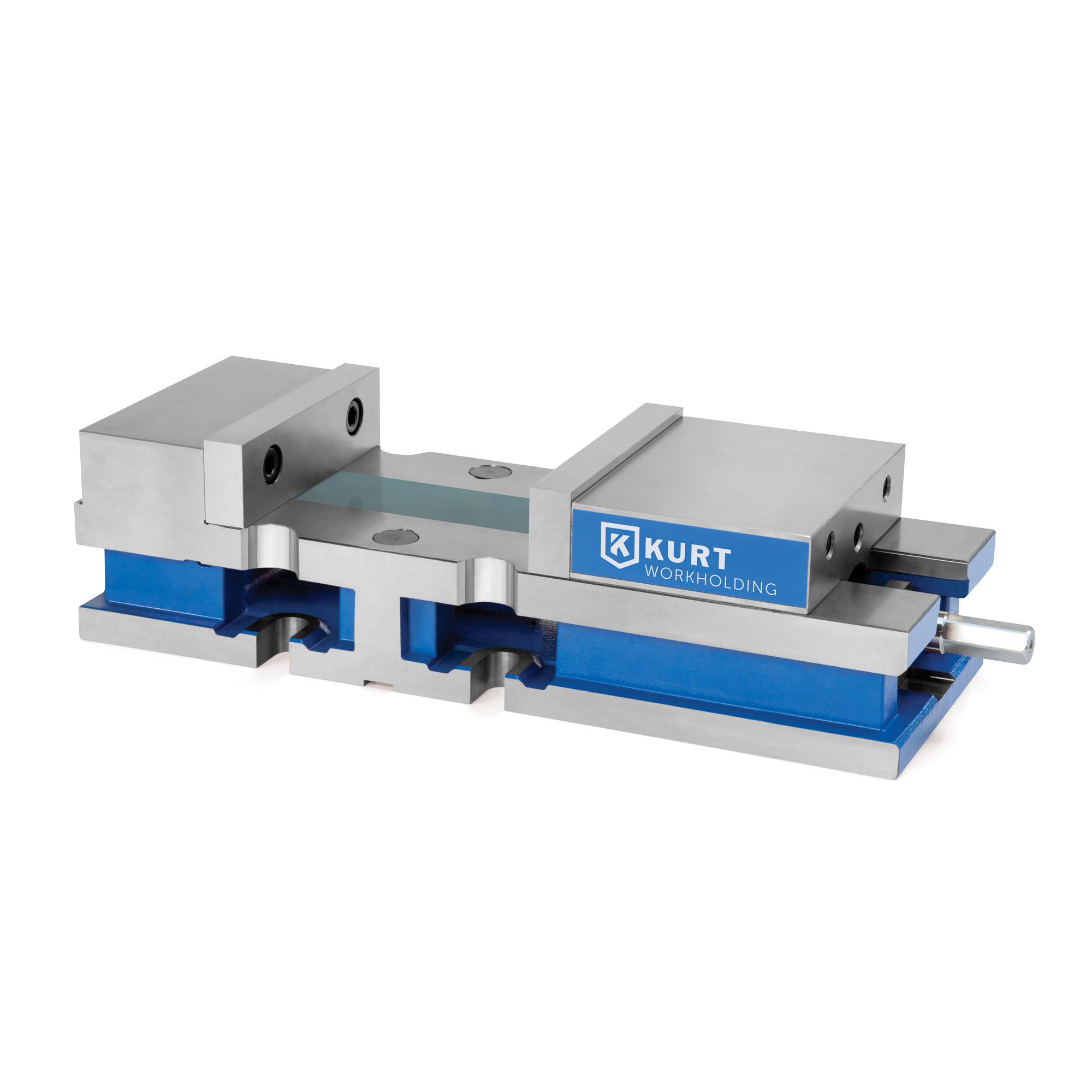

Manual VersatileLock 8″ Vise. The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads.

Description

Description

The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight.

3800V VersatileLock® Vise Features

  • Full 10″ opening
  • Can be mounted on either side
  • Matched stationary jaw to keyway including body height ±0.001″
  • 0.0005” clamping repeatability
  • Est. Shipping Wt. 148lbs.
  • Sine key or fixture key compatible

Mounting Instructions

Dimensional Data

Dimensional Data

Data
Data
Data
Data
3800V/H
A 3.750
B 8.000
C 22.000
D 4.812
E 0.813
F 1.965
G 3.500
H 14.000
J 1.075
K 6.000
L 2.305
M 5.953
N 1.220
O 4.750
P 5/8-11
Q 300MM
R 12.7MM
S 4.00
T 16MM
U 0.927
V 2.00
W 5.000
X 8.531
Y 100MM
Z 8.00
AA 10.250
BB 14.825
CC 17.325
DD 21.900
MM 3.000
NN 0.407
OO 5/8
PP 0.790
QQ 0.625
RR 0.500
