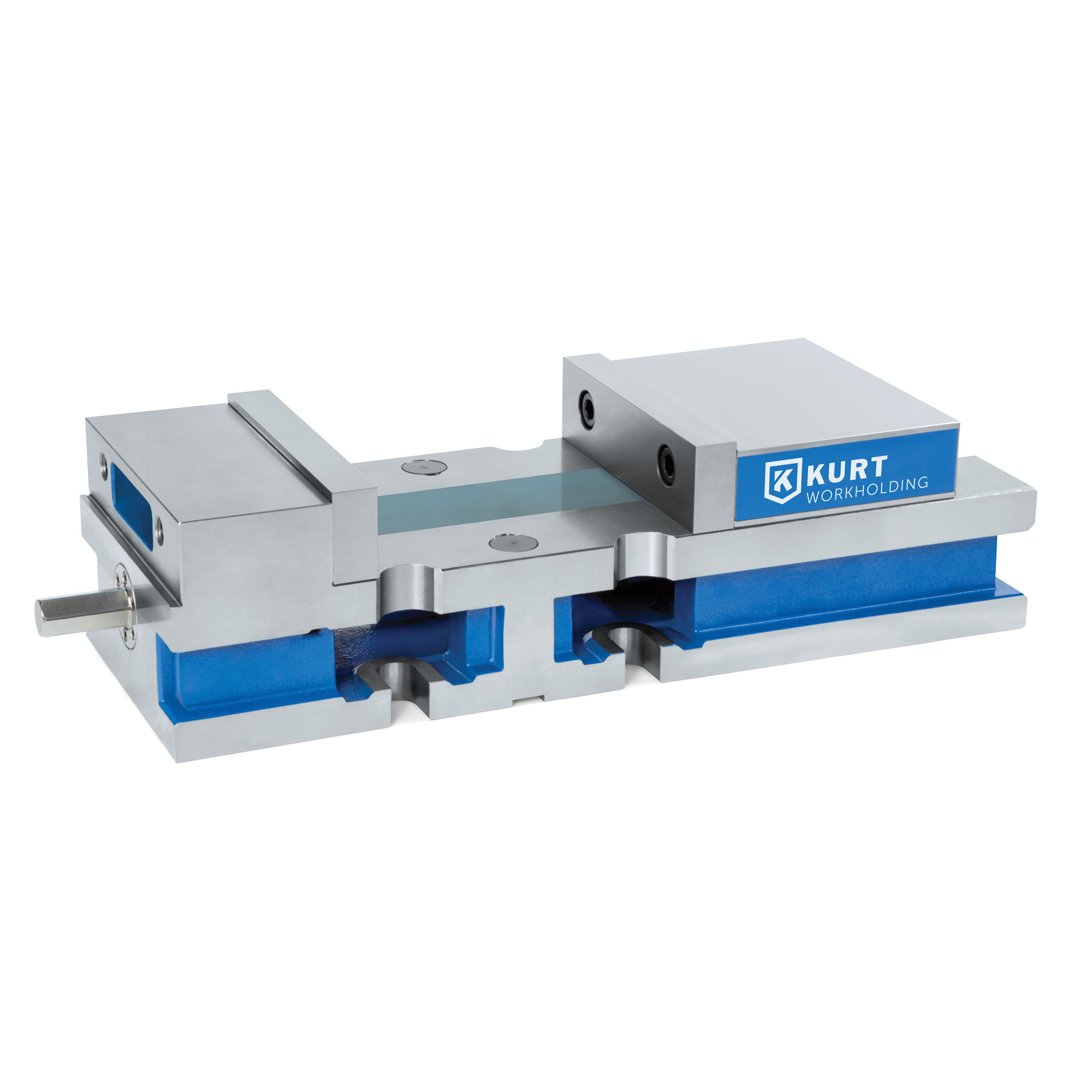

Kurt VersatileLock 8″ Manual Reverse Vise – 3810V

Part No. 3810V

$2,608.00

Manual VersatileLock Reverse 8″ Vise. The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads.

Description

Description

The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight.

The use of the VersatileLock in this configuration provides the added benefit of easier part programming in the positive direction “Y axis.” It also reduces the “reach-over” distance making part loading safer and easier for the operator.

3810V VersatileLock® Vise Features

  • Full 10″ opening
  • Can be mounted upright or on either side
  • Matched stationary jaw to keyway including body height ±0.001″
  • 0.0005″ clamping repeatability
  • Est. Shipping Wt. 148lbs.
  • Sine key or fixture key compatible



Mounting Instructions

Resources

Dimensional Data

Dimensional Data

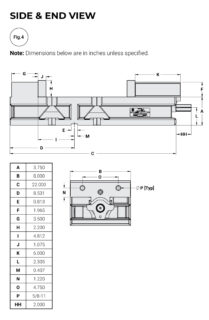

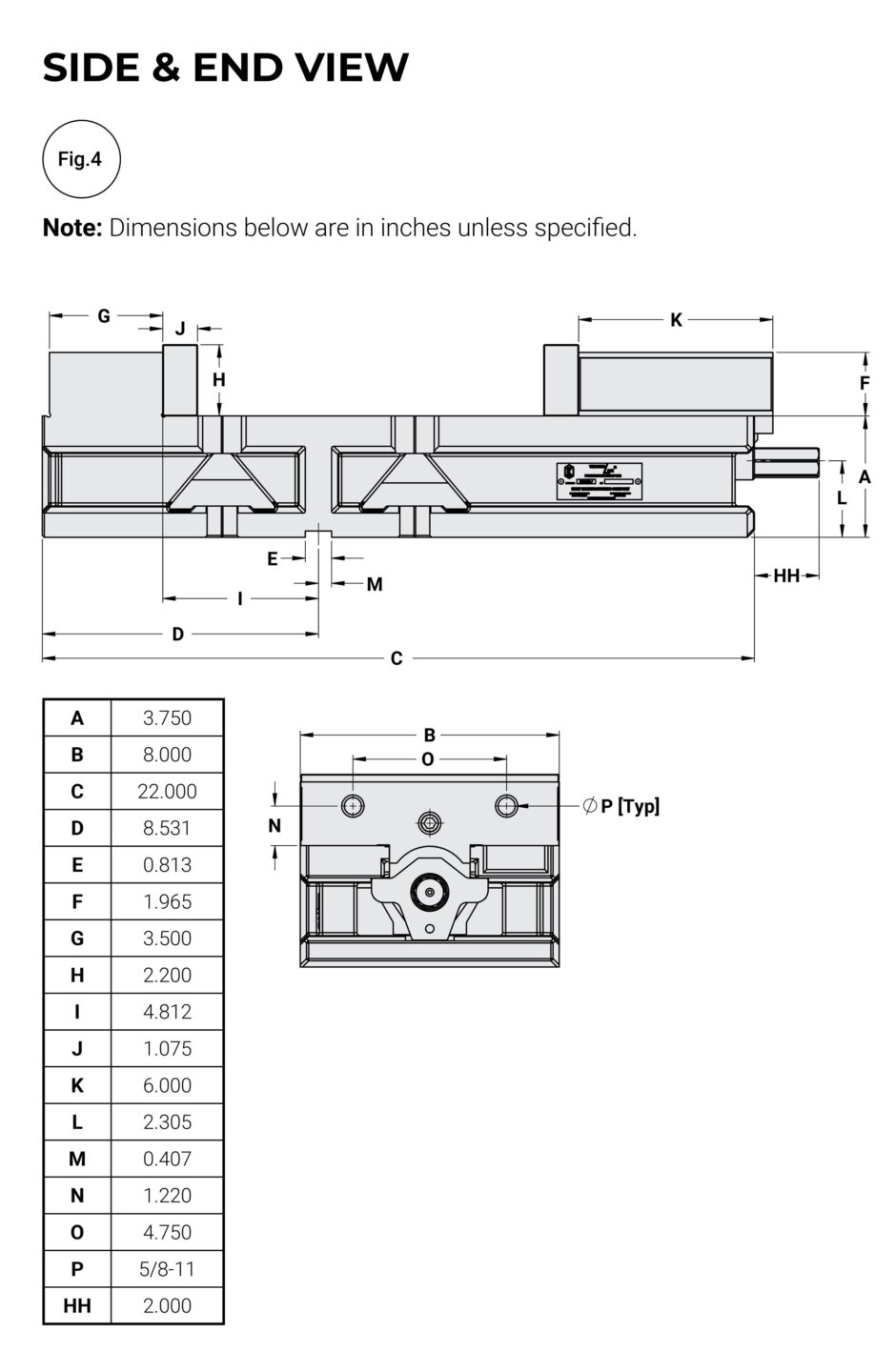

Kurt 3800V Side and End View

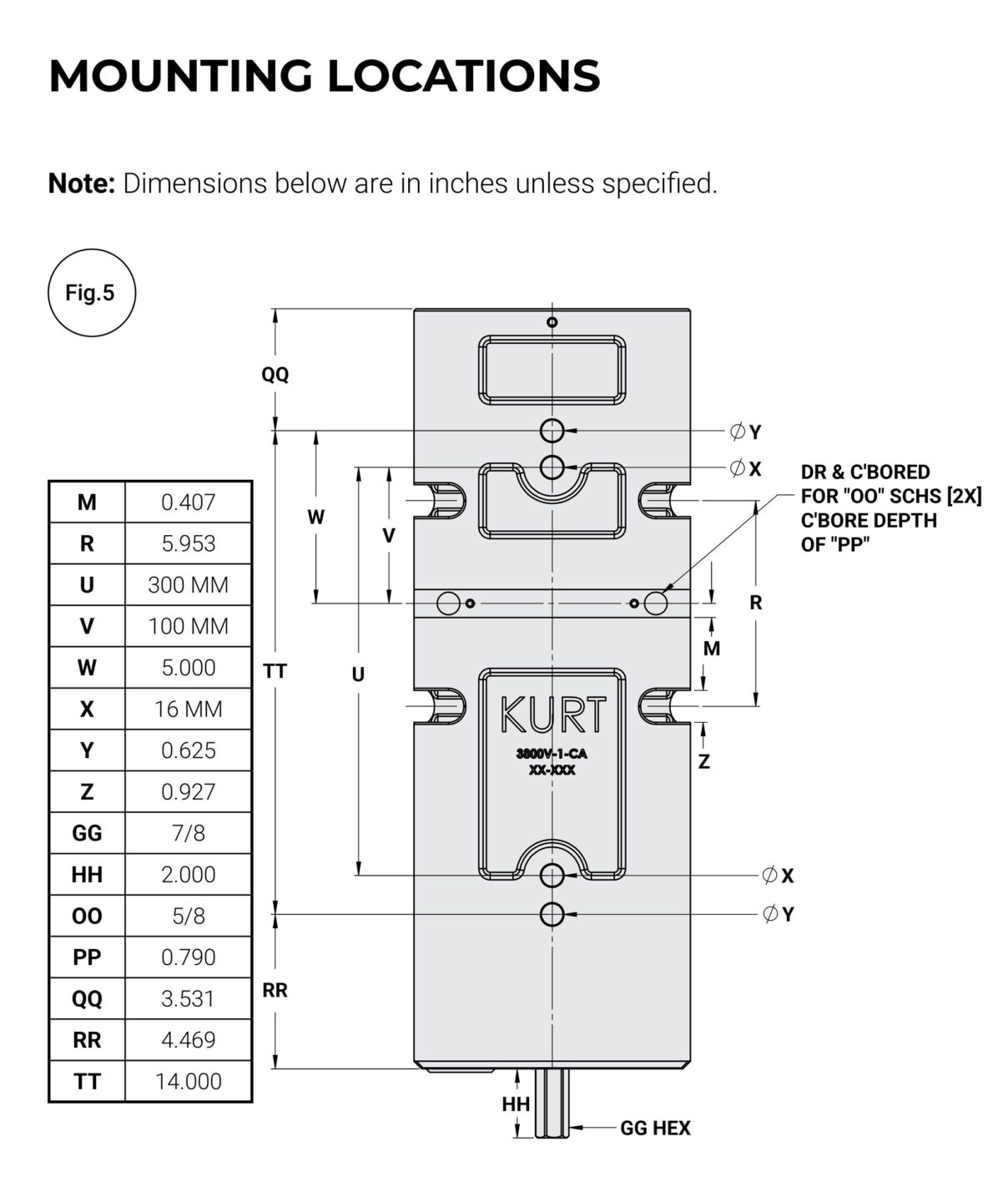

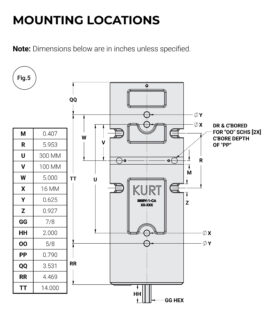

Kurt 3800V Mounting Locations

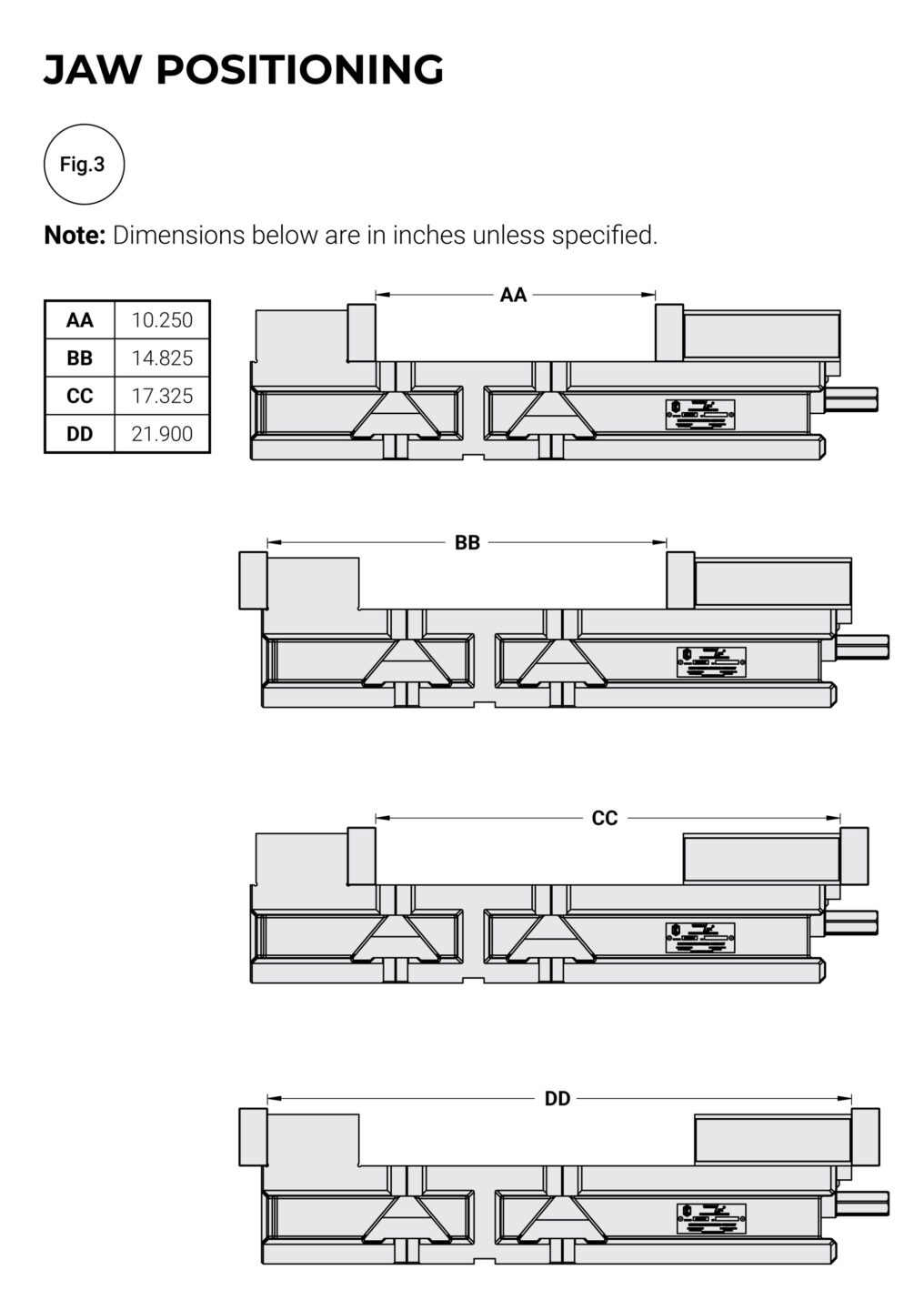

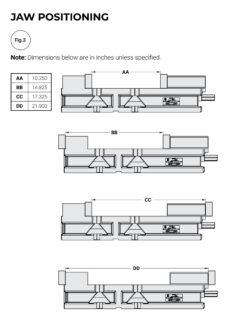

Kurt 3800V Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Ft-Lbs Force in lbs.
10 625
20 1,000
30 1,600
40 2,000
50 2,600
60 3,450
70 4,000
80 5,100
90 6,150
100 6,550

Videos

Products We Recommend

Replacement Parts

Replacement Parts

3810V Replacement Parts
